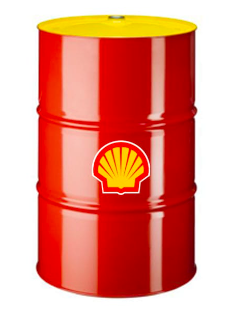

Shell Naturelle S2 Wire Rope Lubricant A is a high performance fully biodegradable grease for use on open gears, wire ropes and cables. This product is formulated with renewable base fluids and contains a select blend of additives to offer corrosion resistance and high load carrying performance. Shell Naturelle S2 Wire Rope Lubricant A offers high resistance to water wash off due to its outstanding adhesion properties.

Shell Naturelle S2 Wire Rope Lubricant A is a high performance fully biodegradable grease for use on open gears, wire ropes and cables. Supplied in an 18kg Pail.

VGP Compliant - Shell Naturelle S2 Wire Rope Lubricant A is an Environmentally Acceptable Lubricant under the definitions of the USA EPA 2013 Vessel General Permit.

Excellent Corrosion Protection - Formulated to include special anti corrosion additives to offer the best possible protection from corrosion, even under the influence of seawater.

Low toxicity towards the environment - Made from >60% renewable raw materials. Shell Naturelle S2 Wire Rope Lubricant A is also classed as minimally toxic and non-bioaccumulative.

Lubricants with poor resistance to water wash-off may fail to protect your equipment, which means there is an increased likelihood of additional costs through unplanned maintenance or equipment downtime.

Shell Naturelle S2 Wire Rope Lubricant A is designed for wire ropes, open gears and other deck equipment. It has excellent adhesion properties and is formulated with a selected blend of additives to offer superior extreme-pressure and anticorrosion protection in the most challenging of environments.

Low-cost lubricants can be poor value if they fail to stay where you need them. Shell Naturelle S2 Wire Rope Lubricant A offers high resistance to water wash-off owing to its outstanding adhesion properties. This can help to cut product consumption and labour costs, thereby reducing the cost of keeping your mooring and crane wires protected and working efficiently.

wire ropes and cables. This product is formulated with renewable base fluids and contains a select blend of additives to offer corrosion resistance and high load carrying performance. Shell Naturelle S2 Wire Rope Lubricant A offers high resistance to water wash off due to its outstanding adhesion properties.

Antes de que usted pide, en contacto con nosotros con sus requisitos y que se citan un gastos de envío a través de nuestro servicio de mensajería internacional.

Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

1.1 Product identifier Trade name : Shell Naturelle S2 Wire Rope Lubricant A Product code : 001F2974

1.2 Relevant identified uses of the substance or mixture and uses advised against Use of the : Automotive and industrial grease. Substance/Mixture

1.3 Details of the supplier of the safety data sheet Manufacturer/Supplier : Shell Markets (Middle East) Limited 8th floor, Dubai Convention Tower Za"abeel 307 Dubai United Arab Emirates Telephone : (+971) 43035333 Telefax : (+971) 43321591 Email Contact for Safety : If you have any enquiries about the content of this SDS please Data Sheet email lubricantSDS@shell.com

Based on available data this substance / mixture does not meet the classification criteria. Classification (67/548/EEC, 1999/45/EC) Not a hazardous substance or mixture.

1 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Hazard statements : PHYSICAL HAZARDS: Not classified as a physical hazard under GHS criteria. HEALTH HAZARDS: Not classified as a health hazard under GHS criteria. ENVIRONMENTAL HAZARDS: Not classified as an environmental hazard under GHS criteria.

Precautionary statements : Prevention: No precautionary phrases. Response: No precautionary phrases. Storage: No precautionary phrases. Disposal: No precautionary phrases.

2.3 Other hazards This mixture does not contain any REACH registered substances that are assessed to be a PBT or a vPvB. Prolonged or repeated skin contact without proper cleaning can clog the pores of the skin resulting in disorders such as oil acne/folliculitis. Used grease may contain harmful impurities. High-pressure injection under the skin may cause serious damage including local necrosis. Not classified as flammable but will burn.

Hazardous componentsChemical name CAS-No. Classification Concentration EC-No. [%]Alkyl thiadiazole 91648-65-6 Aquatic Chronic3; 5 - 10 293-927-7 H412Dialkyl thiophosphate 268567-32-4 Skin Sens.1B; 0,1 - 0,9ester 434-070-2 H317 Eye Dam.1; H318 Aquatic Chronic3; H412 For explanation of abbreviations see section 16.

2 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

4.1 Description of first aid measures General advice : Not expected to be a health hazard when used under normal conditions.

Protection of first-aiders : When administering first aid, ensure that you are wearing the appropriate personal protective equipment according to the incident, injury and surroundings.

If inhaled : No treatment necessary under normal conditions of use. If symptoms persist, obtain medical advice.

In case of skin contact : Remove contaminated clothing. Flush exposed area with water and follow by washing with soap if available. If persistent irritation occurs, obtain medical attention.

When using high pressure equipment, injection of product under the skin can occur. If high pressure injuries occur, the casualty should be sent immediately to a hospital. Do not wait for symptoms to develop. Obtain medical attention even in the absence of apparent wounds.

When using high pressure equipment, injection of product under the skin can occur. If high pressure injuries occur, the casualty should be sent immediately to a hospital. Do not wait for symptoms to develop. Obtain medical attention even in the absence of apparent wounds.

In case of eye contact : Flush eye with copious quantities of water. Remove contact lenses, if present and easy to do. Continue rinsing. If persistent irritation occurs, obtain medical attention.

If swallowed : In general no treatment is necessary unless large quantities are swallowed, however, get medical advice.

4.2 Most important symptoms and effects, both acute and delayed Symptoms : Oil acne/folliculitis signs and symptoms may include formation of black pustules and spots on the skin of exposed areas. Ingestion may result in nausea, vomiting and/or diarrhoea.

3 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

High pressure injection injuries require prompt surgical intervention and possibly steroid therapy, to minimise tissue damage and loss of function. Because entry wounds are small and do not reflect the seriousness of the underlying damage, surgical exploration to determine the extent of involvement may be necessary. Local anaesthetics or hot soaks should be avoided because they can contribute to swelling, vasospasm and ischaemia. Prompt surgical decompression, debridement and evacuation of foreign material should be performed under general anaesthetics, and wide exploration is essential.

High pressure injection injuries require prompt surgical intervention and possibly steroid therapy, to minimise tissue damage and loss of function. Because entry wounds are small and do not reflect the seriousness of the underlying damage, surgical exploration to determine the extent of involvement may be necessary. Local anaesthetics or hot soaks should be avoided because they can contribute to swelling, vasospasm and ischaemia. Prompt surgical decompression, debridement and evacuation of foreign material should be performed under general anaesthetics, and wide exploration is essential.

5.1 Extinguishing media Suitable extinguishing media : Foam, water spray or fog. Dry chemical powder, carbon dioxide, sand or earth may be used for small fires only. Unsuitable extinguishing : Do not use water in a jet. media5.2 Special hazards arising from the substance or mixture Specific hazards during : Hazardous combustion products may include: A complex firefighting mixture of airborne solid and liquid particulates and gases (smoke). Carbon monoxide may be evolved if incomplete combustion occurs. Unidentified organic and inorganic compounds.5.3 Advice for firefighters Special protective equipment : Proper protective equipment including chemical resistant for firefighters gloves are to be worn; chemical resistant suit is indicated if large contact with spilled product is expected. Self-Contained Breathing Apparatus must be worn when approaching a fire in a confined space. Select fire fighter"s clothing approved to relevant Standards (e.g. Europe: EN469). Specific extinguishing : Use extinguishing measures that are appropriate to local methods circumstances and the surrounding environment.

4 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

6.2 Environmental precautions Environmental precautions : Use appropriate containment to avoid environmental contamination. Prevent from spreading or entering drains, ditches or rivers by using sand, earth, or other appropriate barriers.

6.3 Methods and materials for containment and cleaning up Methods for cleaning up : Prevent from spreading or entering into drains, ditches or rivers by using sand, earth, or other appropriate barriers.

6.4 Reference to other sections For guidance on selection of personal protective equipment see Chapter 8 of this Safety Data Sheet., For guidance on disposal of spilled material see Chapter 13 of this Safety Data Sheet.

General Precautions : Use local exhaust ventilation if there is risk of inhalation of vapours, mists or aerosols. Use the information in this data sheet as input to a risk assessment of local circumstances to help determine appropriate controls for safe handling, storage and disposal of this material.

7.1 Precautions for safe handling Advice on safe handling : Avoid prolonged or repeated contact with skin. Avoid inhaling vapour and/or mists. When handling product in drums, safety footwear should be worn and proper handling equipment should be used. Properly dispose of any contaminated rags or cleaning materials in order to prevent fires.

7.2 Conditions for safe storage, including any incompatibilities Other data : Keep container tightly closed and in a cool, well-ventilated place. Use properly labeled and closable containers.

5 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Packaging material : Suitable material: For containers or container linings, use mild steel or high density polyethylene. Unsuitable material: PVC.

Container Advice : Polyethylene containers should not be exposed to high temperatures because of possible risk of distortion.

No biological limit allocated. Monitoring Methods Monitoring of the concentration of substances in the breathing zone of workers or in the general workplace may be required to confirm compliance with an OEL and adequacy of exposure controls. For some substances biological monitoring may also be appropriate. Validated exposure measurement methods should be applied by a competent person and samples analysed by an accredited laboratory. Examples of sources of recommended exposure measurement methods are given below or contact the supplier. Further national methods may be available. National Institute of Occupational Safety and Health (NIOSH), USA: Manual of Analytical Methods http://www.cdc.gov/niosh/ Occupational Safety and Health Administration (OSHA), USA: Sampling and Analytical Methods http://www.osha.gov/ Health and Safety Executive (HSE), UK: Methods for the Determination of Hazardous Substances http://www.hse.gov.uk/ Institut für Arbeitsschutz Deutschen Gesetzlichen Unfallversicherung (IFA) , Germany http://www.dguv.de/inhalt/index.jsp L"Institut National de Recherche et de Securité, (INRS), France http://www.inrs.fr/accueil

8.2 Exposure controls Engineering measuresThe level of protection and types of controls necessary will vary depending upon potential exposure conditions. Select controls based on a risk assessment of local circumstances. Appropriate measures include: Adequate ventilation to control airborne concentrations.

General Information: Define procedures for safe handling and maintenance of controls. Educate and train workers in the hazards and control measures relevant to normal activities associated with this product.

6 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Ensure appropriate selection, testing and maintenance of equipment used to control exposure, e.g. personal protective equipment, local exhaust ventilation. Drain down system prior to equipment break-in or maintenance. Retain drain downs in sealed storage pending disposal or subsequent recycle. Always observe good personal hygiene measures, such as washing hands after handling the material and before eating, drinking, and/or smoking. Routinely wash work clothing and protective equipment to remove contaminants. Discard contaminated clothing and footwear that cannot be cleaned. Practice good housekeeping. Personal protective equipment Personal protective equipment (PPE) should meet recommended national standards. Check with PPE suppliers.

Eye protection : If material is handled such that it could be splashed into eyes, protective eyewear is recommended.

Remarks : Where hand contact with the product may occur the use of gloves approved to relevant standards (e.g. Europe: EN374, US: F739) made from the following materials may provide suitable chemical protection. PVC, neoprene or nitrile rubber gloves Suitability and durability of a glove is dependent on usage, e.g. frequency and duration of contact, chemical resistance of glove material, dexterity. Always seek advice from glove suppliers. Contaminated gloves should be replaced. Personal hygiene is a key element of effective hand care. Gloves must only be worn on clean hands. After using gloves, hands should be washed and dried thoroughly. Application of a non-perfumed moisturizer is recommended.

For continuous contact we recommend gloves with breakthrough time of more than 240 minutes with preference for > 480 minutes where suitable gloves can be identified. For short-term/splash protection we recommend the same, but recognize that suitable gloves offering this level of protection may not be available and in this case a lower breakthrough time maybe acceptable so long as appropriate maintenance and replacement regimes are followed. Glove thickness is not a good predictor of glove resistance to a chemical as it is dependent on the exact composition of the glove material. Glove thickness should be typically greater than 0.35 mm depending on the glove make and model.

Skin and body protection : Skin protection is not ordinarily required beyond standard work clothes. It is good practice to wear chemical resistant gloves.

Respiratory protection : No respiratory protection is ordinarily required under normal conditions of use. In accordance with good industrial hygiene practices,

7 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

precautions should be taken to avoid breathing of material. If engineering controls do not maintain airborne concentrations to a level which is adequate to protect worker health, select respiratory protection equipment suitable for the specific conditions of use and meeting relevant legislation. Check with respiratory protective equipment suppliers. Where air-filtering respirators are suitable, select an appropriate combination of mask and filter. Select a filter suitable for the combination of organic gases and vapours [Type A/Type P boiling point >65°C (149°F)].

Environmental exposure controls General advice : Take appropriate measures to fulfill the requirements of relevant environmental protection legislation. Avoid contamination of the environment by following advice given in Chapter 6. If necessary, prevent undissolved material from being discharged to waste water. Waste water should be treated in a municipal or industrial waste water treatment plant before discharge to surface water. Local guidelines on emission limits for volatile substances must be observed for the discharge of exhaust air containing vapour.

Colour : beige Odour : Slight hydrocarbon Odour Threshold : Data not available pH : Not applicable Drop point : >= 125 °CMethod: IP 396

Initial boiling point and : Data not available boiling range Flash point : Method: Unspecified Remarks: Not applicable

8 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Vapour pressure : < 0,5 Pa (20 °C) estimated value(s) Relative vapour density : > 1estimated value(s) Relative density : 0,900 (15 °C)

Partition coefficient: n- : Pow: > 6(based on information on similar products) octanol/water Auto-ignition temperature : > 320 °C

Viscosity Viscosity, dynamic : Data not available Viscosity, kinematic : Not applicable Explosive properties : Not classified

Conductivity : This material is not expected to be a static accumulator. Decomposition temperature : Data not available

10.1 Reactivity The product does not pose any further reactivity hazards in addition to those listed in the following sub-paragraph.10.2 Chemical stability Stable.10.3 Possibility of hazardous reactions

9 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

10.6 Hazardous decomposition products Hazardous decomposition : Hazardous decomposition products are not expected to form products during normal storage.

Basis for assessment : Information given is based on data on the components and the toxicology of similar products.Unless indicated otherwise, the data presented is representative of the product as a whole, rather than for individual component(s). Information on likely routes of : Skin and eye contact are the primary routes of exposure exposure although exposure may occur following accidental ingestion.

Acute toxicity Product: Acute oral toxicity : LD50 rat: > 5.000 mg/kg Remarks: Expected to be of low toxicity:

Acute inhalation toxicity : Remarks: Not considered to be an inhalation hazard under normal conditions of use.

Skin corrosion/irritation Product: Remarks: Expected to be slightly irritating., Prolonged or repeated skin contact without proper cleaning can clog the pores of the skin resulting in disorders such as oil acne/folliculitis.

10 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Material GHS/CLP Carcinogenicity Classification Alkyl thiadiazole No carcinogenicity classification. Dialkyl thiophosphate ester No carcinogenicity classification.

Product: : Remarks: Not expected to impair fertility., Not expected to be a developmental toxicant.

11 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Further information Product: Remarks: Used grease may contain harmful impurities that have accumulated during use. The concentration of such harmful impurities will depend on use and they may present risks to health and the environment on disposal., ALL used grease should be handled with caution and skin contact avoided as far as possible.

Basis for assessment : Ecotoxicological data have not been determined specifically for this product. Information given is based on a knowledge of the components and the ecotoxicology of similar products. Unless indicated otherwise, the data presented is representative of the product as a whole, rather than for individual component(s).(LL/EL/IL50 expressed as the nominal amount of product required to prepare aqueous test extract). Product: Toxicity to fish (Acute : Remarks: Expected to be practically non toxic: toxicity) LL/EL/IL50 > 100 mg/l

Toxicity to daphnia and other : Remarks: Expected to be practically non toxic: aquatic invertebrates (Acute LL/EL/IL50 > 100 mg/l toxicity) Toxicity to algae (Acute : Remarks: Expected to be practically non toxic: toxicity) LL/EL/IL50 > 100 mg/l

12 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

toxicity) Toxicity to daphnia and other : Remarks: Data not available aquatic invertebrates (Chronic toxicity) Toxicity to bacteria (Acute : toxicity) Remarks: Data not available

no data available12.3 Bioaccumulative potential Product: Bioaccumulation : Remarks: Contains components with the potential to bioaccumulate.

Partition coefficient: n- : Pow: > 6Remarks: (based on information on similar products) octanol/water12.4 Mobility in soil Product: Mobility : Remarks: Semi-solid under most environmental conditions., If it enters soil, it will adsorb to soil particles and will not be mobile. Remarks: Floats on water.12.5 Results of PBT and vPvB assessmentno data available12.6 Other adverse effects Product: Additional ecological : Product is a mixture of non-volatile components, which are not information expected to be released to air in any significant quantities., Not expected to have ozone depletion potential, photochemical ozone creation potential or global warming potential. Poorly soluble mixture., May cause physical fouling of aquatic organisms.

13 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

It is the responsibility of the waste generator to determine the toxicity and physical properties of the material generated to determine the proper waste classification and disposal methods in compliance with applicable regulations. Do not dispose into the environment, in drains or in water courses

Waste product should not be allowed to contaminate soil or ground water, or be disposed of into the environment. Waste, spills or used product is dangerous waste.

Contaminated packaging : Dispose in accordance with prevailing regulations, preferably to a recognized collector or contractor. The competence of the collector or contractor should be established beforehand. Disposal should be in accordance with applicable regional, national, and local laws and regulations.

Local legislation Remarks : Disposal should be in accordance with applicable regional, national, and local laws and regulations.

14.1 UN number ADR : Not regulated as a dangerous good IMDG : Not regulated as a dangerous good IATA : Not regulated as a dangerous good14.2 Proper shipping name ADR : Not regulated as a dangerous good IMDG : Not regulated as a dangerous good IATA : Not regulated as a dangerous good14.3 Transport hazard class ADR : Not regulated as a dangerous good IMDG : Not regulated as a dangerous good IATA : Not regulated as a dangerous good14.4 Packing group ADR : Not regulated as a dangerous good IMDG : Not regulated as a dangerous good IATA : Not regulated as a dangerous good14.5 Environmental hazards ADR : Not regulated as a dangerous good IMDG : Not regulated as a dangerous good14.6 Special precautions for user Remarks : Special Precautions: Refer to Chapter 7, Handling & Storage, for special precautions which a user needs to be aware of or needs to comply with in connection with transport.

14 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

Pollution category : Not applicable Ship type : Not applicable Product name : Not applicable Special precautions : Not applicable

The components of this product are reported in the following inventories: EINECS : All components listed or polymer exempt. TSCA : All components listed.

Full text of H-Statements H317 May cause an allergic skin reaction. H318 Causes serious eye damage. H412 Harmful to aquatic life with long lasting effects.

Full text of other abbreviations Aquatic Chronic Chronic aquatic toxicity Eye Dam. Serious eye damage Skin Sens. Skin sensitisation Abbreviations and Acronyms : The standard abbreviations and acronyms used in this document can be looked up in reference literature (e.g. scientific dictionaries) and/or websites.

ACGIH = American Conference of Governmental Industrial Hygienists ADR = European Agreement concerning the International Carriage of Dangerous Goods by Road AICS = Australian Inventory of Chemical Substances ASTM = American Society for Testing and Materials BEL = Biological exposure limits BTEX = Benzene, Toluene, Ethylbenzene, Xylenes CAS = Chemical Abstracts Service CEFIC = European Chemical Industry Council CLP = Classification Packaging and Labelling COC = Cleveland Open-Cup DIN = Deutsches Institut fur Normung DMEL = Derived Minimal Effect Level DNEL = Derived No Effect Level DSL = Canada Domestic Substance List

15 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

EC = European Commission EC50 = Effective Concentration fifty ECETOC = European Center on Ecotoxicology and Toxicology Of Chemicals ECHA = European Chemicals Agency EINECS = The European Inventory of Existing Commercial Chemical Substances EL50 = Effective Loading fifty ENCS = Japanese Existing and New Chemical Substances Inventory EWC = European Waste Code GHS = Globally Harmonised System of Classification and Labelling of Chemicals IARC = International Agency for Research on Cancer IATA = International Air Transport Association IC50 = Inhibitory Concentration fifty IL50 = Inhibitory Level fifty IMDG = International Maritime Dangerous Goods INV = Chinese Chemicals Inventory IP346 = Institute of Petroleum test method N° 346 for the determination of polycyclic aromatics DMSO-extractables KECI = Korea Existing Chemicals Inventory LC50 = Lethal Concentration fifty LD50 = Lethal Dose fifty per cent. LL/EL/IL = Lethal Loading/Effective Loading/Inhibitory loading LL50 = Lethal Loading fifty MARPOL = International Convention for the Prevention of Pollution From Ships NOEC/NOEL = No Observed Effect Concentration / No Observed Effect Level OE_HPV = Occupational Exposure - High Production Volume PBT = Persistent, Bioaccumulative and Toxic PICCS = Philippine Inventory of Chemicals and Chemical Substances PNEC = Predicted No Effect Concentration REACH = Registration Evaluation And Authorisation Of Chemicals RID = Regulations Relating to International Carriage of Dangerous Goods by Rail SKIN_DES = Skin Designation STEL = Short term exposure limit TRA = Targeted Risk Assessment TSCA = US Toxic Substances Control Act TWA = Time-Weighted Average vPvB = very Persistent and very Bioaccumulative

Further information Other information : A vertical bar (|) in the left margin indicates an amendment from the previous version.

16 / 17 800010015996 AE SAFETY DATA SHEET Shell Naturelle S2 Wire Rope Lubricant A Print Date 09/01/2017 Revision Date 08/31/2017 Version 1.0

This information is based on our current knowledge and is intended to describe the product for the purposes of health, safety and environmental requirements only. It should not therefore be construed as guaranteeing any specific property of the product.

17 / 17 800010015996 AE

2 COMMITTED TO HELPING YOU Shell Marine Products is committed to helping you to meet the latest requirements of the US EPA 2013 VGP. We offer a range of biodegradable lubricants that are approved by leading manufacturers for use in applications that have a potential oil-to-sea interface. SHELL NATURELLE S4 STERN TUBE FLUID 100 DESIGNED TO PROVIDE SUPERIOR PROTECTION AND EFFICIENCY FOR STERN TUBES: OUR SPECIAL-PURPOSE, BIODEGRADABLE, SYNTHETIC STERN TUBE FLUID Shell Naturelle S4 Stern Tube Fluid 100 is a non-emulsifying synthetic fluid specifically developed for use in stern tubes. Manufactured from fully saturated esters, Shell Naturelle S4 Stern Tube Fluid 100 is designed to offer superior lubrication performance while also being readily biodegradable and having low ecotoxicity. Shell Naturelle S4 Stern Tube Fluid 100 is an environmentally acceptable lubricant according to the definitions of the US EPA 2013 VGP. Increased wear protection Ashless (zinc-free) additives provide protection over a wide range of conditions. Approvals from leading stern tube and seal manufacturers include* SKF Blohm + Voss Industries Wärtsilä Propulsion Kemel Aegir-Marine. Designed to offer superior lubrication performance Fully saturated esters ensure excellent resistance to oxidation and hydrolysis while offering high-temperature thermal stability. Excellent hydrolytic stability A non-emulsifying fluid with excellent water separation and anti-foaming characteristics that helps to maintain equipment performance. Environmentally considerate EU Eco Labelled Independently certified as VGP compliant. BEFORE AFTER In a simple visual demonstration, 40 ml of oil and 40 ml of water were mixed for 1 minute at 1,000 rpm under ambient conditions. The photos below were taken after 30 minutes settling time at room temperature. Shell Naturelle S4 Stern Tube Fluid 100 Emulsifying oil STERN TUBE FLUIDS ARE NOT ALL THE SAME Ingress of water in some types of stern tube fluids can produce an emulsion whereby the water held in this emulsion cannot be drained away. In these situations, the stern tube fluid increases in viscosity and becomes more susceptible to hydrolysis, which leads to the formation of harmful acids. Ultimately, the life of the stern tube fluid may be reduced and equipment wear may increase. RAPID WATER SEPARATION Clear separation of oil and water enables easy draining from the stern tube system THICK, VISCOUS MILKY EMULSION Water remains in the oil and in the system Shell Naturelle S4 Stern Tube Fluid 100 does not form an emulsion; instead, it has excellent water separation characteristics, which means water can be easily drained from the system. Manufactured from fully saturated synthetic esters, Shell Naturelle S4 Stern Tube Fluid 100 can help to extend fluid and equipment life by protecting against hydrolysis and oxidation.

3 SHELL NATURELLE HF-E 46 AND 68 EFFICIENCY FOR HYDRAULIC AND POWER TRANSMISSION SYSTEMS WORKING IN ENVIRONMENTALLY SENSITIVE AREAS FROM OUR FULLY SYNTHETIC HYDRAULIC FLUID CUTTING OPERATING COSTS Hydraulic fluids that fail to protect your equipment from wear and corrosion can increase maintenance costs and reduce equipment availability. Shell Naturelle Fluid HF-E helps to lower maintenance costs by offering excellent wear protection over a wide temperature range. The naturally high shear stable viscosity index (VI) of Shell Naturelle Fluid HF-E helps to deliver responsive performance from cold start to full-load, heavy-duty operation. 1,000 Typical HM 46 fluid Kinematic viscosity, cst SHELL NATURELLE FLUID HF-E 46 SHELL NATURELLE FLUID HF-E 68 Environmentally considerate EU Eco Labelled Independently certified as VGP compliant. Approvals from leading marine equipment manufacturers include* Rolls-Royce (stabilisers) Sperry Marine (stabilisers) Wärtsilä Propulsion (stern tubes). Specialist hydraulic approvals include* Eaton Vickers ISO 15380: HEES VDMA HEES JCMAS P044 (endurance test) Temperature, o C Shell Naturelle Fluid HF-E is suitable for hydraulic and fluid power transmission systems in exposed environments where there can be wide variations in temperature. Shell Naturelle Fluid HF-E is blended from synthetic base stocks with a naturally high VI of The absence of viscosity modifier additives means the fluid is shear stable (i.e., there is no loss of viscosity control under high shear operating conditions) and offers multigrade performance with no loss of VI during use. The viscosity temperature curve is much flatter than that of conventional hydraulic fluids.

4 SHELL NATURELLE S4 GEAR FLUID 68, 100 AND 150 DESIGNED TO OFFER PROTECTION FOR GEARS IN THRUSTERS, PROPULSION DRIVES AND OTHER APPLICATIONS: OUR SPECIAL-PURPOSE BIODEGRADABLE, SYNTHETIC GEAR AND BEARING FLUIDS Prematurely worn components can mean additional maintenance costs and reduced equipment availability. Shell Naturelle S4 Gear Fluid can help to lower maintenance costs by offering outstanding anti-wear and load-carrying performance through their high-quality, synthetic ester base fluid and advanced non-toxic anti-wear additives. CUTTING OPERATING COSTS If water and air contaminate your oil, its ability to reduce friction and keep your gears working efficiently may be compromised. Shell Naturelle S4 Gear Fluids help to cut operating costs by maintaining system efficiency through their excellent waterseparating, load-carrying and anti-wear characteristics. Shell Naturelle S4 Gear Fluid meets industry standard DIN 51517/3 CLP-E, including full water separation in less than 30 minutes according to DIN ISO LONGER SERVICE LIFE Fully saturated esters ensure excellent resistance to oxidation and hydrolysis while offering high-temperature thermal stability. Shell Naturelle S4 Gear Fluid offers the potential to extend oil service life compared with conventional mineral gear oils. LOAD CARRYING AND WEAR PROTECTION Shell Naturelle S4 Gear Fluid is formulated to have excellent loadcarrying capacity and anti-scuffing performance. Advanced non-toxic additives provide protection over a wide range of conditions and ensure long component life, even under shock-loading conditions. All Shell Naturelle S4 Gear Fluid grades pass the FZG load test above load stage 13 according to ISO A20. Environmentally considerate EU Eco Labelled Independently certified as VGP compliant. APPLICATIONS Shell Naturelle S4 Gear Fluid is suitable for gears and bearings in vessel propulsion drives, thrusters and controllable pitch propellers, and is available in ISO viscosity grades 68, 100 and 150. Approvals from leading thruster manufacturers include* Kawasaki Heavy Industries Nakashima Propellor Holland Roerpropellor (ZF). Approvals from leading stern tube and seal manufacturers include* SKF Blohm + Voss Industries Wärtsilä Propulsion IHC Sealing Solutions Aegir-Marine. Approved for use in Sperry Marine for fin stabilisers Caterpillar (Berg) controllable-pitch propellers Ortlinghaus wet marine clutches. IT IS WELL-KNOWN THAT FREE WATER IN LUBRICATING OIL DECREASES THE LIFE OF ROLLING ELEMENT BEARINGS FROM 10 TO MORE THAN 100 TIMES. SKF Taken from SKF: SKF has been a leading global technology provider since 1907

5 SHELL NATURELLE S2 WIRE ROPE LUBRICANT A EFFECTIVE EXTREME-PRESSURE PROTECTION FOR WIRE ROPES, CABLES, PLAIN BEARINGS AND GENERAL DECK MACHINERY OPERATING IN CHALLENGING MARINE ENVIRONMENTS FROM OUR ADVANCED BIODEGRADABLE LUBRICANT Lubricants with poor resistance to water wash-off may fail to protect your equipment, which means there is an increased likelihood of additional costs through unplanned maintenance or equipment downtime. Shell Naturelle S2 Wire Rope Lubricant A is designed for wire ropes, open gears and other deck equipment. It has excellent adhesion properties and is formulated with a selected blend of additives to offer superior extreme-pressure and anticorrosion protection in the most challenging of environments. CUTTING OPERATING COSTS Low-cost lubricants can be poor value if they fail to stay where you need them. Shell Naturelle S2 Wire Rope Lubricant A offers high resistance to water wash-off owing to its outstanding adhesion properties. This can help to cut product consumption and labour costs, thereby reducing the cost of keeping your mooring and crane wires protected and working efficiently. ADHESION TEST 1: SPRAY CABINET <5% 25% 100 TEST 2: HEATED PLATE TEST Grease lost during test, % Shell Naturelle Competitor s EAL Shell Naturelle Competitor s EAL 3 g of grease is spread across a test plate and then jetted with water at 38 C at a pressure of 40 psi for 5 minutes. Shell Naturelle Wire Rope Lubricant A = <5% loss Competitor s environmentally acceptable lubricant (EAL) = 25% loss A small sample of grease is placed on a metal test plate, which is then hung vertically. The grease is subjected to a temperature of 70 C and its movement is monitored. The Shell Naturelle S2 Wire Rope Lubricant A has not moved, changed shape, lost any of its colour or stained the plate. SHELL NATURELLE S5 GREASE V120P 2 EXTREME PRESSURE AND ANTI-WEAR Specially selected solid lubricants and additives protect components from excessive wear, even under heavy loads. EXCELLENT CORROSION PROTECTION Shell Naturelle S2 Wire Rope Lubricant A is formulated to include special anti-corrosion additives to offer enhanced protection from corrosion, even under the influence of seawater. In an SKF EMCOR test for a period of one week, there was no sign of corrosion. READILY BIODEGRADABLE Shell Naturelle S2 Wire Rope Lubricant A achieves the OECD 301 F requirement of >60% degradation within 28 days and is made from >60% renewable raw materials classed as minimally toxic and non bioaccumulative. APPLICATIONS Shell Naturelle S2 Wire Rope A Lubricant is designed for use on wire ropes and open gears. It can also be used on other applications such as crane and davit wires, rudder stocks, propeller caps and dredger bucket wheels. Shell Naturelle S5 Grease V120P 2 is a biodegradable grease for use in rudder bearings; applications such as slowspeed plain bearings (slower than 500 rpm) and high-speed ball and roller bearings (up to 2,000 rpm) that require an extreme-pressure grease; and in routine greasing of deck equipment. The grease is based on a lithium hydroxystearate soap thickener and is fortified with extreme-pressure, anti-oxidant, anti-wear and anti-rust additives. Fully biodegradable to the latest CEC-L-33-A-93 standard Provides resistance to the formation of deposits caused by oxidation at high operating temperatures and maintains consistency, thereby reducing leakage Offers good corrosion resistance characteristics to offer effective protection in challenging environments. Approvals from leading marine manufacturers include* Becker Marine Systems (full approval for rudder carriers) Rolls-Royce (full approval for rudder carriers).

6 CHANGE OVER TO THE SHELL NATURELLE PRODUCT RANGE To change to our range of biodegradable lubricants, the entire process must be carefully managed. A detailed changeover guide can be obtained from your local Shell Marine technical services team. The team is available to provide you with the necessary advice to help to guide you through the changeover process and also to help you achieve the best performance from Shell Naturelle products while ensuring minimal waste throughout the process. As part of its international offering, Shell Marine Products offers the following range of branded technical services: Shell LubeAdvisor Technical support services, lubrication surveys and audits, storage and handling advice Shell LubeExpert Specialist on-site critical application support and inspections by application, marine and product experts Shell Lube Monitor Cylinder condition monitoring Shell Rapid Lubricants Analysis Laboratory oil condition monitoring tools service Shell Rapid Lubricants Onboard Plus and Shell Rapid Lubricants Onboard Alert Onboard oil condition monitoring tools. *The information and guidance offered for use of Shell Naturelle products is based on experience and understanding gained through the development and manufacturing of lubricants. The performance of the products can be influenced by a number of variables, not limited to, contamination, operating temperature, equipment application, external environment and material type. The suitability of Shell Naturelle products must be checked for all applications with original equipment manufacturers (OEM) or with Shell technical representatives before these products are used. It is important to check that the fluid has the necessary OEM approval for the specific make and model of equipment and to check that the materials used for seals, flexible hoses, O-rings and tank coatings are also compatible with the Shell Naturelle products that are to be used. Please contact your Shell technical manager for the complete list of approvals. CONTACT US To find out more about our range of marine fluids for operations in environmentally sensitive areas, please contact your local Shell representative or to Visit Shell International Petroleum Company Limited All rights reserved. Issued August 2014
