Product Introduction

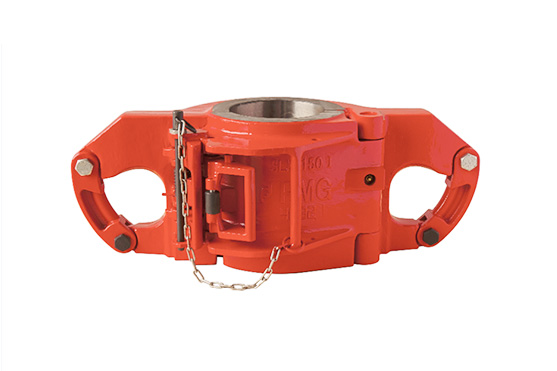

1 DD Elevator
Introduction
Model DD center latch elevator with square shoulder are suitable for handling drill collar, casing and tubing. The load ranges from 150 tons to 350 dons. The size ranges are from 2 to 51/2. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment
Specifications
Model |
(in)Size |
Rated Cap. (short tons) |
||
(DP) |
(Casing) |
(Tubing) |
||
DD□-150 |
23/8-51/2 |
41/2-51/2 |
23/8-41/2 |
150 |
DD□-250 |
23/8-51/2 |
41/2-51/2 |
23/8-41/2 |
250 |
DD□-350 |
23/8-51/2 |
41/2-51/2 |
23/8-41/2 |
350 |
|
|
|
|
|
2 DDZ Elevator
Introduction
DDZ series elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. The load ranges from 100 tons to 750 dons. The size ranges are from 2 to 6. The products shall be designed and manufactured according to the requirements in API Spec 8C.
Specifications
Model |
(in)Size |
(short tons) Rated Capacity |
Remark |
DDZ□-100 |
23/8-5 |
100 |
MG |
DDZ□-150 |
23/8-51/2 |
150 |
RG |
DDZ□-250 |
23/8-51/2 |
250 |
MGG |
DDZ□-350 |
31/2-57/8 |
350 |
GG |
DDZ□-350TD |
31/2-57/8 |
350 |
|
DDZ□-500 |
31/2-65/8 |
500 |
HGG |
DDZ□-500TD |
31/2-65/8 |
500 |
|
DDZ□-750 |
4-65/8 |
750 |
|

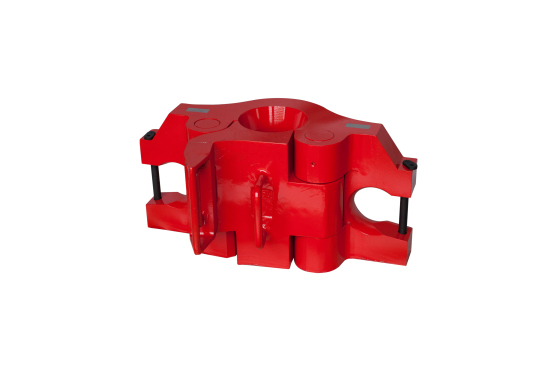

3 CD Elevator
Introduction
Model CD side door elevator with square shoulder are suitable for handling tubing, casing ,drill pipe and drill collar in oil and natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Specifications
（in）Size |
Rated Cap. （short tons） |
|
CD□-150 |
23/8-14 |
150 |
CD□-200 |
23/8-14 |
200 |
CD□-250 |
23/8-20 |
250 |
CD□-350 |
41/2-20 |
350 |
CD□-500 |
41/2-14 |
500 |
CD□-750 |
41/2-97/8 |
750 |

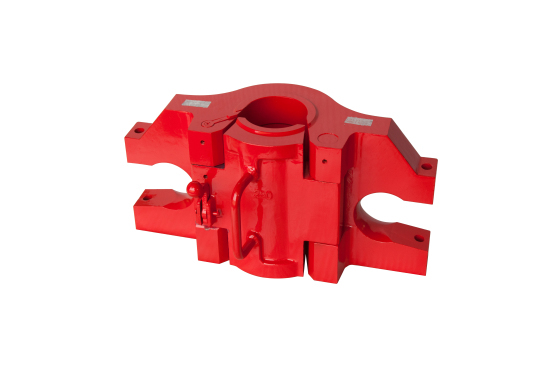

4 CDZ Elevator
Introduction
CDZ drilling pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment
Specifications
Model |
（in）Size |
Rated Cap. （short tons） |
CDZ□-150 |
23/8-51/2 |
150 |
CDZ□-250 |
23/8-51/2 |
250 |
CDZ□-350 |
27/8-51/2 |
350 |
CDZ□-500 |
31/2-51/2 |
500 |

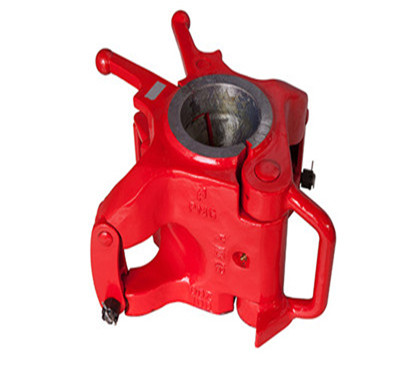

5 SLX Elevator
Introduction
Model SLX side door elevator with square shoulder are suitable for handling tubing, casing ,drill pipe and drill collar in oil and natural gas drilling, well construction. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment .
Specifications
Model |
Suitable size（in） |
Max. load（tons） |
SLX/65 |
3.1/2-5.1/2 |
65 |
5.3/4-8.5/8 |
||
9-10.3/4 |
||
11-14.1/4 |
||
SlX/100 |
2.3/8-2.7/8 |
100 |
4.1/2-5.3/4 |
||
SLX/150 |
5.1/2-8.5/8 |
150 |
9.5/8-10.3/4 |
||
11.3/4-13.3/8 |
||
16-20 |
||
22-30 |
||
SLX/250 |
5.1/2-7.3/4 |
250 |
8.5/8-10.3/4 |
||
11.3/4-14 |
||
16-20 |
||
22-30 |
||
SLX/350 |
4.1/2-6 |
350 |
6.5/8-9.5/8 |
||
11.3/4-14 |
||
16-20 |
||
22-30 |
||
SX/500 |
9.5/8-14 |
500 |
16-20 |
||
22-30 |

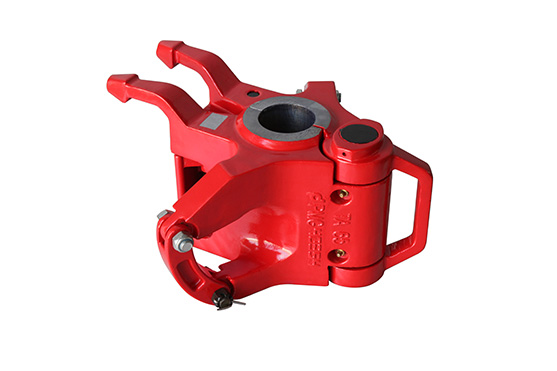

6 TA Elevator
Introduction
Model TA center latch elevator with square shoulder are suitable for handling drill pipe, drill collar, casing and tubing. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Specifications
Model |
Suitable size（in） |
Max. load（tons） |
TA/35 |
1.05-2.7/8 |
35 |
TA/65 |
1.66-2.7/8 |
65 |
TA/100 |
2.3/8-2.7/8 |
100 |
2.3/8-5 |
||
TA/150 |
4.1/8-8.5/8 |
150 |
9-11.1/4 |

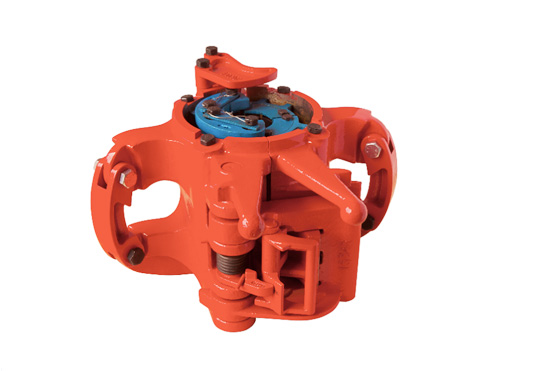

7 Y series slip type Elevator
Introduction
The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
Specifications
Model |
Suitable size mm（in） |
Rated load（tons） |
|
mm(in) |
kN |
||
HYT |
60.3-88.9(2.3/8-3.1/2) |
1350 |
150 |
YT |
33.4-88.9(1.315-3.1/2) |
675 |
75 |
MYT |
33.4-73(1.315-2.7/8) |
360 |
40 |
LYT |
26.7-52.4(1.05-1.1/16) |
180 |
20 |
HYC |
88.9-139.7(3.1/2-7.5/8) |
1800 |
200 |
MYC |
88.9-117.8(3.1/2-7) |
1125 |
125 |
YC |
88.9-117.8(3.1/2-7) |
675 |
75 |

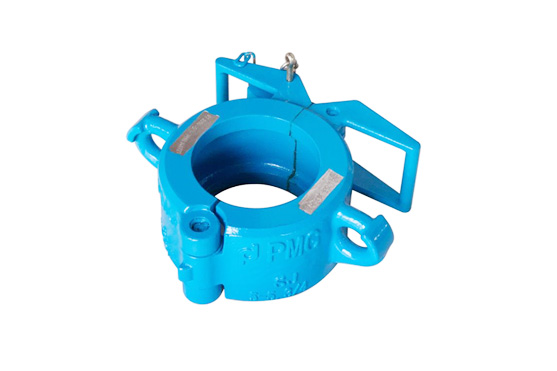

8 Single joint Elevator
Introduction
SJ series auxiliary elevator is mainly used as a tool in handling single casing or tubing in oil and natural gas drilling and cementing operation. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment
Specifications
Size |
Rated Cap.(kN) |
|
in |
mm |
|
23/8-27/8 |
60.3-73.03 |
45 |
31/2-43/4 |
88.9-120.7 |
|
5-53/4 |
127-146.1 |
|
6-73/4 |
152.4-193.7 |
|
85/8-103/4 |
219.1-273.1 |
|
113/4-133/8 |
298.5-339.7 |
|
135/8-14 |
346.1-355.6 |
|
16-20 |
406.4-508.0 |
|
211/2-241/2 |
546.1-622.3 |
60 |
26-28 |
660.4-711.2 |
|
30-36 |
762.0-914.4 |
|

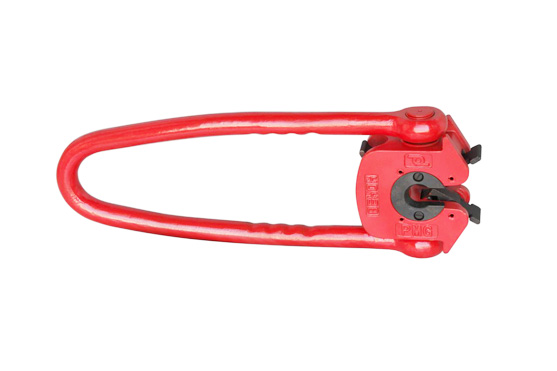

9 Sucker rod Elevator
Introduction
Sucker rod elevator is used for handing & hoisting of the suck rod, that manufaturing coform to API related lated standard,
Specifications
Model |
Suitable size （in） |
Max. working load |
SRE20 |
1/2、5/8、3/4、7/8、1、11/8、11/4、11/2 |
20tons（180kN） |
SRE25 |
5/8、3/4、7/8、1、11/8、11/4、11/2 |
25tons（225kN） |
CDQ20 |
1/2、5/8、3/4、7/8、1、11/8、11/4、11/2 |
20tons（180kN） |
CDQ25 |
5/8、3/4、7/8、1、11/8、11/4、11/2 |
25tons（225kN） |
