mud pump piston assembly in stock

A wide variety of mud pump rubber piston assembly options are available to you, such as 1 year, not available.You can also choose from new, mud pump rubber piston assembly,As well as from energy & mining, construction works , and machinery repair shops. and whether mud pump rubber piston assembly is 1.5 years, 6 months, or unavailable.

Our replaceable rubber pistons and inserts are based off of the industry standard “Mission-Supreme” style; our inserts will ft all competitors’ piston hubs that are interchangeable with the OEM.

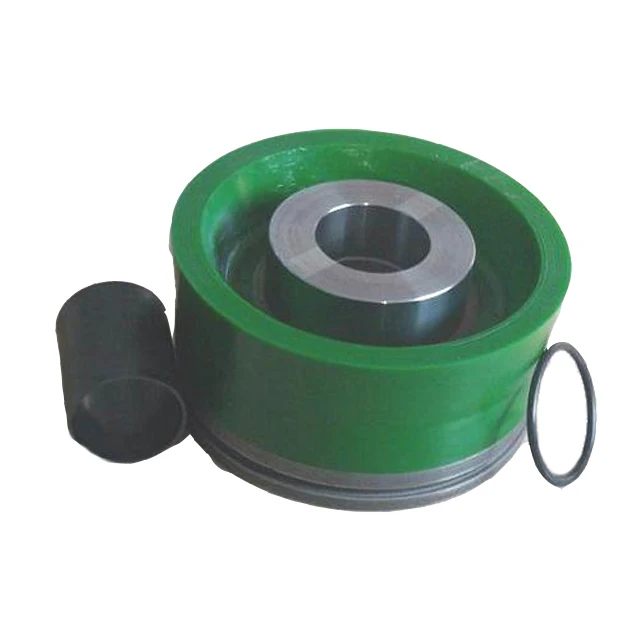

Material: The piston assembly is constituted by the piston core, rubber, spring, clamp, etc. Pistoncore is made of 42CrMo and the piston rubber is made of nitrile rubber or polyurethane rubber.

Application: Piston assembly is one of the main parts of mud pump hydraulic system, but also th e vulnerable part of drilling work. Mud pump discharge pressure is through the piston assembly by the piston reciprocating linear motion.

American Mud Pumps LLC: warrants its products to be free from defects in material and/or workmanship under normal use and service for a period of one(1)year from the date of shipment. The liability for any defects shall be limited to the repair or replacement of such products, or at the option of American Mud Pumps LLC the refunding of purchase price. This warranty is expressly in lieu of all other warranties and representations, expressed or implied, and all other obligations or liabilities on the part of American Mud Pumps LLC, which shall not be liable for consequential damages for any breach of warranty."

American Mud Pumps LLC is a quality independent company. We are neither a licensee, nor affiliated with any other original equipment manufacturer (OEM) which may be named throughout. The manufacturers" names or trademarks used herein are solely for identification purposes and are not intended by American Mud Pumps LLC to cause confusion as to the source, sponsorship or quality of the parts provided by American Mud Pumps LLC. The OEMs named throughout this catalog do not sponsor, promote, warranty or endorse American Mud Pumps LLC products. Part number usage is for identification purposes only."

The piston reciprocates on the cylinder liner of the mud pump to provide discharge pressure for the mud pump. Piston Hub, the material used is ASTM5140 or ASTM4140, the premium forged steel. The piston has single action, double action, single action vulcanization, and double action vulcanization piston

Assembled and integrated， The assembled piston includes Piston Hubs, piston rubber, Piston Plate, and Snap Ring. Piston rubber materials include polyurethane, nitrile rubber, and HNBR.

G.D. TEE-BJA / TEE BFB : Valve assembly (PT. No. 200 PEE 482B) 5” stroke 3.1/2” triplex plunger mud pump spares : Valve body, valve, PU insert, washer, spring, spacer lantern, 3.1/2” Hardchrome plunger & packing set (60bu73)

Triplex plunger mud pump spares : Valve assembly complete (B-73991), fluid valve body, seat, polyurethane insert, self lock nut, spring are ready stock. 4” & 4.1/2” plunger (Hardchrome)

Function: Mud Pump Liner also called the cylinder liner. The cylinder liner is the core accessory of the mud pump, which has the functions of storing mud, bearing pressure and completing the suction and discharge of mud. Because the cylinder liner is in direct contact with the mud, it is easy to be worn and corroded by the tiny sand particles, acid and alkali liquid in the mud during work. As a result, the inner diameter of the cylinder liner becomes larger, leakage occurs in the seal between the cylinder liner and the piston, and the pressure is reduced. The cylinder liner is scrapped eventually. Cylinder liner is a one-time wearable part that cannot be reused, and its life span directly affects the normal operation and cost of the drilling operation.

The piston assembly is one of the main parts of the hydraulic end system of the mud pump, and it is also one of the vulnerable parts of the drilling work. The discharge pressure of the mud pump is generated by the reciprocating linear movement of the piston assembly in the piston.

The piston assembly is composed of piston hub, rubber, snap ring, plate, etc. The material of the piston hub is 42CrMo (ASTM4140), and the material of the piston rubber is NBR rubber or Polyurethane Rubber.

Polyurethane rubber has excellent oil resistance and wear resistance. The working temperature is not higher than 120℃, which is suitable for oil-based mud with working pressure below 35Mpa and working environment with high sand content.

Lake Petro has over 10 years of experience in Liners and Pistons, we export a large amount of mud pump parts to many countries and regions in the world. If you are interested in any of our products, please contact sales@lakepetro.com.

A Mud Pump may have many changeable parts, such as liner, piston, extension rod, pulsation dampener, valve, clamp, etc. Lake Petro could provide 100% interchangeable parts of many common brands of pump. We offer Liners with Ceramic (Zirconia and Aluminium oxide) and Steel (Metal and Bi-metal) materials. Piston assembly is the important spare parts and expendable parts of oil drilling mud pumps. Mud pump valve assy include valve body, valve seat, valve insert (valve rubber ). Pulsation Dampener is usually installed on the discharge line to reduce the fluctuation of pressure and displacement of the drilling mud pump. Fluid End Module is an important component of the hydraulic pump end of the mud pump.

FET manufactures a full range of valves and seats for every drilling and well-servicing application as part of our full line of Osprey® mud pump system solutions. All of our valves and seats can be used in water, water base, oil base and synthetic base mud applications. FET offers additional valves and seats not listed below, including drilling valves, frac valves and well service valves. FET’s QC standards for the dimensional and material specs are extremely rigid in comparison to other manufacturers. Contact your FET representative to learn more.

Urethane Bonded Piston These pistons are constructed of urethane, bonded to a solid metal hub. Double durometer urethane is designed to provide optimum performance in oil base or water base mud and high drilling pressures. Features: - Rated for all drilling operations - Maximum operating temperature is 180°F - High pressure mud pump service - Extended service

2. Kerui"s polyurethane piston is designed to cover higher temperature and pressure, resist extrusion and wear, and the best performance of piston is achieved by water cooling.
