If you are supplying pump supplies, you can find the most favorable prices at Alibaba.com. Whether you will be working with piston type or diaphragm type systems, reciprocating or centrifugal, Alibaba.com has everything you need. You can also shop for different sizes drilling mud pump price wholesale for your metering applications. If you operate a construction site, then you could need to find some concrete pump solutions that you can find at affordable rates at Alibaba.com. Visit the platform and browse through the collection of submersible and inline pump system, among other replaceable models.

A drilling mud pump price comes in different makes and sizes, and you buy the tool depending on the application. The pump used by a filling station is not the one you use to fill up your tanks. There are high flow rate low pressure systems used to transfer fluids axially. On the other hand, you can go with radial ones dealing with a low flow rate and high-pressure fluid. The mixed flow pump variety combines radial and axial transfer mechanisms and works with medium flow and pressure fluids. Depending on what it will be pumping, you can then choose the drilling mud pump price of choice from the collection at Alibaba.com.

Alibaba.com has been an excellent wholesale supplier of drilling mud pump price for years. The supply consists of a vast number of brands to choose from, comes in different sizes, operations, and power sources. You can get a pump for residential and large commercial applications from the collection. Whether you want a water pump for your home, or run a repair and maintenance business, and need a supply of dr drill mud pump prices, you can find the product you want from the vast collection at Alibaba.com.ther it is for refrigeration, air conditioning, transfer, or a simple car wash business, anything you want, Alibaba.com has it.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

Trenchless mud pump, also referred to as horizontal directional drilling pumps provides an essential service to the HDD industry. They are an integral component to the operation; comparing with oil well, they must be built at high flow and low pressure in mind.

Based on this property, Beyond trenchless mud pump was launched as the customers require. Our current HDD mud pump ranges from 1800L/min(475GPM) to 2800L/min(740GPM) at pressure of 9Mpa/1300PSI. It is compact in weight and size, range from 4800kg-7800kg, 6.76CBM-1.92CBM. The pump can be assembled with engine and transmission system on the same skid for easy operation and transportation.

Another attractive point, it is much more cost-effective than F-500 mud pump which is commonly used in the market. It can save your cost not only on the pump itself, but also on the cost of engine and transmission since it is only 300KW and 7.8 metric ton in weight. Also it can save your fuel cost after it starts to run at site.

Working with Beyond means having an expert team to support you throughout the life cycle of your pump. Contact us today for consultation to find out the best solution for your HDD PUMPS.

Rated at 7,500 psi, and with a 14” stroke, the PZ 2400 enables contractors to drill longer laterals with optimal flow and pressure. Combined with Redline consumables, customers can expect to see improved performance and decreased downtime, lowering customers" total cost of ownership.

The PZ 2400 features a Y-shaped module design, meaning less stress is placed on the pumps internal components and higher flow rates can be achieved with improved fatigue life.

The 2,200-hp mud pump for offshore applications is a single-acting reciprocating triplex mud pump designed for high fluid flow rates, even at low operating speeds, and with a long stroke design. These features reduce the number of load reversals in critical components and increase the life of fluid end parts.

The pump’s critical components are strategically placed to make maintenance and inspection far easier and safer. The two-piece, quick-release piston rod lets you remove the piston without disturbing the liner, minimizing downtime when you’re replacing fluid parts.

A mud pump is a reciprocating piston or plunger device designed to pump drilling fluid under high pressures and volumes down the drill string of a drilling rig. The main functions of drilling fluid are to provide hydrostatic pressure to prevent formation fluids from entering and to stabilize the bore, to keep the drill bit cool and clean, to carry drill cuttings back out to the surface, and to suspend the drill cuttings while drilling is paused or during the pullback process.

Mud pumps consist of two main sub-assemblies- the fluid end and the power end. The fluid end performs the pumping process with valves, pistons, and liners, or plungers and stuffing boxes- depending upon the type used. These components are considered expendables, and are designed to be easily replaced in the field. The power end contains the eccentric or crankshaft, along with the connecting rods, and cross heads/slides.

Tulsa Triplex is a Tulsa Rig Iron company. We manufacture pumps from 100 to 600 horsepower that are designed to be easily maintained and are capable of being completely rebuilt. Our pumps feature a smaller footprint and lighter weight than competing models, making them completely legal load size and weight in most instances. They are available as a bare pump, with chainbox, or a complete skidded package.

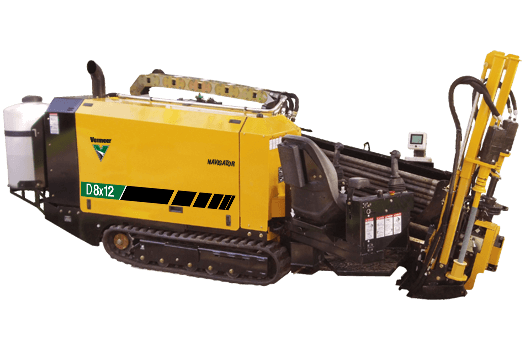

It’s been said time-and-time again that drilling fluid is the blood that keeps a horizontal directional drilling (HDD) project moving. As the size and overall number of projects have increased, so too has the acceptance and use of mud systems.

As the industry evolved, contractors became aware of the importance of bentonite- and barite-based drilling fluids shifting away from using water mixed with other less effective lubrication products. With the use of these new drilling fluids, mud systems began the migration from oilfield to HDD use.

“Whether onshore or offshore drilling … there are different stages of solids control that go on. There are separate sections with shale shakers, mud cleaners with hydrocyclone manifolds and decanter centrifuges scattered across the drilling operation,” says Raymond Pietramale, administrative sales and marketing manager, Elgin Separation Solutions.

Whether you refer to them as mud recyclers, reclaimers or cleaning systems, today’s equipment is a far cry from the piecemealed, oilfield-based units of the early days. They’ve become specifically-designed and engineered tools for the smaller footprint of an HDD jobsite and a key component to a project’s overall solids control plan.

“With the HDD crews, it became much more efficient to package all of this into one system with the shaker, pumps, tank capacity, desilter and desander, hydrocyclone manifolds, additives hopper and a power pack that are skid or trailer mounted to maintain a small footprint onsite,” says Pietramale.

Manufacturers like Elgin, as well as Mud Technology International Inc. and Tulsa Rig Iron and component manufacturers like Derrick Corp., can all trace their HDD roots to oilfield equipment operations. These manufacturers know the importance of efficiency on HDD jobsites and have grown to become leading designers and manufacturers of equipment dedicated to HDD operations.

“The mud system’s chief function is to remove drilled solids from the drilling fluid and help maintain a clean drilling fluid to enable a successful crossing,” says Ben Clark, global manager of civil construction at Derrick Corp. “A mud system that is capable of effectively recycling drilling fluid, even under maximum fluid and solids loading, will allow for a much more cost-effective operation by facilitating increased rates of penetration and less nonproductive time, while reducing a number of operational costs such as drilling mud disposal, accelerated wear on high pressure pumps, tooling, swivels, chemical and water usage, downhole issues and more detrimental effects.”

Terry Flynn, vice president of sales and marketing at Tulsa Rig Iron, further explains the many benefits of a mud system. “Fluid returns from a bore include sand, soil, rocks and various other material, which are extremely damaging to your pumps and downhole tooling,” he says. “Recycling your fluid also cuts down on the required water and bentonite needs throughout the job. The continual disposal standards imposed by the EPA also dictates the needs for fluid recycling.”

For many of the early HDD projects, drillers would use water to lubricate the bore hole, but they faced a myriad of issues. When mud systems were first introduced to HDD operations, drillers who were well-versed in oil and gas or operations knew the importance of drilling mud — mainly water-based bentonite slurries — for maintaining hole stability.

“In the beginning it seemed water was deemed sufficient to drill a borehole,” says John Miller, CEO of Mud Technology International. “Differential sticking, caving of the hole, swelling of the hole pushed the contractors to look for solutions. Then came ‘trial and error’ mud programs, mud engineers and better mud systems became the norm.”

While it’s easy to visualize large HDD projects using mud systems today, it’s important to note that without mud systems, these large record-setting projects would not be possible.

“In the early days, the mud and recycler seemed like an afterthought, just something to clean out the cuttings. The focus seemed to be on the drilling rig, ‘Give us a bigger rig and we can drill anything,’” Miller says. “As time went by, contractors began to realize that a good mud program and recycler allowed the borehole to be drilled without as much challenge, less horsepower and more expeditiously.”

Much like the drill rigs they support, a mud system is rated based on how many gallons per minute (GPM) it can process. It is important for a contractor to properly match the two to gain ultimate efficiency.

“When HDD started, drilling rigs were running 300 gpm, dealing with smaller diameter bores. As the need in the pipeline industry started growing for drilling rigs to make larger bores, a higher capacity recycler would be required,” says Pietramale. “Mud systems started growing in size to pair with larger drilling rigs.”

He notes that a small drilling operation — installing water wells, geothermal lines, telecom fiber, etc. will use a 100 to 200 gpm unit and it scales up from there. “If you have a drill rig pumping at 400 gpm, we recommend a 600-gpm unit. We try to go 1.5 to 2 times larger in size for the mud system to keep up with a rig operation and maintain a proper residence time for the separation process to be efficient.”

“Compact mud systems are now available for pretty much any size drill rig. Efficiently recycling your drilling fluid is not only proven to allow for a more cost-effective drilling operation but is also a much more green-friendly solution to drastically reduce waste disposal volumes compared to ‘pumping and dumping’ the drilling mud over and over again,” says Clark. “Pairing your drilling rig with an effective mud system is an absolute must if we’re to advance as an industry and overcome the high level of scrutiny we face today and beyond.”

Even with a downturn on the oil and gas pipeline side of the HDD industry, other sectors of the industry have stayed steady or picked up, and what these manufacturers have found is that other opportunities will continue to present themselves.

“As fluid disposal standards have tightened over time, it started affecting the mini and mid-size HDD drilling contractors. There are many more of those sized contractors across the globe, which require our technology,” says Flynn. “There are many vertical markets that can benefit from the HDD solids control technology. Water well drilling, foundation and pier drilling, and even solar and wind farms need the connection from their facilities to the power grids. Many contractors are serving more and more of that market.”
