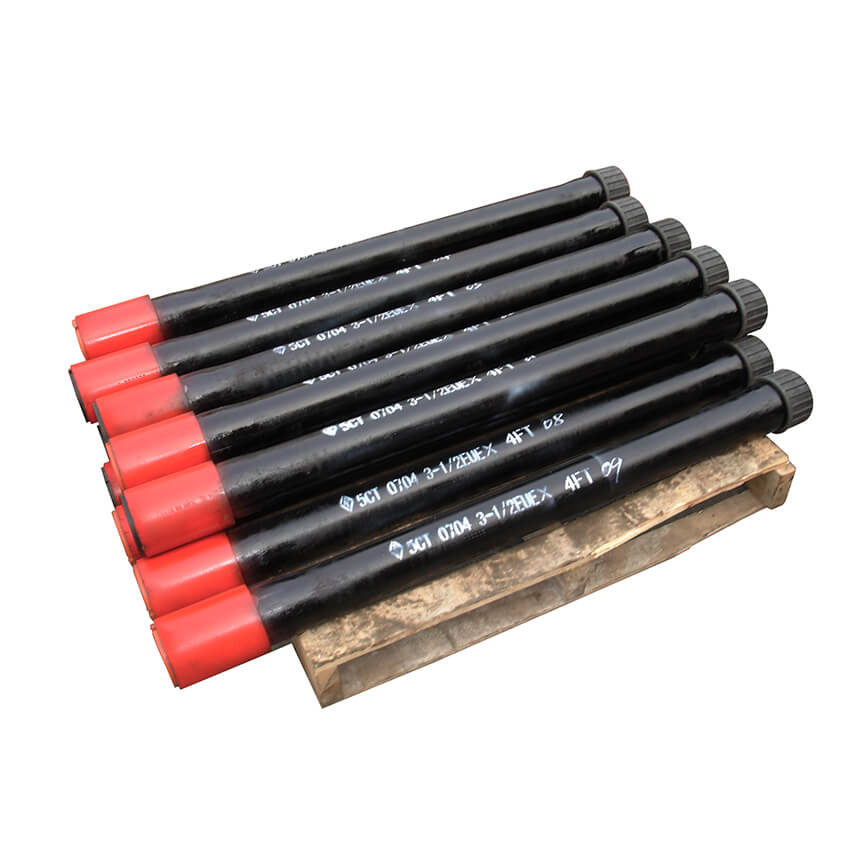

l-80 n-80 pup joint manufacturer

These J55, L80, N80Q & P110 pup joints are manufactured from seamless Grade J-55, L80 N80Q and P110 mechanical tubing. The API 5CT tubing pup joint is mainly used to adjust the height of the tubing strings. It is also used to adjust the depth of down-hole tools.

We manufacture pup joints in all sizes, grades, and thread profiles to meet any requirement. Our tubing pup joints are manufactured out of seamless tubing and machined or upset to final dimensions. All API casing and tubing pup joints are manufactured according to API Spec 5CT. Special requirements are available on request.

China J55, K55, N80, L80, P110 Pup Joint Factory Dervos Supplies J55, K55, N80, L80, P110 Pup Joint, 2 3/8 to 20IN, Length 0.61m, 0.91m, 1.22m, 1.83m.

China J55, K55, N80, L80, P110 Pup Joint Factory Dervos Supplies J55, K55, N80, L80, P110 Pup Joint, 2 3/8 to 20IN, Length 0.61m, 0.91m, 1.22m, 1.83m.

The pup joint is a commonly utilized fitting in industrial pipe connection. According to various connections, it can be normally divided into thread and flange types. The threaded type can be further categorized into two head external thread, single head external thread, and flat head external thread types. In addition, the item falls under tubing and casing types based upon various usages.

Compared with the tubing, it is simply different in length. We can produce a variety of flat end and external upset tubing pup joints with J, N, L, and other steel grades and different specifications.

Our supplier partners include producing mills in every continent of the globe, and we proudly represent them to distribute OCTG tubing, casing, couplings, pup joints, and line pipe in the demanding US and Canadian oil and gas markets, as well as in all Latin America region.

One is a short Drill Pipe used to adjust the length of the Drill String; The other one OCTG Pup Joint is a pipe of non-standard length, which is used to adjust the length of tubular strings to its exact requirement.

Vigor can manufacture the Tubing Pup Joints by different technology - Upsetting and Machining process. if you have a special requirement on the Pup Joint production process, please just specify.

If you are looking for a competitive, high quality and fast delivery oilfield pup joint in stock, or if you are planning to buy pup joint API from one of the leading casing and tubing pup joint manufacturers, API 5CT pup joint in stock, l8013cr pup joint, nue/nue tubing pup joint manufacturers and suppliers China, please feel free to contact VIGOR.Details  of  API  Spec.  5CT  Oil  Tubing  Pup  Joint

Seamless pup joints with premium connections are available in API and exotic alloy grades. Premium ends are threaded by the manufacturer or authorized licensee.

Available with standard or special perforation spacings. Each joint has four rows of ⅜ inch holes drilled longitudinally along the tube. Optional patterns, hole size, and lengths furnished upon request.

Upset forging is a process by which a plain end blank is upset at each end to increase the cross section area. We have innovated upsetting by automating our handling table. This automated handling table not only helps us upset at different lengths safely, but also helps us to get pup joints to the highest degree of consistency and accuracy.

The hydro tests all of its pup joints. This non-destructive test uses water pressure and a pressure recorder to determine possible leaks. Our modernized tester can be adjusted to accommodate various lengths of pup joints, and test them at various pressures as required by API and customer specifications.

We has a custom & automated Full Body Ultrasonic Inspection system to inspect its tubing pup joints. We are the first in the industry to build and use a Full Body Ultrasonic Inspection for pup joints to ensure there are no defects on the external and internal surface longitudinal and transverse.

This inspection has greater accuracy than other non destructive tests, one reason is its high penetrating power to allow detection of defects deep in the pup joints. The Full Body UT also has high sensitivity which allows it to detect exceptionally small deficiencies. This inspection ensures that our customers receive the best quality pup joints on the market.

We also manufacture pup joints by profiling from heavy wall mechanical tubing. Profiling of pup joints are done in a high precision and tolerance CNC in order for us to achieve a high level of dimensional tolerances and surface finish.

The wet magnetic particle test is a non-destructive test that detects surface and shallow subsurface defects. Pup joints are inspected for longitudinal and transverse defects using this inspection method.

We have exclusively designed a line which heat treats each pup joint individually. This setup is versatile and dynamic, as it can be adjusted for various lengths of pup joints and modified accordingly. This gives us the advantage of catering to the needs of our customers extremely quickly. All pup joints are re-straightened after heat treat to ensure the highest quality.

The API 5CT K55 J55 M65 L80 pup joint are used to adjust the height of full length tubing or casing strings. The pup joints are also used to adjust the depth of downhole tools.

All of our pup joints are manufactured from the highest quality API seamless tubing, per API specification 5CT latest edition. KPE will provide Pup Joints to any length – inch or metric. And the typical lengths are 2’, 4’, 6’, 8’ and 10’. Threading is possible in specified lengths from 2′ to 20′. KPE Pup Joints are available in all API and proprietary grades of steel.

Pup joint is kind of pipe without non-standard length to adjust the length of tubular strings to its exact requirement. API casing and tubing pup joint are produced according to API SPEC 5CT standard. Beyond the standard of oil casing pipe is called pup joint, the main oil casing pup joint material: J55, K55, N80, L80, C90, T95 and P110. Anson steel is a professional pup joint manufacturers in the steel line with good reputation.

We are one of the prominent Suppliers and Exporters of Tubing Pup Joints in UAE. Tubing pup joints produced according to API 5CT Specification. Our precision-engineered tubing pup Joints are ideal for spacing out down-hole assemblies and handling the production of tubing accessories. We supply tubing pup joints in all sizes and grades. All our products have passed the ISO certification and API certifications.

We are highly appreciated among our clients for providing the best quality tubing pup joints and other oilfield equipment. Our products are tested numerous times under technical guidance and are made from the best quality material. Standard and non–standard sizes are available as per customer requirements.

ll pump joints are made from modified alloy steel heat-treated to a Brinell Hardness range of 285–341 with a Charpy V-Notch minimum impact strength of 40 ft-lbs at 70°F guaranteed to one inch below the surface Connections can be cold rolled after machining, if requested All connections are phos-coated to prevent galling during initial make-up

API Spec 5CT – This Standard specifies the technical delivery conditions for steel pipes (casing, tubing and pup joints), coupling stock, coupling material and accessory material and establishes requirements for three Product Specification Levels (PSL-1, PSL-2, PSL-3). The requirements for PSL-1 are the basis of this Standard. The requirements that define different levels of standard technical requirements for PSL-2 and PSL-3, for all Grades except H-40, L-80 9Cr and C110, are contained in Annex H.

We care about your needs, we pay attention to the quality of Steel Pipe Seamless Nipple & Pup Joint; Oil OCTG Casing & Tubing Pup Joint Oilfield Services J55/K55/N80/L80/P110/C95/T95/80s, your satisfaction is our eternal pursuit, quality and integrity is our goal. We strictly and seriously fulfill our contracts, keep our promises and strengthen our network system of after-sales service. We set up a sense of quality service and do our best to do the entrusted project of each contracted customer.

BLAZE is adequately equipped to supply NPST Pup joints made of high quality seamless pipeline with  male & female detachable hammer union. NPST has uniform bore for greater flow capacity. NPST pup joints are available in 2″ to 4″ sizes, length for pup joint range from 1 feet to 20 feet at 15000 psi. Pup joint with Non- pressure seal thread union (NPST) are especially engineered for high pressure, abrasive services where welded connections are not desired. The design provides a strong, permanent end connection without butt welding. An epoxy thread-locking compound secures the connection.

Casing or Tubing Pup Joints, Casing or Tubing Connectors and Casing or Tubing Couplings. In addition it is capable of Threading items at Groups 1, 2, 3 & 4 of API spec. 5CT. Items supplied by BLAZE meet the Quality Standards as defined in API 5CT assuring

BLAZE is also well equipped to supply Line Pipe Couplings/ NPST pup joints with wide range of specifications. In addition we can supply thread Line Pipes and its accessories of various sizes. Items meet the quality standards as laid down in API – 5L.
