The same Stallion Trunnion Table, up to eight times the productivity. ​Built for the highest production jobs. Available in 3 to 8 sided configurations.​ Complete solutions available to maximize your VMCs throughput.​​ Also made for any rotary table and machine tool on the market.

The 9/20 Stallion Trunnion Table allows manufacturers to maximize the efficiency of their vertical machining center and rotary table. Every time a part is handled or indicated, there is an increased risk of scrapping it. The Stallion Trunnion Table minimizes this risk through 4th axis milling. With full 360-degree rotation, machining multiple sides of a part becomes possible, allowing your operators to handle a part as little as necessary.

ISO 9001:2008 certified manufacturer of CNC indexers and rotary tables. Platter-style rotary tables, collect indexers, and 5-axis rotary tables are available as well as multi-head and dual axis trunnion models. Features include precision alignment keys, cast iron main body, turntable platter, deep-groove radial bearing, and more. Preowned machines are available. Applications include aerospace, medical, oil, automotive, racing, recreational, educational and military. Capabilities include preventive maintenance, lean manufacturing, training and rotary repair. CE certified. ETL and cETL listed. 1-year warranty available. 24/7 services and JIT delivery are available. Made in the USA.

ATS Systems is a national leading machine tool accessories and automation supplier delivering reliable solutions with unwavering support that increases manufacturing productivity and throughput leading to profitable results for its customers. For over 20 years, ATS has installed over 135K machine tool accessories and automation systems allowing customers to achieve productivity gains of over 50% and increasing profitability.

Benefit from one of AMROK"s complete 4th axis solutions through dramatic increased efficiency of your vertical machining center and rotary table. The Stallion Trunnion Table is made from Class 35 cast iron, making it a rigid and robust solution to your CNC machining needs. The Stallion Trunnion Table can be made in a variety of shapes and sizes, ranging from 10" to 10" in length and from one to eight faces. The 4th Axis fixture can also be integrated with all of your favorite workholding devices, including Schunk, AME, Mitee-bite, Triag, Jergens, and more! Scroll down to find your perfect 4th axis workholding solution.

The combination of the Shelf Unit Trunnion Table and AMROK Dovetail Vises provides a simple, small, and affordable workholding solution that takes the productivity of your rotary table to the next level. Still made from Class 35 Cast Iron, these smaller Trunnion Tables are still as rigid and durable as their big brother, the Stallion Trunnion Table, but are better for smaller machines, smaller parts, and smaller rotary tables.

The smallest standard trunnion table size, made 100% from Class 35 Cast Iron, is designed for smaller machine tools and rotary tables. Riser blocks and braking systems are available to accommodate for your machining needs.

The 9/23 Stallion Trunnion Table is designed to hold a double station 6-inch vise and features a through hole to open/close workholding device of choice. The outboard support is customized to the center height of your indexer along with faceplate dimensions.

The 9/35 and 10/30 trunnion table fixtures feature heavy bracing for the most demanding cuts. Large face mills are not a problem. The outboard support is customized to the center height of your indexer along with faceplate dimensions. Hydraulic and Pneumatic braking systems are recommended at this size.

The Stallion 12/48, the largest standard trunnion table, is highly engineered for rigidity and accuracy. This 4th axis fixture is made for the largest rotary tables and machine tools. At this size, our hydraulic and pneumatic braking systems are highly recommended.

Increase productivity and reduce setup time with the TR-8, 4th- and 5th-axis rotary table by eliminating second and third operations. In a single set-up, achieve multi-sided machining capability as well as the ability to tackle tough complex shapes and difficult to reach angles. Both housings were based on our VH8 and still come packed with the same quality. Both spindles and worms have dual bearings. Each worm wheel is helically cut and throated for greater surface contact between the wheel and worm. The B axis housing uses a stronger motor to make up for the extra weight of tilting the A axis housing and maintain accuracy.

The FAR Series is TJR’s standard pneumatic brake tilt rotary table line comes in single arm, cradle type dual arm, extended cradle type dual arm options. The FHR Series is TJR’s standard hydraulic brake line offered in dual arm cradle type and dual arm extended cradle type tilt rotary tables

The compact tilt rotary table design with a 170mm(6.69”) face plate diameter and is ideal for smaller machining centers and smaller workpieces. Featuring full rotation and tilt capabilities, they can be integrated into your existing machine control for 5 axis operation.

The manual tilt table is designed with a full 4th axis (rotating axis) and a manual tilting axis. It is available in 255mm table diameter and is ideal for customers who need a rotating axis but only occasionally require tilting axis capabilities.

Attached simply to the rotary table of practically any indexer, MMS trunnion fixtures eliminate multiple setups in product runs and allow machine operators to precisely modify three different part surfaces without repeatedly changing cumbersome clamps and vises that create costly downtime. And, because they are constructed of heavy-duty cast iron, MMS trunnion table fixtures are highly rigid and durable — built to withstand long-term, repeated use in even the most demanding Shop environments. Available in a variety of standard sizes with free center height alterations, or in custom configurations.

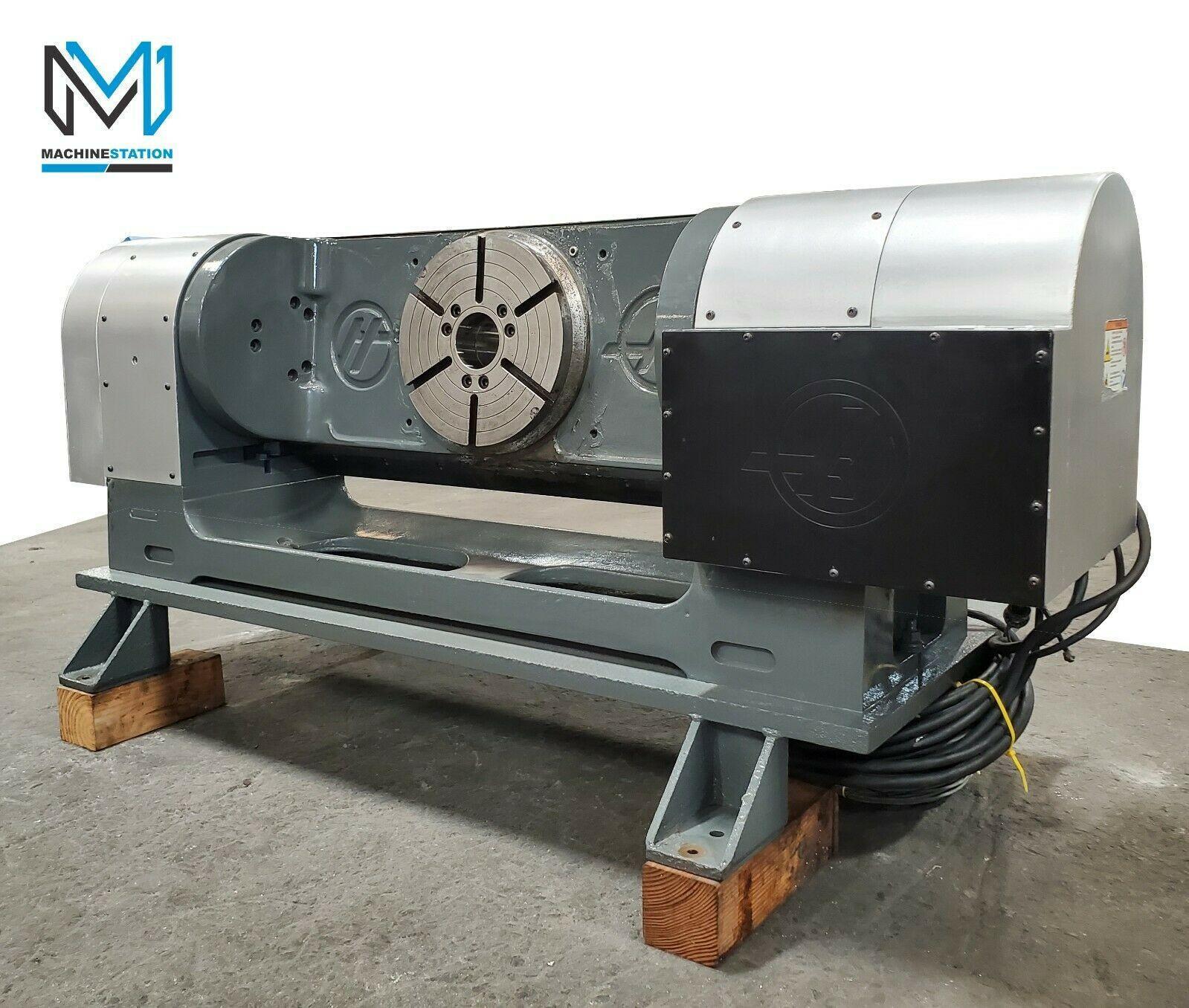

The TR160 5 Axis Rotary Tables, manufactured by Haas, consist of dual axis Trunnion rotary table that is capable of tilting up to 160 mm. It also has a scale assessment ...

The TR210 is HAAS"S rotary table developed and configured to be integrated with HAAS"S mills 4th and 5th axis drivers to provide complete and optimum operation. It has a diameter of 210 mm made from trunnion ...

... space with high load capacity. The individual rotary tables are equipped with Harmonic Drive units, which ensure high moment load capacities and high concentricity and axial runout accuracies.

... accumulation turntables are made from the highest quality stainless steel and can be supplied in numerous sizes. They are utilized for the collection of filled bags, bottles and packages and can be added to an existing ...

The new CNC Rotary Table from GANRO has got higher speed and higher clamping torque. Thus making it suitable for machining complex components like turbine blades, when used ...

This is the smallest CNC Rotary Table manufactured by Nikken Kosaksuho in Osaka, Japan. With pneumatic clamping this rotary table is used by many on ...

... high-performance and flexible series from Peiseler. An extremely modern design with a good price characterises these NC rotary tables. The basis for this successful design is the complete ...

... Drive Rotary Table is a kind of rotary table used to the continuous operation which is several times more agile and accurate than conventional face gear or rack and pinion ...

CNC rotary tables of the ETS series are our solution for your 4th axis. The ETS models are equipped with a spindle holder according to ISO 702-1. Interchangeable discs for all common ...

Directly driven Motor Power Company"s rotary tables, provide versatile applications due to their backlash free structure. If necessary a compact servo system with high torque and high accuracy, SKA Rotary ...

... combination case of Large Aperture Rotary Table with planetary reducer with model number GSN200M-50K-SV which has table size 200mm gear ratio 1:50 for servo motor. GIGAGER provides combination ...

Methods & Equipment works with several manufacturers of rotary tables:  Tsudakoma, Nikken, Yuasa and more.  Give us a call or fill out the RFQ if you would like a quote on any of the high speed rotary tables, direct drive rotary table, or the new ball drive rotary table with zero backlash.

The TN4 Trunnion Table is a very compact yet rigid device offering rapid, zero backlash rotary motion using maintenance free Harmonic Reducers and Crossroller bearings. It is engineered and built here in California with all aluminum and stainless steel construction. This 2-Axis Trunnion is primary designed for machining applications and can be purchased as part of a complete 5 axis mill or as a retrofit to one of our existing 3 axis cnc mills. Both rotary axes are sealed to allow for operation with liquid coolant. Homing Switches are integrated into each axis to provide a repeatable reference point.

This trunnion table can also be used for non-machining applications such as dispensing and 2-Axis rotary positioning for sensor calibration. Call use today to discuss your custom application!

The Martin Trunnion Table system is designed for maximum throughput on CNC rotary tables and allows for easier machining of multi-axis parts. Designed for any rotary table on the market, the Stallion Trunnion Table is available in a variety of shapes, sizes, and lengths. When paired with Multi-Grip Workholding, this 4th axis attachment becomes ideal for your automation solution.

The fastest way to increase the productivity of your Haas mill is to add a Haas single or dual-axis rotary product. You can reduce or totally eliminate multiple setups, and easily handle machining multi-sided parts.

With a full line of Haas rotary products, including many specialised units designed for maximum productivity, Haas continues to lead the way to higher productivity through automation.

All Haas rotary products are designed to integrate seamlessly with the control on your Haas mill. This means true simultaneous 4-axis or 5-axis motion, synchronized with the axes of your mill. Rotary setup is a simple plug-and-play process through the Haas Control, with on-screen instructions, and diagrams that are intuitive and easy to use. It’s possible to install a Haas rotary on other makes of mill as we also offer the Haas Servo Control. Activated by a single M-code, the Servo Control is easy to set up, and fully programmable.

Adding a rotary axis to your CNC mill is the fastest way to boost throughput and increase accuracy. Because Haas began as a rotary table manufacturer in the 1980s, we are able to provide the simplest and most cost-effective entry into 4-axis and 5-axis machining available.

Constructed of heavy-duty materials and designed for dependable day-in, day-out operation, Haas rotary products are the benchmark by which all others are measured. We manufacture all critical components in-house at our state-of-the-art California facility. At the core of every Haas rotary table is a large-diameter, aluminium-bronze worm gear meshing with a ground alloy steel worm (hardened to 60 Rc) submerged in a synthetic oil bath.

Martin Trunnion Tables, a company located near Cincinnati OH, manufactures custom and standard CNC Trunnion Table Fixtures for Vertical and Horizontal Machining Centers and Rotary Tables. They sell their products worldwide to companies converting from 3 to 4 axis machining.
