robertshaw safety valve in stock

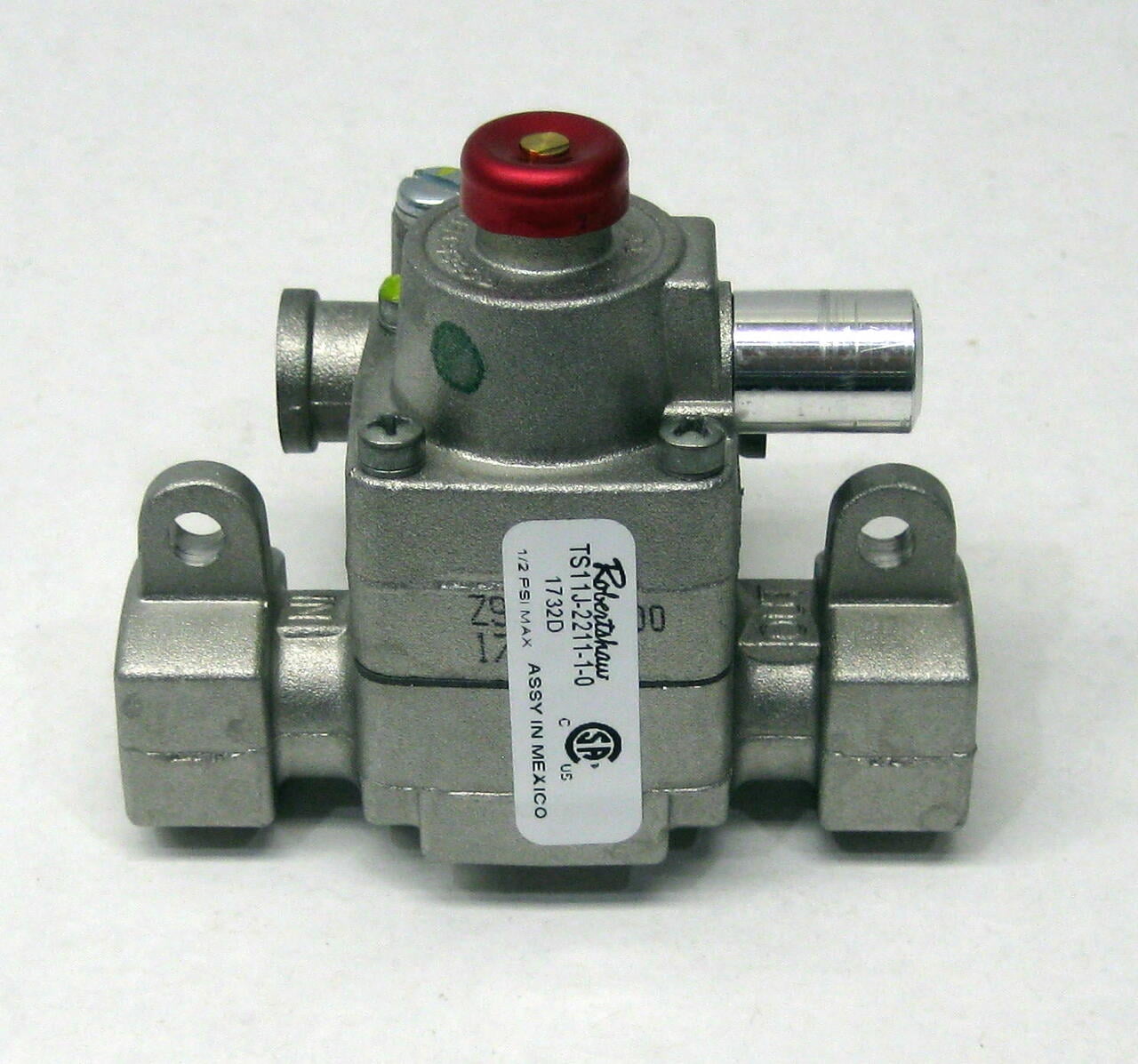

The Robertshaw 1720 Series Thermomagnetic Safety Valve is a control used to cut off the flow of gas to the burner in the event of a pilot outage. The magnet assembly is energized by voltage generated by a thermocouple that is heated by the pilot flame. When this flame is extinguished, the thermocouple voltage decreases until a spring overcomes the magnetic force and closes off both the pilot and main gas. This control can be used for commercial and residential ovens, infrared heaters, chicken and pig brooders, recreational vehicle gas appliances and many more applications requiring automatic safety valves.

A major manufacturer of hot surface gas ranges realized that their piecemeal approach to constructing gas systems was inefficient. Managing multiple vendors for burner, igniter, gas valve, gas pressure regulator, and thermostat components complicated their manufacturing processes.

On the road to leadership in its category, a premium electric car manufacturer recognized the need for high-performing coolant control valves. These valves would empower their automobile’s thermal management system to conserve battery power and extend vehicle drive range. The rigor of an automotive application also demanded durability from the coolant control valve.

1 Vlv 24V Slw Opn IP,HSI,DSI* Universal Pilot Ignition Gas Valve. 24V.1 X 1 With 3/4 Reducers. 720000 BTU. Regulator Setting 4 WC. 7000derhc 7000DERHCS7C 7000derhc-s7b 700-059 Robertshaw 1"NGvlv24vSlowOpenIP,HSI,DSI

1" x 1" Combination "Slow Open" Gas Valve 24v w/Safety Magnet & Natural Gas Regulator Set @3.5"wc w/Gas Cock & Automatic Pilot Safety & Pilot Adjustable Key Capacity 720000btu

Gas Valve / Millivolt 3/4" x 3/4" Natural Gas 3.5"wc BtuH Capacity: 300,000 Bushings: Two 3/4" x 1/2"; Inlet Conn.: 3/4"; Outlet Conn.: 3/4" Side Tap: No 7000BMVR

3/4 X 3/4 Comb Gas Vlv 120V * 120 Volt Combination Gas Valve 3/4X3/4 W/Safety Magnet Gas Cock Pilot Safety Valve & Silent Line Voltage Operator W/Regulator Set@3.5 WC Capacity 300000BTU

Gas Valve for Space Htr * Hydraulic Snap Action Gas Valve 1/2 X 1/2NPT. Range 58 To 90F. 36 Cap Capacity 70000 BTU. 1/2 X 3/8 Bushing Included (2). May Be Converted To L.P. 1751-007 Order Separately Snap Acting

Dual Valve 24V 1/2 Step Open * Dual Combination Constant Pilot Valve 24Vac 1/2 X 1/2 Manual Valve With Safety Magnet Step Open Regulator Opens To 25% Flow Full Flow Within 30 Seconds Capacity 150000 BTU

Two Stg Spark Ign Gas Vlve 24V * Universal 2 Stage Combination Gas Valve. For Use On Int. Pilot Direct Spark And Hot Surface Systems. 24V. 3/4 X 3/4 Npt300000 Btu. Regulator Setting: Low 1.3 High 3.5 Wc. Slow Opening.

700-400 1/2 X 3/4 Combo Gas Vlv 24V * Combination Gas Valve Pilot Safety And Pressure Regulator. .2A @ 24V. 1/2 X 3/4 NPT. 240000 BTU. Has Convertible Lp Or Natural Gas Regulator. Includes {1} 3/4 X 1/2 NPT Bushing.700-400

1/2 X 3/4 Dual Valve 24V * Dual Combination Constant Pilot Valve 24Vac 1/2 X 3/4Manual Valve Safety Magnet main Gas Regulator Set @3.5 WC Dual Valves And Pilot Adjustment Capacity 150000 BTU

1/2 X 3/4 Combo Gas Vlv 120V * 120Volt Combination Gas Valve 1/2X3/4 W/Safety Magnet Gas Cock Pilot Safety Valve& Silent Line Voltage Operator W/Regulator Set@3.5 WC Capacity 240000BTU

Thermostatic Snap-Throttle Gas Valve Has regulator. 1/2 X 1/2 NPT. 3 Outlet Pos. 100000 BTU. Range 58-90F. Temperature Dial On Valve. 36 Cap 1/4 X 8 Bulb. Opens To 50% The Modulates. 1/2 PSI Max Inlet.

700-402 1/2 X 3/4 Combo Gas Vlv 24V * 700-402 24Volt Combination Gas Valve 1/2X3/4 W/Gas Cock &Automatic Pilot Safety Valve Safety Magnet & Pilot Adjustable Key Capacity 240000BTU

120 Volt Combination Gas Valve 1 Inch X 1 Inch W/Safety Magnet Gas Cock Pilot Safety Valve & Silent Line Voltage Operator/Reg Set@3.5 WC Capacity 600000BTU

1/2 X 3/4 Comb Gas Vlv 250MV * Millivolt (250-750) Combination Gas ValvE1/2 X 3/4 W 1/2 Side Outlet Gas Cock Automatic Pilot Safety Valve W/ Pressure Regulator Set @3.5 WC Capacity 240000 BTU

The Robertshaw 700 series 24 volt combination gas valves offer replacement flexibility. With capacities ranging to 720000 BTU, 3-position outlets and multi-positional capability, these combination gas valves offer unlimited replacement possibilities. The 24 volt Uni-Kit models are suitable for either natural or LP gas. The valve is factory set at 3.5 Inch WC natural gas. A regulator cover plate is included to convert to LP gas. Reliability, performance, flexibility and ease of installation and service in one compact control. Models that have a safety magnet have a notched or slotted magnet for applications requiring the use of an ECO energy cut-off switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. Valves can be mounted in any position except upside down.

Robertshaw Controls Combination Gas Valve, Series: 700, 1/2 x 3/4 Inch Size, FNPT, 240000 BTU/hr Capacity, 1/2 psi, -40 to 175 deg F, 24 VAC at 50/60 Hz, 0.2 amp, Natural, LP Gas, 1/4 Inch Tube Pilot Gas Connection, 3-1/2 Inch WC Natural Regulator Adjustment

700-400 1/2 X 3/4 Combo Gas Vlv 24V * Combination Gas Valve Pilot Safety And Pressure Regulator. .2A @ 24V. 1/2 X 3/4 NPT. 240000 BTU. Has Convertible Lp Or Natural Gas Regulator. Includes {1} 3/4 X 1/2 NPT Bushing.700-400

The 700 millivolt gas valves are wall thermostat actuated combination gas valves. These valves feature a manual valve (gas cock), an automatic pilot safety valve, inlet/outlet screens, pilot outlet, pilot gas filter and pilot adjustment key. Regulated and nonregulated models are available. Models that have a safety magnet have a "notched or slotted" magnet for applications requiring the use of an ECO (Energy Cut-Off) switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. These combination valves have a pressure regulator installed that is set for natural gas (3.5" W.C.) To convert to L.P. gas, a regulator cover plate is included. Simply remove pressure regulator and install the regulator cover plate.
