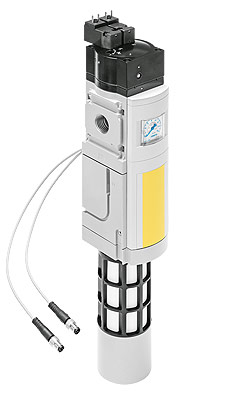

The MS6-SV is available in performance level C and E units; the MS9-SV is available in a performance level C unit. Both have exhaust functions in a compact unified body. The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard–category 4—an exhaust rate of 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function. The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

Pneumatic pressure relief valves are fittings used to control air within a compressed air system. They are implemented within systems to prevent spikes in pressure which could cause damage to equipment. Pressure relief valves are designed to provide safety and to help the system maintain optimal performance.

Pneumatic pressure relief valves are set to a specific level of pressure. If this pressure is exceeded, the releases the excess pressure. The excess is released into the atmosphere when the valve opens.

Pressure relief valves can be installed throughout a pneumatic system, wherever protection is needed from potential spikes in pressure. They are often attached to a pipe, filter or a vale and feature a threaded port for attaching. Pressure relief valves are very easy to install.

The valves are usually made from a metal, such as stainless steel or brass. They often feature a seal to provide an air-tight fitting, which is usually made from plastic of rubber.

Many pneumatic systems require relief valves, for example compressors and process control systems. Some valves are designed for high pressure or high temperature environments too.

Festointroduced the MS6-SV and MS9-SV safety valves. These safety valves offer many features, including compact size, soft start functionality, and advantageous price versus performance ratio. The MS6-SV is available in Performance Level c and e units; the MS9-SV is available in a Performance Level c unit.

Both the MS6-SV and MS9-SV have integrated soft start and exhaust functions in a compact unified body. OEMs and end users have the flexibility of mounting these safety valves as stand-alone units or as a component of the modular Festo MS air preparation system.

The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard – category 4, performance level e. This valve has an extremely high exhaust rate for its size – 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function.

The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

The MS6-SV-C and MS9-SV-C are ideal for applications with performance level c safety requirements. The c series valves are reliable, cost-effective, single channel safety units designed to enable fast safety exhaust.

The Festo MS air preparation series combines all of the standard functions of air preparation with additional options for pressure regulators, filters, dryers, sensors, lubricators, and safety with the MS6 and MS9 safety valves. The MS air preparation series includes function modules with integrated sensors, remote adjustability, and remote-controlled pressure monitoring for maximum process security.

The certified and tested pneumatic safety valves from Festo (www.festo.com) not only stand alone or are easily fitted in an air preparation module — they can also be integrated into existing as well as new circuits.

Following the growing demand for safety products in the field of pneumatics, the company has provided the perfect solution with the release of these pneumatic safety valves, which ensure that all bases are covered in case of an emergency stop in critical pneumatic safety zone areas.

Featuring a safe exhaust function, Festo’s pneumatic safety valves also provide various possibilities for applications up to category 4 and a fast and reliable venting. Its quick exhaust mechanism allows it to efficiently achieve pressure reduction within the system. The easy to install pneumatic valve also features an exhaust capacity of 6,000 l/min.

The pneumatic safety valves are based on a dual 3/2-way configuration that comes with an integrated safety relay, and serving as the central unit that supply installations and machines with compressed air.

Boasting the ability to self-check, the pneumatic safety valves can also operate in accordance with AS 4024 Category 4 as well as ISO 13489-1 Performance Level “e” to ensure that the pneumatic safety objective of a “safe exhaust function” is achieved, despite malfunctions in the valve.

Festo’s pneumatic safety valves are absolutely effective in ensuring the safety of the machines and people, specifically during a sudden emergency stop.

Festo solenoid valve is solenoid valve Pneumatic dividers are widely used in air compressor systems, compressed air pipeline systems. Valves are usually installed in pneumatic cylinders, or pneumatic control valves.

Festo is a corporation that manufactures compressed air products with its head office in the Federal Republic of Germany, now its products have been exported to many major countries around the world.

There is no doubt about the quality of the Festo solenoid valve, this valve line has great durability, long service life, and can be opened and closed many times.

First of all, we need to make sure this is a genuine product, so buying a valve must have full certificates to avoid buying fakes, imitations, and poor quality goods.

If it is a replacement valve, just read the model to the valve supplier, and if you buy a new one, you must determine the size of the thread you need.

It is best that you contact the phone number 0965 925 563 to buy genuine Festo solenoid valve, high quality, cheapest price, full CO, CQ papers, 12 month warranty, delivery support, installation support.

Get wholesale festo air pressure relief valve from global wholesalers, Alibaba. At competitive prices, you can maintain, modify, enhance or replace your machines and vehicles. From the selection of new, used, and rebuilt parts from different manufacturers, choose the suitable festo Air pressure reliefators get your construction equipment up and running in no time. The collection of festo ac pressure relief val at at Alibaba.com. includes parts for both mechanical and electrical systems. From transmission systems to hydraulics, engines to pumps, and brakes to wheels, Al Alibaba.com got it. You can chat with your supplier to make modifications or even get custom designs, and that’s what Alibcom. for does is need you toll the tools for need.

There are many uses of valves - mainly controlling the flow of fluids and pressure. Some examples include regulating water for irrigation, industrial uses for controlling processes, and residential piping systems. Magnetic valves like those using the solenoid, are often used in a range of industrial processes. Whereas backflow preventers are often used in residential and commercial buildings to ensure the safety and hygiene of the water supplies. Whether you are designing a regulation system for irrigation or merely looking for a new replacement, you will be able to find whatever type of festo air pressure relief valve that you need. Our products vary from check valves to pressure reducing valves, ball valves, butterfly valves, thermostatic mixing valves, and a lot more.

Alibaba.com features a comprehensive range of high-quality, efficient, and durable festo air pressure relief valve for distinct types of commercial and personal uses. Available in multiple variations and models, these products are ideal for all kinds of machinery and vehicle engines for optimal performance. The festo air pressure relief valve varieties you can find on the site are made of sturdy materials that contribute to the long-lasting lifespan of the products and are unparalleled when it comes to offering flawless, consistent fuel flow to the engines. Grab these unique and robust festo air pressure relief valve from the top brands and manufacturers in the industry for mind-blowing prices.Whether you are looking for perfect festo air pressure relief valve to fit into your vehicle engine for smoother and consistent fuel flow or if you are looking for sturdy valves to fit into an irrigation system, heavy-duty machines.

Electro-pneumatic soft-start and quick exhaust valve for gradual pressurization and quick exhausting of system components (single channel). The main flow control valve in the cover permits a gradual build-up of output pressure p2. Once the output pressure p2 has reached the set pressure switchover point (switching pressure), the valve opens and the full operating pressure p1 is present at the output.

Festo Soft-Start Quick Exhaust Valve, Electric, Series: MS Series, G1/2 x G1/2 x G1 FNPT Port 1, 2 and 3, 3.5 to 10 bar, -10 to 60 deg C, 4300 Lpm, Media: Compressed Air, Solenoid Actuator, Die-Cast Aluminum Body, NBR

The safety valves feature soft start functionality, and beneficial price versus performance ratio. The MS6-SV is available in Performance Level c and e units; the MS9-SV is available in a Performance Level c unit. Both the MS6-SV and MS9-SV have integrated soft start and exhaust functions in a compact unified body.

The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard: category 4, performance level e. This valve has an exhaust rate of 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function.

The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

The MS6-SV-C and MS9-SV-C are suitable for applications with performance level c safety requirements. The c series valves are single channel safety units designed to enable fast safety exhaust. Flow rates for the MS6-SV-C used for station level safety: P1 > P2 5,700 l/min; P2 > P3 7,600 l/min. Flow rate for the MS9-SV-C applied at the machine level: P1 > P2 15,500 l/min; P2 > P3 20,500 l/min. Both have adjustable pressure ramp-up rate and switching point.

The safety valves can be mounted with the Festo MS air preparation series. The MS series air preparation unitscombine all of the standard functions of air preparation with additional options for pressure regulators, filters, dryers, sensors, lubricators, and safety. The series includes function modules with integrated sensors, remote adjustability, and remote-controlled pressure monitoring for maximum process security.
