Pneumatic pressure relief valves are fittings used to control air within a compressed air system. They are implemented within systems to prevent spikes in pressure which could cause damage to equipment. Pressure relief valves are designed to provide safety and to help the system maintain optimal performance.

Pneumatic pressure relief valves are set to a specific level of pressure. If this pressure is exceeded, the releases the excess pressure. The excess is released into the atmosphere when the valve opens.

Pressure relief valves can be installed throughout a pneumatic system, wherever protection is needed from potential spikes in pressure. They are often attached to a pipe, filter or a vale and feature a threaded port for attaching. Pressure relief valves are very easy to install.

The valves are usually made from a metal, such as stainless steel or brass. They often feature a seal to provide an air-tight fitting, which is usually made from plastic of rubber.

Many pneumatic systems require relief valves, for example compressors and process control systems. Some valves are designed for high pressure or high temperature environments too.

The MS6-SV-SGC-E-10V24 electropneumatic soft-start/quick exhaust valve is used to reduce pressure quickly and safely and to build up pressure gradually in industrial pneumatic piping systems and terminal equipment. The device is a self-testing, redundant mechatronic system conforming to the requirements of EN ISO 13849-1.

The certified and tested pneumatic safety valves from Festo (www.festo.com) not only stand alone or are easily fitted in an air preparation module — they can also be integrated into existing as well as new circuits.

Following the growing demand for safety products in the field of pneumatics, the company has provided the perfect solution with the release of these pneumatic safety valves, which ensure that all bases are covered in case of an emergency stop in critical pneumatic safety zone areas.

Featuring a safe exhaust function, Festo’s pneumatic safety valves also provide various possibilities for applications up to category 4 and a fast and reliable venting. Its quick exhaust mechanism allows it to efficiently achieve pressure reduction within the system. The easy to install pneumatic valve also features an exhaust capacity of 6,000 l/min.

The pneumatic safety valves are based on a dual 3/2-way configuration that comes with an integrated safety relay, and serving as the central unit that supply installations and machines with compressed air.

Boasting the ability to self-check, the pneumatic safety valves can also operate in accordance with AS 4024 Category 4 as well as ISO 13489-1 Performance Level “e” to ensure that the pneumatic safety objective of a “safe exhaust function” is achieved, despite malfunctions in the valve.

Festo’s pneumatic safety valves are absolutely effective in ensuring the safety of the machines and people, specifically during a sudden emergency stop.

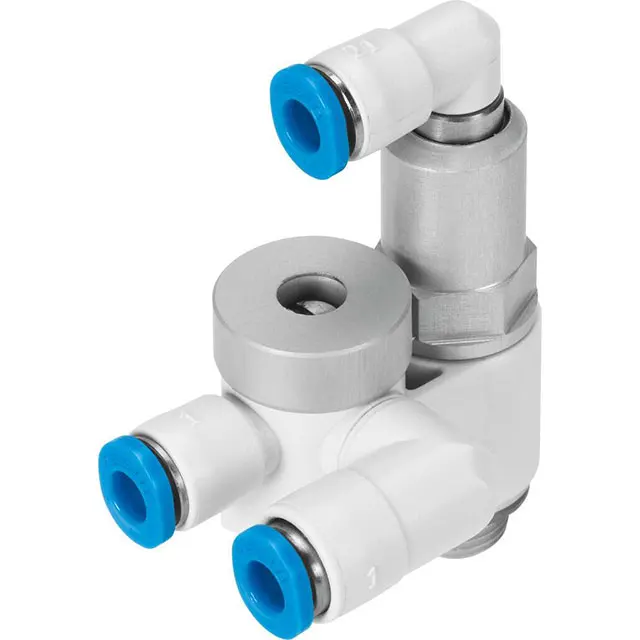

Flow control or one-way flow control valves regulate the piston speed of pneumatic drives during advance and return strokes. This is done through suitable restriction of the flow rate of compressed air in exhaust air or supply air direction. With the one-way flow control valve GRLA or GRLZ, the flow control function works in one direction only (exhaust air or supply air) the non-return function works in the opposite direction. With the flow control valve GRLO, the flow control function is active in both directions.

Festo solenoid valve is solenoid valve Pneumatic dividers are widely used in air compressor systems, compressed air pipeline systems. Valves are usually installed in pneumatic cylinders, or pneumatic control valves.

Festo is a corporation that manufactures compressed air products with its head office in the Federal Republic of Germany, now its products have been exported to many major countries around the world.

There is no doubt about the quality of the Festo solenoid valve, this valve line has great durability, long service life, and can be opened and closed many times.

First of all, we need to make sure this is a genuine product, so buying a valve must have full certificates to avoid buying fakes, imitations, and poor quality goods.

If it is a replacement valve, just read the model to the valve supplier, and if you buy a new one, you must determine the size of the thread you need.

It is best that you contact the phone number 0965 925 563 to buy genuine Festo solenoid valve, high quality, cheapest price, full CO, CQ papers, 12 month warranty, delivery support, installation support.

Festointroduced the MS6-SV and MS9-SV safety valves. These safety valves offer many features, including compact size, soft start functionality, and advantageous price versus performance ratio. The MS6-SV is available in Performance Level c and e units; the MS9-SV is available in a Performance Level c unit.

Both the MS6-SV and MS9-SV have integrated soft start and exhaust functions in a compact unified body. OEMs and end users have the flexibility of mounting these safety valves as stand-alone units or as a component of the modular Festo MS air preparation system.

The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard – category 4, performance level e. This valve has an extremely high exhaust rate for its size – 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function.

The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

The MS6-SV-C and MS9-SV-C are ideal for applications with performance level c safety requirements. The c series valves are reliable, cost-effective, single channel safety units designed to enable fast safety exhaust.

The Festo MS air preparation series combines all of the standard functions of air preparation with additional options for pressure regulators, filters, dryers, sensors, lubricators, and safety with the MS6 and MS9 safety valves. The MS air preparation series includes function modules with integrated sensors, remote adjustability, and remote-controlled pressure monitoring for maximum process security.
