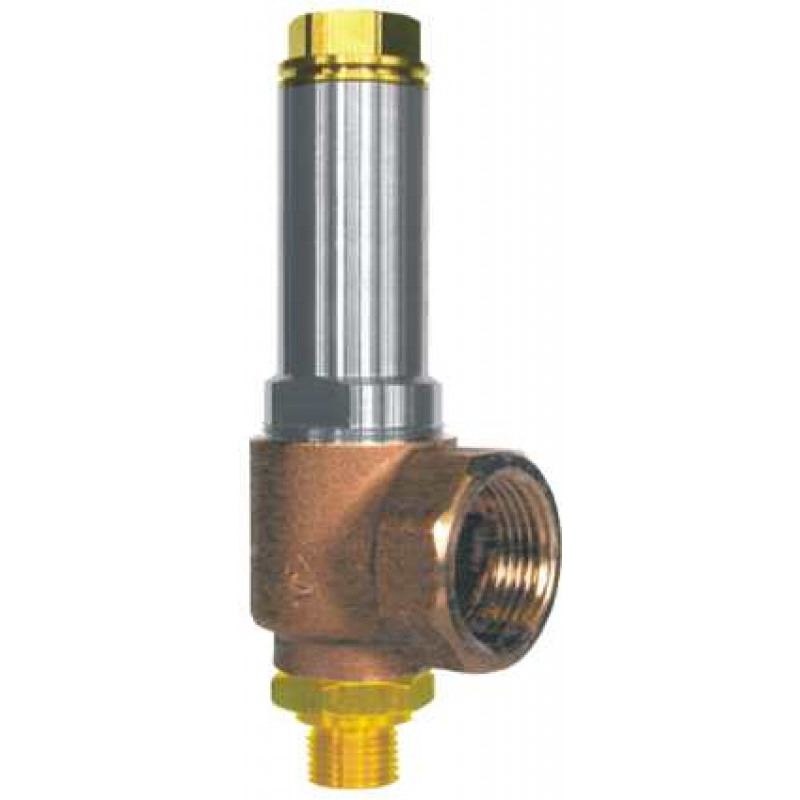

herose safety valve 06388 manufacturer

Provided as safety device for protection against excessive pressure in stationary and moveable gas cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Applications: Provided as safety device for protection against excessive pressure in stationary and movable gas cylinders. Cleaned and degreased for oxygen service.

Cryogenic Safety Herose Valves have been extensively cycle tested by industrial gas leaders and proven to have an extended operating life against industry standards.

Full lift safety valve, orifice d0=23mm standard safety valve, with carbon filled PTFE valve seal, closed bonnet "cleaned and degreased for oxygen service"

Provided as safety device for protection against excessive pressure in stationary and moveable gas cylinders and pressure vessels. Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Please contact us to request a price quote for Herose - 06388 04.19 02 (3005905), or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.

Safety ValvesType 06380Safety Valves, angle type, bronze, type tested TÜV-SV.749. D/GStandard safety valvewith soft valve seal, open bonnet, with lifting deviceIn- and outlet: female thread type G (BSPP) acc. to ISO 228/1Part No. 06380.X.0000with FPM valve seal for air and similar gasesWorking temperature: -10°C / +14°F (263K) up to +185°C / +365°F (458K)Part No. 06380.X.0300with PTFE valve seal for air and similar gasesand saturated steam from 2.0 up to 10.0 bar.Working temperature: -10°C / +14°F (263K) up to +185°C / +365°F (458K)Part No. 06380.X.0600with EPDM valve seal for air and similar gasesand steam from 0.2 up to 8 bar. (saturated steam only to 3 bar)Working temperature: -10°C / +14°F (263K) up to +135°C / +275°F (408K)Available options - on request only:· stainless steel spring - material 1.4571, external parts nickel platedApplications:Provided as safety device for protection against excessive pressure in gas cylinders and pressure vessels.Materials DIN EN ASTM1 Body CC491K B 62 UNS C836002 Valve seal FPM. PTFE or EPDM3 Disc CW614N B 249 UNS C385004 Stem CW614N B 249 UNS C385005 Bonnet CW614N B 249 UNS C385006 Spring 1.1200 A 2277 Lifting device CW614N B 249 UNS C385008 Closing cap CW507L B 36 UNS C26800Essential: Valves are delivered at a set pressure,therefore when ordering please confirm setpressure, medium and temperature.Standard marking acc. to Pressure EquipmentDirective 97/23/EC (PED).Type 06380Technical dataNominal size GW 1/2 3/4 1 1-1/4 1-1/2 2Orifice d 0 12 15 18 20 24 28Dimension code .X. 0400 0600 1000 1200 1400 2000Set pressure range FPM seal bar 0.2-20 0.2-20 0.2-20 0.2-20 0.2-16 0.2-16Set pressure range PTFE seal bar 0.2-20 0.5-20 0.2-20 0.4-20 0.2-16 1.0-16Set pressure range EPDM seal bar 0.2-8 0.2-8 0.2-9 0.2-9 0.2-8 0.2-8Outlet GA 1/2 3/4 1 1-1/4 1-1/2 2Height H 99 111 132 152 175 200Length L 1 25 30 36 40 48 56Length L 2 22 25 30 35 40 48Wrench size aacross flats S 1 27 32 41 50 58 70Weight ca. kg 0.24 0.40 0.70 1.07 1.65 2.65Coeff. of discharge from 3.0 bar α w 0.47 0.37 0.52 0.57 0.52 0.50Dimensions in mm.HEROSE GMBH Phone +49 4531 509-0 Fax +49 4531 509 120 info@herose.com www.herose.com Edition 2015-04
