Selecting the best transmission will mostly depend on the usage of the vehicle. has a massive collection of truck transmission and wholesale pto gearbox for hydraulic pump for all budgets. Knowing the application of a truck is the first step to choosing the transmission and engine. 10 speed shifting transmissions are among the most widelly used transmission system for or off-road and on-road tracks. Factors that determine the transmission selection inlude; the maximum grade, road condition, and the GCVW .

Semi truck automatic transmission is needed for a smooth ride and ensures that the seat doesn"t vibrate. With a good transmission system, a truck handling will improve and the drive will feel more confident maneuvering a truck while carrying a load. Truck automatic transmission is for the shoppers who want a pto gearbox for hydraulic pump. This helps the drive achieve a comfortable hassle-free journey, that keeps them away from thinking about shifting. Among some available transmissions, Eaton Fuller 10 Speed Transmission and Ram 3500 Transmissions are notable that work perfectly for heavy-duty trucks.

The ease of maneuvering is a highlighting feature of I-Shift transmission that is getting huge sales on The gears in a truck are the core of the performance because the number of gears determines the shifting range of the transmission and rpm. At customers are treated to a variety of items that they can be assured of performance and affordabilty

pto gearbox for <a href=''>hydraulic</a> <a href=''>pump</a> free sample

Explore a wide variety of pto gearbox pump on and enjoy exquisite deals. The machines help maintain drilling mud circulation throughout the project. There are many models and brands available, each with outstanding value. These pto gearbox pump are efficient, durable, and completely waterproof. They are designed to lift water and mud with efficiency without using much energy or taking a lot of space.

The primary advantage of these pto gearbox pump is that they can raise water from greater depths. With the fast-changing technology, purchase machines that come with the best technology for optimum results. They should be well adapted to the overall configuration of the installation to perform various operations. Hence, quality products are needed for more efficiency and enjoyment of the machines" full life expectancy. offers a wide selection of products with innovative features. The products are designed for a wide range of flow rates that differ by brand. They provide cost-effective options catering to different consumer needs. When choosing the right pto gearbox pump for the drilling project, consider factors such as size, shape, and machine cost. More powerful tools are needed when dealing with large projects such as agriculture or irrigation. provides a wide range of pto gearbox pump to suit different tastes and budgets. The site has a large assortment of products from major suppliers on the market. The products are made of durable materials to avoid corrosion and premature wear during operations. The range of products and brands on the site assures quality and good value for money.

pto gearbox for <a href=''>hydraulic</a> <a href=''>pump</a> free sample

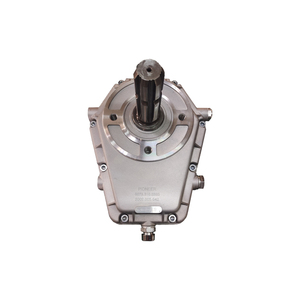

Helical multiplier gearboxes guarantee low-noise and comfortable operation and high transmission performance. Our gearboxes can be used for drills, loaders, forestry trailers, splitters, sweepers or mowers.

pto gearbox for <a href=''>hydraulic</a> <a href=''>pump</a> free sample

This Brand new Italian-made P.T.O gearbox and pump assembly are ideal for adding power to tractors and landscape equipment not already equipped with hydraulic circuits. Used to power hydraulic Auger, front-end loaders, mowers, rotary sweepers, etc.

These aluminium gearbox housings and hardened steel internal gears are used mainly for connecting hydraulic pumps to the power take-offs of agricultural tractors.

The standardised PTO output of either 540 or 1,000 rpm, is, in this way, increased to optimum operating speeds for the hydraulic pumps. This gearbox and pump offer either direct or remote mounting options to the tractor P.T.O to provide independent hydraulic service.

This comes with standard Female 1-3/8" 6 splined shafts generic to most PTO output shafts.(photos) If your shaft has " grooves", there is an Optional Shaft "Quick release" coupler available for an extra $40. Also available at no extra cost is a Male shaft. There is the option of a few other couplers so feel free to ask or send photos for confirmation.

There are a variety of pump sizes to choose from, please see the drop box next to the photos. All are the same price. The main considerations in choosing the correct size pump for your application are the amount of Oil Flow and the pressure required.

As the need for higher pressure (PSI) is increased, the power required to produce this pressure also rises. It is easy to pump fluid at a high flow rate if low psi is required, but it takes a lot of HP to pump high flow rates at high PSI pressures.

Please refer to our chart below, & feel free to message or call with any queries. We also supply reusable field fit hydraulic hose fittings hose and & any hydraulic valves or adaptors you require.

40 Lpm @ 1800 psi is the most flow, the pressure this size gearbox can reliably sustain. Warranty is void if run at over 1800Psi with a pump larger than 20cc. If more flow is required, please check our next size-up gearbox

PLEASE NOTE BELOW All Hydraulic pumps typically have a 20% efficiency loss factor. The numbers supplied below are gross figures, please take 20% for the correct PM

We carry many types of adaptors, threads, hydraulic hose, and field fit hose fittings available please see our other listings or contact us for great prices & service.

pto gearbox for <a href=''>hydraulic</a> <a href=''>pump</a> free sample

Powering a hydraulic pump to a power take-off (PTO) is a common practice. Within mobile hydraulic applications, there are three types of hydraulic pump construction typically found including gear, piston and vane.

Gear pumps are the most common design used in truck mounted hydraulic systems, as the gear pump is relatively inexpensive with its fewer moving parts, ability to be easily serviced and greater tolerance to contamination than other designs.

A hydraulic pump for mobile applications, like the gear, piston or vane pump, can be either direct mounted to the PTO or remote mounted – using a driveline. While each type is a viable option for mounting a hydraulic pump, it is important to understand each type of mount to ensure an effective connection is made between the PTO and pump.

In a direct mount the hydraulic pump is mounted directly to the output flange of the PTO. Direct mounting is the most common type of installation in the mobile equipment industry. When direct mounting a pump it is necessary to:

Select the correct pump rotation to match the PTO output rotation or select what is known as a bi-rotational pump, which tends to have equally sized ports since either can be the inlet or outlet.

For mobile, truck mounted hydraulic systems the most common pump mount is the SAE B, which is a 7/8” diameter shaft with 13 splines – one of the standard pump mounting configurations established by the Society of Automotive Engineers (SAE).

Disadvantages to direct mounting a pump• Concealed maintenance points, which include periodic removal and replacement of grease at the pump to PTO connection

Sometimes it is not possible to direct mount a hydraulic pump, requiring the pump to be remote mounted some distance away from the PTO and then powered from the power take-off by means of a driveline assembly. The correct type and series of driveline must be selected. Solid shafting is not recommended as it cannot be balanced and can vibrate, damaging the PTO and pump shaft seals – causing leaks. The better choice is a balanced, tubular assembly designed to meet the speed, torque and horsepower requirements of the application.

When using a driveline, it is important that it be in phase and incorporates a slip yoke at one end. Round, keyed PTO output shafts are susceptible to failure by high cyclic loading. An out of phase shaft will vibrate and damage the PTO and pump shaft seals while a functioning slip yoke will allow the shaft to adjust for flexing of the truck chassis. As part of a regularly scheduled, preventative maintenance plan, the slip yoke and bearings of the driveline must be lubricated.

Powering a pump to a PTO is a common practice, but selecting whether to direct or remote mount the pump takes understanding and careful consideration. Regardless of the type of mount you select, remember that this understanding of each mount – along with its advantages and its drawbacks – will be the key to creating an effective, lasting connection between the PTO and pump.

Josh Reimer has been with Muncie Power Products for 22 years. During his career with the company he has served in various capacities from shipping and receiving clerk to customer service manager to his current position as a market specialist and more. He holds four different certificates including those for lean implementer training and advanced facilitation training. When he’s not at work, Josh enjoys walking or hiking with his wife, Chasta.

pto gearbox for <a href=''>hydraulic</a> <a href=''>pump</a> free sample

Proper power take-off (PTO) selection requires specific knowledge of the vehicle’s transmission and the driven component. With this information, selection is a relatively simple process. So, what do you need to know?

Which aperature will the PTO be mounted? This is generally dependent on the available space around the PTO aperature (i.e. the PTO envelope space). Be sure to note the presence of exhaust pipes, spring hangers, air tanks, etc.

The speed requirement of the driven component and or the desired PTO percentage. If the PTO is being used to power a hydraulic pump it is common to specify a PTO percentage of 90 to 120 percent.

In addition to meeting the speed and rotational requirements of the driven component, the PTO must also meet the torque and horsepower requirements of the application. This information can usually be found in the owner’s manual of the equipment or by contacting the manufacturer or distributor. There are also mathematical formulae that can be used to calculate these requirements.

The most common application for a PTO is to provide power to a hydraulic pump. If the flow and pressure requirements of the hydraulic system are known, the horsepower requirement can be calculated by the formula:

In mechanical applications where the PTO is supplying power directly to a driven component, the RPM and horsepower requirements must be obtained from an owner’s manual, specification sheet, or by contacting the manufacturer or distributor of the component.

All PTOs have torque and horsepower limitations. With the Muncie Power Products Quick Reference Catalog for instance, these can be found on the application pages. It is important to remember two things about the published torque and horsepower ratings in Muncie Power’s catalog:

Horsepower is directly proportional to PTO output shaft speed and the published ratings are at 1000 RPM. A PTO rated at 40 HP at 1000 RPM; therefore, can deliver 80 HP at a shaft speed of 2000 RPM, but only 20 HP at a shaft speed of 500 RPM.

Mechanical PTOs are those which are engaged when gears slide into mesh with each other. Since a PTO is essentially a non-synchronized gearbox, it is important that the operator make certain that the transmission gears stop turning before engaging the PTO. Engaging a mechanical PTO with the transmission gears turning will result in PTO and or transmission damage.

Mechanical PTOs are commonly engaged by means of a lever, cable, or air pressure, and are typically found on manual transmissions. Muncie Power’s TG Series is the most popular mechanical shift PTO. Other Muncie Power model series of this type are the SH Series and 82 Series.

On the other hand, the most common PTO found on an automatic transmission is a clutch shift PTO. Rather than engaging by means of a sliding gear, the clutch shift PTO utilizes clutch disks and friction plates to engage. When hydraulic or air pressure is applied to an internal piston the clutch disks and friction plates are forced together, engaging the PTO. Since there is no possibility of gear clash, this type of PTO can even be engaged with the vehicle in motion (as long as the truck engine speed remains under 1000 RPM). Muncie Power’s clutch shift PTO series include the A20 Series, CS10/11 Series, and CS41 Series models.
