mud pump bearings in stock

If you"re looking for good roller bearing for mud pump sourcing solutions, Alibaba is the perfect place for you. Explore this assortment of roller bearing for mud pump from popular international wholesalers. Find amazing discounts and bargain sales as well as lots of shipping options to maximize your purchase. Whatever you"re looking for, you"re likely to find it here.

Get your next order of roller bearing for mud pump here. Just type and search the products you need and compare through a large array of products and sellers. Buy a new deep groove bearing, a single row deep groove ball bearing, a double row deep groove ball bearing, a radial deep groove ball bearing, an axial deep groove ball bearing, or a deep groove ball bearing puller. Find specific measurements like a 20x42x12mm bearing or 10x26x8mm bearings. Suitable for industrial and automotive usages and transmissions, these roller bearing for mud pump have been made of sturdy and resistant materials so they can perform at their best for a long time. Just look at the pictures and product descriptions to see their quality! They probably won"t disappoint you. Moreover, with all the discounts and shipping options available, you"ll be able to get a great product at a budget-friendly price right at your door. Just a few clicks and you"ll get roller bearing for mud pump shipped to you internationally.

Mud pumps, used for oil and gas drilling operations, get their name from the specially prepared fluid (mud) that is pumped through the drill pipe to evacuate cuttings from the hole, as well as to cool and lubricate the drill bit. These are generally low-speed, high-displacement reciprocating pumps and can be either single- or double-acting, with the majority in use today being singleacting. Mud pumps can also feature from one to five cylinders, with a triplex arrangement being the most common. Normally, the pumps are skid mounted for transportation purposes, with the majority being horizontal in design and incorporating a fluid and power end, which are separate for maintenance purposes. This article explores the power end where roller bearings are located

Mud pumps, used for oil and gas drilling operations, get their name from the specially prepared fluid (mud) that is pumped through the drill pipe to evacuate cuttings from the hole, as well as to cool and lubricate the drill bit. These are generally low-speed, high-displacement reciprocating pumps and can be either single- or double-acting, with the majority in use today being singleacting. Mud pumps can also feature from one to five cylinders, with a triplex arrangement being the most common. Normally, the pumps are skid mounted for transportation purposes, with the majority being horizontal in design and incorporating a fluid and power end, which are separate for maintenance purposes. This article explores the power end where roller bearings are located

EOE bearings are used in professional bearing manufacturers in major equipment industries such as metallurgy, cement, petroleum, military industry, heavy machinery, wind power, port machinery and so on.

Spherical roller bearings are bearings with drum-shaped rollers assembled between the inner ring with two raceways and the outer ring with spherical raceways. Spherical roller bearings have two rows of rollers, which mainly bear radial loads, but can also bear axial loads in any direction. It has high radial load capacity, especially suitable for working under heavy load or vibration load, but cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so its alignment performance is good and it can compensate for the coaxiality error.

Spherical roller bearings are bearings with drum-shaped rollers assembled between the inner ring with two raceways and the outer ring with spherical raceways. Spherical roller bearings have two rows of rollers, which mainly bear radial loads, but can also bear axial loads in any direction. It has high radial load capacity, especially suitable for working under heavy load or vibration load, but cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so its alignment performance is good and it can compensate for the coaxiality error.

Spherical roller bearings are bearings with drum-shaped rollers assembled between the inner ring with two raceways and the outer ring with spherical raceways. Spherical roller bearings have two rows of rollers, which mainly bear radial loads, but can also bear axial loads in any direction. It has high radial load capacity, especially suitable for working under heavy load or vibration load, but cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so its alignment performance is good and it can compensate for the coaxiality error.

Spherical roller bearings are bearings with drum-shaped rollers assembled between the inner ring with two raceways and the outer ring with spherical raceways. Spherical roller bearings have two rows of rollers, which mainly bear radial loads, but can also bear axial loads in any direction. It has high radial load capacity, especially suitable for working under heavy load or vibration load, but cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so its alignment performance is good and it can compensate for the coaxiality error.

Since horizontal directional drilling (HDD) work tends to be slower in the winter months, particularly when the ground is frozen, winter is a prime time to inspect the power end of the pump and prevent downtime on the job later.

If one waits until an audible problem can be detected, it is often very expensive to repair. All smaller HDD pumps – 100 hp and smaller — tend to use the same type of internal components regardless of the manufacturer.

The largest load bearing area of the pump is the crosshead pin and bushing area. Wear can be detected by locking the intermittent or piston rod with a pipe wrench and rotating the crank shaft slightly. If one can feel any slack it can only be coming from the pin and bushing or the connecting rod bearing. It then becomes necessary to remove the connecting rod assembly consisting of the connecting rod and cross head. If slack is determined in the pin bushing, it will be necessary to press out the pin and inspect the bushing and the crosshead pin in the eye of the connecting rod. Some manufacturers ship bushings that are designed to fit. Others ship them and they have to be reamed to fit the pin after the bushing is installed. The installation instructions and dimensional fits are provided by the manufacturer in the pump manual.

The next area of concern is the connecting rod bearings themselves. If visual wear can be seen, use a micrometer and measure the crankshaft journals to make sure they are not out of round. If the journals check out, then all is needed is new connecting rod bearings. Some manufactures utilize shims to get the correct fit to the journal. Others provide automotive style bearings that only require correct torque to the rod cap for correct installation. There are pros and cons concerning automotive style vs shim bearings. Shim type bearings does allow for oversized connecting rod bearing should the journals be worn. This allows for turning down the crank journals a few thousands and utilizing a larger connecting rod bearing. If a pump uses automotive style precision bearings and the journals are out of round, it is necessary to replace the crankshaft.

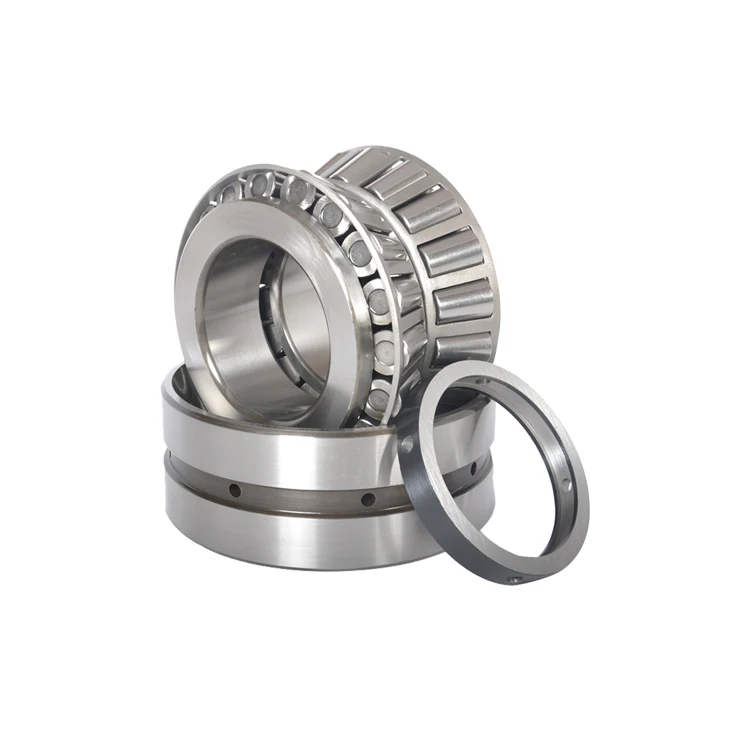

The tapered roller bearing should last for years. If the rollers and races are not pitted, utilizing the same set of roller bearings is allowable. Checking the end play on the crankshaft is a simple task. With the use of a dial indicator, check for the lateral movement of the shaft. It if falls within the manufacturer’s tolerances, nothing needs to be done, If not, then it will be necessary to add or remove shims. Shims packs are provided by the manufacturer so one can get the proper end play on the crankshaft. The shims themselves come in different thickness allowing one to add or remove to get the correct end play.

Wiper box packing keeps the oil within the power frame and external contamination from entering the power end. The packing is easy to inspect and essential for longevity of the power end. The wiper box packing must remain in excellent condition at all times. Allowing the pump to set for extended periods of time or letting external contamination build on the packing shortens the lifespan.

If one waits until an audible problem can be detected, it is often very expensive to repair. All smaller HDD pumps – 100 hp and smaller — tend to use the same type of internal components regardless of the manufacturer.

Inspection of the power end allows the owner to dictate when repairs are necessary rather than allowing the pump to dictate during the middle of a job when repair is required. If problems are detected early, repair is relatively inexpensive. If a problem is not detected early, that problem often leads to more unnecessary wear and affects other components of the pump. An early fix to any problem is relatively inexpensive. Allowing the problem to continue can often cost several thousands of dollars and downtime on a job.

Where we are struggling is that apparently two types of bearings listed below are custom made and apparently the manufacturer of these bearings (NKE) have agreement only to supply TSC and we require seven (7) each of these two bearing types

Support Needed:Anyone out there holding stock of those bearings in their inventory &/or can propose other alternatives to source those bearings with faster delivery times?
