mud pump valve insert made in china

A wide variety of mud pump valve inserts options are available to you, such as 1 year, not available.You can also choose from new, mud pump valve inserts,as well as from energy & mining, construction works , and machinery repair shops mud pump valve inserts, and whether mud pump valve inserts is 1.5 years, 6 months, or 3 months.

A wide variety of mud pump insert valve options are available to you, such as 1 year, not available.You can also choose from new, mud pump insert valve,as well as from energy & mining, construction works , and machinery repair shops mud pump insert valve, and whether mud pump insert valve is 1.5 years, 6 months, or 3 months.

Mud Pump Valve & Seat are made of premium alloy steel through one-piece forging and carburizing treatment processes, thereby ensuring high intensity. In addition, the precise calculation is performed and CNC machining is conducted for the dimensional matching of the valve seat and valve body working angles to enhance the service life of the valve body and valve seat. Our valve products are able to work smoothly in normal mining and digging conditions for over 400 hours.

The Made-in-China F series mud pumps have same reliable quality and performance as other USA products. Now, F series mud pumps (from F-500 to F-2200) have been produced in batches and sold to many abroad oilfields. Your order for F series mud pumps is cordially welcome.

Huaxin"s export-orientated mud pump parts, including liners, pistons, piston inserts, valve inserts, oil seals, rod packing, fluid ends etc. All of them meet or exceed DIN and API standards and have been exported to U.K., Germany, USA, Canada, Pakistan, Middle East, and so on.

Mud pump valve body and mud pump valve seat were produced according to API Specs as well as ISO9001 quality system by our company, were used high quality alloy steel 40CrNiMo、20CrMnTi, processed with overall forging and carburizing, the surface hardness HRC≥60; They were produced under accurate calculation and numerical control lathe, which makes dimensions of valve body and seat perfectly match each other, also were used many times by land and offshore platforms. The service life of valve body and seat are 4-5 times more than ordinary ones, which improves the working efficiency and decrease the cost and working strength.

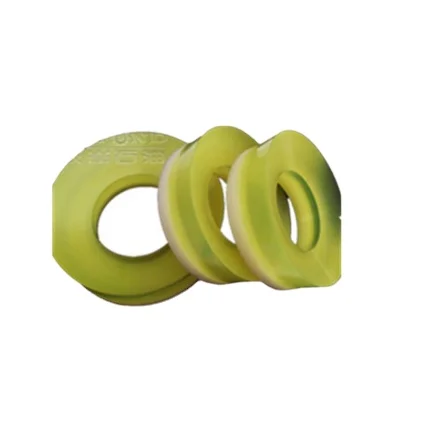

Mud pump valve assy include valve body, valve seat, valve insert (valve rubber ). As to valve insert (valve rubber) material, we can provide Nitrile rubber (NBR) valve insert, polyurethane (PU)valve insert, compound polyurethane and HNBR.

With the increase of China"s oil consumption, oil production equipment is also increasing year by year. The consumption of vulnerable parts of fracturing truck, mud pump, cement truck and other equipment in major oil fields is huge. Therefore, major oil fields are looking for efficient products to ensure the long-term normal operation of these equipment. Formula polyurethane elastomer products - valve insert, which quickly entered this market.

TheJST valve insert sealis mainly used for sealing valve seat of fracturing pump. It is made of modified polyurethane material of excellent extrusion resistance, puncture resistance and fatigue resistance, which guarantees the fracturing work under various working conditions.

Valve insert has the properties of damage and extrusion resistance. It has good compatibility with various fluids in industry, especially some harsh substances, such as H2S. Because of its ability to resist acid gas, it has become a high-quality sealing material in industry.

FET manufactures a full range of valves and seats for every drilling and well-servicing application as part of our full line of Osprey® mud pump system solutions. All of our valves and seats can be used in water, water base, oil base and synthetic base mud applications. FET offers additional valves and seats not listed below, including drilling valves, frac valves and well service valves. FET’s QC standards for the dimensional and material specs are extremely rigid in comparison to other manufacturers. Contact your FET representative to learn more.

Emsco、Gardner-Denver, National oilwell, Ideco, Brewster, Drillmec, Wirth, Ellis, Williams, OPI, Mud King, LEWCO, Halliburton, SPM, Schlumberger, Weatherford

Stem-guided valve &Tri-arm seat features greater fluid flow than four-arm seats, as well as it features an extra wide metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non-breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing.The strong, thick, valve knock off nut holds the insert tightly reducing flex and breathing which lessens the chance of foreign matter getting between valve and insert.

Stem-guided valve & Cross-arm seat features an extra wide metal to metal seal on the valve flange. The serrated upper surface on the valve gives a longer non-breathing seal between valve body and insert while the rigid seat cross-arms give greater strength and positive sealing.The strong, thick, valve knock off nut holds the insert tightly reducing flex and breathing which lessens the chance of foreign matter getting between valve and insert.

Three-wing guided valves and full open seats features greater fluid flow than four-wing valves, the unibody forged valve features greater strength than traditional welded-wing valve. Innovative unibody valve design eliminates snap rings, plates or keepers providing reduced maintenance by snap-on valve inserts and easy installation.

HNA makes two styles of Four-wing guided valves and full open seats which feature greater fluid flow through the full open seat. The full open seat provides easier valve maintenance and seat pulling, in valve-over- valve fluid ends.

Innovative unibody Four-wing guided valve design eliminates snap rings, plates or keepers providing reduced maintenance by snap-on valve inserts and easy installation. This combination will handle lost circulation material better than most conventional style valves and seats while the seating angle greatly improves flow characteristics and the heavy-duty load bearing capacity greatly improves service life.

The unibody forged Four-wing guided valve & Full open seat features greater strength than traditional welded-wing valve. Innovative unibody valve design eliminates snap rings, plates or keepers providing reduced maintenance by snap-on valve inserts and easy installation.

Revata Engineering offers very high quality and precision machined sleeved bi-metallic liners finished to relevant API dimensions. They are available for various pumps, manufactured by Oil Well, National, Gardner Denver, Omega, Ellis Williums, Bournedrill and others.

Piston Assemblies are available both in single and double acting type. They are available for different models of pumps manufactured by Oil Well, National, Gardner Denver, Omega, Ellis Williums, Bournedrill and others. Piston rubber of piston assemblies are manufactured by using very high strength polymer with very tough fabric backing. Special care is taken for accurate dimensions of Piston body to ensure very long life. Revata Engineering"s piston assemblies give very long life even under extreme working conditions.

Valve Assemblies consisting of Valve Seat, Valve Body, Valve Spring & Valve Insert are available for different models of pumps manufactured by Oil Well, National, Gardner Denver, Omega, Ellis Williums, Bournedrill and others. Special care is taken for the dimensional matching of valve seat and valve body working angles for ensuring very high life even under extreme working conditions. Valve Inserts are made out of high quality polyurethane material.

Revata Engineering manufactures Valve Cover Gaskets & Packing out of special grade of rubber compounds for the specific applications. The rubber compound has been developed by our Research & Development team after intensive research and customer inputs. Packings, require skill-full manufacturing technique have also been developed after intensive application research and now they are rated as one of the best in the market.

Other items like Piston rod, Lantern Ring, Liner Wear Plate, Liner Gasket, Wiper Rod, Oil Seals, Valve Guide, Bushing, Liner Wear Plate Gaskets, are also available for different models of pumps of Oil Well, National, Gardner Denver, Omega, Ellis, Williums, Bournedrill and others.

Valve Seat, Valve Body and Valve Nut are manufactured by using forged carbon steel / stainless steel as per the requirement of the users, suitably hardened grounded finished and hard-coated, wherever required. Special care is taken for dimensional matching between Valve Seat and Valve Body working angles to ensure long-life under severest of working conditions. Inserts are available in polyurethane and other polymers to suit customers’ requirement.
