sewage slurry mud pump made in china

Sewage pumps are used to transport sewage and untreated wastewater (e.g. raw wastewater). They are most commonly used in municipal sewage treatment plants, but they are also used in buildings and private homes, which cannot be connected to municipal sewers due to the natural slope of the terrain.

Most sewage treatment systems use the force of gravity to move solids and liquids down the pipeline. However, in some cases, it is necessary to pump sewage up from the septic tank to the urban sewage system. In these cases, the sewage pump has become an indispensable equipment for conveying sewage. This type of pump has one job and only one job: conveying solids and liquids between different positions. Generally, the sewage tank must be located in the lowest area where drainage is required. The pump can be submerged in water and may have to handle some fluid at almost any time.

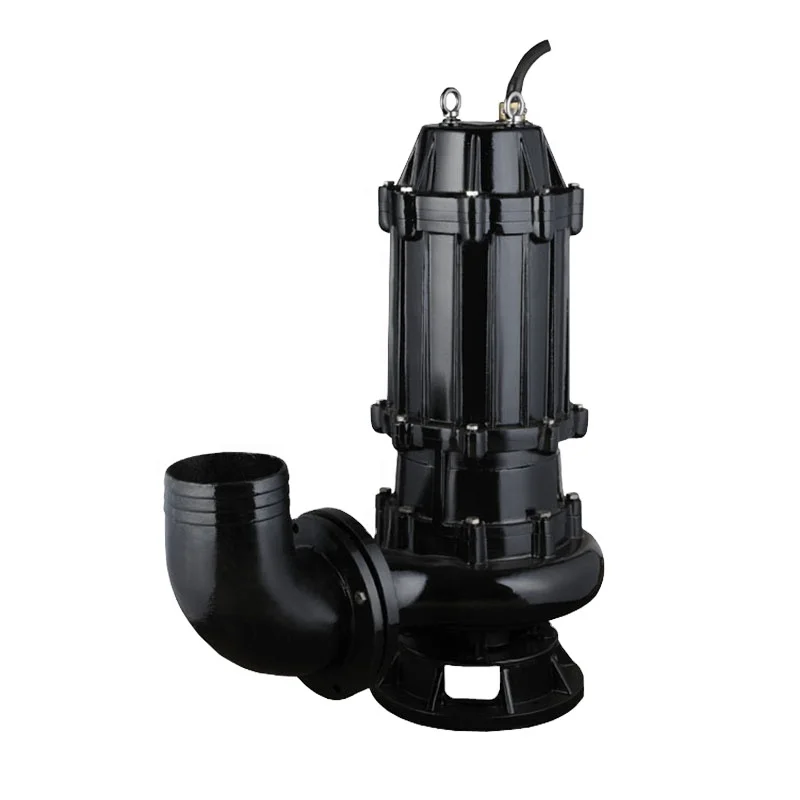

Submersible sewage pumps are located at the bottom of pools or containers, such as septic tanks. Sewage pump became popular in the early 1960s. At that time, a guide rail system was developed to lift the pump out of the pump station for maintenance, and put an end to sending people to dirty and dangerous sewage pits or wet pits. The growth of submersible pumps for sewage pumping is amazing because the designee understands their advantages. The water inlet of the pump shall be as close to the bottom of the pool as possible, usually at or near the bottom of the equipment. The goal is to drain as much solids and liquids as possible from the pool. However, because there must be a certain space between the bottom plate and the pump, it is impossible to completely discharge the sewage without manual intervention.

Most cities use two disconnected sewer systems, rainwater pipes and sewage pipes. Rainwater pipes collect rainwater and other relatively clean water. These sewers have common drainage grids on urban streets. The system contains Street garbage and dirt, but there is no actual domestic sewage. In many cases, cities simply filter the water to remove garbage or waste and allow it to be discharged into local water sources without treatment. Since the water is relatively clean, this usually has no impact on the environment.

Although the pump mainly deals with liquid, it is sometimes necessary to deal with solids in liquid through the system. Most pumps can handle solids up to 2 inches (5 cm) in diameter. Commercial pumps may be able to handle larger items.

Most sewage pumps work in the same way. The floating ball (liquid level switch) is installed on the pump in the same way as the sump pump or even the toilet tank. When the floating ball reaches a certain height, it will start the switch and start the pumping action. When the liquid lowers the floating ball to a certain point, the pump will shut down.

For many residential consumers, the main point is to decide what size pump to buy. They are typically rated at horsepower, mostly between 0.5 HP and 1.0 HP. The size of the pump shall be based on the amount of sewage normally required to be delivered, usually expressed in gallons per hour. In general, domestic sewage pumps can deliver 5500 gallons (20000 liters, about 20 m3) to 8000 gallons (about 30000 liters, about 30 m3) per hour.

And it"s distinctive design of double channel and large pasage impeller effects high efficiency . The pumps are mainly used in municiple engineering, building ,industrial drainage , sewage . Any special requests may be brought out upon placing an order of our convenience to arrange you more dependable products. 3 .

Tobee® TPN Sludge Pumpis single stage, single sution, horizontal centrifugal mud sludge pump, this type pump wetted components are made from wear-resistant alloy materials. Impeller and guard board clearance can adjust to maintain efficient work. 6 inches below the pump type with threaded connection, impeller 8 inches above pump type from the key link. Shaft seals use packing seal, work should be injected higher working pressure 1kg/cm2 shaft seal water. The pump has simple structure, reliable, simple maintenance and long service life etc. Suitable for mining conveying solid-liquid two-phase fluid with, conveying maximum weightconcentration for 50-60%.

Complete production and processing, inspection, testing (pump performance test platform), and other equipment, to ensure that product quality is stable and reliable.

This series pump is widely used for sewage treatment of city construction discharge for architecture projects, hotel, mine, pond, dyeing and printing, paper making and textile industries.

1. The medium temperature should not be over 60oC, the density 1200Kg/m3, and the pH value within 5-9.2. During running, the pump must not be lower than the permitted lowest liquid level.3. Rated voltage 380 V, rated frequency 50 Hz. The motor can run successfully, only under the condition the deviations of both rated voltage and frequency are not over ± 5%.4. The maximum diameter of the solid grain going through the pump has not to be larger than 50% of that of the pump outlet.

Hydroman was founded by Tobee in 2008"s as a manufacturer of heavy duty submersible slurry pumps in North of China. Hydroman mainly specialized in submersible slurry pumps, submersible sand pumps, submersible dredging pumps, Submersible agitator slurry pumps, Submersible Dewatering Pumps, Submersible sludge pumps, Submersible sewage pumps, hydraulic slurry pumps, hydraulic submersible dredge pumps, Excavator mounted hydraulic dredge pumps and all accessories like cutterheads, agitators, strainers, cooling jackets, excavator, sparge rings and hydraulic oil station etc.

Hydroman offers Heavy duty agitator submersible pumps and accessories in the Industry for handling slurries, rocks, gravels, sands, stones, sludge, mud,slag, minerals, bentonite, sewage, waste water and all other kinds of solids, with the shortest delivery times to world markets.

Over the past 20 years, Hydroman Pumps has been evolving based on our customer"s excellent ideas and feedback. Tobee Pumps have been investing heavily in ourselves; attracting top talent from all over the world, streamlining our processes and our systems, partnering with top universities for cutting edge research in hydraulics, hydra-efficiencies, mechatronics and corrosion and abrasive material handling, becoming ISO 9001 certified and designing a new range of modular submersible slurry pumps.

In the submersible pump design and manufacturing industry, Hydroman could make a durable, high quality slurry pump capable of tackling the toughest abrasive applications that any industry could throw at it. Hydroman is a manufacturer that thrives on a good challenge, applying common sense, solid experience, and a sense of what"s right to guide our problem-solving and practices.

Hydroman"s proprietary advanced Computational Fluid Dynamics (CFD) program allows us the accurately design the most efficient impeller vane and volute profiles to ensure longer wear life and more efficient operation of your submersible pump.

Hydroman® Pump has a wealth of experience in the manufacturing and service of pumps and accessories; in fact Hydroman® Pump has machinery manufacturing experience of over 45 years having achieved great success with R&D and manufacturing of Pumps for more than 20 years. The annual production capacity of pumps in our factory surpasses 10,000 easily. Hydroman® Pump has a tremendous market share that covers more than 120 cities in China including many provinces and autonomous regions and more than 80 countries.

Hydroman® Pump has over 80 sophisticated equipment such as CNC, Director reading Spectrometer, CMM (Coordinate Measuring Machine), Rapid typing Machine and etc. Based on these facilities, Hydroman® Pump has the abilities of material inspection, casting, welding, machining, assembling and the performance test of pump unit. The maximum weight of the casting by Hydroman® Pump is about 5 tons, the maximum diameter of the casting can be machined by Hydroman® pump is over 5 meters and the maximum flow rate of Hydroman"s Pump product is more than 1,000 cubic meters per hour. With an annual production of 1000~1200 pumps, Presently, Hydroman® Pump is the top 10 pump manufacturer with high comprehensive capacity of design and producing.

As a High & New Tech enterprise, Hydroman® Pump owns a municipal research center with strong R & D research capability and a team of more than 120 technicians along with 25 senior engineers and 17 experts etc. There are material laboratory, physical lab, chemical lab, 3D scanning equipment, MAXUM, 3D coordinate measure machine, metallographic analysis software, casting simulation software, CFD computer aided design, PLM (product lifecycle management), CAPP and etc. hardware and software in Hydroman® factory. In addition to these, Hydroman® Pump continually introduce new technology technologies to improve the products comprehensive performance, like Lost Foam Casting and Vacuum Casting technology.

Hydroman® pump"s humongous market share and its unrelenting competitiveness in the pump market have made us rank Top 10 in China for many years and were also selected as the Pacesetter Enterprise in the Chinese Industrial Pump Industry. This warrants enough proof of our distinctive position in the pump market today.

Since ours is a high tech enterprise of North of China, Hydroman® Pump has a municipal level research centre and has strong abilities in product research and development because of our powerful research team. We also like to profess that we have a long standing technical cooperative relationship with many renowned research institutions which only shows the strength of Hydroman"s R&D capabilities.

All the products manufactured by Hydroman® Pump are well received by our customers and have gained high appraisal from the society noting certain qualities of our products like energy saving, overall efficiency, stable operation and long service life. Some of our customers refer to Hydroman® Pumps simply as "Permanent Pumps" because of our quality and defect-free manufacturing ability.

4.High efficient chrome steel impeller design with HRC 30~35 Rockwell Hardness, cast iron casing with heat treatment, chrome steel wear plate allow pump to stand abrasive and corrosive applications.
