mud pump liner sleeves in stock

Alibaba.com offers 1113 mud pump liner products. About 56% % of these are mud pump, 7%% are mining machine parts, and 3%% are other oil field equipments.

A wide variety of mud pump liner options are available to you, You can also choose from oil well, mud pump liner,As well as from carbon steel, chromium, and iron. and whether mud pump liner is moulding, bending, or punching.

Lake Petro provides high quality Mud Pump Parts including Mud Pump Liners, Mud Pump Fluid End Module, piston, Valve and Seat etc. With more than 10 years of experience in the oil and gas industry, we are dedicated to help and support our loyal clients with the most cost-effective and quality Liners and Pistons. We also provide mud pump price and mud pump for sale.

We offer Liners with Ceramic (Zirconia and Aluminium oxide) and Steel (Metal and Bi-metal) materials for all common brands of the mud pump and triplex mud pump.

Bi-metal liners (double metal liners) are made of forged steel shell and wear-resistant sleeve of high chromium iron. In the production process, the size accuracy should be strictly controlled, which can ensure that they can be easily and stably installed. The inner sleeve with high finish and hardness is wear-resistant, corrosion-resistant and has a long service life. The bi-metal liners are suitable for a lot of bad working conditions. Its service life is more than 800 hours.

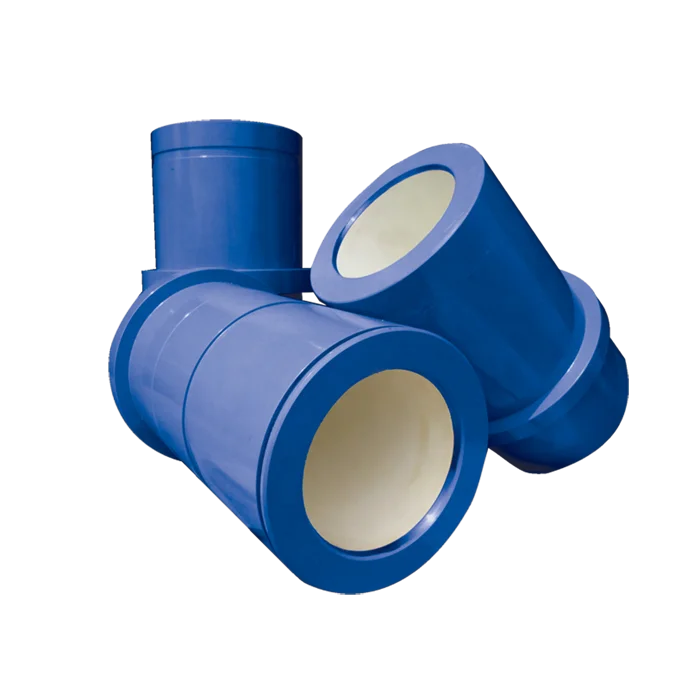

Ceramic Liners are made of a ceramic inner sleeve and a forged steel outer shell. The service life of ceramic liners is about 4000 to 10000 hours, the minimum time is at least 2000 hours, which is a lot more than bi-metal liners. Because of the phase transformation toughen technology, the ceramic liners have the features of wear-resistance, erosion-resistance, high-pressure-resistance, high hardness and strength. Zirconia type and Alumina type are common type of ceramic sleeve. Compared with Alumina type, Zirconia type liners have better toughness properties and a much longer service life. Piston wear and water consumption for lubrication can be reduced as well.

Seal Rings for Liner packing are also important. Liner Seal Rings is designed and made with hard corner which is an integral part of seal rings and soft nitrile element rubber center. We could provide reliable liner Seal Rings for our customers could order them at the same time.

All Lake Petro liner products are interchangeable with O.E.M. products. Meanwhile, we provide customized Liners according to drawings. Our liners, also with our other mud pump spares, are supplied for use in Honghua, F-Series, Bomco, Emsco and National lines of triplex drilling pumps. Let Lake Petro be your one-stop shop for your whole fleet of pumps. Please refer to “Suitable Pump Models” Lable for more details.

High chrome liners of drilling mud pumps are manufactured by the highest-grade materials. The outer shell is made of forging high-strength carbon or alloy steel. The inner sleeve is manufactured from a proprietary high chrome content iron alloy that offers excellent resistance to wear, chrome content is not less than 27%.

High chrome liners of drilling mud pumps are manufactured by the highest-grade materials. The outer shell is made of forging high-strength carbon or alloy steel. The inner sleeve is manufactured from a proprietary high chrome content iron alloy that offers excellent resistance to wear, chrome content is not less than 27%.

As we know, Mud pump liner is the main wearing part of the mud pump fluid end spares in the oil drilling machinery. It’s working life time directly affects the drilling efficiency and drilling quality.

With the continuous expansion of the economy, the application of zirconia ceramic liner has been accepted by many consumer. Someone will ask such a question. What is the difference between Zirconia Ceramic Liner and Bi-metal Liner? Please see the following answer:

Bi-metal liner combines the advantages of a forged wear-resistant outer sleeve and a high-chromium wear-resistant and corrosion-resistant inner sleeve. The outer sleeve is free forged, and the high chromium inner sleeve is centrifugally poured and the hardness reaches 62 Rockwell c grade after heat treatment. 45# forging, tensile strength σb>610mpa, yield strength σs>450mpa, elongation δ>17%, hardness hb180-200 (casting jacket hardness hb160-200).

Oxygen oxidation zirconium ceramics (raw material: non-metallic minerals) liner is more toughness than bi-metallic liner, and the life time can reach more than 4000 hours. Zirconia ceramic liner has the advantages of resistance to oxygen wear and corrosion. The reason for cylinder pulling caused by zirconia ceramic cylinder liner is very complicated, there are design reasons, such as the selection of materials, the determination of the gap size, whether the installation of the device is appropriate, whether the structural arrangement is reasonable, whether the surface roughness is appropriate, whether the arrangement of lubrication and cooling is perfect.

Due to longer service life, Zirconia ceramic liner can reduce the transportation cost, labor cost, storage cost, etc. of drilling work, and can also reduce piston wear. It’s especially suitable for deep oil reservoirs,poor geological structures mining environment, offshore oil and natural gas development.

The sleeve of this liner is made of zirconia, with superior service life than regular steel sleeve liner, less rig downtime and lowest cost of per operating hour.

1. The zirconium ceramic liners can not only adapted to some tough environment such as deep oil reservoir, hard stratum and severe earthiness, but also can be used for offshore oil and natural gas exploitation as well.

2. Compared with bi-metal liner, the service life of ceramic liner is 5-10 times higher. Its maximum and minimum service life can reach more than 4000 hours.

3. The zirconium ceramic liners which has used the phase transformation toughen technology has various advantages such as wear-resistance, erosion-resistance, high-pressure-resistance, high-temperature-resistance, high strength and high hardness.

5. Compared with the alumina liners, the zirconium ceramic liners have better toughness properties and have longer service life. It can also reduce piston wear and water consumption for lubrication.

Mud pump liner is an important and easily worn part of the mud pump fluid end, so the service life of mud pump liner directly affects the service life of the mud pump. The liner must not only have sufficient strength and rigidity but also must be resistant to high temperature, corrosion, and wear.

Hy-Chrome liner is one of the mud pump fluid end parts used most widely and largest at currently. Our production Hy-Chrome liner is a combination of hot forging high wear coat and the advantages of high chrome wear-resisting corrosion inner sleeve. The outer sleeve is made of quality carbon steel hot-pressing time forming, an inner sleeve made from high chromium cast iron centrifugal casting. And the tensile strength of the outer sleeve is higher than 900000 psi, the hardness of the inner sleeve after heat treatment is greater than HRC62 and can bear the mud pressure of 7000 psi, it"s surface smooth as a mirror, inner hole size tolerance strictly, the normal service life is up to 800 hours.

TSC chrome plated liners feature a chrome-plated outer liner, in lieu of a sleeve, for maximum thickness. The liner is machined and polished to a mirror like finish.

American Mud Pumps LLC: warrants its products to be free from defects in material and/or workmanship under normal use and service for a period of one(1)year from the date of shipment. The liability for any defects shall be limited to the repair or replacement of such products, or at the option of American Mud Pumps LLC the refunding of purchase price. This warranty is expressly in lieu of all other warranties and representations, expressed or implied, and all other obligations or liabilities on the part of American Mud Pumps LLC, which shall not be liable for consequential damages for any breach of warranty."

American Mud Pumps LLC is a quality independent company. We are neither a licensee, nor affiliated with any other original equipment manufacturer (OEM) which may be named throughout. The manufacturers" names or trademarks used herein are solely for identification purposes and are not intended by American Mud Pumps LLC to cause confusion as to the source, sponsorship or quality of the parts provided by American Mud Pumps LLC. The OEMs named throughout this catalog do not sponsor, promote, warranty or endorse American Mud Pumps LLC products. Part number usage is for identification purposes only."

FET manufactures a full range of valves and seats for every drilling and well-servicing application as part of our full line of Osprey® mud pump system solutions. All of our valves and seats can be used in water, water base, oil base and synthetic base mud applications. FET offers additional valves and seats not listed below, including drilling valves, frac valves and well service valves. FET’s QC standards for the dimensional and material specs are extremely rigid in comparison to other manufacturers. Contact your FET representative to learn more.

Leading Manufacturer of ASTM Gardes liner Sleeve pipe Vertical Centrifugal Casting, Mud Pump Cylinder Liner, Mud Pump Liner, HCHCR Mud pump liner and Api Bimetal Cylinder Liner Of Mud Pump from Rajkot.
