Tiger produces a series of API7K-compliant mud pumps ranging from F-500 to F-2200. F-2200 is a tri-cylinder, single-action, heavy-duty, high-pressure drilling pump with a maximum power of 2,200HP, maximum working pressure of 52MPa, and maximum displacement of 77.65L/s.

F-1300, F-1600, F-1300L and F-1600 mud pumps have a Max. Pump pressure of 34.5MPa (5000Psi) and a displacement of 46.5L/S with a liner of Φ180mm. These two models are the first choice for medium and deep drilling rig as an assorted component.

F-1600,F-2200 mud pumps with high-power and high-pressure are developed to meet drilling requirements of offshore deep-water, terrestrial and horizontal wells, especially in desert areas.

You won"t find anywhere else for the best rig expect us in china.We are professional drilling rig manufacturer, we produce world-class drilling rig such as ZJ30,ZJ40,ZJ50,ZJ70,ZJ90 and rig parts:Mud pump,Hook,Rotary Table,Swivel,Crown block,Travelling Block,iron roughneck….

Our company is specialized in interchangeable parts for brand name mud pump, including Emsco, National, Ideco, Gardner Denver, etc. and other brand liners.All items,oilfield API mud pump parts cylinder head/valve cover are manufactured to API 7K quality standards. Parts are available for these popular pump models:

Fluid End: liner, , piston rubber, valve body, valve seats, valve rubber, liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalationcapsules, etc.

Drilling consumables such as mud pump systems and their components can drastically increase your uptime while reducing costs and health/safety/environmental (HSE) risks. To support your drilling needs, Forum’s patented P-Quip® mud pump system offers a single-source solution that integrates high-quality fluid end components for maximum longevity and performance.

With more than 20 years of successful operation in severe environments, P-Quip offers a proven track record for the lowest cost of ownership in the industry. As part of our commitment to quality, our mud pump parts use patented Banded Bore™ technology that significantly reduces stress concentrations and leads to longer module life.

The Valve Cover Seal Ring is the main part of the hydraulic end system in the drilling mud pump and one of the most vulnerable parts. Its material is made of rubber and nylon vulcanization.

The ceramic liner is the best choice for high pressure mud pumps. It is manufactured strictly in accordance with specific technical standards by use of advanced processing techniques. The ceramic liner comes in various specifications, which come in Φ150～180×310～440mm.

The valve rubber of the valve assembly is made of new type high polymer materials to ensure superior performance, strong impact resistance under high temperature and high pressure.

The pulsation dampeners shall be installed properly to reduce the pressure fluctuation and smooth the liquid flow. In order to extend the lifespan of the air bag, it is highly recommended to maintain the suggested proportion of the pump pressure to the pre-charge pressure of the air bag for the pulsation dampeners. Generally, the pump pressure shall be 2/3 that of the discharge pressure and no more than 4.5MPa.

2. During maintenance, the pump pressure and the pressure inside the pulsation dampeners shall be zero. Since the residual pressure is generally small and can not be indicated on the pressure gauge, user shall confirm the pressure carefully to avoid accident caused by low pressure.

The extension rod is an important part for the power end of mud pump in oil drilling. Produced by KINGWELL Company, it is forged from high quality alloy steel. High mechanical performance of the mud pump parts can be achieved through heat treatment. After being processed by CNC machine, this pump rod is ensured with precise geometric size. It is chrome plated with one-sided chrome thickness of over 0.1mm for increased abrasion resistance and extended service life of the alloy steel rod.

The crosshead is a vital part for the power end of mud pump in petroleum drilling. It acts as a pump component for connecting a piston with the extension rod. This mud pump part plays a guiding role. Its size precision decides the stability of operation of the whole mud pump. The crosshead assembly produced by KINGWELL Company is precisely forged from ductile cast iron beyond the industrial standard, which provides improved mechanical properties and elongation. Through heat treatment and parkerizing process, it eliminates the internal stress generated from the casting process and also increases its corrosion resistance. The crosshead centerline is determined prior to CNC machine processing. The error of all finishing size from the centerline has to meet the requirement of the drawing. In this way, the coaxially of the crosshead and the stability of both geometric size and power supply can be strictly guaranteed. The crosshead assembly covers a full range of BAOSHI, QINGSHI and LANSHI brand pumps. Both metric and imperial accessory products can be provided to meet the requirement of customers.

Upper and lower valve guides are important parts for the fluid end of mud pump in oil drilling. The upper type acts as a connector of valve spring and valve cover inside the hydraulic cylinder. It plays a guiding role in valve operation. The lower one is a connector of valve spring and hydraulic cylinder inside the cylinder. It has the function of fixing and guiding the valve operation.

Manufactured from domestically famous medium carbon alloy steel, the cylinder head has outstanding mechanical performance and wear-resistant property. The hammer forging, as well as the ultrasonic flaw detection technology, effectively eliminates the crack caused by porosity of metal structure. Our alloy steel cylinder head is machined with advanced CNC machine tool to ensure the small tolerance and good stability for installation. Apart from that, the precisely controlled heat treatment helps us achieve mechanical strength and hardness conforming to the requirement for mud pump.

The cylinder head is an important part for the inlet and outlet of fluid end valve housing. It is generally assembled to the flange of the valve housing. The bottom of the cylinder lid is installed against the positioning plate and the plug, playing the function of fixing.

User shall place the positioning plate into the hole at the pump head in case the installation of valve body assembly of the inlet and the guide apparatus is completed. In the meantime, the sealing ring of the cylinder head shall be put on the plug of the product. The outside of the sealing ring and the plug of the cylinder cover shall be smeared with light oil. Afterwards, push the plug into the opening of the fluid end and smear the thread of the product with lubricating grease. Finally, user shall screw in the thread into the cylinder head and fasten it with the fastening tool and hammer.

The flashboard assembly, also called positioning plate assembly, is an important component for the fluid end of mud pump in petroleum drilling. It has the function of longitudinally fixing the guide and horizontally fixing the cylinder head assembly for a hydraulic cylinder. Flashboards made by KINGWELL Company cover a full range of BAOSHI, LANSHI and QINGSHI brand pumps. All of them adopt high grade alloy carbon steel made by domestic steel plants. They have experienced the CNC cutting, blanking, heat treatment and CNC machining process, which ensures the geometric size. Some models of the product are added with copper blocks in order to increase the abrasion resistance of both flashboard and hydraulic cylinder end face. As mud pump accessories, they are well received by clients from numerous markets.

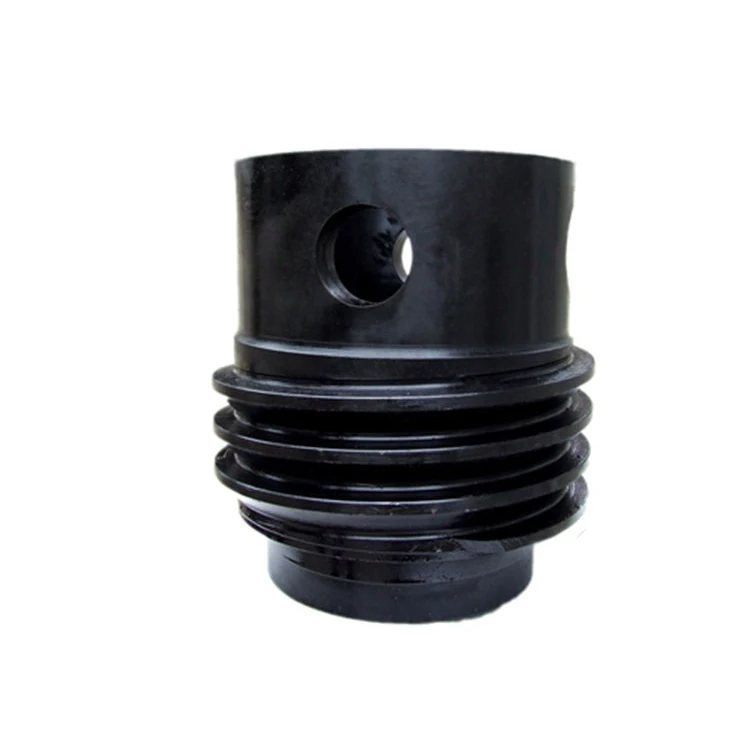

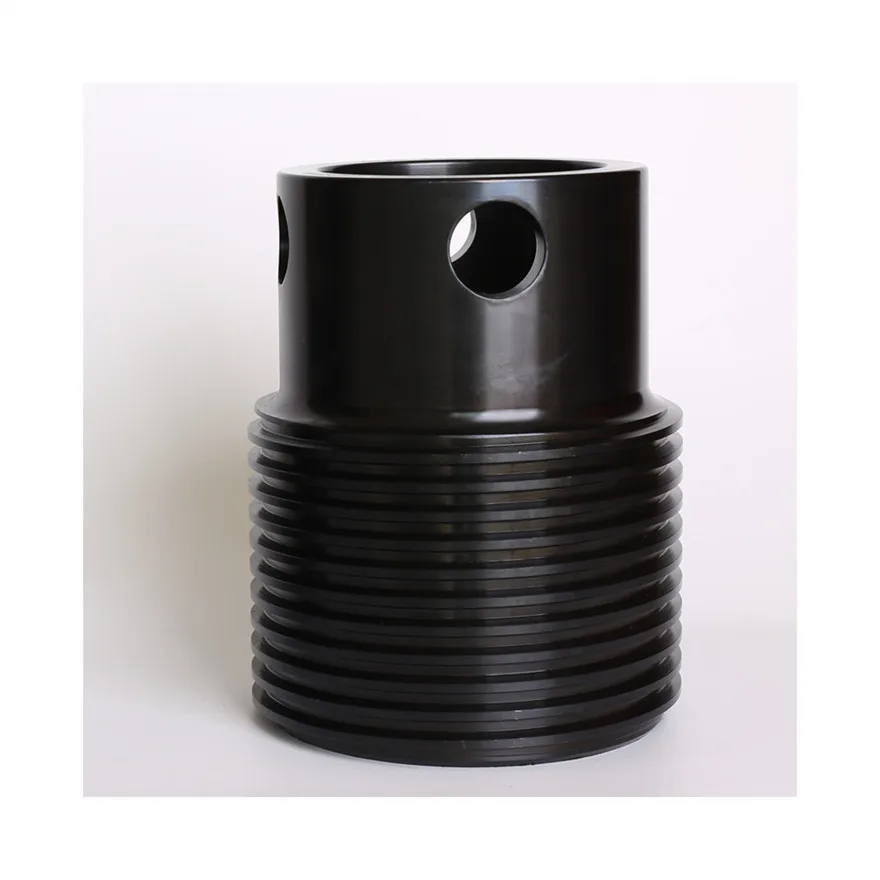

Scientifically designed, the valve cover is made of first class medium carbon alloy steel from domestically famous brand, for excellent mechanical property and good resistance to abrasion. To avoid the defection such as crack caused by porosity of metal structure, we particularly manufacture the mud pump part with free forging and ultrasonic flaw detection technology. The advanced CNC machine tool enables accurate dimension of the valve cover. By virtue of the precise control on heat treatment, the mechanical strength and the hardness of the valve cover are in compliance with the requirement for mud pump working environment.

The valve cover is an important part for the inlet and outlet of valve housing for fluid end. The bottom of the mud pump valve cover is connected to the valve body guider, to ensure the airtightness and the stability of the water outlet.

Firstly, put the seal ring of the product in the hole of the valve housing. Secondly, user shall smear sealing element and the thread with lubricating grease. Finally, the valve cover shall be fastened with the fastening tool and the hammer.

The wear plate is a kind of pump accessory for the fluid end of mud pump in oil drilling. It has the function of sealing and pressure maintaining for a hydraulic cylinder. All wear parts made by KINGWELL Company adopt high end alloy carbon steel made by domestic steel plants. These wear resistant steel plates have experienced the high temperature forging, heat treatment and CNC machining process, which guarantees geometric size, sealing performance, increased abrasion resistance and durability. Different models and types of wear plate (liner) products and related jackscrews can be offered upon request.

The cylinder flange is a vital part for the fluid end of mud pump in petroleum drilling. As a mud pump element, it plays a role in fixing and sealing the hydraulic cylinder head plug and cover. A high-grade proper flange is adopted for improved cylinder head plug loading condition, increased bearing capacity and extended lifespan. The product made by KINGWELL Company covers a full line of BAOSHI, LANSHI and QINGSHI pumps. It is manufactured from high quality alloy carbon steel by domestic steel plants. This carbon steel flange withstands the high temperature forging, heat treatment and CNC machining process for guaranteed geometric size as well as increased wear resistance and durability.

The valve cover flange is important to the fluid end of mud pump during the oil drilling process. It is an oil drilling tool that has the function of fixing and sealing the hydraulic cylinder head plug and cover. A superior quality proper flange is utilized for improved cylinder head plug loading condition, increased bearing capacity and extended service life. The mud pump part made by KINGWELL Company covers all kinds of BAOSHI, LANSHI and QINGSHI brand pumps. It adopts top grade alloy carbon steel manufactured by Chinese steel plants. As a fluid end part, this product is completed through high temperature forging, thermal treatment and CNC machining in order to guarantee geometric size and also improve durability and wear resistance.

The new type core box is made from new synthesized materials by high pressure injection molding. It is obviously superior to ordinary plastic core tray regarding the resistance to shock, aging, high temperature, extremely cold climate and other aspects. This product is categorized into 2 series and 8 sizes. It is equipped with box cover, flash-board, chains and other accessories. Our drill core box is reliable equipment of long-term storage and convenient transportation for geological exploration and oil exploration.

The 2S gear oil pump is the main element for the lubricating system of the power end for mud pump. This lubricating oil pump is usually installed on the pressure lubrication system, offering lubricating oil for crosshead, crosshead bearing, extension rod, etc.

The corrugated bellow is a kind of tubular elastic rubber product which is connected using a corrugated piece for the mud pump from LANSHI and QINGSHI factories. It plays a role in separating and sealing between the fluid end and the power end of a mud pump. Dezhou KINGWELL Petroleum Machinery Co., Ltd. is capable of producing different models of corrugated pipes. Our company holds an independent rubber accessory factory and the first self-invented rubber injection machine in China. After injection, the raw material can be vulcanized and completed in an integrated mould for only once, which ensures both performance and lifespan of the corrugated bellow.

The plug is an important part for the fluid end of mud pump in oil drilling. Its front part is equipped with cylinder head (valve cover) sealing ring for the sealing and pressure maintaining of a hydraulic cylinder. A top-grade suitable plug is adopted to improve the cylinder head plug loading condition and also increase the bearing capacity and service life. Plugs made by KINGWELL Company cover a full range of pumps from BAOSHI, LANSHI and QINGSHI factories. All of them adopt high quality alloy carbon steel made by domestic steel plants. They are finished by means of high temperature forging, heat treatment and CNC machining so as to achieve guaranteed geometric size, sealing performance, increased durability and wear resistance.

The locking clip is a part of the fluid end of F series mud pump from BAOSHI factory. It has the function of fixing and supporting the guide inside a hydraulic cylinder. The product produced by KINGWELL Company is made from superior quality brass. After being heated, it is bended and completed with specialized equipment for increased wear resistance and extended service life.

The stuffing box is an important component for the power end of mud pump in oil drilling. It plays a crucial part in sealing the lubricating system and the operation inside power end. Its housing produced by KINGWELL Company is precisely cast from ductile cast iron beyond industrial standard for improved mechanical properties and elongation. The adoption of heat treatment and phosphating technology helps eliminate the internal stress generated from the casting process and also improves corrosion resistance. After CNC finish machining, it is tightly assembled with wear-resistant rubber, vulcanized oil seal and sealing ring, as well as the nylon oil seal ring made by the machining center. In this way, the service life of sealing elements inside the stuffing box assembly could be greatly extended. This product is well received by clients.

The cylinder head plug is a vital part for the fluid end of mud pump in petroleum drilling. A high quality suitable plug is adopted for improved loading condition as well as increased bearing capacity and lifespan. The product made by KINGWELL Company covers a full range of BAOSHI, LIANSHI and QINGSHI brand pumps. It is derived from top grade alloy carbon steel made by domestic steel plants. Besides, this product is completed with high temperature forging, heat treatment and CNC machining technology so as to guarantee the geometric size, sealing performance as well as increased durability and abrasion resistance.

The piston rod nut is a kind of anti-loosening nut for the end of piston rod. In common with the material of piston rod, it is made from superior quality alloy steel. The head of the product manufactured by KINGWELL Company is filled with a wear-resistant high strength nylon gasket so as to prevent rod thread from abrasion or being impacted by mud when in use of a piston rod. After heat treatment, this product offers better mechanical property. All models of piston rod nuts in metric and imperial units from BAOSHI, LANSHI, QINGSHI and other factories can be produced to meet the needs of customers.

The discharge filter screen assembly is a main component of the outlet for the fluid end of mud pump in petroleum drilling. It is composed of filter screen assembly, housing assembling as well as sealing ring, end cover and other accessories. The integrated formed filter screen housing made by our company adopts casting technique. The filter screen assembly is manufactured from superior quality alloy steel and assembled after CNC machining. This not only provides excellent corrosion resistance and pressure resistance, but also helps customers increase production efficienc

Revata Engineering offers very high quality and precision machined sleeved bi-metallic liners finished to relevant API dimensions. They are available for various pumps, manufactured by Oil Well, National, Gardner Denver, Omega, Ellis Williums, Bournedrill and others.

Piston Assemblies are available both in single and double acting type. They are available for different models of pumps manufactured by Oil Well, National, Gardner Denver, Omega, Ellis Williums, Bournedrill and others. Piston rubber of piston assemblies are manufactured by using very high strength polymer with very tough fabric backing. Special care is taken for accurate dimensions of Piston body to ensure very long life. Revata Engineering"s piston assemblies give very long life even under extreme working conditions.

Valve Assemblies consisting of Valve Seat, Valve Body, Valve Spring & Valve Insert are available for different models of pumps manufactured by Oil Well, National, Gardner Denver, Omega, Ellis Williums, Bournedrill and others. Special care is taken for the dimensional matching of valve seat and valve body working angles for ensuring very high life even under extreme working conditions. Valve Inserts are made out of high quality polyurethane material.

Revata Engineering manufactures Valve Cover Gaskets & Packing out of special grade of rubber compounds for the specific applications. The rubber compound has been developed by our Research & Development team after intensive research and customer inputs. Packings, require skill-full manufacturing technique have also been developed after intensive application research and now they are rated as one of the best in the market.

Other items like Piston rod, Lantern Ring, Liner Wear Plate, Liner Gasket, Wiper Rod, Oil Seals, Valve Guide, Bushing, Liner Wear Plate Gaskets, are also available for different models of pumps of Oil Well, National, Gardner Denver, Omega, Ellis, Williums, Bournedrill and others.

Valve Seat, Valve Body and Valve Nut are manufactured by using forged carbon steel / stainless steel as per the requirement of the users, suitably hardened grounded finished and hard-coated, wherever required. Special care is taken for dimensional matching between Valve Seat and Valve Body working angles to ensure long-life under severest of working conditions. Inserts are available in polyurethane and other polymers to suit customers’ requirement.

Find W series mud pump from pressure grouting pump manufacturer - Saigao gruop in China. The W series mud pump can be widely used in all kinds of works in oil field, which is su...

§G -Lubrication system : oil circulating pump installation (electrical driven, China-made) , with fresh water heat exchanger (oil cooling) , Magnetic oil filter , Cartridge type gauge.
