mz-9 f.e.s 1000hp triplex mud pump brands

O.I.M.E.SL-5(Ref#6946N)  750 hp SL-5 OIME drawworks, 3-engine compound powered by (3) 3408 Cat (365 hp), 131" mast rated for 550,000 lbs., Parco fast move swing up substructure, Continental Emsco 800 hp triplex mud pumps tail driven, 1000 barrel mud tanks with mud cleaning equipment, necessary handling tools, 174 jts of 4-1/2" drill pipe, 26 drill collars, (1) 20" container of spare parts, rig is field ready, rigged up in USA  Price:  $6,000,000

Mud System:  2 pit (940bbl) system with two 6x8 cent. pumps with 75HP electric motors, 4 Brandt electric mixers, Smico 22 sq ft shale shaker.  SHARED: 12 cone de-silter, 2 cone de-sander

Instrumentation:  MD 500,000# wt. ind.– tong, torque – pump pressure gauges, satellite internet system, MDTotco EDR (electronic drilling recorder) w/rig sense package (internet access available), Wildcat automatic driller

Mud System:  2 pit (900 bbl) system with two 5 x 6 cent. Pumps with 50 HP electric Motors, 4 Brandt electric mixers, 12 cone de-silter, 2 cone de-sander, MCM 27 sq. ft. shale shaker

OIME SD7E 1500 HP ELECTRIC DRILL RIG(Ref#1113T)  Oime SD7E drawworks with Wichita 2-36 KKB disc brake, powered by (2) GE 752 traction motors, IEC SCR I-drive power system,  147" x 750,000# SHL derrick with integrated top drive NOV-TDS11 SA 500 ton, 20,000" racking capacity, 1-3/8" EIPS drill line, 27"H self-elevating substructure with 24" clear height under beams, simultaneous rotary capacity of 750,000# and 400,000# setback, 27-1/2" rotary powered by (1) GE 761 traction motor, 350 ton American block, (2) 1600 hp Lewco WH1612 triplex pumps each driven by (2) GE 752 series traction motors, (2) tank 1000 bbl mud system, (2) cone desander, (12) cone desilter, vacuum degasser, 4-1/16" x 2-1/16" 5000 psi choke manifold, (1) 300 bbl water tank, (1) 9000 gal fuel tank, NOV Iron roughneck ST80C, hydraulic catwalk, 30 ton BOP handling system, Bi-directional walking system  Price: $2,800,000

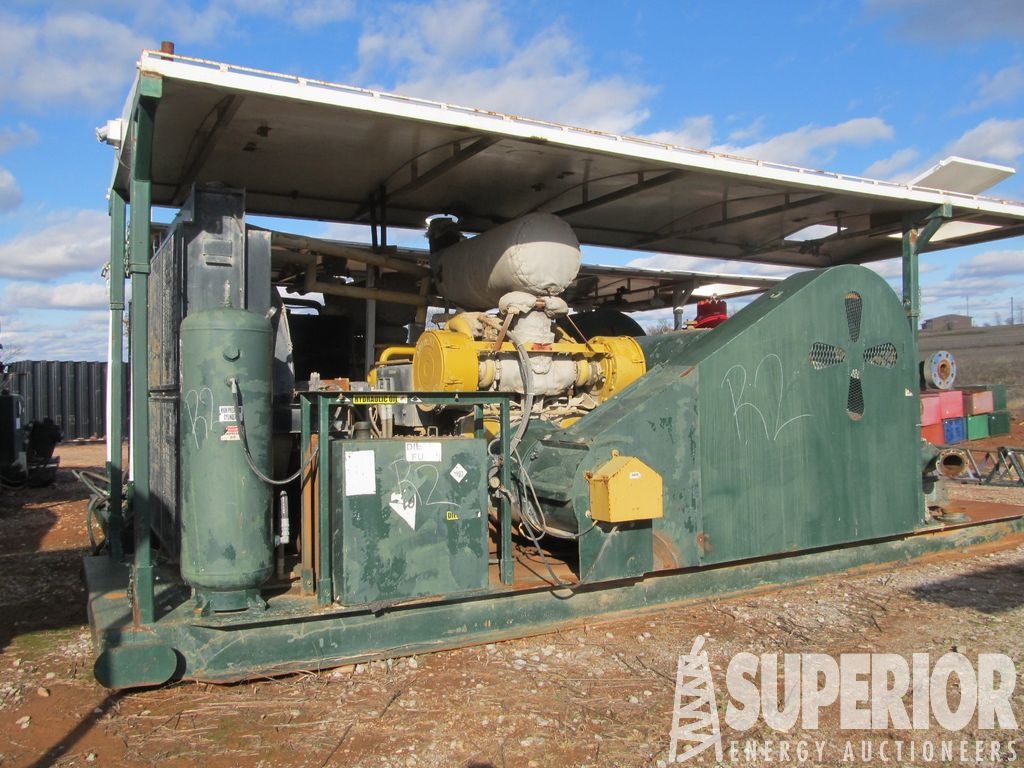

Pump:                                    Two (2) F.E.S. MZ-9 1000HP Triplex Mud Pumps w/ Forged Steel Fluid Ends, Quick Change Caps, 5000 Psi. Pulsating Dampener, MISSION 5"x6" Centrifugal Charging Pump. O"DRILL 3" Shear Relief Valve, O"DRILL Type D 5000 Psi. Pressure Gauge, Master Skidded w/ engine.

Suction Tank:                        Shop built 10" W x6" H x40"L, 411Bbl. Suction Tank w/6"L Covered Porch, (3) Compartments, (2) MAXX 2000 7.5 Hp. Mud Agitators, Internal Plumbing, Flat Bottom, Top Mounted Walkways, Safety Rails, Stairs, Lights, Skidded.

Shaker tank:                          SHOPBUILT 10" W x6" H x40"L, 411 Bbl. Shaker Tank w/ 6"L Covered Porch, (3) Compartments, (2) MAXX 2000 7.5 Hp. Mud Agitators, Internal plumbing, Flat Bottom, Top Mounted Walkways, Safety Rails, Stairs, Lights, Skidded.

Closing Unit:                         CPC 4-Station Closing Unit w/ triplex Pump, powered by TECO 20hp.Elec.Motor, (2) Air Pumps, 145 gal. Reservoir Tank, (12) bottles, Gauges, Lights, Mounted on 6"W x 12"L Skidded

GES 1600 hp AC Drawworks, grooved for 1-3/8” drill line, powered by 1500 hp continuous 1830 hp intermittent AC drive motor.  GES 136’ x 750,000# static hook load capacity derrick when strung on 12 lines, 19,500’ racking capacity of 5” drill pipe and (4) stands of 6.5” drill collars -or- 23,400’ of 4-1/2” drill pipe and (4) stands of 6.5” drill collars.  (allows skidding of mast and substructure up to 25’ without moving rest of rig).  GES hydraulically raised substructure 26’ floor height, 22.5’ clear working height under rotary beams, 750,000# casing capacity, 505,000# setback capacity for a combined load capacity of 1,255,000 lbs.  drill floor 40’ x 21.5’, air conditioned driller’s cabin, GES electronic driller with interface for other electronic drilling systems if desired.  400 ton travelling block with (6) 42” sheaves grooved for 1-3/8” drill line, CANRIG 1036 top drive, 27-1/2” rotary table driven by 1150 hp cont/1400 hp intermittent AC drive motor, (2) BOMCO 1600 hp mud pumps 12” stroke p/b 1500 hp AC drive motor (upgraded to 7500 psi).  900 bbl mud system (self-elevating equipment skid, round bottom mud cleaning tank, round bottom suction tank, mud mixing skid, mud gas separator/trip tank skid).  (3) Brandt dual King Cobra shale shakers with Brandt fluid conditioner, Brandt dual King Cobra shale shaker, 16 desilter cones, dual desander cones, Brandt vacuum vessel degasser.  Cat 1750 kva 600 volt generators with (3) CAT 3512C diesel engines.  13-5/8” x 10,000# Cameron double type U ram BOP, 13-5/8” x 10,000# Cameron single type U ram BOP, 13-5/8” x 5000# annular BOP with remote driller’s closing panel, Koomey Type 80 7-station 22 bottle accumulator, 10,000 psi choke manifold.

Mud King Products offers a full line of Triplex Mud Pumps from 165HP to 1600HP. All of our P Series as well as F Series are fully interchangeable with the OEM. All MKP pumps are manufactured under API License. Our pumps are thoroughly inspected at the plant and a second quality inspection is performed in the USA.

"        Fan Pump direct mounted to lower LH, rear facing, front gear train PTO (1.33: 1 ratio).       Hydraulic pump control manifold direct mounted to pump:

"         10 gallon (37.8 L) capacity hydraulic reservoir mounted above hydraulic fan pump. o    Sight Gauge visible from 3- sides mounted on LH side of unit.

GDEP is the original creator of the drilling pump and continues to set the standard for durable, high-quality drilling pumps that can withstand the world’s toughest drilling environments. Starting with our PZ7 and rounding out with the market"s most popular pump, the PZ1600, our PZ Series of pumps are the perfect choice for today"s high-pressure drilling applications.
