hydraulic power tong api xq28 in stock

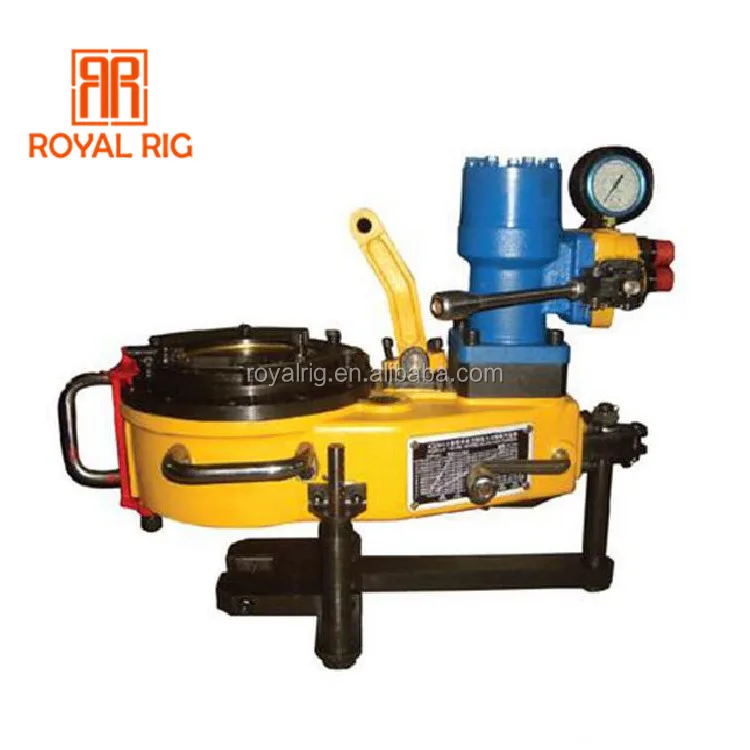

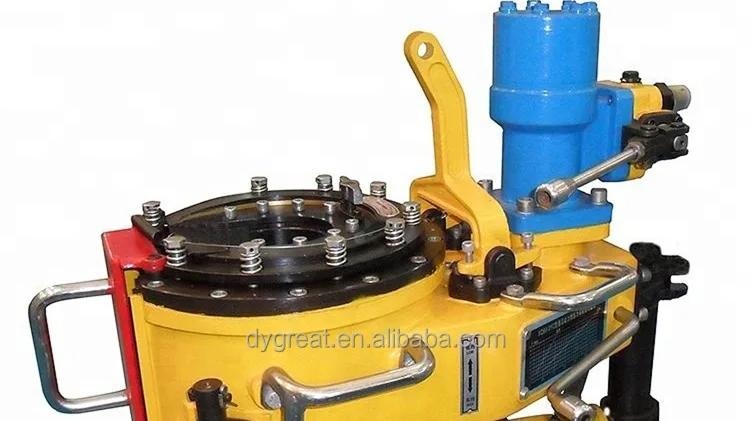

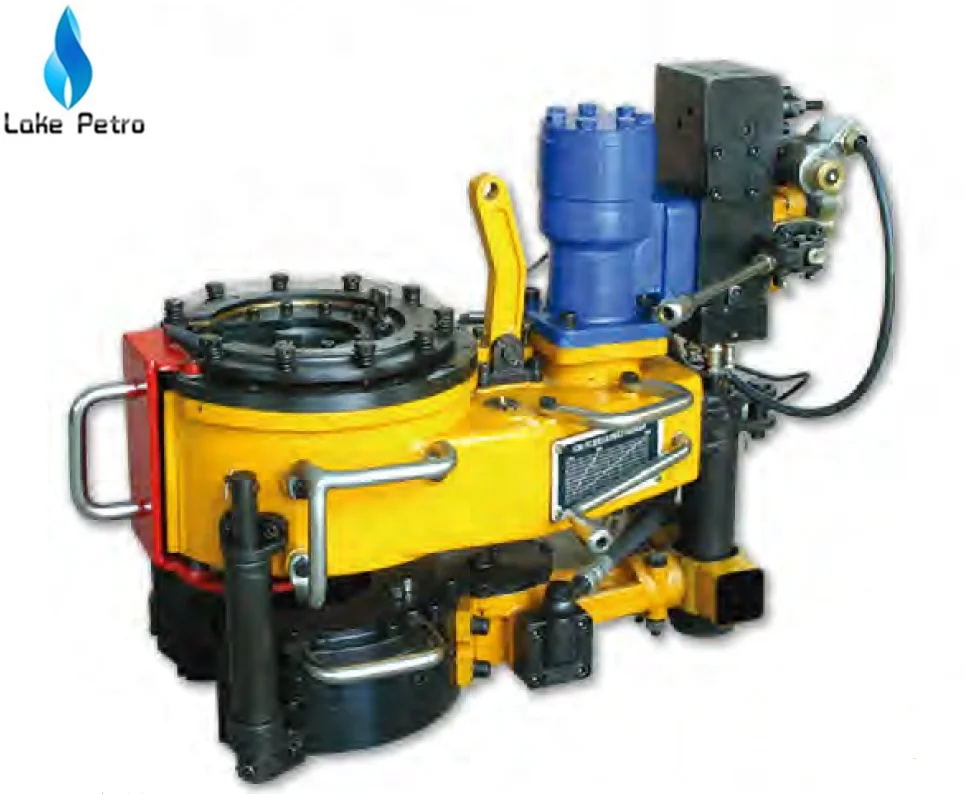

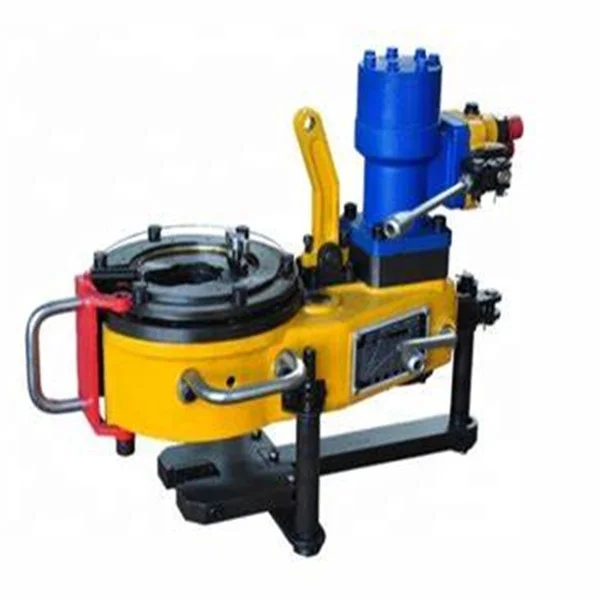

Model XQ28/2.6 hydraulic power tong is an improved type of XYQ1.8 which is used to make up and break out sucker rod thread in Well Service. This product has the following features:

A. The structure is compact ,concise and light.Master tong is driven by low speed large torque hydraulic motor which matching with manual control valve. The backup tong just like a spanner. Total weight is approximately equal to XYQ1.8.

B. The operating is briefness and convenience with high efficiency. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong , turning the reset knob in correct direction then can make up and break out sucker rod by operating manual control valve. Two speed,snapping at low speed, spinning at high speed .

PuYang Baolitong Petro, a professional manufacturer of varous oilfield equipment, including oil drilling and service equipment ,Oil production equipment ,OCTG products, wellhead & downhole tools and spare part. Our design and products are restrictly under API SPEC 5CT/ 7K/8C/6A.

PuYang Baolitong Petro Co has built an excellent global distribution network and the capability of providing value added services to end users.We welcome potential buyers to contact us

ZQ series of drilling pipe power tongs are a kind of perfect wellhead tools that can be extensively used in the fields of drilling or workover offshore and inland and upper unloading the pipe column screw thread during the workover job. The tongs have

the roles of enhancing the working efficiency, safety and labor-saving. These series of tongs are open-mouth type, can freely escape the pipe columns with very good maneuverability. The torque tongs and cupboard button tongs are

assembled as a whole, where upper unloading buttons replace the catheads, hanging tongs and spinning ropes. The power tongs conform to the SY/T5074 standards and API Spec 7K specifications.

Dongying Qixiang Import &Export Co.,Ltd(hereinafter as DYQX Petro company) was founded in January, 2013, in the Yellow River delta （Shengli Oil Field, the second large oil field in China）--- Dongying City, Shandong Province. Its business covers drilling and workover rigs spare parts,, solids control equipment,wellhead equipment and tools, oiflied fishing tools ,downhole tools,drilling strings,OTCG and other equipments related with petroleum. Strictly abide by ISO9001 quality system certification and API standard. At the same time, we build one new workshop for the forging and casting production for the oilfield tools, We can offer the precision forging and casting production according to the customer’s drawing.Or our engineers help the customer’s design and drawing, then make production for the customers.

A two-speed Hydra-Shift® motor coupled with a two-speed gear train provides (4) torque levels and (4) RPM speeds. Easily shift the hydraulic motor in low speed to high speed without stopping the tong or tublar rotation, saving rig time.

A patented door locking system (US Patent 6,279,426) for Eckel tongs that allows for latchless locking of the tong door. The tong door swings easily open and closed and locks when torque

is applied to the tong. When safety is important this locking mechanism combined with our safety door interlock provides unparalleled safety while speeding up the turn around time between connections. The Radial Door Lock is patented protected in the following countries: Canada, Germany, Norway, United Kingdom, and the United States.

The field proven Tri-Grip® Backup features a three head design that encompasses the tubular that applies an evenly distributed gripping force. The Tri-Grip®Backup provides exceptional gripping capabilities with either Eckel True Grit® dies or Pyramid Fine Tooth dies. The hydraulic backup is suspended at an adjustable level below the power tong by means of three hanger legs and allowing the backup to remain stationary while the power tong moves vertically to compensate for thread travel of the connection.

Model XQ28/2.6 hydraulic power tong is an improved type of XYQ1.8 which is used to make up and break out sucker rod thread in Well Service. This product has the following features:

A. The structure is compact, concise and light. Master tong is driven by a low-speed large torque hydraulic motor that matches with a manual control valve. The backup tong is just like a spanner. The total weight is approximately equal to XYQ1.8.

B. The operating is briefness and convenience with high efficiency. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong, turning the reset knob incorrect direction then can make up and break out sucker rod by operating manual control valve. Two speed, snapping at low speed, spinning at high speed.

World Petroleum Supply, Inc stocks a wide selection of West International Consulting, Inc. Power Tongs & Hydraulic Power Units to suit every application. All power tongs products of which are API Certified.
