Manufacturer of pressure, rig concept, well intervention, drilling, down-hole and tubular products. Pressure products include centering shear and fixed bore pipe rams, blowout preventers, diverter systems, connectors, check and gate valves, chokes, actuators, flow heads, manifolds, catchers, packers, hydrate seals, casing heads, casing and tubing head spools, adapters, and hangers. Rig concept products include rig packages, derricks, masts, and skidding systems. Drilling products include electric and hydraulic top drives, makeup/breakout units, pipe handling units, cabins, operation stations, chairs, automatic drillers, anti-collision systems, and navigators, and draw works. Down-hole products include coiled tubing orienteers, drilling motors and jars, and survey and shock tools. Tabular products include drill pipe connections, collars, Kelly’s, subs and pup joints, and pipes.

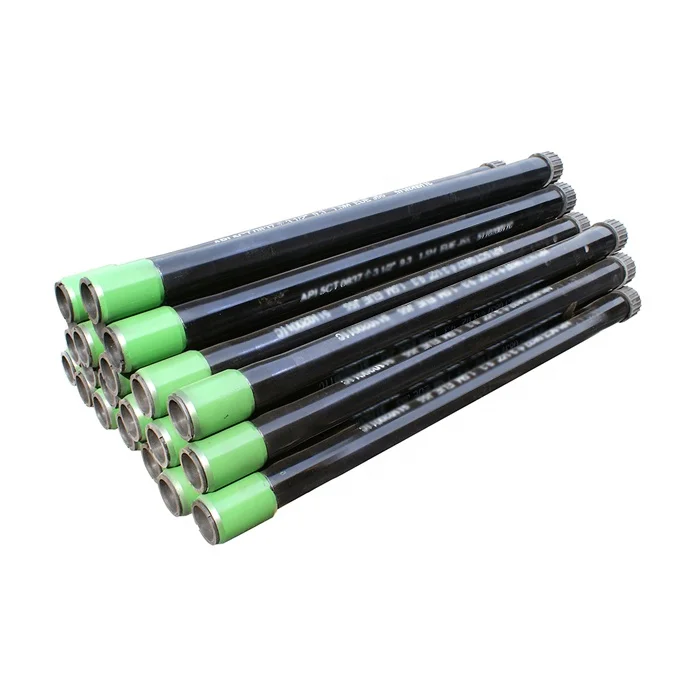

A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.

Crossover pup joints are manufactured from seamless mechanical tube. As with all Crossover products, each piece is marked with a distinctive job number and heat number that is fully traceable. A complete range of sizes (1" to 4.5"), weights (standard or heavy wall), and grades (J-55, N-80, L-80, and P-110) are commonly available from stock in 2", 3", 4", 6", 10", and 12" lengths. Lengths up to 20" are available upon request.

Pup joint is kind of pipe without non-standard length to adjust the length of tubular strings to its exact requirement. API casing and tubing pup joint are produced according to API SPEC 5CT standard. Beyond the standard of oil casing pipe is called pup joint, the main oil casing pup joint material: J55, K55, N80, L80, C90, T95 and P110. Anson steel is a professional pup joint manufacturers in the steel line with good reputation.

Pup Joints are joints of tubing or drill pipe that are reduced in length. Pup Joints can range anywhere from 2 feet to 25 feet. They are very similar to standard joints of drill pipe and tubing except in most cases they have a reduced inside diameter matching that of the tool joint inside diameter.

One is a short Drill Pipe used to adjust the length of the Drill String; The other one OCTG Pup Joint is a pipe of non-standard length, which is used to adjust the length of tubular strings to its exact requirement.

Vigor can manufacture the Tubing Pup Joints by different technology - Upsetting and Machining process. if you have a special requirement on the Pup Joint production process, please just specify.

If you are looking for a competitive, high quality and fast delivery oilfield pup joint in stock, or if you are planning to buy pup joint API from one of the leading casing and tubing pup joint manufacturers, API 5CT pup joint in stock, l8013cr pup joint, nue/nue tubing pup joint manufacturers and suppliers China, please feel free to contact VIGOR.Details  of  API  Spec.  5CT  Oil  Tubing  Pup  Joint

We manufacture pup joints in all sizes, grades, and thread profiles to meet any requirement. Our tubing pup joints are manufactured out of seamless tubing and machined or upset to final dimensions. All API casing and tubing pup joints are manufactured according to API Spec 5CT. Special requirements are available on request.

For oil well tubing pup joints, WORLD IRON&STEEL can provide various cut-to-length oil well tubing pup joint accessories of API standard type (EU, NU, SC, LC, BC, etc.) and BSIG special type according to individual requirements of customers. According to the needs of on-site use, the pup joints can be processed into pup joints with couplings, double male buckle pup joints, conversion pup joints with different buckle types, conversion pup joints with different outer diameter specifications, etc.

API SPEC 5B standard EU, NU, SC, LC and BC threads, BISG self-developed and designed airtight special buckle CBS1: BISG airtight type I special buckle (tubing and casing), CBS2: BISG airtight Type 2 special buckle (tubing and casing), CBS3: BISG airtight type 3 special buckle (tubing and casing), CBSJ: economical low-pressure sealing special buckle (tubing and casing), CB-NUFJ: BISG Direct connection type airtight special buckle (tubing and casing), EU-HT/BC-HT: high torque resistance to top special buckle oil casing

The tubing pup joint offers high strength design to ensure excellent performance for joints of API 5CT drill pipe and tubing. World iron&steel manufacture, supply, sell OCTG, pipe, collar, joints and other accessories in various sizes and specifications, if you are looking for this material, please contact us or get a quotation. Not only do we have all kinds of sizes, but we also have all kinds of sizes that are hard to find.

A pup joint is a pipe without standard length. API SPEC 5CT pup joints are used to adjust the height of full length tubing or casing strings to exact requirement. They are also applied to adjust the depth of downhole tools. In order to cater to the needs of customers, JST is offering a broad range of API SPEC 5CT OCTG pup joints.

2.With our sophisticated manufacturing facility, we produce these joints by using high grade raw materials (which are sourced from vendors of high repute) and cutting edge technology to ensure their sturdy design and longer functionality.

Jiangyin Changjiang Steel Tube Making Factory is a leading manufacturer and supplier of seamless steel pipes and various special pipes in China. We mainly manufacture structure pipe, fluid pipe, high pressure boiler pipe, API pipe, marine pipe, alloy pipe, tubing, casing, line pipe, OCTG pup joint (such as API SPEC 5CT pup joint), etc. Our company sets up a steel tube technology R & D center with advanced pipe testing equipment. Through strict testing process, we are able to produce high quality steel pipes for customers. Our products have been exported to the Middle East, CIS, Southeast Asia, Africa, South America, North America, Europe, Australia and many other countries and regions.

Pup joints are manufactured from AISI 4145H or 4140H-modified alloy, heat-treated to a Brinell Hardness range of 285-341 with a Charpy “V” notch minimum impact strength of 40 ft/lb at 70° F and one inch below the surface. Pup joints are heat-treated to 110,000 psi minimum yield. All connections are phos-coated to impede galling during initial make-up. They are available in standard lengths of 5′, 10′, 15′ and 20′ with other configurations upon request.

Pup joints are commonly used to adjust the length of the drill string to the elevation of rotary table for easy surface handling and drilling practices. They undergo the same stresses as drill pipe and their performance depends primarily on their superior mechanical properties.

Pipe system involves various components, including seamless casing pup joint and are made from different materials. We offer wholesale seamless casing pup joint to create a smooth channel for the pipe systems in both commercial and residential areas.
