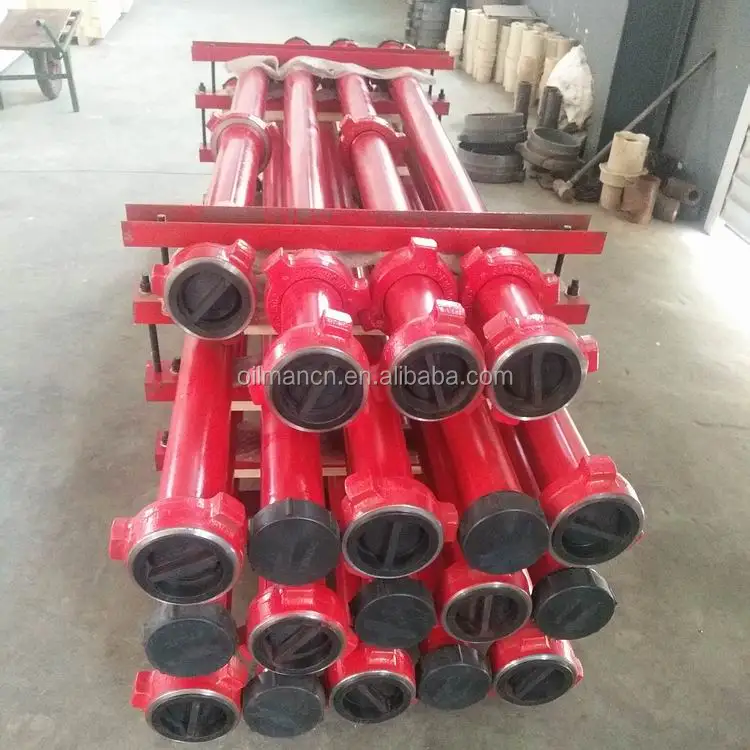

pup joint 1502 factory

High pressure pup joint is cementing and fracturing equipment delivery High Pressure Fluid Control Products. Widely used in the acidic operating environment (excluding containing CO2, H2S sour gas operating environment) in the high-pressure discharge line, input line, a temporary flow line, well testing, and other high-voltage transmission lines on pipelines.

Pup joint made of high strength steel, with a special toughening process. It uses Acme threaded connection, making it with the demolition convenient, fast, reliable connection, and reliable. Multiple seal design and high precision, to ensure the sealing performance of Pup joint.

1502 integral pup joint (flowline pipe or high pressure straight pipe ) are designed to be compatible with FMC Chiksan pup joints and SPM pup joints, based on techlonogies imported from FMC pup joints.

1502 integral pup joint (flowline pipe or high pressure straight pipe ) are available in lengths to 10 feet to handle fluids at cold working pressures to 15,000 psi. Sour gas pup joints are also available.

Integral → The pup joints are one-piece construction made from alloy steel and feature wing union end connections that eliminate welds and threads. The pup joints are capable of handling a variety of fluids and a working pressure of 15,000 psi. Available in lengths up to 15 feet, they are pressure rated to 10,000 psi for sour gas service.

EASTSUN has pup joint mill in both China and Vietnam. We supply to the countries has no anti-dumpling to china pup joint from China mill, and supply to the countries has anti-dumpling to china pup joints like USA, CANADA from Vietnam mill.

The design of the NPST pup joint takes end connections and attaches them to threaded pipe. The quality of these parts is critical to form and function. Our process is designed for a seamless integration between pipe and union. It’s hard to tell where one part begins and the other ends.

We strive to increase customer satisfaction with our products and services in order to increase the market share of our Chiksan Pipe Pup Joint/ Hose Loops with Integral Fig 1502. In return for the support of our customers, our company is in line with the business philosophy of moral integrity and integrity to meet the needs of customers and manufacturers with efficient after-sales service, high-quality products and competitive price. We firmly believe that product quality and service are the foundation of a company"s survival. If we want to develop continuously, we need to provide quality products and services with sincerity.

Flow iron pup joints from Cameron deliver maximum total life cycle cost savings, even in the oil and gas industry’s most demanding applications. For all of your flow iron requirements, from high-stage-count hydraulic fracturing to cementing, well testing, and even abrasive flowback, you can count on Cameron for high reliability and low cost.

High pressure Pup joint is a kind of pressure pipe with hammer union end or flange end connection,the high pressure pup joint can be made integral or weld type which end connection is welded to pipe. Cost of Intergal type is higher than welded type.

Hammer union end connection pup joint is designed to interchangable with weco wing union, including Fig100, Fig206, Fig207, Fig602, Fig1002, Fig1502, Fig2002, Fig2202 and etc.

Flange end connection pup joint is designed according to API 6A or ASME standard. Working pressure of pup joint is from 2,000 psi to 20,000psi.Manufacturing theory is according to API 16C. Our company supply high pressure weco pup joints with four types:

Pup joints size : 1″~4″, Working pressure: 7MPa~150MPa, Length of the pup joint: 1m. , 1.5m, 2m, 2.5m, 2.8m. High-pressure straight pipes of various sizes and pressures as well as acidic environments are available upon request. Application: Fracturing manifold, cementing manifold, maintenance manifold, test manifold, high-pressure well service flowlines, fracturing flowlines, well testing flowlines, cementing and circulating flowlines etc.

BLAZE is adequately equipped to supply NPST Pup joints made of high quality seamless pipeline with  male & female detachable hammer union. NPST has uniform bore for greater flow capacity. NPST pup joints are available in 2″ to 4″ sizes, length for pup joint range from 1 feet to 20 feet at 15000 psi. Pup joint with Non- pressure seal thread union (NPST) are especially engineered for high pressure, abrasive services where welded connections are not desired. The design provides a strong, permanent end connection without butt welding. An epoxy thread-locking compound secures the connection.

Casing or Tubing Pup Joints, Casing or Tubing Connectors and Casing or Tubing Couplings. In addition it is capable of Threading items at Groups 1, 2, 3 & 4 of API spec. 5CT. Items supplied by BLAZE meet the Quality Standards as defined in API 5CT assuring

BLAZE is also well equipped to supply Line Pipe Couplings/ NPST pup joints with wide range of specifications. In addition we can supply thread Line Pipes and its accessories of various sizes. Items meet the quality standards as laid down in API – 5L.

The Union Straight pipes and elbow are designed as per API Spe 16C and made by low carbon alloy steel with integral forged, H2s as per NACE MR0175 Standard. The straight pipe with WECO Union connection is applied for connection of well surface testing equipment. The straight pipe one end is union female in Fig 602 or FIG1502, another end is union male in FIG602 or FIG1502, the nominal size is 3”, length can be 0.5m to 5m. We are able to supply straight pipe in various size with union connection.
