We manufacture pup joints in all sizes, grades, and thread profiles to meet any requirement. Our tubing pup joints are manufactured out of seamless tubing and machined or upset to final dimensions. All API casing and tubing pup joints are manufactured according to API Spec 5CT. Special requirements are available on request.

A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.

Crossover pup joints are manufactured from seamless mechanical tube. As with all Crossover products, each piece is marked with a distinctive job number and heat number that is fully traceable. A complete range of sizes (1" to 4.5"), weights (standard or heavy wall), and grades (J-55, N-80, L-80, and P-110) are commonly available from stock in 2", 3", 4", 6", 10", and 12" lengths. Lengths up to 20" are available upon request.

Seamless pup joints with premium connections are available in API and exotic alloy grades. Premium ends are threaded by the manufacturer or authorized licensee.

Available with standard or special perforation spacings. Each joint has four rows of ⅜ inch holes drilled longitudinally along the tube. Optional patterns, hole size, and lengths furnished upon request.

A blast joint is shorter in length than standard tubular joint. Built with a heavy wall pipe it is incorporated in the production string to facilitate production across any perforated interval and zone. Blast Joints are manufactured to the following specs connections, lengths, weights and material grade.

Crossover Blast Joints are heavy wall pin by box connectors used in tubing strings and are designed to minimize the effect of external erosive action caused by production fluids. Blast joints are located opposite the location of perforations in the production casing or just below the tubing hanger in sand frac designs. Crossover blast joints are manufactured from seamless mechanical tube in sizes ranging from 2 3/8” to 4 1/2” OD. Any length, grade of material, and threading is available at the customers request. Typical lengths are 10" and 20". Both API and Premium threads are available.

Crossover Coarse Thread Tubing Safety Joint provides for emergency recovery of the major portion of the tubing string should it become necessary to abandon the equipment below. Precision left-hand threads facilitate the release of the joint by right-hand tubing rotation. Equipment requiring right-hand rotation should not be used below the Safety joint.

Crossover Straight-Pull/Shear-Out Safety Joint is used between packers in dual and triple completions and in selective completions using Hydrostatic Single-String Packers. It is also used when rotational releasing is not desired. When ran above the upper packer in a single-string completion, however, the shear value should be adjusted to compensate for any hydraulic conditions that exist when the string is landed, or that are created by well treating operations. They are available in keyed and non-keyed configurations.

Crossover rotary shoes are manufactured from specially tempered steel to provide the ultimate in toughness and durability. They are used to cut a clearance between the fish and the wall of the well bore. Each shoe is tailored to fit a particular downhole need and normally is run on the bottom of one or more joints of washover pipe. Shoe design is dictated by whether it cuts on the bottom, on the OD, on the ID, or any combination of these. When hole sizes permit, additional clearances can be cut using side ribs, thus providing greater circulation.

OCPL offers a wide range of OCTG Casing Pup Joints, with both API and premium threads, manufactured at our select API spec. 5CT compliant steel mills.

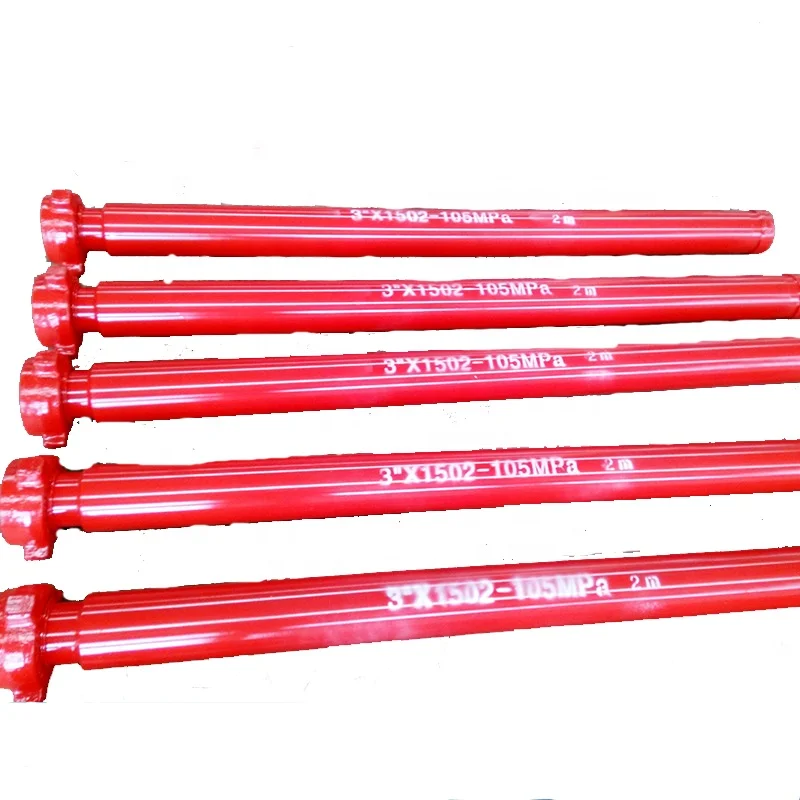

BLAZE is adequately equipped to supply NPST Pup joints made of high quality seamless pipeline with  male & female detachable hammer union. NPST has uniform bore for greater flow capacity. NPST pup joints are available in 2″ to 4″ sizes, length for pup joint range from 1 feet to 20 feet at 15000 psi. Pup joint with Non- pressure seal thread union (NPST) are especially engineered for high pressure, abrasive services where welded connections are not desired. The design provides a strong, permanent end connection without butt welding. An epoxy thread-locking compound secures the connection.

Casing or Tubing Pup Joints, Casing or Tubing Connectors and Casing or Tubing Couplings. In addition it is capable of Threading items at Groups 1, 2, 3 & 4 of API spec. 5CT. Items supplied by BLAZE meet the Quality Standards as defined in API 5CT assuring

BLAZE is also well equipped to supply Line Pipe Couplings/ NPST pup joints with wide range of specifications. In addition we can supply thread Line Pipes and its accessories of various sizes. Items meet the quality standards as laid down in API – 5L.

A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.

Pup Joints are manufactured from AISI 4145H or 4140H-modified alloy, heat-treated to Hardness range of 285-341 with a Charpy "V" notch minimum impact strength of 40 ft/lb at 70° F and one inch below the surface. Pup Joints are heat-treated to 110,000 PSI minimum yield. All connections are phosphate coated to impede galling during initial make-up.

Fox Valley Forge is a World-Wide Leading Suppler and the Industry Authority in manufacturing Pup Joints for Fracking Operations.  Our Fanatical Quality Control Department ensures a Zero Defect Rate which allows us to produce a steady supply of High Quality Pup Joints with Unrivaled Reliability at an Unmatched Value.

4” PUP JOINTPUP JOINT 4″ WITH NC40 (4 ” FH) CONNECTION, LENGTH 5 FEET, TOOL JOINT 5-3/8” OD X 2-7/16” ID, WITH TC2000 PLASTIC INTERNAL COATING C/W PRESS STEEL PROTECTORS ON BOTH ENDS

PUP JOINT 4″ WITH NC40 (4 ” FH) CONNECTION, LENGTH 10 FEET, TOOL JOINT 5-3/8” OD X 2-7/16” ID, WITH TC2000 PLASTIC INTERNAL COATING C/W PRESS STEEL PROTECTORS ON BOTH ENDS

PUP JOINT 4″ WITH NC40 (4 ” FH) CONNECTION, LENGTH 15 FEET, TOOL JOINT 5-3/8” OD X 2-7/16” ID, WITH TC2000 PLASTIC INTERNAL COATING C/W PRESS STEEL PROTECTORS ON BOTH ENDS

3 1/2″PUP JIONTPUP JOINT 3 1/2″ WITH NC38 ( 3-1/2″ IF) CONNECTION, LENGTH 5 FEET, TOOL JOINT 5” OD X 2-7/16” ID, C/W PRESS STEEL PROTECTORS ON BOTH ENDS

3 1/2″PUP JIONTPUP JOINT 3 1/2″ WITH NC38 ( 3-1/2″ IF) CONNECTION, LENGTH 15 FEET, TOOL JOINT 5” OD X 2-1/8” ID, C/W PRESS STEEL PROTECTORS ON BOTH ENDS

2 7/8″ G-105 PUP JIONTPUP JOINT 2 7/16″ WITH NC31 ( 2-7/8″ IF) CONNECTION, LENGTH 5 FEET, TOOL JOINT 4 1/8” OD X 2” ID, C/W PRESS STEEL PROTECTORS ON BOTH ENDS

2 7/8″ S-135 PUP JIONTS-135 PUP JOINT 2 7/8″ WITH NC31 ( 2-7/8″ IF) CONNECTION, LENGTH 5 FEET, TOOL JOINT 4 3/8” OD X 2” ID, C/W PRESS STEEL PROTECTORS ON BOTH ENDS

PUP JOINTPUP JOINT 3 1/2″ WITH NC38 ( 3-1/2″ IF) CONNECTION, LENGTH 5′,10′ 15’FEET(ONE EACH), TOOL JOINT 5” OD X 2-7/16” ID, C/W PRESS STEEL PROTECTORS ON BOTH ENDS;

PUP JOINT 2 3/8″ WITH NC26 ( 2-3/8″ IF) CONNECTION, LENGTH 5′,10′ 15’FEET(ONE EACH), TOOL JOINT 3 3/8” OD X 1-3/4” ID, C/W PRESS STEEL PROTECTORS ON BOTH ENDS

PUP JOINTS 3 ½”ODPUP JOINTS 3 ½”OD, 15.5 LB/FT, GRADEG105SS, NEW AND UNUSED,4 1/8”TOOLJOINTS (120 KSI) AND NC31 CONNECTION     5’LONG; FOR ABOVE PIPES

PUP JOINTS 2 7/8 ”ODPUP JOINTS 2 7/8 ”OD, 10.4  LB/FT, GRADEG105SS, NEW AND UNUSED,3 1/8”TOOLJOINTS (120 KSI) AND NC31 CONNECTION     5’   LONG; FOR ABOVE PIPES

PUP JOINTS are a joint of pipe of non-standard length used to adjust the length of tubular strings to exact requirement. We provide both tubing (2 3/8” to 4”) and casing (4” to 13 3/8”) in all lengths. With our myriad of licenses (quality page) we are able to cut to length, thread and couple to meet specified needs. API casing and tubing pup joints are manufactured according to API Spec 5CT using prime API monogrammed, seamless oil country tubing. Premium pup joints are also available with premium connections and in API or exotic alloy grades.

MARKER JOINTS are a joint of tubing used in a workover or completion tubing string that serves as a position or depth indicator. In most cases, a marker joint is significantly shorter than other joints in the string so that it is easily noticeable.

If you’re looking for pup joints, we provide tubing and casing pup joints of all sizes, grades, and thread profiles to meet any requirements set by our customers. All API casing and tubing pup joints are manufactured according to API Spec 5CT. Made with the highest-quality materials and powder coated (if desired) to protect against the harshest chemicals and environments, we’ll go above and beyond to ensure customer satisfaction.
