Now there’s a new Lightweight Fittings family that is ideal for handling a complete range of well servicing fluids at cold working pressures to 20,000 psi. Available in 1- to 4-inch sizes, FMC fittings feature high-quality forged construction with integral Weco wing union end connections for a high-strength, high-integrity connection every time. Tees, elbows, crosses, wyes, and laterals can be combined to suit virtually any installation. Like other FMC flowline products, FMC’s Integral Fittings come with full material traceability and can be supplied with Charpy impact values.

Hammer Union End Swivel Pup Joints are constructed of the highest grade of forged alloy steel. Our pup joints are pressure tested to 1.5 times the NSCWP and made using only the highest grade of domestic pipe.

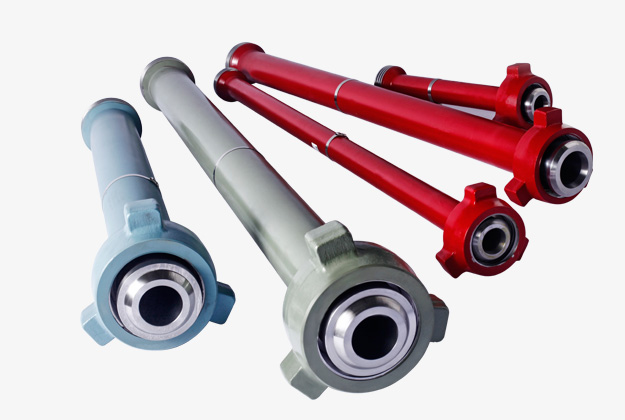

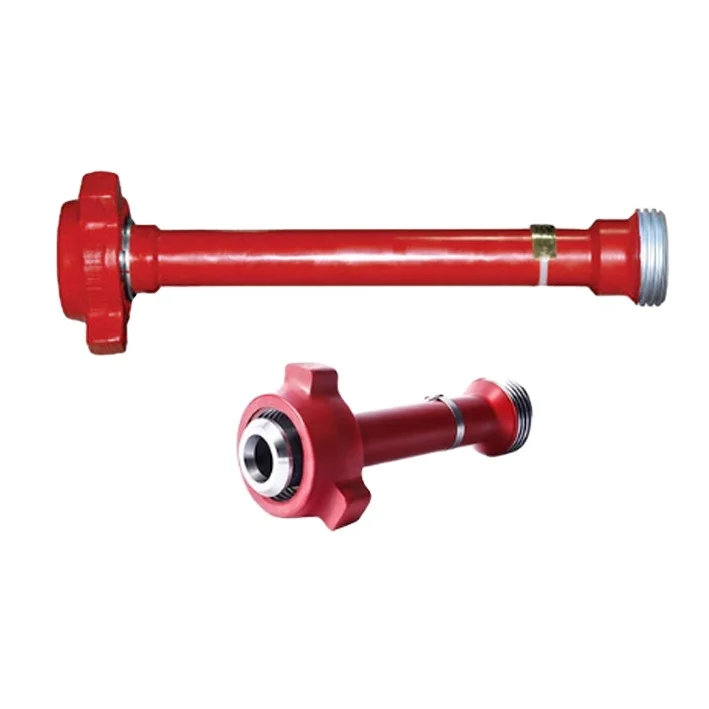

APIIntegral Pup Joints are straight tubes/pipes with hammer union, thread, or flange connections on both ends, which have been widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance manifold and test manifold.

Qihang"s Integral Pup Joints are forged from premium alloy steel, handled by advanced metal melting and heat treatment technology. All of our pup joints are strictly desined, manufactured and tested according to API 16C, APIQ1 and NACE 0175, both pressure thread seal straight pipe and non-pressure thread seal pup joint are available.

APIIntegral Pup Joints are straight tubes/pipes with hammer union, thread, or flange connections on both ends, which have been widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance manifold and test manifold.

Qihang"s Integral Pup Joints are forged from premium alloy steel, handled by advanced metal melting and heat treatment technology. All of our pup joints are strictly desined, manufactured and tested according to API 16C, APIQ1 and NACE 0175, both pressure thread seal straight pipe and non-pressure thread seal pup joint are available.

All Chiksan and Weco sour gas products meet or exceed NACE and API requirementsFMC began providing quality sour gas equipment long before the National Association of Corrosion Engineers (NACE) Standard MR-01-75 was written. Today, all Chiksan and Weco brand products for sour gas service meet or exceed NACE Standard MR-01-75 and the American Petroleum Institutes (API) Standard RP-14E.

Quality assurance second to noneBefore any Chiksan or Weco product for sour gas service reaches you, it goes through FMCs total quality assurance program. This rigid quality program approved by leading independent inspection organizations insures that all FMC sour gas products are manufactured and processed to the highest industry standards. The result: You get quality sour gas equipment that provides long life and dependable service every time.

Simple, positive identificationFor positive identification, all Chiksan and Weco sour gas products are stamped Sour Gas using low-stress dot stamping. FMC sour gas equipment is also painted with an olive green, zinc-chromate primer that is unique to sour gas products.

Widest selection in the oilfieldFMC offers you the most complete line of sour gas swivel joints, wing unions, and plug valves in the world. Other FMC products for sour gas service include Chiksan cementing and circulating hoses, Weco pup joints, fittings and adapters, Weco pressure relief valves, Weco check valves, and manifold assemblies.

Table of ContentsIntroduction ............................................................................................ 1 Weco Wing Unions .................................................................................. 2 Weco Plug Valves .................................................................................... 8 Chiksan Swivel Joints ........................................................................... 10 Weco Pup Joints .................................................................................... 12 Cementing & Circulating Hoses ........................................................... 13 Weco Integral Fittings & Adapters ....................................................... 14 Weco Pressure Relief Valve .................................................................. 16 Weco Check Valves ............................................................................... 16 FMC Manifolds ...................................................................................... 17 Warnings & Cautions ............................................................................ 18 How to Order ......................................................................................... 18 Terms & Conditions ............................................................................ IBC

eco wing unions are the most complete line of sour gas pipe connections available, ranging in size from 2- to 6-inches with cold working pressures to 15,000 psi. All Weco unions are color coded with an olive green, zinc-chromatic primer for quick identification. Materials meet NACE MR-01-75, ASTM and AISI standards.

Features & BenefitsPositive sealing designsWeco wing union seals vary according to pressure and application. All provide positive, pressure-tight sealing.

Weco Plug Valves eco sour gas plug valves are reliable, quarter-turn valves designed for services to 15,000 psi cold working pressure. These rugged valves range in size from 1 to 3 inches and come with integral Weco wing union ends. The union ends add considerable strength to the connection, reduce turbulence, and minimize corrosion and stress concentration sites. Weco sour gas plug valves are available with manual, handwheel, and hydraulic actuators.

Complete in-line maintenanceWeco sour gas plug valves can be rebuilt in-line using standard tools. Repair kits are available. FMC uses special sour gas resistant O-rings and seals in all Weco plug valves and repair kits for sour gas service. Only genuine FMC replacement parts are recommended for use in FMC plug valves.

Sour Gas Weco Plug Valve Reference ChartModel DR 150 Manual Operator Sizes in. (mm) 1 (25) 1x2 (25x50) 2 (50) ULT 150 Manual Operator ULT 150 Handwheel Operator ULT 150 Hydraulic Actuator DR 200 Manual Operator 3 (80) 3 (80) 3 (80) 2 (50) End Connection* Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 2202 CWP psi (bar) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 15,000 (1034) Test psi (bar) 15,000 (1034) 15,000 (1034) 15,000 (1034) 15,000 (1034) 15,000 (1034) 15,000 (1034) 22,500 (1551) Part No. 3252285 3258139 3248705 P501010 3265257 3267427 3234183 Weight lbs (kg) 37 (17) 43 (20) 88 (40) 241 (109) 292 (132) 340 (154) 83 (38) Price CF CF CF CF CF CF CF

Features & BenefitsStreamlined bore minimizes flow restrictionsSmooth, round bore design minimizes turbulence and pressure drop. Longsweep swivel joints have extra-long radius elbows for even better flow characteristics.Primary packing

Patented, Snap-in ball racesBecause sour gas service requires specially heat-treated steel, Chiksan sour gas swivel joints use patented field replaceable snap-in ball races for extra strength, high load-bearing capacity, and low operating torque.

Leak detection portChiksan sour gas swivel joints have a leak-detection port between the primary packing and the secondary O-ring seal. If leakage past the primary packing should occur, it is forced through the port, signaling the need for packing replacement.A D C

Integral Weco wing union endsChiksan sour gas swivel joints come with integral Weco wing union end connections, eliminating welding and minimizing turbulence.B

Field repairableOnly occasional light greasing is required to keep Chiksan swivel joints on the job. If packing, bearings, snap-in races, or ball plugs should need replacing, easy-to-use field repair kits are available.A

Dimensions, in. (mm) A B C 5.50 10.69 10.88 (140) (271) (276) 10.88 (276) 14.50 (276) 7.94 (202) 14.50 (368) 14.50 (368) 9.69 (246) 10.69 (271) 10.69 (271) 16.38 (416) 16.38 (416) 16.38 (416) 21.19 (538) 10.88 (276) 10.88 (276) 14.50 (368) 14.50 (368) 14.50 (368) 20.38 (518)

Weco Pup Joints s lightweight, one-piece pup joints feature integral Weco wing union end connections. Available in lengths to 10 feet, Weco alloy-steel pup joints efficiently handle sour gas fluids at cold working pressures up to 15,000 psi.

Chiksan swivel jointsFMC all steel hoses feature Chiksan sour gas swivel joints which provide flexibility, absorb shock and vibration, and maximize flow characteristics.

Weco wing union connectionsWeco sour gas wing union end connections insure fast, pressure-tight make-up and break-out without threading, welding, or special connections.LSG-10 Longsweep (2 Style 50) Integral

Weco Adapters & Integral Fittings eco adapters and integral fittings are ideal for handling sour gas fluids at cold working pressures up to 15,000 psi. These proven products feature high-quality forged construction with integral Weco wing union end connections for a high-strength, highintegrity connection every time. Tees, elbows, crosses, wyes, and laterals can be combined to suit virtually any installation.

Sour Gas Weco Adapter Assemblies Reference ChartSize, in. (mm) 2 (50mm) 2 (50mm) 2 (50mm) 2x 3 (50mm x 80mm) 2x 3 (50mm x 80mm) 2x 3 (50mm x 80mm) 2x 3 (50mm x 80mm) 3 (80mm) 3" (50mm) Configuration MxM MxF FxF MxM MxF FxM FxF MxM FxF End Connection Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 CWP psi (bar) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) 10,000 (690) Part No. 3259883 3265207 3259885 3263208 3257182 3258468 P501843 3259027 3259171 Weight lbs (kg) 17 (7.7) 22 (10) 11 (409) 38 (17) 23 (10.4) 31 (14) 19 (8.6) 41 (18.6) 14 (6.4) Price CF CF CF CF CF CF CF CF CF

End Connection Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 2202 Weco 1502 Weco 1502 Weco 2202 Weco 2202 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 2202 Weco 2202 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 1502 Weco 2202 Weco 1502

Weco Pressure Relief Valves eco Pressure Relief Valves for sour gas service are the automatic way to relieve pressure at preset system limits. These rugged, compact valves are available for cold working pressures up to 10,000 psi. The pressure relief valve comes in a 2-inch size with integral Weco wing union ends.

Weco Swing Check Valves equipment from high pressure fluids. These rugged valves seal against sour gas fluids up to 10,000 psi. They are available with or without a downstream vent (consult factory), and are available with integral Weco wing union ends. Consult factory for dimensions.

FMC Manifoldsoffers manifolds in materials, sizes, pressures, and temperature ratings for a complete range of sour gas oilfield applications. These rugged manifolds feature proven Chiksan and Weco fluid control sour gas components for unsurpassed reliability, fast make-up and break-out, and improved safety. Unlimited manifold designs using FMCs advanced ULT and DR Plug Valves are available. Manifold assemblies are available with various configurations and pressure ratings. Consult factory for prices.
