vertical rotary table price

The mill rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring, etc. The rotary turn table for milling machine is made from HT200 casting with high quality. It has already passed the ISO9001 quality system certification. They are are very popular on the market for their superior performance, excellent design and reasonable cost.

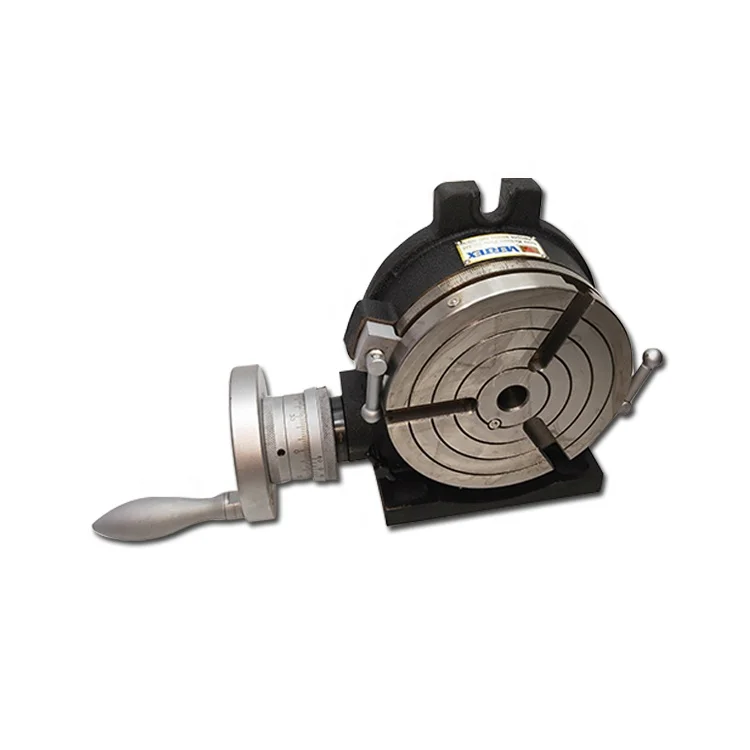

Both vertical and horizontal with two functions. Circle cutting, indexing drilling, milling and more complicated work are possible when the vertical position of the table is used together with the tail part.

• Works as an index center in the vertical position as well as a conventional rotary table for circular cutting, angle setting, boring and spot facing. • 10-Second Vernier reading • Disengageable worm gear permits rapid rotation. Worm gear is hardened and ground. • Optional dividing plates and crank handle can be attached to the rotary table drive mechanism. One rotation of handle equals 4". • The table is made of Meehanite. The base of the body, table surface and rotating parts are ground finished, permitting very smooth rotation.

The KP1-V single-axis turntable with vertical rotational axis is used for direct workpiece positioning or as a modular base. It is available with a payload ...

The particularly flat and lightweight DMN rotary tables are suitable for all applications in which high rigidity and accuracy are needed along with ...

The work table is graduated 360 degrees around its circumference and is driven by a precision Worm and Gear providing a 90:1 reduction ratio. One turn of the Handle moves the Table through 4 degrees. ...

Microplan"s TR rotating tables are designed and manufactured out of 2 granite disks each, moving on pressure/vacuum air bearings in ways to obtain highest possible stability. These apparatuses exhibit ...

These rotary tables provide superior angular positioning and are designed to eliminate backlash, friction and wear problems associated with worm, gear and belt drives. Low maintenance ...

... distributed brushless RotoLinear motoring modules provide high positioning stiffness during rotary indexing and when installed on moving XY tables.

Velmex Rotating Tables deliver precise, continuous rotating motion for scanning, assembly, testing and production. They are a convenient, accurate method of quickly positioning or rotating ...

The Siegmund height adjustable rotating table provides an ergonomic and space saving solution. The work top height is infinitely variable and can be fixed in position by a side locking lever.

The Siegmund height adjustable rotating table provides an ergonomic and space saving solution. The work top height is infinitely variable and can be fixed in position by a side locking lever.

... roller bearing provide perfect resistance to load in vertical direction. Rotary Stage of series 8MRL80 can be prepared for clean rooms and vacuum up to 10-3 torr with minor changes.

... versions of TRV rotary table involve electric rotation via double Brushless motor with precision reducer instead. In these big TRV tables position and rigidity are granted by Hirth coupling ...

The HRT-160 rotational table from the portfolio of the modular rotary table system is designed as a complete unit ready for connection. The rotational ...

... mount and flat table applications. The compact design features a wide through hole for utilities occupying less space than other servo indexers for space constraint applications.

This is the smallest CNC Rotary Table manufactured by Nikken Kosaksuho in Osaka, Japan. With pneumatic clamping this rotary table is used by many on their small vertical ...

Table size form size 1,000mm to size 2,000mm can be manufactured in both Vertical/Horizontal position. With high accuracy and high loading capacity which are suitable for heavy machining and metrology ...

The KESSLER Table line includes single-axis rotary tables and dual-axis rotary tilt tables. It incorporates the renowned KESSLER know-how for superior ...

1.Our Tables are made of high density Meehanite and use "HEIDENHAIN" electronic equipment to inspect angle to assure the excellent quality and durableness.

3.Worm is hardened and ground. The ratio is 90:1. The work table is graduated a full 360° so that one turn of the handle moves the table through 4°. Micro collar is graduated in steps of 1"min. And vernier scale makes settings down to 10 seconds possible.

4.These Rotary Tables are popular for their excellent performance, practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work.
