rotary table bearing factory

Axial-radial bearings are double-direction axial bearings for screw mounting with a radial guidance bearing. These ready-to-fit, pregreased units are very rigid, have high load-carrying capacity and operate with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. ZKLDF axial angular contact ball bearings are low-friction, ready-to-fit, greased bearing units with high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. Axial-radial bearings with angular measuring system YRTM and YRTSM correspond in mechanical terms to series YRT and YRTS but are additionally fitted with an angular measuring system.

ZYS can offer YRT series, YRTS series, ZKLDF series, YRTM series, YRTSM series rotary table bearings. About the performance comparison of YRT, YRTS and ZKLDF series bearings with the same size, the limit speed of ZKLDF, YRTS, YRT series bearings decrease in turn while the overturning rigidity of YRTS, YRT and ZKLDF series bearings decrease sequentially. YRTM or YRTSM rotary table bearings add a set of angular displacement monitoring system on the basis of YRT or YRTS series bearings, to overcome the defect of open-loop control of diagonal displacement control, and realize closed-loop control of rotary table or indexing plate, greatly improving the positioning accuracy of angular displacement.Product structure

Thrust / radial cylindrical roller bearings YRT and YRTS series are composed of two thrust roller bearings and one radial cylindrical roller bearing. Due to the special design of the internal structure of YRTS series bearing, higher limit speed can be achieved.

Thrust angular contact ball bearings ZKLDF series consist of an integral outer ring, two inner rings and two sets of steel balls and cage assemblies. Its contact angle is 60, and it is especially for the conditions with high requirements on high speed, high axial and radial loads and overturning moment.

ZYS turntable bearings are ready-to-install high-precision turntable bearings, suitable for occasions with high precision requirements and combined load. They can withstand radial loads, bidirectional axial loads and overturning moments with negative clearance. ZYS turntable bearings have the characteristics of high precision, high rigidity and high load capacity. In order to facilitate transportation and installation, screw holes are opened on the inner ring and the outer ring, and the entire set of bearings is fastened with positioning screws. The bearings are preloaded at the factory, and there is no need to adjust the clearance for installation.

The price of rotary table bearingings depends on the size and the design of the bearing. For wholesale rotary table bearingings, the price can vary depending on the size and the design of the bearing.

rotary ball bearings come in different types. Ball bearings are made of high-speed steel and in a wide range of standardized steel. For rotary ball bearings, they are made in high-speed steel and have a wide range of standardized steel.

The axial-radial cylindrical roller bearing of the ARL-E® series from IBO is a roller bearing ideally suited for the application in rotary tables and rotary tables for machine tools. With the introduction of the E version, IBO offers a product that represents the state of the art in the field of rotary table bearings.

The axial-radial bearings are two-sided working rolling bearings and have a screw connection with a guiding radial rolling bearing. These ready-to-install pre-greased units have a high degree of rigidity, high load rating and work particularly precisely. These rolling bearings absorb radial and axial forces from both directions and have zero backlash tilting moments. With the E version (ARL-E®), IBO offers improved rigidity and friction torque. The bearings of the ARL-E series are suitable for operating temperatures of -30° C and 120° C.

Axial-radial cylindrical roller bearings of the ARL-E®) series consist of a two-sided working axial cylindrical roller bearing and a radial cylindrical roller bearing.

The diameter tolerances for the ARL-E® series correspond to the tolerance class P5 and the tolerances for the running accuracy correspond to tolerance class P4 according to WN001. The following table shows the corresponding values ​​for each bore diameter:

Rotary table bearings have the characteristics of compact structure, high rotation accuracy, easy installation and maintenance, etc. Rotary table bearings mainly include YRT rotary table bearings, ZKLDF rotary table bearings and cross roller bearings.

Luoyang EFANT EFRT or YRT rotary table bearings are super precision axial and radial combined short cylindrical roller bearings. Including one axial radial inner ring, one axial radial outer ring,...

Luoyang EFANT ERTS200 or YRTS200 rotary table bearings are super precision axial and radial combined-short cylindrical roller bearings. Including one axial radial inner ring, one axial radial...

In general, the inner and outer ring of the YRT1200 rotary table bearing itself has mounting holes, lubricating oil holes and seals structure, which is suitable for different installation and use...

Because of its axial&radial cylindrical roller combined structure, EFANT EFRT or YRT rotary table bearings can bear axial loads, radial loads and overturning torque. And there are mounting holes...

Luoyang EFANT ERTS or YRTS rotary table bearings are super precision axial and radial combined-short cylindrical roller bearings. Including one axial radial inner ring, one axial radial outer...

EFANT EFRT50 or YRT50 rotary table bearings are super-precision bearings with special axial and radial combined structure, which integrates supporting, rotating, transmission and fixing functions....

EFANT EFRT80 or YRT80 rotary table bearings are pre-loaded according to working condition and already added grease at the factory, so you can install them directly. Generally speaking, adding...

We"re well-known as one of the leading rotary table bearing manufacturers and suppliers in China for our quality products and good service. Please feel free to wholesale customized rotary table bearing at competitive price from our factory. RE cross roller bearing, RE3010 crossed cylindrical roller bearing, China RE cross roller bearing

BSPECT is an online B2B bearing treade platform. As a professional reseller, we collect China’s bearing supply information as well as the global bearing demand information in all directions.

For buyers, we have strict BSPECT Rules to guarantee best service and high quality products. For sellers, we will help you to find wider trade market and proper partner. With BSPECT, all your problems in bearing trade, such as quality problems, uncontrollable production, delayed delivery etc., can be prevented or solved perfectly.

—BSPECT brings authoritative bearing quality inspection engineers, who will offer you the services of both factory and product inspection in your demand.

The A-688 direct drive rotary table with air bearings provides extremely high resolution and geometric performance. The angular resolution of this high precision air bearing spindle is 0.0015µrad (0.00003 arcsec), and flatness and eccentricity are specified better than 175nm and 300nm, respectively. This is made possible by high resolution, absolute measuring feedback encoders, and low-cogging frameless and slotless torque motors. The A-688 rotary table can be used in any orientation. Air bearing spindles guarantee a virtually unlimited service life with no wear, and zero required maintenance. As with all PI air bearings tables, the A-688 spindle is clean room compatible and requires no lubrication.

PI uses EtherCat based, high performance motion controllers ideally suited for closed-loop control of the rotation tables. Advanced algorithms are available to deal with changing load conditions and to suppress external disturbances.

YRT rotary table bearing have high axial load and radial load ,and high tilting rigidity and high precision. YRT can be used to the machine tool and other high precision machinery of the rotary table

Lower costs by using the rotary table bearing FMB. The compact designed FMB table bearing has been developed for high precision rotary motion. It reduces the cost compared to other rotary bearings since fewer components with less tolerance are used necessary for installation offering easy installation of the bearings and reducing the overall costs.

The turntable bearing can handle axial, radial, and a combination of loads. The main advantages of this bearing are the low height, easy mounting, and high precision run-out.

The super-precision balls move on highly accurate finished ways. The balls have 4 points of contact per ball offering very low, uniform, and smooth friction. As the bearings are preloaded by delivery they move with very high precision and repeatability. Values starting at 10 microns down to 1 micron can be achieved and wobble from 6 µrad down to 2 µrad.

The PTFE Teflon ball cages keep the precision balls separated, holds the bearing together, and offer smooth running performance. In case of light contaminants, the balls are self-cleaning due to the 4-point contact of balls the contaminant is pushed outside through the contact line of the balls on the raceway.

FMB turntable bearings include attachment holes to a standard configuration to attach the bearing fast and easy. The countersunk treaded holes can be used from attachment from the top and attachment from the bottom side.

A great advance compared to other turntable designs is the compact design with just 8 mm in height. It replaces bearings from other manufacturers while using double contact bearings. This results in space savings and makes the FMB the bearing of choice for major OEM customers.

Based on the groove geometry, specially designed raceways offer a greater contact surface for the bearing balls. This allows high rigidity, load ratings, and precise running. The smallest turntable bearing with an outside diameter of 140 mm offers a dynamic load rating of 6.070N and increased to 20kN for the largest bearing. The turntable bearings are preloaded before delivery by geometric matching and do not need readjustment.

The precision turntable bearing is available in sizes starting from an outside diameter of 120 to 350 mm. The inner bores start at 40 mm with a thickness of 8.5 mm and go up to 250 mm with a thickness of 12.5 mm.

Due that the turntable combines the advantages of low height, compact size, easy installation with a high running precision they are used in modern applications. Just to name a few:

Shandong Tefule Bearing Co., Ltd. is a company approved by the General Administration of Customs of China with import and export rights. Specializing in bearing trade at home and abroad, it is a large-scale industrial company integrating production and sales. Our bearing products have passed the ISO9001 quality system certification and ROHS lead-free certification. These products are widely used in the construction industry, railway industry, aerospace, agriculture, food industry, petroleum industry, cement industry, automobile industry, steel industry, mining, etc.

Machine tools require screw drives that can position a work piece or machine component quickly, efficiently, and precisely. To meet these requirements, screw drives can be supported at both ends by SKF super-precision angular contact thrust ball bearings. The bearings provide a high degree of axial stiffness and high axial load carrying capacity. They also can accommodate high speeds and rapid acceleration and offer very high running accuracy.

Angular contact thrust ball bearings for screw drives are well suited for screw drive applications, but are also beneficial in other applications where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft.

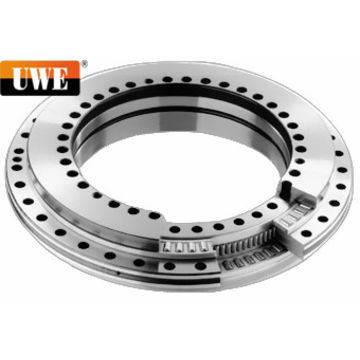

YRT Rotary Table Bearings are the two-way thrust bearing and the bearing is fixed to the centripetal guide bearing are designed to be YRT precision rotary table bearings. In terms of load, it can withstand radial loads and can also withstand axial loads in both directions. Due to the gap less tilting moment of the YRT bearings, it is able to meet the requirements of very high running accuracy in the CNC machine tools manufacturing industries.

In the CNC machine tool manufacturing industry, YRT rotary table bearing is its main core component. It is a rotating mechanism with outer ring rotation and inner ring support. The whole series is mainly divided into YRT type, YRTS type and YRTM type. These series are also the mainstream three models for Rotary Table Bearings.

The YRT type consists of a centripetal race, a centripetal collar, a thrust washer, two needle retainers and a cylindrical roller. It is characterized by its high axial and radial load. The YRT bearing requirements for the working environment are also between 30 ° C and 120 ° C. The temperature generated during operation depends to a large extent on the conditions of the surrounding environment, so YRT also has its own limit speed.

YRT bearings are also fitted with seals, lubricated with grease and lubricated by the outer ring and L-ring. Because YRT is used in many fields, it also directly promotes the development of the mechanical equipment industry, which accelerates the development of high-speed, precision and intelligent machine tools.

LYJW is a professional manufacturer of slewing bearings and we can design and manufacture slew ring bearings, precision bearings, slew drives and custom bearings for construction, engineering, mining, marine, chemical, military, wind turbine, medical equipment, and many other industries.

By virtue of expertise team, advanced manufacturing technologies and strict quality management system, LYJW takes the lead in the R&D of slewing bearings, which are designed with reasonable construction, light weight, good load carrying capacity and high versatility. The bearings’ diameters range from 200 to 15000mm and the accuracy covers PO, P6 and P5 class. Now, we can manufacture CCS, ABS, BV, GL and other certified bearings.

We adhere to the business principle of “Quality and Integrity” and we’ll keep providing outstanding bearings and superior services to serve global customer.

Axial/radial bearings and axial angular contact ball bearings are ready-to-fit high precision bearings for high precision applications with combined loads. They can support radial loads and axial loads from both sides as well as tilting moments and are particularly suitable for bearing arrangements with high requirements for running accuracy, for example in rotary tables, face plates, milling heads and reversible clamps.
