With Farris, a trustworthy valve is only part of our promise. Farris provides customers with total pressure relief management solutions that support a facility’s entire lifecycle, transforming the way you ensure plant safety:

Using the power of iPRSM technology and our Farris Engineering Services team, correctly design your pressure relief system to respond to every overpressure scenario

Equip your plant with Farris’ full line of spring loaded and pilot operated PRV hardware, knowing your plant is protected by 70 years of manufacturing experience

Since the early 1940s, the Farris Engineering unit of Curtiss-Wright Flow Control has designed and produced a wide range of spring-loaded and pilot-operated pressure relief valves. Used as safety devices, Farris pressure relief safety valves prevent over pressurization of vessels, pipelines, and equipment. Farris manufacturing is a company recognized as a leader in the hydrocarbon processing, refinery, petrochemical, natural gas production/transmission, pharmaceutical, and general processing industries worldwide. Their safety valves and other PRV hardware can be found across the globe – from the U.S. to the U.K. and S. America to China.

A pioneer in the field, the Farris Engineering company created many safety pressure relief products that remain industry standards. Integrating its core hardware technology with the information age, Farris developed computer software to assist customers in the sizing and selection of safety valves for all manner of piping and equipment. A recent reorganization of manufacturing plants and processes maximized production effectiveness to position the business unit at the forefront of the industry, with service and delivery second to none. If you are looking for an effective, high-quality safety valve and engineering expertise for any and all pressure relief management questions – look to the safety valve companies Farris Engineering and North American Machine Works.

Farris 2700 pressure relief valves are small size type designed to function equally well on air, steam, vapor and liquid services, manufactured in conformance to Section VIII of the ASME Boiler and Pressure Vessel Code for air, steam, and water service, capacities certified by The National Board of Boiler and Pressure Vessel Inspectors. It"s set pressures from 15 psig to 6500 psig with orifice areas from 0.068 to 0.573 sq. in., standard valves have MNPT inlet x FNPT outlet, optional female inlet thread, flanged, socket weld, welding nipple, and sanitary connections available. The standard construction includes 316 stainless steel body, trim and spring, with carbon steel bonnet, optional materials include Monel, Hastelloy C, and materials suitable for NACE service.

With Farris, a trustworthy valve is only part of our promise. Farris provides customers with total pressure relief management solutions that support a facility’s entire lifecycle, transforming the way you ensure plant safety:

Using the power of iPRSM technology and our Farris Engineering Services team, correctly design your pressure relief system to respond to every overpressure scenario

Equip your plant with Farris’ full line of spring loaded and pilot operated PRV hardware, knowing your plant is protected by 70 years of manufacturing experience

Now you can accurately size and select a pressure relief valves for any combination of process applications with SizeMaster™ Mark IV pressure relief valve engineering software. This program for Windows® (all versions) brings unprecedented integration of standard engineering practice to the task of sizing and selecting pressure relief valves.

With SizeMaster Mark IV software, you can define as few as one or as many as 64 different sizing scenarios including blocked flow, fire, thermal and tube rupture, from a scenario matrix grid. Selection of the pressure relief valve is automatically based on the relief area of the worst case scenario. Various Wizards make the most complicated task simple; for instance, the Capacity Wizard allows you to determine accurate vapor generation for vessels of all types.

Quicksize Database Tube Rupture Scenario English/Metric Dimensional Drawings API-Omega 2-phase flow calculations Noise and reaction force calculations Multiple valve sizing Standard Windows user interface functions Developed under ISO 9001-2000 guidelines Supports network database access Database administration tools Interactive product catalog Internal client/project database Complete revision control with definable database access English/metric units definable by job level Import/export capabilities Online help including a variety of tutorials

All sizing equations and selection algorithms are based on ASME Code requirements, API standards and best engineering practice as determined by Farris Engineering. The equations and flow algorithms are internally calculated within an innovative worksheet engine. This worksheet engine also checks parameters and any intermediate calculations against standards’ constraints, letting you know about any non-compliance issues it encounters. All equations, calculations and internal algorithms can be displayed on screen or printed for review.

The engineering worksheet engine also checks your parameters and all intermediate calculations against the standards’ constraints, and it tells you about any non-compliance that it encounters, such as attempting to size a conventional valve when a bellows valve is required.

Once SizeMaster calculates the orifice area required to relieve your process scenarios, SizeMaster guides you through the selection of the appropriate Farris pressure relief valve and its materials and other options.

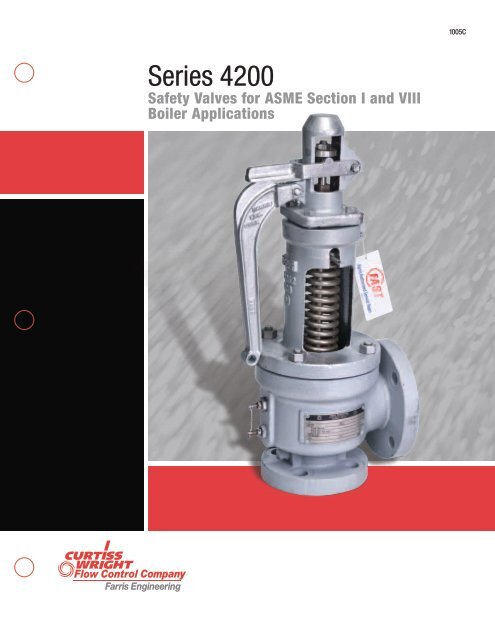

SizeMaster includes catalogue information for Farris 2600, 2700, 3800, 6400, 6600, 4200, 2800 , and 7200 series pressure relief valves, including their black and white drawings. While you are selecting a Farris type number for a tag, SizeMaster ensures that you don’t pick a valve that is not applicable to your process parameters (such as a liquid-service valve for a vapor scenario), and on-line help is available to assist in the determination of each of the digits of the Farris type number, based on your process scenarios.

From its Quick Size and Capacity Wizards through to its consistently standard Windows user interface, SizeMaster makes the job of sizing and selecting pressure relief valves easy, and its worksheet management and workflow auditing facilities let you ensure that your results are correct.

Welcome to Total Valve Systems where we are now celebrating over 30 years of history and strong growth in servicing customers around the globe. Our corporate headquarters located in Broken Arrow, Oklahoma is a 70,000 sq. ft. plant facility based upon 10 acres. We’ve expanded locations to cover Texas, Kentucky, Kansas, Missouri, Nebraska, and Iowa. To accommodate growth in international markets and support our products and services, offices have been established in Shanghai, China, Jordan, India, Singapore, and The Middle East.

Our type numbering system simplifies the selection and specifying of Farris pressure relief valves because the digits that comprise a specific type number

have a distinct significance. The digits describe the basic valve series, orifice, seat and internal construction, inlet temperature range, body, bonnet and

4. For a valve in complete stainless steel, add “N4” to suffix. Example: 26HB10-120/N4. For optional complete Inconel bellows, add “N4/SP”. Example: 26HB10-120/N4/SP.

1. Standard seat tightness for “O” ring valves is no bubbles at 90% of set pressure for both conventional and bellows valves. At set pressures of 50 psig and below, leakage test shall

1. All valves supplied with plain caps unless otherwise specified. Standard suffix for type number is “-120”. For other cap construction, refer to page 69.

6. Optional equipment includes: air set device for set pressure testing, extra large lapping glass for valve seat maintenance, spring compression device for set

While this information is presented in good faith and believed to be accurate, Farris Engineering, division of Curtiss-Wright Flow Control Corporation, does not guarantee satisfactory

fitness or any other matter with respect to the products, nor as a recommendation to use any product or process in conflict with any patent. Farris Engineering, division of

The pneumatically and electrically-activated control valves we manufacture are sought-after products for use in industry. They have many applications – from power station construction to chemical plants, from pharmaceutical and foodstuff production to steelworks.

Over the years grown to a company group, that besides valves also manufactures pumps, cryogenic components and visual level indicators, we offer solutions for your specific needs. As a second-generation family-owned company, we’ve won the trust of our customers and proven our worth time and again. Round about 500 employees help us doing so with their full commitment.

Farris products from Curtiss Wright are a world leader in the design and production of a wide range of spring-loaded and pilot-operated pressure relief valves. They are used as safety devices to prevent over-pressurisation of vessels, pipelines and equipment. Providing protection of employees, plants and the environment. Used on Gas, Air, Water, Vapour, liquid and Steam service.

With Farris, a high quality trustworthy valve design is only part of our promise. Using the Farris Engineering Sizing and Selection tools, Farris provides customers with total pressure relief management solutions that support a facility’s entire lifecycle, transforming the way you ensure plant safety on a bespoke basis. With a full set pressure range, Flange standards available include ANSI, API, MSS, BS, PN and ISO. A full range of construction materials are available, which includes Carbon Steel, Stainless Steel, Duplex & Super Duplex, Aluminium Bronze, Monel, Titanium, Zirconium, plus many others.
