stahl wire rope hoist in stock

The SH Series is a heavy-duty, compact, low maintenance wire rope hoist from STAHL. Providing load capacity ranges from 1 Ton to 15 Tons. Standard dual speed motor for smooth lifts with speed options. The STAHL SH wire rope hoist can be used by itself or together with a trolley for standard cranes. Optional short headroom monorail trolley and double girder trolley available. IP 66 protection for outdoor use without a protective roof.

The SH Series is a heavy-duty, compact, low maintenance wire rope hoist from STAHL. Providing load capacity ranges from 1 Ton to 15 Tons. Standard dual speed motor for smooth lifts with speed options. The STAHL SH wire rope hoist can be used by itself or together with a trolley for standard cranes. Optional short headroom monorail trolley and double girder trolley available. IP 66 protection for outdoor use without a protective roof.

STAHL Crane Systems wire rope hoists range in capacity from 500 kg to 160,000 kg. STAHL wire rope hoists have a compact, sturdy construction which is extremely low-maintenance. The reliability, power and long service life of Stahl hoists are above average. The particularly smooth, precise starting and braking characteristics are common to all. Tri-State Overhead Crane is your go-to Stahl hoist parts distributor.

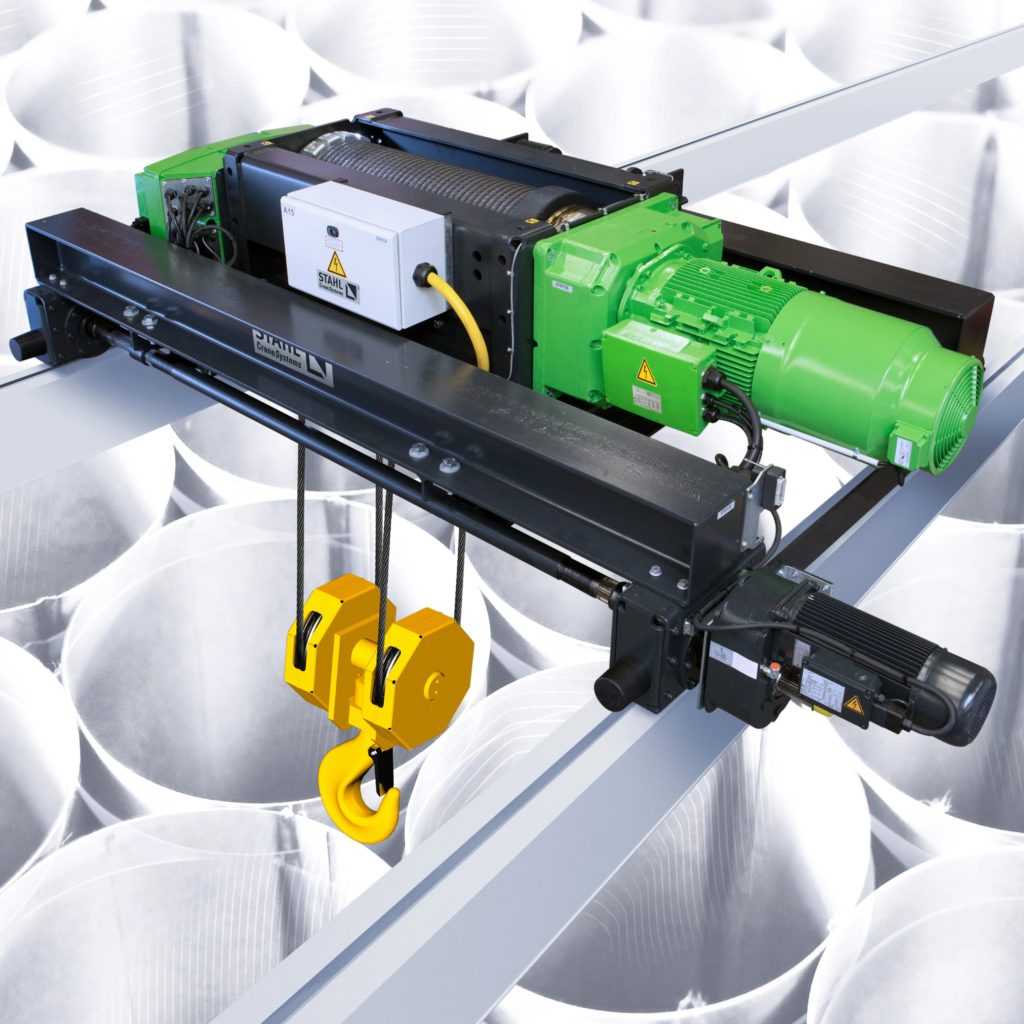

The STAHL CraneSystems AS7 wire rope hoist is an innovative choice in lifting and crane technology. The low-maintenance components and modular system are appreciated by users, crane and system manufacturers.

The STAHL SH wire rope crane hoist has been the standard in lifting and crane technology around the world for years. The modular system allows for practically unlimited combinations to meet any of your lifting needs.

TSOC sells, services and provides parts for STAHL wire rope crane hoists; serving clients from coast to coast, Canada, Mexico and especially focused in Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.

MANUAL RELEASE OF HOIST BRAKE:The brake release device permits the hoist brake to be released manually and thus the load to be lowered during a power cut. As an option, every hoist can be equipped with this supplementary equipment to the standard brake.

ROPE DRUM BRAKE:Redundant brake system provides increased safety. Intercept and holding brake, prevents the load falling even if the gear should break. Control is effected with a centrifugal switch or safety PLC.

FREQUENCY INVERTERS FOR “LIFTING”:Smooth starting and braking characteristics. Load swing greatly reduced. Fast, precise positioning of the load, corrective switching operations rarely necessary. The reduced dynamic load means a longer service life for hoist motor and gear and reduces stress on the whole system.. ESR function (Extended Speed Range) for higher hoisting speeds with partial load. Worldwide approvals for all frequency inverters. Certified in compliance with DIN ISO 9001.

TWIN DRIVE CONCEPT:Prevents sagging of the load even when the gearbox fails. Permanent brake, drive and load monitoring. Two synchronously controlled hoist motors and brakes. Two manually releasable brakes for emergency lowering. Robust, completely encapsulated system. Service and safety brake of identical design. Up to 60 % higher load capacities when transporting non-molten metals.

LOAD DISPLAY:SLD four-digit 7-segment load display (Stahl Load Display), large format, luminous red, available with various interfaces including CAN. Choice of 60, 100 or 150 mm digit height. No additional sensor is required as the standard load sensor is used.

SMC MULTICONTROLLER:Continuous load monitoring by overload cut-off even if hoist is at a standstill. Overload protection with ALC automatic load control. Load spectrum memory for load-related operating time summation. Monitoring of the motor temperature of the hoist motor and travel motor. Operating data registration, e.g. operating hours, load spectrum, motor switching operations and load cycles. Data exchange with PC possible.

EMERGENCY HOIST LIMIT SWITCH:In standard version, the hoist is equipped with a gear limit switch for top and bottom hook position and an operational limit switch for top hook position. As an option, up to eight switching elements can be fitted to the switch. This permits for example further stopping positions and operational limiting in bottom hook position.

The STAHL CraneSystems brand stands for reliable and safe hoists and crane components as well as methodical engineering solutions. The products are used in standard, special and explosion-protected bridge cranes or hoisting systems in industries such as automotive, oil and gas, power station construction, chemical industry, transport and logistics, steel and concrete industry, food industry, mechanical and plant engineering, air and road transport industry as well as in the pharmaceutical and food industry. STAHL CraneSystems is a globally recognized brand for explosion-protected crane technology and comprises one of the most extensive, seamless product portfolios. Customers include crane builders, machine/plant manufacturers as well as planning and general contractors all over the world.

If you thought the SH series was great just wait until you read about the AS7 hoist as it comes with standard lifting option up to 125 tonnes in capacity. If you’re looking for wire rope electric hoist manufacturers who design powerful lifting equipment for compact spaces then you’ve come to the right place. This hoist can be foot mounted or fixed to a motorized trolley and is suitable for double girder top running overhead cranes. It"s built with a powerful motor and braking assembly for both strength and safety.

STAHL CraneSystems’ wire rope hoists cover the S.W.L. range from 500 kg to 125, 000 kg. They are based on a technically mature modular system that guarantees cost-effective production at the highest level of quality. What’s special about this: we can combine the individual components at will so that each of our wire roperead more...

The STD dual chain hoist was developed specifically for long material and loads that need to be picked up at two points. It is equipped with two load chains, which are moved synchronously by a hoist motor. The hookread more...

ElectroMech is the exclusive India partner for STAHL Crane Systems, Germanys range of Explosion protected crane and crane components. Explosion protected crane technology is used in industries such as chemicals, oil & gas, paints and pharmaceuticals. STAHL Crane Systems is the pioneer for explosion-protected craneread more...

With a wide range of wire rope and chain hoists from Stahl we offer you the greatest variety of hoists in the world. That means flexibility for your logistics tasks. Every material flow requirement, however unconventional, can be solved individually and at a particularly favorable ratio of performance and cost-effectiveness.read more...

STAHL Wire Rope Hoists are designed for safe working loads upto 100, 000 kg-available as a modular system in various ratings from 320 to 100, 000 kg. with 6 frame sizes and 26 SWL variations permit practically unlimited adaptability to all customer-specific applications. In addition they have low headroom and short approachread more...

Columbus McKinnon Corp. offers NEC-approved, Class I, Division 2 explosion-protected STAHL CraneSystems brand SH Ex wire rope hoists to its advanced hoist product portfolio. The STAHL CraneSystems SH Ex wire rope hoist is available in five frame sizes with 26-load capacity variants from 1,000 lbs. to 30 tons in deck mount, monorail trolley, and double girder trolley models for use with standard, customized or special crane applications.

“Based on the SH wire rope hoist platform, the explosion-protected SH Ex models allow for wider use in applications and industries with potentially hazardous environments,” said Thomas Kraus, global product manager, wire rope hoists. “Complying with ATEX, IECEx, and now NEC standards, the SH Ex wire rope hoist offers reliable operation, high efficiency, and increased safety.”

The explosion-protected models are also available with ATEX and IECEx approvals for EX Zone 1, Zone 2, Zone 21, or Zone 22 hazardous locations. ATEX compliance, required in the European Union, certifies that the SH Ex is safe to use in potentially explosive areas with flammable gases or dust. IECEx equipment certification signifies that the SH Ex conforms to international safety standards for environments where a potential exists for explosions. The SH Ex is also available with spark-resistant features such as coated hooks, brass wheels and brass drop lugs on trolley.

With higher loads the hoisting speed is adapted to the actual load on the hook. The SHA uses less power due to the lower output, reducing stress on the power supply and conserving valuable resources.

The SHA comes into its own in production environments where lower loads are lifted frequently, however a higher lifting capacity is required for occasional applications. A flexible range of applications and an excellent price-performance ratio make the SHA wire rope hoist an attractive alternative to the SH series of wire rope hoists.

The Stahl electric hoist offers one of the most diverse chain hoist combinations on the market, with a varied range of electric chain hoist designs to suit most requirements. Our range of Stahl models boast electroplated load chains, compact design and low maintenance schedules as standard.

We have two Stahl electric chain hoists from the ST series, which rank among the most comprehensive electric chain hoist programmes on offer in the world. With reliability at the forefront of design, we can find the ideal electric chain hoist for your application.

With many non-standard options available upon request, such as big bag hoist design, maximum ambient temperatures of + 55°C, geared hoist limits for top and bottom hook positions, offshore paint finish to name but a few, the Stahl electric powered chain hoist is a market leader.

If you’re looking for a heavy duty reliable electric chain hoist from a German manufacturer renowned the world over, then look no further than the Stahl range of chain hoists.

We offer the complete range of the Stahl Cranes ST series chain hoists which ranks among the most comprehensive electric hoist programmes on offer. We can proudly say that these hoist units are in use in thousands of applications around the world for many decades. In addition the Stahl R&D department are continually modernising and optimising the ST series. The ST series chain hoist is a true classic. Powerful, reliable and undemanding as far as maintenance and power consumption are concerned. This electric hoist can be supplied for fixed position lifting applications with either suspension hook, eye or with a rigid mounting. Alternatively if a monorail application is called for we can provide the ST electric hoist with either a manual push trolley or electric trolley.
