stainless steel wire rope net in stock

Custom-made steel wire net with high mechanical load capacity for industry, construction sites and the public sector. Enter the desired dimensions in the appropriate fields above. Net area and price will be calculated and displayed automatically.

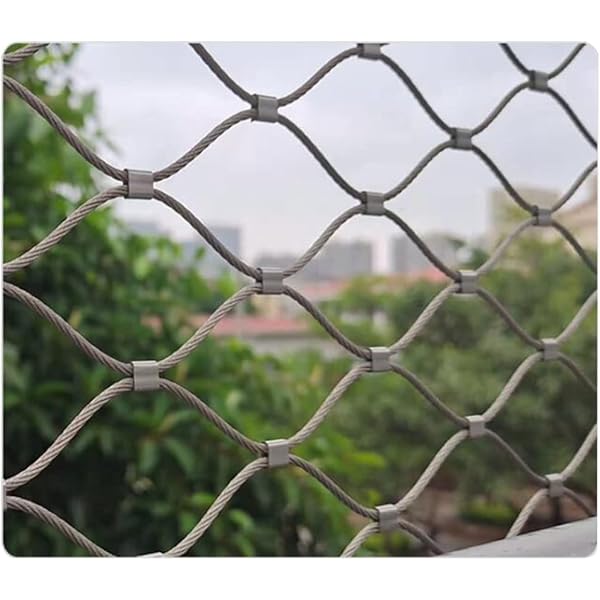

The ropes are running in vertical and parallel lines and are fixed at the crossing points using aluminium cross clamps. The clamps are pressed to a permanent connection. The rounded shape of the clamps ensures good haptics and minimizes the risk of injury.

The steel wire mesh is highly resilient and weather-resistant, making it suitable for continuous use. Please note, that the steel wire mesh is a rigid network. In contrast to textile nets the energy consumption is more erratic. Depending on the nature of load on the network, the specified slip resistance of the wire connectors is also relevant beside the breaking force of the ropes.

The net size always means the dimension from the inner edge of the loop to the inner edge of the loop on the opposite side (respectively th emeasure between the attachment points).

Steel wire nets should be installed with a slight tension, which reduces the effectiveness of an impact. It should be noted that the loops can distort under load when they are attached at certain points and can therefore change in length. In this case, the dimension of the netting should be reduced accordingly. Manufacturing tolerances are subject to change depending on the design and type of fastening.

The specified mesh size describes the dimension between the inner edges of the wire ropes. The size of the meshes and especially the edge meshes is adjusted so that they match the size ordered and the type of edge design and can therefore vary slightly.

The maximum production width is 500 cm. We can offer you wider networks on request. However, the length is not limited. The nets can be made up to a weight of 1,000 kg per single net. We recommend separating nets weighing over 300 kilograms into several individual nets.

The edges of the net are designed as loops as standard. Due to the meandering course of the ropes, the net has a loop on every second stitch. Depending on the number of individual strands, the start and end point of a rope can be pressed to a loop, converted in the direction or executed as a thimble. Depending on the overall size and aspect ratio, the net can consist of one or more individual steel cables.

The loops on every second mesh serve as an attachment point. For example, they can be mounted directly to a substructure with hooks or eyes. Another option is to mount the net with rigid profiles (profiles or pipes made of steel or aluminium). Alternatively, an additional steel cable can be used, which is threaded and tensioned through the edge meshes.

Attention: The wire rope nets must not be pinched or warped during assembly. Pinched or warped nets have a considerably lower strength due to increased shear forces or additional tension in the edge area.

Attachment made of galvanized steel or stainless steel with an open thread. Different diameters and lengths are possible depending on the rope strength.

With many years of experience in architecture, we develop optimized and economical solutions for our customers with I-SYS stainless steel wire rope systems and X-TEND stainless steel cable mesh systems. Finding the right solution for every requirement is our claim. From consultation to installation, CARL STAHL ARCHITECTURE offers its customers a complete service. The customer decides individually which services he uses. The sales partners from CARL STAHL ARCHITECTURE are there for you almost everywhere in the world. Thanks to our close international network of subsidiaries and distribution partners, we can realize projects of every size worldwide - also in your area. The contact details of our partners abroad can be found here:

With many years of experience in architecture, we develop optimized and economical solutions for our customers with I-SYS stainless steel wire rope systems and X-TEND stainless steel cable mesh systems. Finding the right solution for every requirement is our claim. From consultation to installation, CARL STAHL ARCHITECTURE offers its customers a complete service. The customer decides individually which services he uses. The sales partners from CARL STAHL ARCHITECTURE are there for you almost everywhere in the world. Thanks to our close international network of subsidiaries and distribution partners, we can realize projects of every size worldwide - also in your area. The contact details of our partners abroad can be found here:

Jakob Rope SystemsJakob Rope Systems is one of the market leaders in the manufacture and supply of top-end, design-forward solutions to industrial and construction-related rope and cable applications in which elegance, simplicity and superlative quality are required.

Now, for more than a century and in over 55 countries, Jakob offers a range of steel rope products to our clients who return time and again seeking a reliable maker and provider of stainless steel wire ropes, rod fasteners, nets and unique fittings, all custom-designed and produced to fit exact specifications. At Jakob, we understand it’s the little details that make the big differences.

Every piece of finished goods leaving our warehouses is put through a stringent testing process to ensure compliance with AISI 316, ISO and DIN standards. Our cable railing, wire mesh, wire ropes, and rods can be used in multiple applications, both indoor and outdoor and at various scales, such as sign stanchions, shelving, as trellises on green walls, safety netting, and even in zoo enclosures.

Jakob and our USA -based team can provide cables and wire netting solutions for any commercial and business application. We take pride in offering custom-made designs to fit our clients’ needs.

Whether for pest control, fishing or sports nets, we can help create your netting system with our large stock of high-quality steel wire rope and fittings.

Our range includes flexible and weather-resistant wire rope made from stainless steel – the ideal product for netting systems. Use our wire rope for fall prevention, animal enclosures, safety nets, and much more.

This cable can be used in a number of different applications for the hanging of your WCN product or netting element. The cable can be either coated with a clear pvc coating (black coating for stainless cable) or left uncoated. For applications where netting to be slid along the cable, go with an uncoated cable. Stainless steel cable available for near water applications. Priced per foot.

Arctic Wire Rope and Supply is Alaska"s longest established and largest manufacturer of slings, chokers and bridles made of wire rope, cable, nylon web, polyester round and grade 10 chain. We do it all right here in Anchorage and were awarded the Alaskan Manufacturer of the Year in 2006.

Safely create a load-bearing eye at the end of a wire rope or cable with this handy wire rope grip. Made from 316 stainless steel, it’s designed for use with wire rope.

Thanks to its stainless steel construction, this clamp boasts a high resistance to corrosion, weathering and the abrasive forces of wire. The component is made of a U-bolt and saddle secured by two nuts.

Due to their robust and durable nature, wire rope clamps are commonly applied in industrial lifting processes. You will find them in a wide variety of sizes suited to different rope diameters.

Established in 1997, our factory is specialized in producing stainless steel wire ropes. Located in Shanghai, which is the biggest manufacturing base of stainless steel materials and products in China, Shanghai in the prosperous Yangtze River Delta. Our company has 45 existing staff members, covers an area of 6600 square meters and has a fixed asset more than 90 million Yuan. Our company has long been committed to the production of wire ropes and rigging since our establishment. Our annual output is more than 5000 tons, consisting of stainless steel wires, galvanized steel wires, rigging and so on. All of these products are widely used in railways, petroleum, chemical industry, fishery and precision instrument manufacturing industry. Our company is one of the largest stainless steel wire production bases in China. Our products are manufactured with advanced equipment and precision technology, according to GB, ISO, DIN, JIS and BS standards and customers’ special requirements. Our products not only are popular with excellent quality, reasonable prices and considerate services in China, but also receive good popularity in the overseas market. We always follow the principle of “the supremacy of quality”. All the production activities, from raw material smelting, wire drawing, heat treatment and rope twisting to physical and chemical performance testing, are under strict and scientific control according to ISO9001:2008 Quality Management System. We will continue to focus on quality improvement and innovation by the cooperation with domestic and overseas customers, to become the leading enterprise of stainless steel wire ropes as soon as possible.

Our main products: Stainless steel wire ropes, galvanized steel wire ropes, stainless steel wire ropes covered by plastic bags, stainless steel wire rope slings, wire rope accessories, triangle ring sets, spring buckles, clothes rack ropes, stainless steel wires, wire rope chuck and connection buttons, invisible protective ropes, stainless steel spring wires, lifting eye bolts, curtain wall accessories, fishing paraphernalia ropes, D shape shackles, steel line (bar) materials and steel tape (roll) materials.

Purchase top-quality, handmade galvanized or stainless steel netting you can rely on at US Netting. All of our long-lasting steel nets are made in the USA, designed for extreme…

High security and fast lead time. We are a reliable supplier and factory of stainless steel wire rope mesh. If you need the ferrule mesh or woven mesh for the new zoo enclosure project, please contact us directly at sales@ecozoomesh.com.
