viper wire rope lubricator price manufacturer

The Viper WRL was developed with safety and the environment in mind. When used correctly the Viper WRL has a number of Health, Safety and Environment benefits.

Do your wire ropes, cables and draglines become rusted, corroded or frayed? You can protect your wire rope and cable from high stress loading, shock loading, jerking and heavy loads with LE"s full line of penetrating and coating wire rope lubricants. Whether you want lubricant to penetrate to the core or to coat and seal, LE has a full range of protective lubricant solutions, including wire rope lubricant applicators to reduce labor costs and ensure safe, reliable operation.

New Extended Warranty: Documented use of LE452, LE453 Wirelife™ Almasol Wire Rope Lubricant or Earthwise™ EAL Wire Rope Lubricant will double the Viper warranty period to 24 months.

The manual lubrication of wire ropes via the drip, brush, spatula or rubber glove method has always been a difficult maintenance task. Typically employed are messy asphaltic or “blackjack” type products, which have coating abilities but very little lubrication or penetration properties.

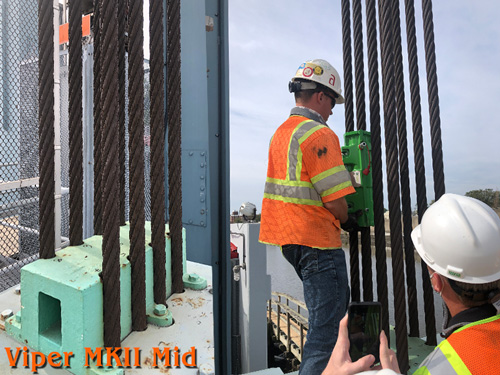

The VIPER Mid MK II Wire Rope Lubricator provides fast and effective lubrication of wire ropes from 5/16 in (8mm) to 2–5/8 in (67mm) in diameter, at speeds up to 6,670 ft (2,000 m) per hour. It eliminates the slow and labor-intensive task of manual lubrication, at the same time achieving more thorough results by forcing quality lubricant under high pressure right through to the core of the wire rope.

The system consists of the lubricator Collar assembly, which houses the polyurethane seals to suit the specific size rope. The assembly is clamped around the rope and anchored to a fixed point. The rope is then pulled through the collar as the lubricant is applied with a high pressure grease pump, forcing lubricant between the strands to the center or the rope. The result is a fully lubricated wire rope with a smooth minimal film of lubricant on the outer strands.

The benefits over conventional drip and brush or spray systems are substantial. The Viper MK II Wire Rope Lubricator operates at a higher pressure than most other lubricator collars on the market; this combined with the robust construction guarantees fast, safe and effective wire rope lubrication.

For lubricating larger rope sizes 2 in (50mm) to 6 1/2 in (165mm), you will need the Viper Maxi MK II. Viper Mini MK II lubricates rope sizes 15/64 in (6mm) to 1 13/32 in (36mm.)Please contact us for more information about these solutions.

Proper lubrication of wire rope will extend operational life and increase safety. Done correctly, it lubricates exterior surfaces as well as the inside wires and core. Proper lubrication will help reduce friction as the individual wires move over each other, and provide corrosion protection.However, lubricating wire ropes can be difficult. Manual lubrication via drip, brush, spatula or rubber glove method is a messy, time-consuming maintenance task and can be hazardous to the environment.

The Viper Wire Rope Lubricator is a much better solution. The Viper Mid MK II provides fast, effective one-pass lubrication of wire ropes from 5/16 in (8 mm) to 2 5/8 in (67 mm) in diameter, at speeds up to 6,670 ft (2,033 m) per hour. It eliminates the slow, labor-intensive task of manual lubrication, at the same time achieving more thorough results by forcing LE’s robust wire rope lubricant under high pressure (up to 5,500 psi) right to the core of the wire rope.

The Viper Wire Rope Lubricator can be used in any application where wire rope can be drawn through the collar of the lubricator, including the following typical applications:

The Viper Wire Rope Lubricator consists of a lubricator collar assembly that houses polyurethane seals suited to a specific wire rope size. The assembly is clamped around the rope and anchored to a fixed point. The rope is then pulled through the collar. The steel scraper plates pre-clean the rope by scraping dirt, debris and old lubricant from the rope and protect the seals from loose strands, flattening them out before new lubricant is applied.

As the lubricant is applied with the high-pressure, high-flow grease pump, it forces the lubricant between the strands to the wire rope core. The result is a fully lubricated wire rope with a smooth minimal film of lubricant on the outer strands.

The collar is the heart of the Viper MK II. Constructed from high-grade cast aluminum with a robust protective coating, the collar is completed with stainless steel hardware to provide maximum corrosion protection. The MK II collar has built-in handles, making it easy to carry in one hand. One person can easily attach the Viper to the rope.

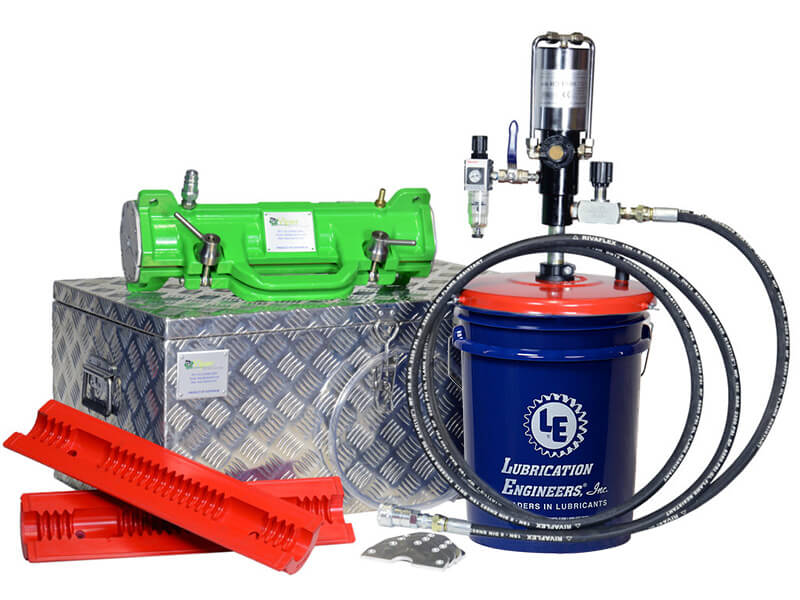

LE carries the complete standard kit and all necessary components for operation. Configuring the kit is simple. The selection of the seals and scraper plates is based on wire rope size. If you have more than one wire rope size, additional scrapers and seals can be purchased.

We also carry some of the best wire rope lubricants found in the market to provide you with an entire solution. We recommend that you use Wirelife® Almasol® Coating Grease (452-453) with the Viper Wire Rope Lubricator

Wirelife Almasol Grease is available in NLGI 00 (452-PL, 452-QD, 452-DR) and NGLI 0 (453-PL, 453-QD, 453-DR) grades, both of which are extremely tacky and water resistant and have exceptional penetrating ability. They provide EP protection and exceptional corrosion protection, even in underwater applications

In addition to wire rope lubrication, LE is happy to offer lubricant and reliability recommendations for a variety of industries and applications, and to provide product-specific data on all of our items to help you make the right decision.

To learn more about the Viper Wire Rope Lubricator or about LE’s enhanced lubricants, lubricant training, oil analysis, filtration, lube rooms, breathers, sight glasses or other lubricantreliability solutions, please contact us today.

We are proud to have been part of the Viper Wire Rope Lubricator (WRL) team for the past decade – helping to develop and grow the worldwide sales of this safe, simple & efficient lubrication system.

A&S International has a group of distributors who actively and successfully market & sell the Viper WRL range to clients in their own territories as part of the wider global Viper distributor team. And in the ten years to date, our Viper WRL distributors have sold more than 800 units!

It eliminates the slow and labour-intensive task of manual lubricant application, at the same time achieving more thorough results by forcing lubricant under pressure right through to the wire rope core.

With the success of the Viper Wire Rope Lubricator, manufacturers Lubrication Engineers Australia announce the much anticipated Viper Mk II Wire Rope Lubricator launch.

Those in the marine, mining and heavy industry are already sold on the benefits of this automated, single pass wire rope lubrication technology which:

lubricates all major rope sizes, Viper MkII lubricates rope from 8mm (5/15”) to 67mm (2-5/8”) while the Viper Maxi MkII will lubricate up to 165mm (6-9/32”)

The Viper MkII Wire Rope Lubricator has many applications including wharf cranes, ship cranes, ROV cables, mine winders, mobile cranes, oil and gas platforms, anchor ropes, deck winches, overhead cranes and ship loaders.

Viper recommend the use of Viper WRL Coating Grease VCG-1 with the Viper MkII. This grease is specifically designed for the offshore industry where immersion in water occurs. Viper WRL Penetrating Grease VPG-0 has excellent penetrating ability, disperses moisture, will not drip or run plus provides extreme pressure protection for sheaves and rope drums. Both products are specifically designed for use with the Viper and for use in marine and mining applications.

The unique Viper seal design is at the heart of the Viper WRL package. The selected polyurethane material is wear-resistant to ensure long service life but still flexible enough to mould to the rope. This flexibility helps reduce leakage but more importantly massages the lubricant into the rope, increasing penetration of the lubricant and the protection from corrosion that this provides. Other wire rope lubricators tend to simply coat the outside of the rope. The length of the Viper Mid and Maxi collar / seal combination also increases the dwell time that the rope has with the lubricant, which also helps with application and ultimately leads to longer rope life and extended lubrication intervals

Yes, when using the Viper WRL kit with a high-quality grease there is a significant increase in rope life due to the penetration of the lubricant to the core of the rope, as well as a reduction in friction on both the inner and outer strands of the rope.

Typically wire rope maintainers are manually applying lubricant to the outer strands of the rope or using a low-pressure applicator that only fills the wire rope valleys.

Developed as a service tool, the Lincoln Wire Rope Lubricator is attached periodically to equipment on a monthly, quarterly or other cycle to lubricate wire ropes. Lubrication intervals should be determined according to rope manufacturer specifications. The life cycle of a steel wire rope that has been periodically lubricated is approximately six to eight times longer than a wire rope that has not been lubricated. Specifically for Wire Rope Lubricator applications a biodegradable grease LGTE 2 is available. The grease is environmentally acceptable and certified with Ecolabel.

Also, lubricating a wire rope while in service helps to prevent corrosion of the wires. Corrosion can be internal and external, and it often is caused by acids, alkaline waters, salt air, humidity, fumes, and abrasive and industrial environments in general.

Corelube designs, engineers & manufactures state-of-the-art, wire rope lubricators/lubricator & wire rope cleaning tools. Corelube has been solving wire rope maintenance problems for over 40 years.

The key to maintaining wire ropesis protecting the interior core wires from corrosion and wear with protecting the exterior from the elements and extreme wear conditions. Corelube Equipment has designed wire rope lubrication systems that address both of these issues.

We believe there is no one size fits all solution when it comes to wire rope lubrication. With 40 years of designing wire rope lubrication systems, we believe our systems are the most advanced/environmentally friendly systems out there.

Wire rope lubricants with good penetrating properties are key to preventing internal corrosion & wear. Corelube highly recommends wire rope lubricants that transition from penetrating oil to grease.

Our users can always expect excellent performance from any one of our Kirkpatrick wire rope lubrication systems. Their superb engineering provides unmatched strand lubrication and cleaning benefiting customers in any industry where wire rope maintenance is a priority. The Wire Rope Surface and groove pattern are scraped clean of penetration blocking debris and product buildup as the wire rope surface is uniformly coated with new lubricant. Every space within the wire rope open to receive the newly applied wire rope lubricant is filled.

Optimum penetration occurs as the wire rope being serviced passes through a controlled 100% pressurized immersion within the system’s internal seal lubrication chamber. This immersion displaces any entrapped surface moisture within the rope’s internal strands and replaces it with the newly applied coating product. You can trust Kirkpatrick systems’ functionality with high- and low-viscosity coatings. Higher viscosity coating products maximize fluid film support against strand rubbing that can shorten any working ropes life due to friction wear. In the event your application requires low viscosity coatings such as a mining friction hoist; our systems easily apply those products as well accommodating high wire rope travel speeds.

Viper WRL, an Australian owned company, manufactures and supplies wire rope lubrication equipment to the marine, petrochemical, mining and manufacturing industries.

The use of the Viper WRL system is proven to increase the life of  critical wire rope assets by up to 300% compared to traditional lubrication methods. When used in place of manual lubrication the Viper can reduce relubrication time of ropes from several days to several hours (often a reduction of up to 90%) whilst also providing a safer work environment. As the Viper delivers lubricant into the wire rope there is also an environmental benefit with less lubricant used and significantly less waste generated. The unit not only lubricates but can also firstly clean ropes of contaminants with the Viper Rope Cleaner range.

Rodney Fitzpatrick, Owner and Managing Director of Viper WRL said “The Viper Wire Rope Lubricator is now the world leader through continued innovations. The Viper not only provides major savings in equipment downtime but is a lot safer for workers and the environment.”

UK based A&S International has represented the Viper WRL brand for more than a decade with an active network of thirteen distributors around the world. Increasing number of UK companies are investing in the Viper WRL solution – 2020 sales this year have already included mobile & tower crane fleets, offshore ROV, port cranes & offshore trenching technology.
