Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.

Raymarine, the world leader in marine electronics, develops and manufactures the most comprehensive range of electronic equipment. Raymarine is dedicated to the design, manufacture and distribution of the highest quality marine electronic products and services to the worldwide recreational and light commercial markets. Whether it be stand-alone units or fully integrated systems, Raymarine understands boating and what it takes to make it safer.

Hydraulic linear drive systems are self-contained hydraulic steering systems that allow Evolution autopilots to steer heavy displacement vessels with mechanical steering. Hydraulic linear drive systems consist of a high-performance reversing hydraulic pump, hydraulic steering ram, fluid reservoir and hydraulic lines. The system comes filled, bled and ready-to-install.

The included hydraulic steering ram will be anchored to the boat"s structural members, and attaches to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required.

The Type 2 configuration is suitable for vessels with up to 22,000 kg (48,000 lbs.) displacement. All Linear Hydraulic Drive systems require an Evolution ACU-400 actuator control unit.

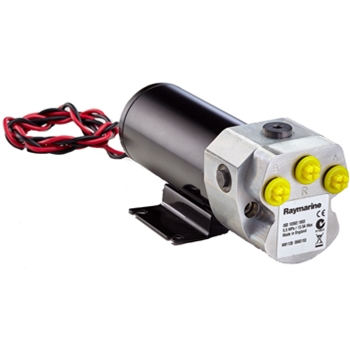

The Type 1 hydraulic reversing pump, 4.9-14cu.in. is a component for Raymarine SmartPilot autopilot system. Designed for boats with existing hydraulic steering systems. To match the drive of your vessel, you need to know the size of the actual hydraulic cylinder RAM or RAMs that are mounted to the rudder on inboard engine boats or the RAM mounted to the drive on outboard engine boats.Best UsePowerboats

Raymarine Type 2 Raypilot Hydraulic PumpNew stock as picturedGenuine Raymarine part M8112112V Type 2 Pump for Type 2 systemsDrive method DC Reversing hydraulic pumpMaximum stall 100 bar(1450 psi)at 12 VPeak Flow Rate 2000 cc/min(122 cubic in /min)(no load)Power 12V Nominal 10 V to 15 V DC input£500+VAT

The Type 1 Hydraulic Reversing Pump, is a component for Raymarine SmartPilot autopilot systems. Designed for boats with existing hydraulic steering systems, the Hydraulic Autopilot Pump interfaces with your vessel"s steering system to keep you on the right course.

Notes: In some systems with dual steering rams in parallel, cylinder capacity is the total of both rams. Rams in series only require single capacity valve. Hydraulic steering systems with steering rams over 500cc require our larger constant running pump used in conjunction with the relevant ACU - contact Raymarine for details. An authorized Raymarine dealer is best suited to installing a hydraulic autopilot system. Type 0.5 suitable for Volvo D4/D6 Sterndrive applications.

Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system. To calculate the drive unit needed, you will need the size (in cc) of the hydraulic cylinder(s) mounted to the rudder or inboard engine, or the drive unit on your outboard. Info on which drive is right for you is available in the downloads section below. Alternatively if you know the brand and model of the hydraulic cylinder, click the cross reference chart in the downloads section
