stanley hp1 compact hydraulic pump supplier

HP1/HPR Compact Power Units Built to meet the tough HTMA standards. HTMA standards so they’ll provide sure Equipped with a high-speed blower and large air-to-oil cooler, our power units provide a source for clean and cool hydraulic power under the toughest operating conditions. All models feature either the powerful Briggs & Stratton Vanguard OHV V-Twin, or Honda OHV GX620 engine. These high-torque engines are fuel efficient, have lower exhaust emissions, yet run quieter than most engines their size. These power units are easy to service too – both the engine and the hydraulic spinon filters are a snap to change. A large readily available commercial battery is fully enclosed in a battery box. OPERATION AND PERFORMANCE HP1 COMPACT HPR ITEM U.S.A. METRIC U.S.A. METRIC Output (2) 5 gpm @ (2) 20 lpm @ 5 or 8 gpm 20 or 30 lpm 2000 psi circuits 140 bar circuit @ 2000 psi @ 140 bar (1) 10 gpm @ (1) 38 lpm @ 2000 psi circuit 140 bar circuit Length 35.5 in. 90.17 cm 35.5 in. 90.17 cm Width 23.25 in. 59.06 cm 23.25 in. 59.06 cm Height 29 in. 74 cm 29 in. 74 cm Weight (less fuel) 276 lbs 125 kg 286 lbs 130 kg Fuel Consumption 1.3 gph 4 lph 1.3 gph 4 lph Engine Lube System Pressure Lube/Low Pressure Lube/Low Engine Oil Shutoff Engine Oil Shutdown Running Gear 12 in. Wheels 31 cm Wheels 12 in. Wheels 31 cm Wheels Retractable Retractable Retractable Retractable Handles Handles Handles Handles Fuel Tank Capacity 4.2 gal. 16 ltr 4.2 gal. 16 ltr Hydraulic Reservoir Capacity 2.7 gal. 10 ltr 2.7 gal. 10 ltr Engine 18 hp Vanguard IC V-Twin (OHV) Stanley Features • Rugged Side Handles Run the entire length of the unit on both sides for easy lifting and protection. • Automatic Throttle Mechanism Provides automatic throttling when the tool is engaged, and return to idle when disengaged. • Sealed No-Maintenance Battery The 35-Ah battery is sealed, non-spillable and requires no maintenance. • Fiberglass Pack Muffler Quiet operation – only 85 db during normal operation. P/N 14530 3/02 • Low Oil Pressure Shutoff A standard feature to protect the engine from low lubrication conditions. • Swing Away Lifting Eye Makes lifting quick and easy using overhead lifting devices. 20 hp Honda (OHV) Equipped with a high-speed blower and large air-to-oil cooler, our power units Stanley"s compact power units feature the most efficient hydraulic circuits available in a portable power unit today.

The HP8 hydraulic power unit is engineered for continuous professional use and is optimized to deliver ideal flows and pressures to both Type 1 and Type 2 hydraulic tools. Its powerful 18 HP Briggs & Stratton engine and best-in-class cooling system deliver the power and heat rejection pros need to keep tools working uninterrupted all day in all types of conditions. The HP8 features an intuitive throttle selector which makes changing flow rates very easy. Its feature-rich, dependable operation make the HP8 the workhorse of the industry.

The HP12 hydraulic power unit is engineered for continuous professional use and is optimized to deliver ideal flows and pressures to both Type 2 and Type 3 hydraulic tools. Its powerful 23 HP Briggs & Stratton engine and best-in-class cooling system deliver the power and heat rejection pros need to keep tools working uninterrupted all day in all types of conditions. The HP12 features an intuitive throttle selector which makes changing flow rates very easy. Its feature-rich, dependable operation make the HP12 the industry choice for high-flow applications.

STANLEY HP-1 COMPACT HYDRAULIC POWER UNIT 18 HP, #9281030G PARTS ONLY. STANLEY HP-1 COMPACT HYDRAULIC POWER UNIT. ( UNLESS LISTED OTHERWISE). STANLEY HP-1 COMPACT HYDRAULIC POWER UNIT BRIGGS & STRATTON VANGUARD V-TWIN MOTOR 18 HP 2 CYLINDER / GAS **LOCKED UP** FOR PARTS ONLY, NO RETURNS #9281030G O-60-F APPROXIMATE SHIPPING DIMENSIONS: 40 X 40 APPROXIMATE SHIPPING WEIGHT: 330 LBS JP IF ITEM DOES NOT WORK WE HONOR OUR 30 DAY RETURN POLICY. ( UNLESS LISTED OTHERWISE) COMPANY INFORMATION: Walton"s Industrial Supply Inc. Halls, TN 38040 **Office Hours: Mon-Fri 8am-4pm CST** IF YOUR ARRANGING YOUR OWN SHIPPING: YOU WILL NEED TO PROVIDE ALL PAPERWORK NEEDED FOR THE SHIPMENT INTERNATIONAL BUYER-PLEASE NOTE: BUYER IS RESPONSIBLE FOR ARRANGING ALL INTERNATIONAL FREIGHT. INCLUDING ALL PAPERWORK AND INSURANCES FOR ITEMS PURCHASED IMPORT DUTIES, TAXES AND CHARGES ARE NOT INCLUDED IN THE ITEM PRICE OR SHIPPING COST. THESE CHARGES ARE THE BUYERS RESPONSIBILITY. PLEASE CHECK WITH YOUR COUNTRY"S CUSTOMS OFFICE TO DETERMINE WHAT THE ADDITIONAL COSTS WILL BE PRIOR TO BIDDING OR BUYING.

The Stanley TP08 Heavy Duty Trash Pump has been designed to get the most from an HTMA Type II hydraulic circuit. Using only 9 GPM/34 lpm of hydraulic flow, the TP08 will pump over 800 gpm/3,028 lpm at a 10 ft/2.54 m head. The free-flow impeller and 4 in./ 100 mm inlet and outlet combine to make the TP08 one of the most efficient pumps in the business.

Weighing only 59 lbs/27 kg and with its convenient handle, the Stanley TP08 Heavy Duty Trash Pump can easily be handled by one operator. The Stanley TP08 Heavy Duty Trash Pump and the Stanley HP1 Compact Power Unit make a powerful, portable team for high volume de-watering and trash pump applications.

The heavy-duty construction of the Stanley TP08 Heavy Duty Trash Pump features a fabricated, all-steel volute and abrasion-resistant cast iron impeller. The volute uses replaceable UHMW polyethylene wear plates to reduce wear and extend pump life. The heavy-duty Stanley HYREVZ™ hydraulic motor is self-lubricating.

Routine maintenance for the Stanley TP08 Heavy Duty Trash Pump is easy. The top cover is attached to the volute with six wing nuts so cleaning and inspection can be accomplished in just a few minutes.

Stanley Hydraulic Tools (hereinafter called “Stanley”), subject to the exceptions contained below, warrants new hydraulic tools for a period of one year

from the date of sale to the first retail purchaser, or for a period of 2 years from the shipping date from Stanley, whichever period expires first, to be free

FREIGHT COSTS: Freight costs to return parts to Stanley, if requested by Stanley for the purpose of evaluating a warranty claim for warranty credit, are

This limited warranty and the obligation of Stanley thereunder is in lieu of all other warranties, expressed or implied including merchantability or fitness

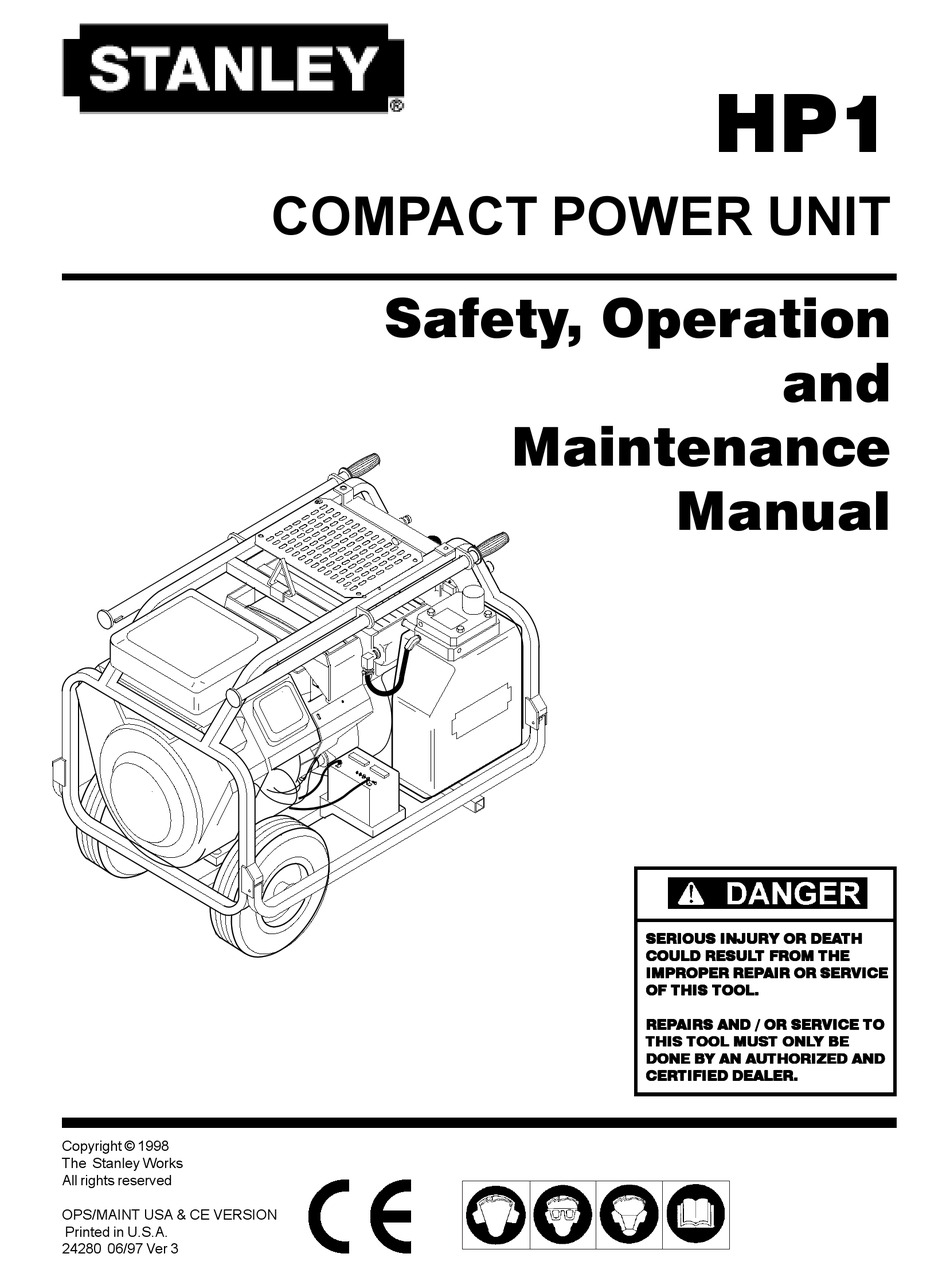

UTHORIZED AND UTHORIZED AND UTHORIZED AND CERTIFIED DEALER CERTIFIED DEALER CERTIFIED DEALER..CERTIFIED DEALER CERTIFIED DEALER Copyright © 1998 The Stanley Works All rights reserved OPS/MAINT USA & CE VERSION Printed in U.S.A. 24280 06/97 Ver 3...

The HP28 (TWIN8) twin circuit hydraulic power unit offers a revolutionary design capable of operating two tools at 8 gpm simultaneously. For the first time running two hydraulic tools at full 8 gpm capacity is a reality, increasing productivity and versatility like never before. Experience how the HP28 will change the way hydraulic tools are used and JOIN THE REVOLUTION! Each of the two circuits is optimized to deliver ideal flows and pressures to both Type 1 and Type 2 hydraulic tools.

- The GTR20 is a small compact hydraulic power unit designed to provide power for hydraulic tools requiring 5 gpm/20 lpm up to 10 gpm/40 lpm. The GTR20 is powered by a choice of Briggs & Stratton or Honda industrial grade engines. Folding and locking handle, electric start, computer throttle control, pressurized engine lubrication, and large pneumatic tires are standard equipment.

The Stanley Diamond Chain Saw brings new technology to the concrete cutting industry. Using segments impregnated with diamond and laser welded to the saw’s chain, you can cut concrete (including wire or rebar reinforced), brick,concrete block, masonry or stone.

Stanley Hydraulic Tools Chain Saw for cutting ductile iron pipe and more.Stanley’s utility chain saw is a revolutionary cutting method designed to change the way the job gets done. From ductile iron to plastic pipe, this chain saw will get you in and out of the job faster, easier and safer than other methods.

Lightweight and powerful, the Stanley CO25 Cutoff Saw is ideal for cutting concrete, masonry, pipe, structural steel beams and guardrail. The CO25 multi-hand position cast aluminum handle with interlocking safety trigger provides ergonomic gripat a variety of tool angles for reduced operator fatigue.

12% weight reduction over the HG80 providing the industry’s lightest hydraulic hand held grinders. High performance hydraulic motors providing industry leading grinding speed and power. Redesigned handle eliminates the hydraulic oil from the handle, improves tool balance and user comfort...

The Stanley PD45 Post Driver is a heavy duty tool for driving a wide range of posts including #2, #3, & #4 lb/ft "U" channel, #3 & #4 Strong Back "U" channel, #1 delineator, up to 2-5/8 inch round, or up to 2-1/2 inch square posts. Ideal for for DOT applications to drive break way post to within 4 inches above ground level. Features: 7-9 gpm (26-34 lpm) operating flow., Lifting eye. ON/OFF trigger next to guide handle (model dependent). Hose whips. Nitrogen charged accumulator. Guide handles

The Stanley EA08 Earth Auger is used for a wide variety of earth boring application. The EA08 can be operated with two people or by one person using the torque tube. Features: Output torque 250 ft. lb. / 339 Nm, Reversible, Torque tube for one-man operation.Dead-man type ON/OFF control.

Stanley’s CH18 Chipping Hammer,with “D” handle, is a light but powerful alternative to the air powered tools. Both the handle and tool holder end are shock and heat insulated for operator comfort.

The CH15 Chipping Hammeris a light but powerful alternative to air powered tools. Designed for medium to heavy-duty jobs, the CH15’s high power-to-weight ratio makes it the ideal tool for light concrete breaking jobs and for chipping concrete or steel. The compact size and balance of the tool makes it easy to use in confined, hard-to-reach locations.

Digger DR19- is compact and easy to handle in a trench. Its high blow frequency and power makes short work of heavy clay and other material such as light shale.

IW16 Impact Wrench- Medium to heavy duty wrench ideal for nut and bolt driving, anchor bolts and drilling applications. Designed to run from a wide range of hydraulic circuits, the IW16 has adjustable impact intensity making it ideal for a wide range of heavy duty driving. The large “D” handle and feathering trigger is convenient and gives the operator complete control of the wrench. Just set the direction of rotation to either tighten or loosen a fastener, squeeze the trigger for up to 2500 ft lbs (3400 Nm) of torque. Standard reversing valve provides instant change over from forward to reverse.

is an extreme duty hydraulic powered chain saw for cutting all types of wood structures underwater - including bridge pilings, pier and dock timbers. It‘s robust design and high torque gear motor provides divers instant chain speed to cut through the toughest timbers with ease. The power to weight ratio is significantly higher than any other wood cutting chain saw and is available with bar lengths up to 42" (107 cm). Painted hi‑visibility yellow.

The CH15 underwater chipping hammer is compact chipper for light scaling in underwater application. The floating trigger design requires minimal pressure across any part of its surface to engage the tool, allowing for simple operation. Operates in any position High power to weight ratio Lightweight at 16 lbs. Rubber coating on tool body for diver comfort

UNDERWATER IMPACT WENCHES - IW12 / IW16 / IW24-Stanley Hydraulic Impact Wrenches for underwater use are designed for the toughestunderwater bolting applications. The rugged design incorporates an integral motor and heavy-duty mechanism for the rigors of track maintenance use. The power-to-weight ratio of these products is un-matched by any impact wrench on the market in their class. See PDF Spec Sheets below:

-The PHM700 hand-operated hydraulic pump develops a max. pressure force of 700 bar, and thanks to its 2 speeds hydraulic system, allows a quick pressure supply. Connection to all types of 700 bar hydraulic heads (see data sheets for connecting accessories). Automatic release when force of 700 Bar is reached. Ram retract mechanism actuated by release trigger. Hook

-Hydraulic foot operated double speed pump, developping a maximum pressure of 700 Bar. Connection to all types of 700 Bar hydraulic heads. (See data sheets for connecting accessories). This new foot-operated pump is more compact for a better ergonomics. Its design, standardized to the hand pump is sturdier. Automatic release when force of 700 Bar is reached. Ram retract mechanism actuated by release trigger. Hook to hold the pump in stop position.

Stanley hydraulic pumps exemplify the pure power of hydraulic tools. Our SM50 pump discharges an impressive 500 gallons per minute (1890 lpm) while it"s small size allows it to fit in a box 11 inches deep by 10 inches square (26.7 cm x 25.4 cm).

adjustable impact intensity. The IW12 can handle a wide variety of applications. The rugged Stanley impact wrench mechanism is simple to maintain and has many features to give it proven reliability. Torque transmission to the operator is minimal with the swing hammer design. The larger feathering trigger is convenient to use and gives the operator complete control of the wrench. The standard reversing valve provides instant reverse. For operator comfort the IW12 handles coated with a heat insulating, shock absorbing material.

s a heavy duty wrench ideal for nut and bolt driving, screw anchor and other heavy impact applications. Designed to run from a wide range of hydraulic circuits, the IW24 has adjustable impact intensity making it ideal for a wide range of heavy duty driving.

Trash Pump is a light-weight, heavy duty pump capable of pumping high volumes of water, sand, slurries, gravel, sludge and solids up to 3 in/75 mm in diameter. The TP08 is a submersible, self priming and can run dry without damage to the motor, bearings or impeller.

Heavy-duty Cutting Power is available right from your tree trimming vehicle or bucket truck with the Stanley Hydraulic Tools PR41 Pruner. Lightweight Head Design provides ease of handling for increased operator comfort. Full Power on both opening and closing cycles of the PR41 cutting blade make the tool fast and safe to operate.

The Stanley SK58 Sinker Drillis designed for heavy-duty utility construction, blast hole drilling,leak detection for gas utilities, dowel drilling.The sinker drill features an easy start feathering trigger and a direct drive rotation motor for reliable service and fast and easy starting. A model is available for underwater use. Models are available with air or water flushing to clear holes of debris.

can drive wood augers into the hardest salt cured or creosote-treated poles. Delivering impact torque of up to 500 ft. lbs. The ID07 has the work-site proven swing-hammer mechanism that will deliver high performance and long-term service. The integral Stanley HyrevzTM gear motor is manufactured to exacting standards to deliver maximum efficiency. The built-in reverse-check valve prevents operating the wrench when reverse- plumbed to the hydraulic system. Preventing reverse operation ensures a long operating life for the hydraulic seals. Setting the tool for open- or closed-center operation is as simpleas opening or closing a valve.

The Stanley HP Hydraulic Power Unit is a small compact hydraulic power unit designed to provide power for underwater hydraulic tools requiring a single 8 gpm up to 12 gpm. The Stanley HP12B Hydraulic Power Unit is powered by a 23 HP Briggs & Stratton industrial grade engine. Folding and locking handle, electric start, auto throttle, pressurized engine lubrication, and large pneumatic tires are standard equipment.
