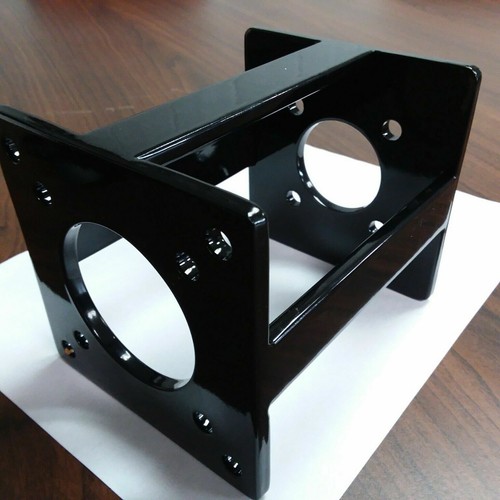

The pump-side of the bracket features four holes to match the four-bolt mounting flange common on many 11 and 13 GPM hydraulic pumps. The bolt mounting holes are threaded. Use 5/16"-18 bolts.

The engine-side mounting hole pattern fits many horizontal and vertical-shaft engines that are 212cc (6.5hp) and smaller such as the Honda GC190 or GX-series engines. The hole pattern is also found on similar engines such as the Predator series from Harbor Freight, Loncin, Raven, and Lifan. It may also fit various engines from Kohler and Briggs & Stratton.

This bracket is not guaranteed to fit all engines. Please check the dimensions of the mounting holes on your engine and confirm that this bracket is compatible prior to purchasing.

Keep engine and pump shafts properly aligned with this hydraulic pump mounting bracket from RuggedMade.The bracket includes a removable safety cover to keep debris and fingers away from the spinning coupling.

The pump side of the bracket features four holes to match the four-bolt mounting flange common on many 11, 13, and 16 GPM hydraulic pumps. The bolt mounting holes are threaded. Use M8-1.25 x 20mm bolts.

This bracket fits many horizontal and vertical-shaft engines in the 240cc (8hp) to 420cc (15hp) range. The mounting pattern and dimensions are based on typical Honda GX-series engines. This pattern can also be found on most similar such as the Predator series from Harbor Freight, Loncin, Raven, and Lifan. It may also fit various engines from Kohler and Briggs & Stratton.

This bracket is not guaranteed to fit all engines. Please check the dimensions of the mounting holes on your engine and confirm that this bracket is compatible prior to purchasing.

Northern Hydraulics offers a full line of 2-stage hydraulic pumps for your log splitters, compactors, and press-type applications. Haldex/Concentric pumps have a cast iron gear housing and are available in flows ranging from 9 GPM to 28 GPM. These 2-stage hydraulic pumps are designed for heavy-duty use and long cycle times. The Haldex brand assures you are getting top-quality, high-performing products. Northern Hydraulics replacement pumps also have a cast iron gear housing and are available in flows ranging from 5 GPM to 28 GPM. These log splitter hydraulic pumps are ideal for the recreational wood splitter user, as they are still a quality product, but offered at a much lower price point.

· 16GPM Powerful Pump: This hydraulic pump comes with a 25 GPM auto control detent valve. It features a 3600 RPM max rotating speed, 2250PSI valve setting along with a 16GPM high flow rate. It will bring powerful performance to your log splitter. Get ready to start cutting logs in half, in half the time.

· 1" Inlet & 1/2" NPT Outlet: Our log splitter pump is equipped with a standard 1/2" NPT outlet port ( for Minimum 8 HP engine) and 1" barb on the inlet port. It also has a 1/2" diameter shaft with a 3/8" key, allowing it to rotate clockwise. Quality you can trust, for unmatched results you can see.

· Sturdy ＆ Durable: The high-strength extrusion aluminum casing enables the pump to resist impact, rust, and high pressure. This sturdy structure can prevent leaks and ensure a prolonged service life.

· Simple Installation: This pump stands out with a 4-hole bolt-on design, and it allows for a direct and quick installation. Install the pump effortlessly, making your log splitting more effective and robust.

· Doesn"t Just Split Logs: The 2-stage hydraulic pump is excellent for log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.

Here at Beiler Hydraulics we stock a full range of log splitter pumps. Log splitter pumps automatically switch from high-speed/low-pressure to high-pressure/low-speed to meet the load requirements. The low-pressure side is preset at 400-900 psi, and the high-pressure side has a max of 3,000 psi. These pumps are ideal for log splitters, presses, or any application where you need to automatically switch from high speed at low pressure to high pressure at low speed. Beiler Hydraulics also stocks many other Log Splitter Parts including valves, cylinders, hose assemblies, and fittings. With our multi-million dollar inventory we are more than equipped to provide a complete solution for all your hydraulic needs. Our sales team has the knowledge and expertise to make sure you have exactly what you need. At Beiler Hydraulics we believe in offering quality products at competitive prices and providing the customer service you need before, during, and after the sale. Please Contact Us today with any questions or to place an order.

Replacement Log Splitter Pump Kit: This replacement log splitter hydraulic pump kit consists of high-quality parts with high strength and hardness, which is capable of good wear resistance, durable in use and is replaceable and compatible with OEMs like Speeco, Huskee, and Champion, etc.

Powerful Hydraulic Pump: This powerful pump is a 2-stage 16GPM hydraulic pump offer you the fastest possible cycle times, which ensures a fast start and long using period for each time. It dramatically reduces the labor intensity, improves work efficiency.

Excellent Performance: Equipped with other hydraulic tools like jaw coupler and pump bracket, it can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other works with a hydraulic log splitter.

Multiple Model Combinations: As this log splitter pump kit is designed for meeting the replacement of a variety brand, the parts of this kit have a standard specification that is suited for your multiple combinations for your demands.

Wide Application: Used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, scissor lift, dump trailer, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.

LOG SPLITTER Engine / Hydraulic Pump Mounting Bracket. ThisEngine/ Pump Mount is designed to mount multiple engines ( SeeENGINE table Below ) to the standardUSA 4F17 (SAE AA), 4 bolt mount Log Splitter Hydraulic Pump with a 1.5" long shaft. (11 GPM, 13 GPM, and 16 GPM ) ( SeePUMP table below. ). LOG SPLITTER Engine / Hydraulic Pump Mounting Bracket. This sale is for THE BRACKET ONLY . Condition is New, powder coated black. This Engine/ Pump Mount is designed to mount multiple engines ( See ENGINE table Below ) to the standard USA 4F17 (SAE AA) , 4 bolt mount Log Splitter Hydraulic Pump with a 1.5" long shaft. ( 11 GPM, 13 GPM, and 16 GPM ) ( See PUMP table below. ) OR any other pump with a USA 4F17 mount. ( Hydraulic Press, Hydraulic Winch, Hydraulic Lift, etc. ) This mount comes with 4 bolts and lock washers to mount to the engine. ( Bolts are 5/16-24 x .750" long. FINE THREAD . ) Use LOVEJOY coupling halves and insert suggested below to couple ENGINE TO PUMP. ENGINE SHAFT LENGTH BOLT CIRCLE Predator 8.5 3.48" 3.62 / 5.00" Ø Honda GX270 3.48" 5.00 / 6.50" Ø Kohler CH395 3.48" 5.00 / 6.50" Ø Predator 13 3.48" 3.62 / 5.00" Ø Briggs & Stratton 1450 3.48" 3.62 / 5.00" Ø PUMP MANUFACTURER MODEL SUPPLIER GPM DYNAMIC FLUID COMP GP-CBN-110 SURPLUS CENTER 11 XXX800-988-1276 GP-CBN-130 SURPLUS CENTER 13 GP-CBN-160 XXX800-488-3407 16 CONCENTRIC 1300356 NORTHERN TOOL 11 Formally Haylex Barnes 1300486 NORTHERN TOOL 13 XXX815-398-4400 1300487 XXX800-838-0516 16 CHIEF HYDRAULICS NA BAILEY HYDRAULICS 11 NA BAILEY HYDRAULICS 13 NA XXX800-800-1810 16 GRH 68296 NORTHERN TOOL 11 XXX800-838-0516 13 MTE HYDRAULICS S21202-5292 SURPLUS CENTER 11 XXX815-397-4701 S21404-5184 SURPLUS CENTER 13 S21707-5185 XXX800-488-3407 16 PUMP SPECIFICATIONS: Shaft Diameter: .500" Shaft Length: 1.500" Pilot Diameter: 1.78" Mounting Bolt Circle: 2.83" Bolt Hole Diameter: .340" Bolts: 5/16-18 x 1.25" LOVEJOY COUPLING PN Series 095 1.000" BORE 11091 Series 095 1/2" BORE 26088 Series 095 INSERT 11070 ( Purchase 1 of EACH from SURPLUS CENTER )
