KLOZURE® Mechanical Seals are engineered to meet the demands of challenging sealing applications. Through the innovative use of materials, configurations, and custom designs for pumps, mixers, and agitators, KLOZURE® Mechanical Seals can handle abrasive, viscous, or adhesive media. KLOZURE®’s high-performance seals minimize equipment downtime, environmental leakage, and lost product.

To improve pump and mixer time between overhauls and reduce the total cost of ownership of specialized equipment, utilize the engineering and materials expertise of the KLOZURE® Mechanical Seal Family. Ideal for Food, Pharmaceutical, Pulp and Paper, Asphalt, and Chemical Production, the KLOZURE® Mechanical Seal portfolio is infinitely customizable.

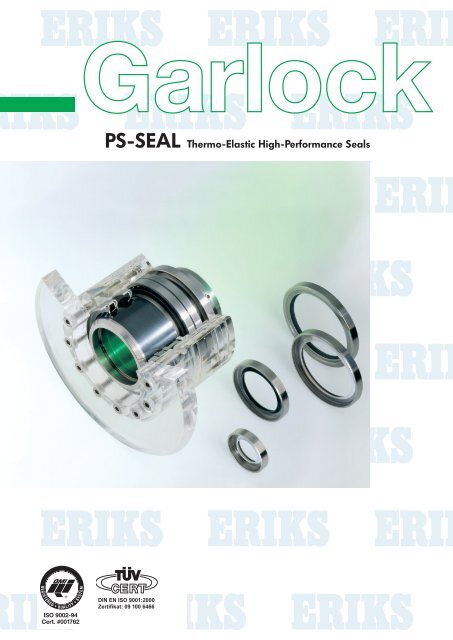

KLOZURE® Mechanical Seals with P/S Technology utilize flexible GYLON elements for a non-clogging design perfect for abrasive, viscous, or adhesive media, as well as offering high run-out capable solutions.

Garlock is proud to offer technical training from our engineering experts throughout the year. From our multi-session Garlock Fluid Sealing Academy series to our Garlock Technical Insight sessions, we make sure you have the knowledge you need to select, install, and troubleshoot your Garlock products.

The Style 85 seal is similar to the P/S®-I seal in that it is a single or multi-lip seal in a single casing. Because each seal is machined, it can be manufactured in various sizes and configurations without special tooling requirements. Style 85 is o-ring mounted, so it can be installed and removed without damage.

​Garlock, an Enpro company, is a global manufacturer of high-performance sealing solutions and other innovative products with a relentless focus on safety, environmental protection, durability, and productivity. With a history dating back over 130 years, Garlock today maintains a global presence of design, manufacturing and distribution facilities satisfying customers’ needs with responsiveness and ingenuity.

As clean power technologies become more mainstream, offshore and river-based energy generating systems are beginning to come into their own in terms of proven performance. While the sea and rivers are a widely available resource, they do come with a unique set of equipment protection and sealing challenges. The sealing solutions should be robust, safe, and effective, and able to handle the difficulties of the environment, lifecycle requirements, and inaccessibility for maintenance.

Effective equipment sealing is necessary for successful deployment of tidal turbines, such as the turbines shown in Figure 1. Within the turbine, the gearbox lubrication must be retained while moisture and contaminants must be excluded. Traditionally, such rotational sealing applications would utilize lip seals at the gearbox boundaries, which are a reasonable solution in many pieces of equipment.

However, oil seals must contact the rotating shaft to provide an effective seal, and even when operated in a well-lubricated environment, the lip seal will have a finite life. Oil seals require eventual replacement, and when used in a submerged marine environment, an oil seal replacement could come with a hefty price tag.

Bearing isolator technology offers a non-contact seal that will provide both ingress and egress protection for the life of the equipment, with zero wear to the seal or the shaft. Bearing isolators feature a labyrinth path to exclude dust and moisture, providing Ingress Protection (IP), a rating system used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This bearing isolator design also eliminates a contacting wear surface on the rotating shaft. The Garlock Guardian bearing isolator is an example of this technology, and includes three components: the stator, rotor, and unitizing element.

2. Bearing isolator technology offers a non-contact seal that will provide both ingress and egress protection for the life of the equipment, with zero wear to the seal or the shaft. The Garlock Guardian bearing isolator shown here is an example of this technology. It includes three components: the stator, rotor, and unitizing element. Courtesy: Garlock Sealing Technologies

The rotor uses an incorporated O-ring to create the static seal on the shaft. The rotor and O-ring both turn with the shaft, removing any relative movement between them and, most importantly, eliminating shaft wear. The rotor and the stator are separated by a unitizing element, which is unique to this type of bearing isolator. The unitizing element is made from polytetrafluoroethylene (PTFE), known for its low friction and chemical inertness. The unitizing element maintains the spacing between the rotor and stator during installation, and prevents metal-to-metal contact between the two parts during operation (Figure 2).

Keeping the rotor and stator from interacting with each other eliminates the potential for the seal to generate contamination through internal metal-to-metal contact. The stator is retained within the equipment bore by patented Cam-Lock O-ring grooves, which allow for installation by hand while providing excellent seal retention without damaging or galling the mating equipment.

This non-contact seal technology allows the bearing isolator to have a truly infinite life. There are no wear components within the seal design, removing the need for costly routine maintenance.

3. The fluid level within the gearbox must be maintained below the bottom of the shaft in a traditional bearing isolator design. In some gearbox designs, the oil level or behavior of the oil during running conditions can result in high splash or a flooded seal condition. A bearing isolator with an advanced design can solve that problem. Courtesy: Garlock Sealing Technologies

When using a traditional bearing isolator design, the fluid level within the gearbox must be maintained below the bottom of the shaft as noted in Figure 3. Within some gearbox designs the oil level or behavior of the oil under running conditions can result in high splash or even a flooded seal condition. In such applications, an advanced design of bearing isolator can meet the need. The Flood-Gard bearing isolator is an example of such technology.

4. The Garlock Flood-Gard bearing isolator is an example of an advanced design. It is suitable for use in situations where the internal lubrication level in the gearbox is higher than the bottom of the shaft or when extreme splash conditions exist.Courtesy: Garlock Sealing Technologies

Designed for applications and gearboxes where the internal lubrication level is higher than the bottom of the shaft, or where extreme splash conditions exist, the Flood-Gard shown in Figure 4 combines the benefits of a bearing isolator with a traditional oil seal. This model provides the exceptional ingress protection of a bearing isolator while also creating an ideal running surface for the internal oil seal. The Flood-Gard is available in standard sizes from 1- to 6-inch shaft diameters. It provides consistent, reliable sealing for even the most challenging of applications.

Due to the unique location and operation of tidal turbines, the external shaft seal must be able to withstand several application challenges. Pressure differential, radial and angular misalignment, as well as corrosion and contamination all need to be managed in this underwater environment.

5. The Syntron Double Face mechanical seal is a cartridge-style seal with two opposing carbon and bronze sealing faces. It has proven to be a good shaft seal solution for seawater pressure boundaries. Courtesy: Garlock Sealing Technologies

Initially developed for usage with shipboard propeller shafts, the Syntron Double Face mechanical seal has proven to be a solid mechanical shaft seal solution for seawater pressure boundaries. The Syntron mechanical seal is a cartridge-style seal that contains two opposing carbon and bronze sealing faces (Figure 5). These faces are loaded with an internally captured coil spring (or springs), allowing for continued sealing performance as the faces wear over time during normal operation.

The rotary faces and the spring(s) are affixed to the shaft with two drive rings. The drive rings create the static seal at the shaft outer diameter and translate the rotational force to the rotary seal faces. Similar to bearing isolators, no wear is imparted to the shaft. The stationary faces are captured within the seal housing by two molded rubber seats, creating the static seal on the stationary side.

In use, the seal housing is filled with a lubricating oil and capped. When submerged, the pressure across the faces equalizes; therefore, no external contaminates are driven across the sealing faces. This allows for extremely long life with essentially zero leakage.

The seal housing is manufactured from machined bronze, eliminating the corrosion concern that is inherent in operating in marine environments. The combination of materials, construction, and operating parameters make the Syntron mechanical seal a uniquely well-suited solution for the challenging environment associated with equipment operating offshore. As an additional benefit, the Syntron is a cartridge-style seal, and completely rebuildable. This allows for easy repair and replacement as needed, while minimizing the total cost of ownership.

The Syntron mechanical seal is rated to 150 psi differential pressure, and up to 400F operating temperature. While the default materials are bronze, carbon, and nitrile rubber, the seals can be manufactured with nearly any elastomer and housing material.

Neoprene, silicone, and FKM (fluorelastomer) are common elastomer offerings, while 316 stainless steel and Hastelloy are available choices for the seal housing and internal components. In addition, the seal can be configured to act as a fluid coupling. Flow through the housing is communicated through vented spring guides to the shaft diameter. When paired with a hollow shaft, this allows cooling fluid to be transmitted through the shaft core to bearings located further down the shaft. This is a common solution used in annealing fan designs.

The necessity and the growth of clean energy technologies continues to present unique equipment protection and sealing challenges. By leveraging both new sealing technology and mature proven solutions, matching them with carefully chosen materials and benefits, successful and cost-effective solutions can be configured.

When evaluating these challenging environments, the life, performance, and maintenance cost must all be accounted for. Often, the total cost of ownership can be proven to be lowest when using a more initially expensive sealing solution like a bearing isolator in favor of an oil seal. ■

—Dan Naugle is an engineering manager with Garlock Sealing Technologies, and Joshua Cavinee is an application and commercial solutions engineer for the Klozure Dynamic Sealing Group at Garlock Sealing Technologies.

Garlock Sealing Technologies, an Enpro Company that, produces sealing products. Garlock has a global presence, with 1,887 employees, at 14 facilities, in twelve countries.

In the later nineteenth century, Olin J. Garlock devised a better way to seal piston rods in industrial steam engines. The invention led to the creation of Garlock Sealing Technologies. Founded in 1887, in Palmyra, New York. For a detailed history of Garlock from its founding in 1887 until the takeover by Colt Industries in 1976 see Garlock - The First Eighty-Eight Years 1887-1975 written by Robert M. Waples and son. (Waples was President then Chairman 1955-1960)

Garlock provides fluid sealing solutions for the following industries: petrochemical, chemical processing, and refining, pulp and paper, power generation, electronics, steel mills, food and pharmaceutical, mining and original equipment manufacturers.

Some of Garlock"s sealing products include KLOZURE oil seals, bearing isolators and mechanical seals; GYLON gasketing, CEFIL"AIR pneumatic seals and HELICOFLEX metal seals; sheet rubber products, valve and pump packing, hydraulic seals, molded rubber products, expansion joints, butterfly valves, LubriKup oil seals, pump diaphragms and THERMa-PUR high temperature material. Some of these products have US and International patent protection, including Australia.

Nippon Valqua - A strategic alliance, with Garlock enjoying exclusive sales rights for Nippon Valqua products in the Americas and Nippon Valqua having exclusive sales rights for Garlock products in Japan, South Korea and Taiwan.

In the 1970s, Garlock infringed W. L. Gore and Associates patents and was sued by Gore in the Federal District Court of Ohio. After a "bitterly contested case" that "involved over two years of discovery, five weeks of trial, the testimony of 35 witnesses (19 live, 16 by deposition), and over 300 exhibits," (quoting the Federal Circuit) the District Court held Gore"s patents to be invalid. On appeal, however, the Federal Circuit disagreed in the famous case of Gore v. Garlock, reversing the lower court"s decision on the ground, inter alia, that Cropper forfeited any superior claim to the invention by virtue of having concealed the process for making ePTFE from the public, thereby establishing Gore as the legal inventor.

Garlock has been subject to multiple lawsuits regarding asbestos, which were components of earlier products. Now, Garlock produces only asbestos free products. Some of the notable suits include:

Donald Reynolds, who worked at the Ashland Oil refinery in Tonawanda for more than 35 years, was diagnosed with malignant mesothelioma, an incurable lung disease, in 2003. Reynolds and his wife filed this personal injury action against 20 defendants, including Garlock Sealing Technologies LLC and Niagara Insulations, Inc., alleging that his disease was the result of workplace exposure to asbestos. By the time the trial was held in 2004, the only remaining defendants were Garlock, which provided the refinery with asbestos-containing pump gaskets and packing, and Niagara, which provided asbestos containing pipe insulation.

The global mechanical seals market size stood at USD 3.20 billion in 2018 and is projected to reach USD 4.77 billion by 2026, exhibiting a CAGR of 5.2% during the forecast period.

The key utility of a mechanical seal is to prevent leakage of fluids or gases through the clearance between the shaft and the container. Mechanical seals consist of a set of 2 faces separated by carbon rings. The first face is in contact with the rotating equipment whereas the second face is stationary. Moreover, the main part of the seal is the seal ring (first face) on which the mechanical force is acting, generated by springs, bellows, or fluids in the equipment. In recent years, mechanical seals are playing an important role in varied industrial applications, enabling efficient operations. Mechanical seals are made up of several flexible materials such as Polytetrafluoroethylene (PTFE), Polyurethane (AU, EU), industrial rubber, Fluorosilicone (FVMQ), and many more.

The mechanical seal market has depicted significant growth in the recent span of years and is likely to grow in the forecasted period. Rising industrial development in emerging economies is expected to initiate additional development policies and investments. Major types of mechanical seals available in the market include cartridge seals, balanced and unbalanced seals, pusher and non-pusher, and conventional seals that are influencing the mechanical sealing market growth in developing countries.

Growth in machine tool industry is impelling the overall market share, owing to the usage of power machines in centrifugal pumps and compressors for sealing and separating the fluid in the rotating shafts. Hence, the increasing market demand for mechanical seals in various industries is anticipated to drive the market growth in the near future. Furthermore, the highest market growth is projected to be witnessed in Asia-Pacific, followed by North America.

According to the United Nations Conference on Trade and Development (UNCTAD), the global foreign direct investment (FDI) will grow vigorously in 2018. This implies that there will be strong growth in the manufacturing sector in the coming decade. Moreover, many countries are now adopting investment policies that will boost the manufacturing sector and drive the mechanical seals market trends. For instance, in 2017, several countries and economies adopted investment policy measures across the globe, of which 84% of countries were favorable to investors. This will allow investors to invest their funds in various industries, with primary focus on energy, transportation, and manufacturing.

Therefore, the demand for manufacturing is increasing with the changes in investment policies of multiple developed and developing countries. This growth will increase the adoption of machine tools and industrial equipment for the manufacturing process, which will directly boost the mechanical seals market growth, globally.

The global mechanical seals market is segmented by type, which is further segmented into pusher and non-pusher, conventional seals, balanced and unbalanced seals, and cartridge seals.

Continuous adoption of advanced sealing material in several industries is expected to grow the cartridge seals segment in the forecast period. The cartridge seals segment is estimated to have exponential market opportunities as they are designed as universal shaft seals for the seal chamber of pumps, containers, or pipelines.

The pusher and non-pusher seals segment depicts substantial growth, owing to the increasing usage of small and large diameter ring shaft in the light end services to handle high temperatures. The balanced and unbalanced mechanical seals segment is anticipated to grow moderately, owing to the rise in the industry sector worldwide. Balanced seals are preferred for most of the industrial applications as they generate less heat at the surface of the machine, enabling longer seal life and efficient sealing method.

Comparatively, the conventional seal segment is projected to witness progressive growth owing to the requirement of heat exchanger mating ring advances offered by these seals. The other segment consists of bellows seals and is likely to represent steady growth due to limited demand in the mechanical sealing market.
