f800 f1000 f1300 f1600 mud pump valve factory

The mud pump valve and seat are made of forged alloy steel with deep carburized wear surface. We offer a full range of valves and seats which include full open valve and seat, 3 web / 4 web design valve and seat.

The mud pump valve comes with full open seat features four guide wings. They are either inertia welded to the valve body or uniformly forged with valve body. The urethane insert can be easily snapped on.

The 3 web / 4 web seat comes with stem guided valve. The urethane insert is tightened by steel plate and nut. It can be easily replaced with minimum down time. They offer long lasting service life under harsh service conditions.

1). Technical Support and Production Ability: Although we are one relatively new company, but we have the most professional engineers with tens of years experience in mud pump. And we have hundreds of highly skilled workers working on the pump parts and pump assembling with numerous advanced machines. Our production ability has been siteaudited by supervising inspectorate like France BV (Bureau Veritas), DNV(Det Norske Veritas) and SGS-CSTC(Standards Technical Services Co., Ltd.)

2). Quality Assurance: Ten professional inspectors performstrict quality inspection from the initial forgings, castings, other rawmaterials, each finished machined parts until the final assembling of the pump. Each part assembled on the pump will be well tested and highly qualified. Andfor each pump finished, it will be running tested in our test center for atleast 4 hours. Quality certificate, Inspection report and testing report will beattached when pump is delivered. 12 Months quality guarantee will be offered for each pump.

3). Competitive Price: We are one of the top pump manufacturers in China. We have the greatest advantages in price. We can not offer you the lowest price in China, but most competitive price but with very good quality.

4). Quick Delivery: Usually we will keep some pump model in stock so that we can make fast delivery for clients with urgent need. For pump we do not have in stock, we can also deliver with 40 days.

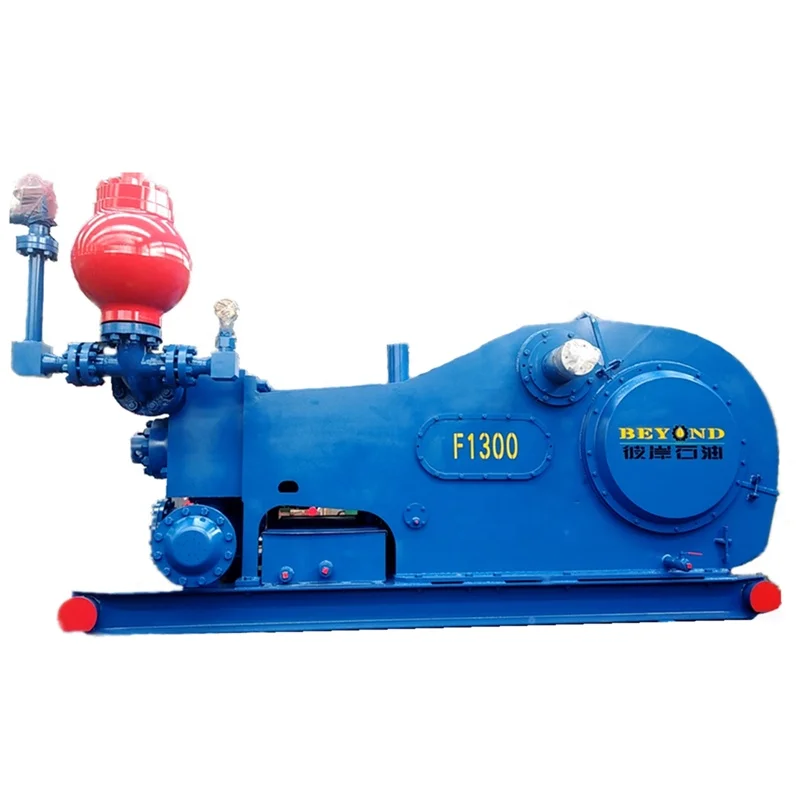

F series mud pumps are manufactured by SCOTON, authorized by BOMCO. The product is in compliance with API standard technical specification and quality requirements of the Company.

The stroke length of F series mud pumps is greater. They can be used at small number of strokes per minute to prolong the service life of fluid end module expendables.

It is small in size and reliable in operation. The suction valves and the discharge valves are interchangeable. And the main components of three cylinders and the fluid end modules are interchangeable.

The fluid end modules of F series mud pumps have greatly improved the performance of triplex mud pumps. In addition, the unique design makes it easy to inspect quickly and to repair.

1.Designed and manufactured by Rong Li Plant, F-2200 mud pumps can meet the requirements of the same manufacturing technique and quality level as those of F series mud pumps of EMSCO COMPANY.

7.Cylinders, liners, pistons, valve and seats, valve springs, seal rings, valve covers and cylinder covers at the fluid end of F-2200 mud pumps are all interchangeable.

Mud pump valve body and mud pump valve seat were produced according to API Specs as well as ISO9001 quality system by our company, were used high quality alloy steel 40CrNiMo、20CrMnTi, processed with overall forging and carburizing, the surface hardness HRC≥60; They were produced under accurate calculation and numerical control lathe, which makes dimensions of valve body and seat perfectly match each other, also were used many times by land and offshore platforms. The service life of valve body and seat are 4-5 times more than ordinary ones, which improves the working efficiency and decrease the cost and working strength.

Mud pump valve assy include valve body, valve seat, valve insert (valve rubber ). As to valve insert (valve rubber) material, we can provide Nitrile rubber (NBR) valve insert, polyurethane (PU)valve insert, compound polyurethane and HNBR.
