mud pump discharge module quotation

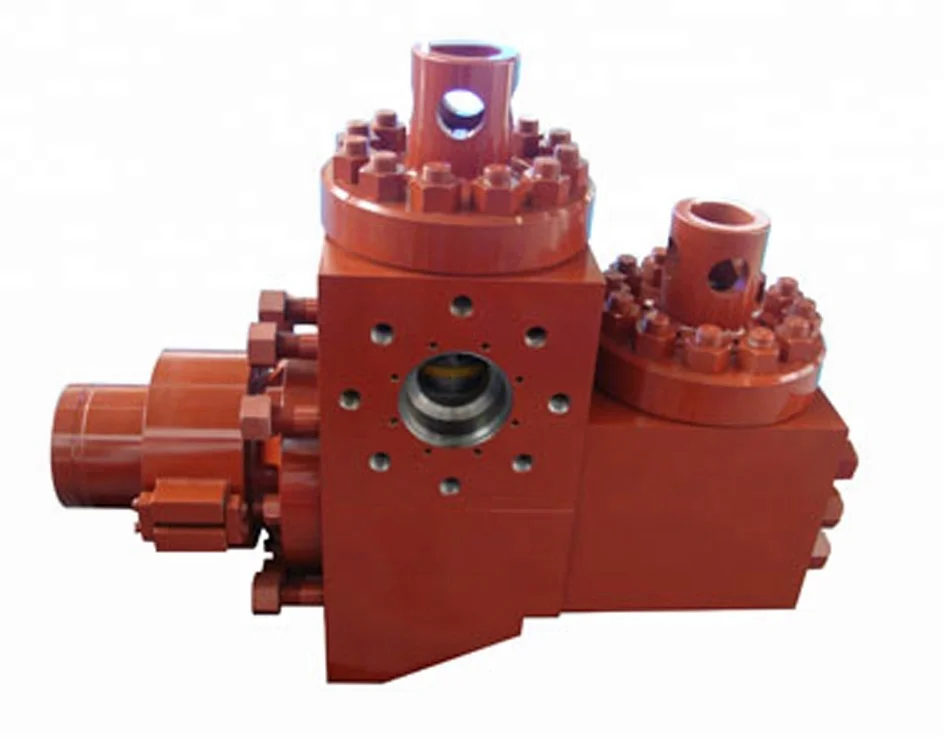

For maximum performance and durability, our modules are made from individually forged, heat-treated alloy steel and feature an API 7 valve assembly for improved flow. Our L-shaped design features bore-seal technology for improved seal performance in higher pressures and is compatible with numerous “F-Series” drilling pumps including Honghua®, Bomco® Rongsheng®, Workforce® and other similar designs.

Explore a wide variety of mud pump modules on Alibaba.com and enjoy exquisite deals. The machines help maintain drilling mud circulation throughout the project. There are many models and brands available, each with outstanding value. These mud pump modules are efficient, durable, and completely waterproof. They are designed to lift water and mud with efficiency without using much energy or taking a lot of space.

The primary advantage of these mud pump modules is that they can raise water from greater depths. With the fast-changing technology, purchase machines that come with the best technology for optimum results. They should be well adapted to the overall configuration of the installation to perform various operations. Hence, quality products are needed for more efficiency and enjoyment of the machines" full life expectancy.

Alibaba.com offers a wide selection of products with innovative features. The products are designed for a wide range of flow rates that differ by brand. They provide cost-effective options catering to different consumer needs. When choosing the right mud pump modules for the drilling project, consider factors such as size, shape, and machine cost. More powerful tools are needed when dealing with large projects such as agriculture or irrigation.

Alibaba.com provides a wide range of mud pump modules to suit different tastes and budgets. The site has a large assortment of products from major suppliers on the market. The products are made of durable materials to avoid corrosion and premature wear during operations. The range of products and brands on the site assures quality and good value for money.

Mud pumps offer advantages that make mud pumps for drilling rigs the most suitable. The pumps are free of pulsations or suspension mixing due to the low speeds achieved in the flow of liquid in combination with the high levels of pressure that are produced. On a weight to suction capability ration, the mud pumps score high, with the capability for high suction power despite the lesser weight. This makes the mud pumps suitable for operations at remote locations. At Shalepumps we have always developed products that offered value to oil and gas exploration. We take you through the finer details of the role of mud pump fluid end modules in mud pumps.

Circulating drilling fluid – Tasked with circulating the drilling fluid downhole under high pressure, the fluid end modules are vital assemblies in mud pumps for drilling rigs. Our experiences in fluid end mechanics design concepts have helped us at Shalepumps to manufacture the most efficient components and equipment. The fluid end of the mud pump comprises pistons which intake or discharge fluid. Fluid is actually a term for the mud in drilling operations. The pistons alternatively suck in mud through the suction valves and force the mud out through the discharge valves.

Double acting pumps help to move more mud on a single stroke – Unlike a single stroke pump, double acting pumps offer greater mud moving capability on every stroke. The action of sucking in and forcing mud out alternately on a single stroke have actually lent the name double acting pumps. The pumps are generally powered by motors that drive the operations of the pump. The older versions relied on chain drives to drive the pump, while other models used belts or power bands to convert movement.

Mud pump fluid end modules work in absolute unison with the power end to create the reciprocating effect for movement of the drilling fluid as per needs. The size of the borehole and the depth are variables that determine the adjustments in the power end which need to function in seamless efficiency for better output.

NOV 12-P-160 Mud Pump is rated at 1600 input horsepower (1193 kw) at 120 strokes per minute, with a 12-inch (304.8 mm) stroke. Multiple liner sizes allow pressures and volumes to handle circulation requirements in deep drilling applications.

Flexibility: Compact engineering provides higher efficiency in less space. The NOV 12-P-160 Triplex Mud Pump light weight and flexible design make it easily adaptable to a variety of rig configurations. This provides flexibility as drilling requirements and conditions change.

Fluid End Modules: NOV offers a choice of fluid end modules and valve covers for every P Series pump model to select the fluid end module that exactly matches drilling requirements. All pump models can be equipped with either the standard or premium forged, two-piece interchangeable fluid modules

Premium"s high-strength, triple reduction, forged steel triplex fluid end modules are made from 4130 alloy steel, heat treated for a long working life, machined to perfection and packaged for delivery with anti-corrosion protection. The precision-made jewelry, like the exterior finish, reflects the superior quality inside.

The market demand for 7500 psi land drilling has continued to increase and forecasted to remain strong as drillers and operators seek to complete wells more faster and more efficiently. Premium has the expertise and ability to convert existing 5000 psi pump systems with our 7500 psi fluid end upgrade. In addition to replacing the existing valve-over-valve module with our proven L-Shaped design, a typical conversion also includes an upgraded liner retainer system, discharge cross/ strainer, high-pressure discharge manifold and 7500 psi pulsation dampener.

Direct replacement for the current 7500 psi wide body module (same outside dimensions and same external and internal components except valve cover, bore seal and Falcon spring retainer)

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

For the successful execution of your projects, it is important to find an appropriate company with a good track record. We help you in connecting with the top mud pump manufacturers and companies and get the best quotation.

The most widely used mud pumps across the industry are Triplex Reciprocating Pumps. Their application has gained immense popularity with time because they are 30% lighter than duplex reciprocating pumps with relatively less operational cost. Moreover, through these pumps the discharge of mud is smooth and they are capable of moving large volume of mud at higher pressure.

Yes. We help you find the best mud pumps irrespective of your location. We simplify your search by connecting you with top mud pump manufacturers and mud pump companies in your location, according to your budget and business requirement.

The most widely used mud pumps across the industry are Triplex Reciprocating Pumps. Their application has gained immense popularity with time because they are 30% lighter than duplex reciprocating pumps with relatively less operational cost. Moreover, through these pumps the discharge of mud is smooth and they are capable of moving large volume of mud at higher pressure.

The different parts of a mud pump are Housing itself, Liner with packing, Cover plus packing, Piston and piston rod, Suction valve and discharge valve with their seats, Stuffing box (only in double-acting pumps), Gland (only in double-acting pumps), and Pulsation dampener. A mud pump also includes mud pump liner, mud pump piston, modules, hydraulic seat pullers along with other parts.

The wearing parts of a mud pump should be checked frequently for repairing needs or replacement. The wearing parts include pump casing, bearings, impeller, piston, liner, etc. Advanced anti-wear measures should be taken up to enhance the service life of the wearing parts. This can effectively bring down the project costs and improve production efficiency.

A Mud Pump may have many changeable parts, such as liner, piston, extension rod, pulsation dampener, valve, clamp, etc. Lake Petro could provide 100% interchangeable parts of many common brands of pump. We offer Liners with Ceramic (Zirconia and Aluminium oxide) and Steel (Metal and Bi-metal) materials. Piston assembly is the important spare parts and expendable parts of oil drilling mud pumps. Mud pump valve assy include valve body, valve seat, valve insert (valve rubber ). Pulsation Dampener is usually installed on the discharge line to reduce the fluctuation of pressure and displacement of the drilling mud pump. Fluid End Module is an important component of the hydraulic pump end of the mud pump.

Deploying an embedded system with that could be retrofitted onto existing pumps, to monitor and analyze mud pump vibrations. helped reduce human exposure to hazardous environments.

As an integral part of onshore and offshore drilling, mud pumps circulate drilling fluids to facilitate drilling oil and natural gas wells. Mud pumps stabilize pressure and support the well during the drilling process and drilling fluids provide friction reduction and a means to remove cuttings. We created a leak detection system for hex pumps. The hex mud pump (see Figure 1) has six pistons, six suction valves, and six discharge valves. The six pistons are driven by a rotating, asymmetric cam. We designed a patented leakage system based on CompactRIO in house. The system monitors the suction and discharge valves using accelerometers.

The Case for an Automated Monitoring SystemValve leaks in piston pumps are often discovered at a late stage when the leaks are so severe that they induce large discharge pressure fluctuations and create washout damages. When a severe leak is detected, we localize it manually by listening to the fluid modules while the pump is running, but it is difficult to uniquely localize the leak and distinguish between a suction valve leak and a discharge valve leak.

Human exposure to hazards is the main disadvantage of manual detection, verification, and localization. Mud pumps convert large amounts of power and often output high pressures up to 350 Bar discharge. Additional equipment in pump rooms also generates high acoustic noise pressure levels that can exceed 100 dBA and cause health and hearing damage if humans are not correctly protected (see Figure 2).

Discovering the Vibration MethodDuring a vibration monitoring project for hex pumps, we discovered the possibility of detecting leaks using accelerometers. We recorded vibrations at different locations, both on the pump and on the discharge line, along with suction pressure, discharge pressure, and pump speeds for different pump conditions. We used a 20 kHz sampling frequency and recorded 5-second snapshots with intervals of a few minutes. On one occasion, the vibration signature significantly changed during a 15 minute period. We soon realized the spot was a growing valve leak.

After the initial discovery, we performed more tests to further explore the leak detection possibility. Figure 3 shows vibrations of all six valve blocks when discharge valve 2 (D2 valve) has a severe leak. The trace numbers indicate the accelerometer/valve block number. The high intervals of the dashed help curves represent the theoretical suction phases that happen when the suction valves are closed. These curves offer easy interpretation of the vibration signals and are derived from the proximity of the sensor signal (not shown). The low values of the help curves represent the theoretical closing of the discharge valves, which happens when the respective pistons retract. The leak intervals have a lag time shift relative to the theoretical intervals. This time shift is on the order of 25 ms and comes from 1) valve inertia causing delayed valve closing, and 2) fluid compressibility causing a finite piston stroke to compress and decompress the fluid.

Leak Detection SystemBased on that encouraging experience, we wanted to include this condition-based maintenance system as a standard feature on all hex pumps. We developed the system as a stand-alone module to add to the existing hex pump control system (see Figure 4). Slightly simplified, it consists of the following components: accelerometers (one per valve block), a proximity sensor picking up pump speed and phase, a discharge pressure sensor, an embedded monitoring system (CompactRIO with NI 9234 acquisition modules for powering the accelerometers and acquiring high frequency data), signal processing software and alarm logics implemented using LabVIEW software running on the CompactRIO monitoring system, and an HMI user interface developed in LabVIEW.

The default sampling frequency of the signals is 25 kHz, but the system can handle higher rates if necessary. The bandpass filter is optional, but experience shows that it improves contrast and detection sensitivity. Signal strength normalization by the median vibration level makes the detection nearly independent of the inherent ambient vibrations, which increase rapidly with increasing pump speed and discharge pressure. The last requirement, that the detected leaks last for a set time, eliminates erratic alarms caused by debris or large particles that can cause temporary seal malfunction.

We can remotely verify the leaks detected automatically by signal processing in several ways. First, the operator can view and interpret the vibration signals directly from graphs. Second, the operator can selectively listen to the recorded acceleration signals as audio signals to hear the leak sound. Third, the operator can check to see if the mean discharge pressure is stable or dropping. Lastly, the operator can see if the lowest pressure harmonics are growing.

We can use the desktop application shown in Figures 5 and 6 on a terminal to review the LDS and read raw logs and trend files directly from the LDS. This additional feature gives the operator the chance to get a closer view of the vibrations and perform audio playback to the user. Also, we can view the high-rate log of the discharge pressure to reveal a cyclic variation drop. This helps provide a better understanding of what is happening with the valves.

Figure 5 shows a 1.5 second snapshot of the vibration signatures after a severe leak developed in the D3 valve. It shows the filtered vibration signals from all six accelerometers during a 1.5 second snapshot. Acceleration signal 3 has enhanced noise amplitude during the D3 phase. A closer look at the other signals reveals that the leak induced vibrations are transferred to the other accelerometers during the same time intervals. However, the vibration transfer is relatively low, actually less that -20 dB for neighboring valve blocks and even less for the other blocks, so vibration transfer is not a serious problem in hex pumps.

CompactRIO and LabVIEW proved to be fast tools for prototyping our system and gave us an embedded deployment system that we can reliably retrofit to existing pumps. In comparison to other leak detection methods, which are based on analyzing discharge pressure, we found our vibration-based methods to be more robust and reliable, especially when it comes to localizing a leak. Our studies show that an alternative method can be applied for shaft-driven piston pumps having either an integrated valve block or split blocks with a high vibration transfer. Leak localization for this kind of pump is mainly based on the phase of the pulsating vibration level. We can use it to localize one dominating leaky valve at a time.
