mud pump valve guide for sale

A wide variety of valve guide for mud pump parts options are available to you, such as 1 year, not available and 3 years.You can also choose from new, valve guide for mud pump parts,As well as from energy & mining, construction works , and machinery repair shops. and whether valve guide for mud pump parts is 1.5 years, 6 months, or unavailable.

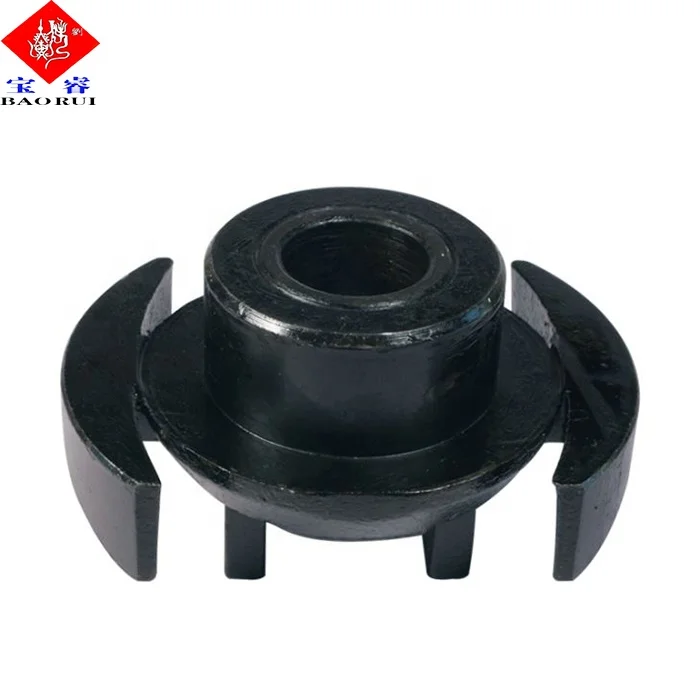

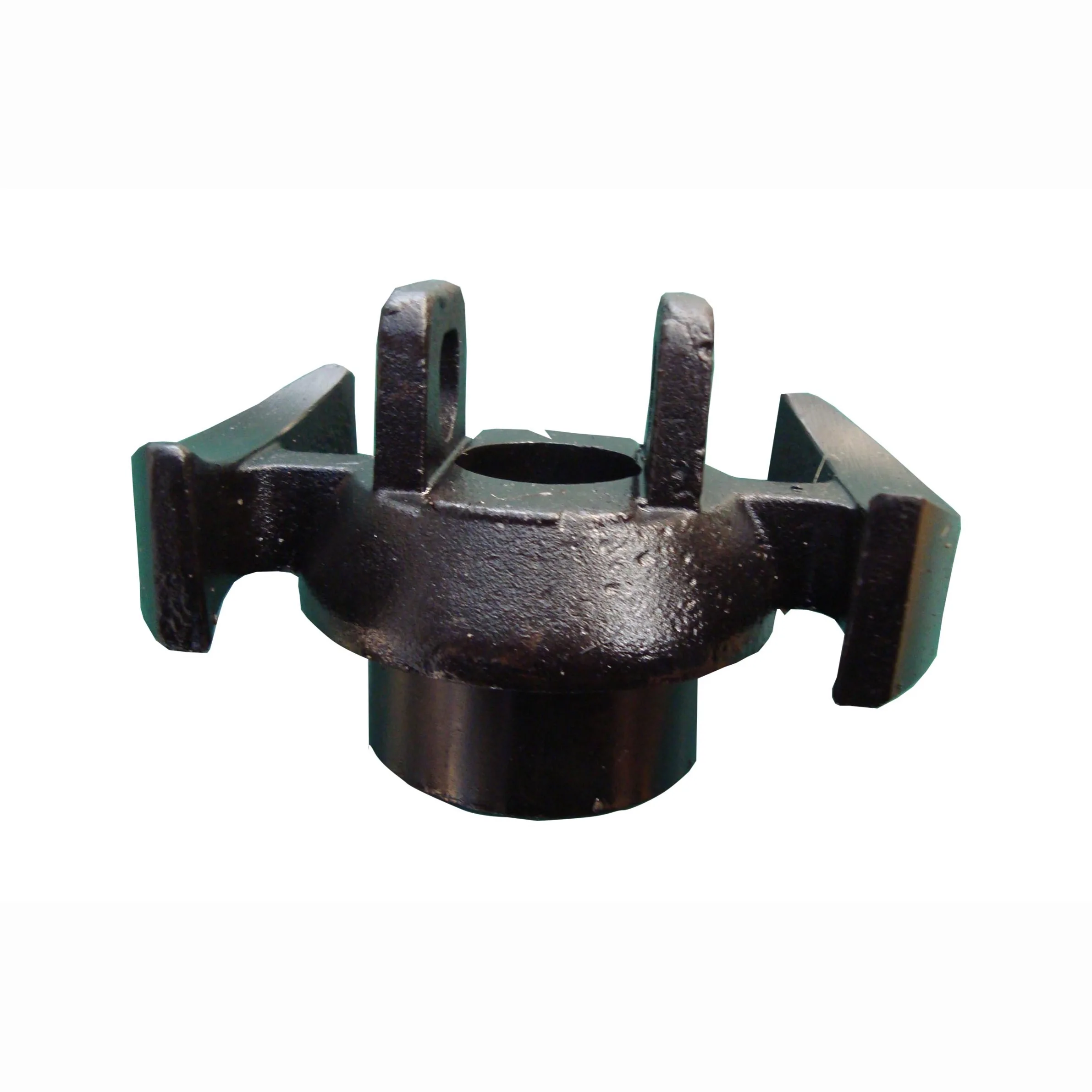

Upper and lower valve guides are important parts for the fluid end of mud pump in oil drilling. The upper type acts as a connector of valve spring and valve cover inside the hydraulic cylinder. It plays a guiding role in valve operation. The lower one is a connector of valve spring and hydraulic cylinder inside the cylinder. It has the function of fixing and guiding the valve operation.

In most types of reciprocating engines, a valve guide is provided for each poppet valve in the cylinder head. Along with the valve spring, it serves to positively locate the valve so that it may make proper contact with the valve seat. A valve guide is a cylindrical piece of metal, pressed or integrally cast into the cylinder head, with the valve reciprocating inside it. Guides also serve to conduct heat from the combustion process out from the exhaust valve and into the cylinder head where it may be taken up by the cooling system. Bronze is commonly used, as is steel; a balance between stiffness and wear on the valve is essential to achieve a useful service life.

The clearance between the inner diameter of the valve guide and the outer diameter of the poppet valve stem is critical for the proper performance of an engine. If there is too little clearance, the valve may stick as oil contaminants and thermal expansion become factors. If there is too much clearance, the valve may not seat properly and excessive oil consumption can occur.

Over time, the inner diameter of the valve guide and the outer diameter of the valve stem may become worn. In the 1980s, many U.S. production engine remanufacturers began reaming valve guides, rather than replacing them, as part of their remanufacturing process. They found that by reaming all the valve guides in a head to one standard size (typically 0.008 in. diametrically oversized), and installing remanufactured engine valves having stems that are also oversized, a typical engine head can be remanufactured in much less time.[1] Since the reaming process leaves the valve guide with a much better surface finish and shape than typical replacement guides, and since the oversize valves often have chrome plated stems, remanufacturers also discovered that valve train warranty issues are virtually eliminated.

Studies have been conducted which show that through the proper selection of the reamer and reaming process, valves guides can be quickly and efficiently reamed to a consistently repeatable size.

Upper and lower valve guides are important parts for the fluid end of mud pump in oil drilling. The upper type acts as a connector of valve spring and valve cover inside the hydraulic cylinder. It plays a guiding role in valve operation. The lower one is a connector of valve spring and hydraulic cylinder inside the cylinder. It has the function of fixing and guiding the valve operation.

In most types of reciprocating engines, a valve guide is provided for each poppet valve in the cylinder head. Along with the valve spring, it serves to positively locate the valve so that it may make proper contact with the valve seat. A valve guide is a cylindrical piece of metal, pressed or integrally cast into the cylinder head, with the valve reciprocating inside it. Guides also serve to conduct heat from the combustion process out from the exhaust valve and into the cylinder head where it may be taken up by the cooling system. Bronze is commonly used, as is steel; a balance between stiffness and wear on the valve is essential to achieve a useful service life.

The clearance between the inner diameter of the valve guide and the outer diameter of the poppet valve stem is critical for the proper performance of an engine. If there is too little clearance, the valve may stick as oil contaminants and thermal expansion become factors. If there is too much clearance, the valve may not seat properly and excessive oil consumption can occur.

Over time, the inner diameter of the valve guide and the outer diameter of the valve stem may become worn. In the 1980s, many U.S. production engine remanufacturers began reaming valve guides, rather than replacing them, as part of their remanufacturing process. They found that by reaming all the valve guides in a head to one standard size (typically 0.008 in. diametrically oversized), and installing remanufactured engine valves having stems that are also oversized, a typical engine head can be remanufactured in much less time.[1] Since the reaming process leaves the valve guide with a much better surface finish and shape than typical replacement guides, and since the oversize valves often have chrome plated stems, remanufacturers also discovered that valve train warranty issues are virtually eliminated.

Studies have been conducted which show that through the proper selection of the reamer and reaming process, valves guides can be quickly and efficiently reamed to a consistently repeatable size.

The guider consists of the guide way and the inner sleeve embedded in the guide way.The material of the guide way is ZG35CrMo, and the inner sleeve is treated by 20CrMnTi carburization and quenching.

Our company is specialized in interchangeable parts and liners for brand name mud pump, including Emsco, National, Ideco, Gardner Denver, etc. and other brand liners. All items are manufactured to API 7K quality standards. Parts are available for these popular pump modelsEMSCO:F-1300,F-1600,FB1300,FB1600,F-800,F-1000,F-500,F-350,DB-550,DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-70IDECO: T-500, T-800, T-1000, T-1300, T-160NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400

With great zeal and enthusiasm, our quality certified entity is successfully committed in manufacturing, exporting and supplying optimum quality range of Mud Pump Valve Guide And Spring. Our highly experienced team of professionals manufacture these products with the use of premium grade raw materials. Especially used in mud pumps for controlling the flow of liquids, the offered products are made available in different sizes and finishes. Also, checked by quality experts on various aspects, the provided Mud Pump Valve Guide And Mud Pump Valve Spring at reasonable prices from us.
