Tulsa Triplex is a Tulsa Rig Iron company. We manufacture pumps from 100 to 600 horsepower for drilling, reverse circulation, hydrostatic testing, water blast, and workover applications. Utilizing roller bearings throughout, our pumps are built to last. They are designed to be easily maintained and are capable of being completely rebuilt. Available as bare pump only, with chainbox, or complete pump packages.Our skids are built tough as an oilfield type with draw bars.

A mud pump is a reciprocating piston or plunger device designed to pump drilling fluid under high pressures and volumes down the drill string of a drilling rig. The main functions of drilling fluid are to provide hydrostatic pressure to prevent formation fluids from entering and to stabilize the bore, to keep the drill bit cool and clean, to carry drill cuttings back out to the surface, and to suspend the drill cuttings while drilling is paused or during the pullback process.

Mud pumps consist of two main sub-assemblies- the fluid end and the power end. The fluid end performs the pumping process with valves, pistons, and liners, or plungers and stuffing boxes- depending upon the type used. These components are considered expendables, and are designed to be easily replaced in the field. The power end contains the eccentric or crankshaft, along with the connecting rods, and cross heads/slides.

Tulsa Triplex is a Tulsa Rig Iron company. We manufacture pumps from 100 to 600 horsepower that are designed to be easily maintained and are capable of being completely rebuilt. Our pumps feature a smaller footprint and lighter weight than competing models, making them completely legal load size and weight in most instances. They are available as a bare pump, with chainbox, or a complete skidded package.

Our 600 horsepower TT-680 pump package offers up to 625 GPM normal pumping volume. Capable of acheiving flow rates greater than pumps three times its size and weight, the standard TT-680 skidded package weighs in at a mere 28,000 lbs. Available as a bare pump, with chain box, or a complete skidded package.

Our 500 horsepower TT-660 pump package offers up to 720 GPM normal pumping volumes. This is one of our best selling pumps for HDD applications, because it offers high volumes at relatively low pressures. It can produce pressures required to run a mud motor and the volume to clean the hole, while running the largest of hole openers. It features a smaller footprint and lighter weight than competing models, making it completely legal load size and weight in most instances. The standard TT-660 skidded package weighs in at a mere 26,000 lbs. Available as a bare pump, with chain box, or a complete skidded package.

Our 500 horsepower TT-560 pump package offers up to 500 GPM normal pumping volumes. This is one of our best selling pumps for HDD applications. Available as a bare pump, with chain box, or a complete skidded package.

Our 175 horsepower TT-150 pump package offers up to 150 GPM normal pumping volume. It boasts flow rates and pressures of pumps twice its size, making it an ideal choice for applications where size and weight are of concern. Available as a bare pump, with chain box, or a complete skidded package.

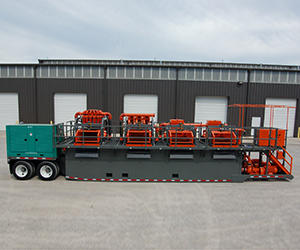

This system offers 500-700 GPM normal cleaning volume, up to 400-700 GPM normal pumping volume, one 3 panel linear motion scalping shaker, a 3 panel linear motion desander mud cleaner with two 10" desanding cones, a 3 panel linear motion desilter mud cleaner with twelve 5" desilting cones, a 180/200 KW generator, a TT-560 onboard triplex pump, a 500 HP diesel engine, and a 6,400 gallon 3 compartment tank all riding on a 53" triple axle trailer.

Our 100 horsepower TT-100 pump package offers up to 90 GPM normal pumping volume. Available as a bare pump, with chain box, or a complete skidded package.

Quality, reliability, and integrity are three words synonymous with Tulsa Rig Iron. Since 1987, we have engineered and manufactured industry leading products for the HDD, oilfield, and water well drilling industries. Our specialties are mud mixing and recycling systems rated from 50 to 1500 GPM, mud pumps rated from 5 to 880 GPM, and hydrostatic test pump packages.

You can read more about Tulsa Rig Iron on our about us page. Additional product information can be found at new products, equipment available for rental, used equipment, or our parts pages.

Founded in 1987 by J.D. Young, Tulsa Rig Iron was the premier designer and manufacturer of horizontal directional drilling rigs, along with mud pumps and mud recycling systems. In 2004, sons Trevor and Troy took the company helm and made the decision to concentrate the company efforts on building the best mud pumps and recycling systems available. Since that time, Tulsa Rig Iron has continued to set the industry standards for mud pump and recycling systems and is the manufacturer of choice for contractors around the globe. Fourth quarter 2013 marks a significant company milestone, in that we will effectively double our manufacturing capacity with a huge facility expansion. This will allow us to get equipment to our customers in a more timely fashion. Our state of the art manufacturing facility is located on 40 acres in Kiefer Oklahoma, a suburb just outside of Tulsa.

Tulsa Rig Iron is dedicated to being the industry leading provider of products and solutions for energy contractors. We will always have the best interest of our customers, our employees, and the environment in mind while designing and delivering our products and services.

This system offers 600-1000 GPM normal cleaning volume- 1500 GPM max, two 3 panel linear motion scalping shakers, a 3 panel linear motion desander mud cleaner with three 10" desanding cones, a 3 panel linear motion desilter mud cleaner with eighteen 5" desilting cones , and a 9,000 gallon 3 compartment tank, all riding on a 52" tandem axle trailer.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

Tulsa Rig Iron has added to its product line a hydrostatic test pump package designed specifically to fill and pressure up new and repaired pipelines for integrity testing before they are put into service.

“This system is ideal for multi-mile infield gathering systems up to 16-inches in diameter, as well as shorter run/larger diameter pipelines,” said Terry Flynn, business development manager. “Designed to be user friendly, rig up time can be done in less than 30 minutes with a minimal crew. “

The testing procedure is to cap the line, pump in water until full and then pressurize it to a specified psi. If there are no leaks, the pressure will hold. When integrity is confirmed, the pipeline is approved for service.

The HPP-150 hydrostatic test pump package includes a 900 gpm fill pump, a Tulsa Rig Iron TT series triplex pump rated to 4,775 psi and is powered by a 175-horsepower diesel power unit through the company’s exclusive single input/dual output chainbox drive which eliminates the problem of belt slippage under load.

“This combination design allows for simple transition from the fill pump to pressure pump, and our five speed transmission allows pressures to be built in a controlled manner versus equipment with a PTO drive,” Flynn explained.

“The need to test a new or repaired segment of pipe is obvious,” said Flynn. “Pipe must be tested before it’s put in service, and it needs to be done in a manner that’s economical and safe for the environment.”

“Very few companies manufacture this type of pump package,” he added. “We are recognized in the industry for our mud pumps and mud cleaning systems, so a hydrostatic test pump package fits well into our product line. Manufacturing the majority of the components in the HPP-150 enables us to better control the quality of the finished product.”

Established in 1987, Tulsa Rig Iron specializes in mud mixing and recycling equipment for the energy and horizontal directional drilling industries. Today’s product line includes mud mixing and recycling systems rated from 50 to 1,500 gpm, and mud pumps rated from 5 to 880 gpm.

“The fourth quarter of 2013 marked a significant company milestone,” Flynn concluded. “The expansion of our state-of-the-art manufacturing facilities effectively doubled capacity to produce Tulsa Rig Iron products.”

Tulsa Rig Iron provides engineering solutions for horizontal drilling contractors in the trenchless industries. The company engineers and manufactures directional drilling rigs and associated equipment. Equipment rental is also a large segment of Tulsa Rig Iron s business and includes directional rigs, mud systems, mud pumps, drill pipe and generators. Tulsa Rig Iron primarily builds heavy-duty directional drill rigs from 160,000 to 750,000 pounds thrust and pullback. The company s dedicated hydraulic systems and high horsepower engines assure that thrust, rotary and mud pump can all perform fully concurrently. Mixing, recycling and pumping systems are available for use with mini, midi and maxi directional drilling rigs. Tulsa Rig Iron maintains corporate and manufacturing facilities in Tulsa, Okla., with additional offices in Longview, Texas, and Lafayette, La.
