4 shaft overshot patterns supplier

Our wide range of 4-shaft weaving patterns are perfect for beginner, intermediate and advanced weavers—we have something for everyone. Learn how to create woven kitchen towels, scarves, table runners, cowls, tops, ponchos, cloth, and rugs—all suitable for a table loom or floor loom with four shafts.

Every 4-shaft weaving pattern comes with a weaving draft, which is shown in the PDF pattern, and also delivered as a .wif file for people who use weaving draft software.

We’re so excited to share that our new online learning platform is live! At Vermont Weaving Online, one subscription gives you access to ALL our digital weaving patterns, plus instructional videos, supplements, and a community of fellow weavers.

Woven by Rachel SnackWeave two overshot patterns with the same threading using this downloadable weave draft to guide you. This pattern features the original draft along with one pattern variation. Some yarns shown in the draft are available to purchase in our shop: 8/2 cotton, wool singles, 8/4 cotton (comparable to the 8/4 linen shown).

please note: this .pdf does not explain how to read a weaving draft, how to interpret the draft onto the loom, or the nuances of the overshot structure.

This project was really popular when I posted it on Instagram, so I thought I would share it here also. It is a simple overshot pattern - with a twist. Also a great way to show off some special yarn. The yarn I used for my pattern was a skein of hand spun camel/silk blend. I wove the fabric on my Jack loom but you could also use your four or eight shaft loom.

Overshot is a weave structure where the weft threads jump over several warp threads at once, a supplementary weft creating patterns over a plain weave base. Overshot gained popularity in the turn of the 19th century (although its origins are a few hundred years earlier than that!). Coverlets (bed covers) were woven in Overshot with a cotton (or linen) plain weave base and a wool supplementary weft for the pattern. The plain weave base gave structure and durability and the woollen pattern thread gave warmth and colour/design. Designs were basic geometric designs that were handed down in families and as it was woven on a four shaft loom the Overshot patterns were accessible to many. In theory if you removed all the pattern threads form your Overshot you would have a structurally sound piece of plain weave fabric.

I was first drawn to Overshot many years ago when I saw what looked to me like "fragments" of Overshot in Sharon Aldermans "Mastering Weave Structures".

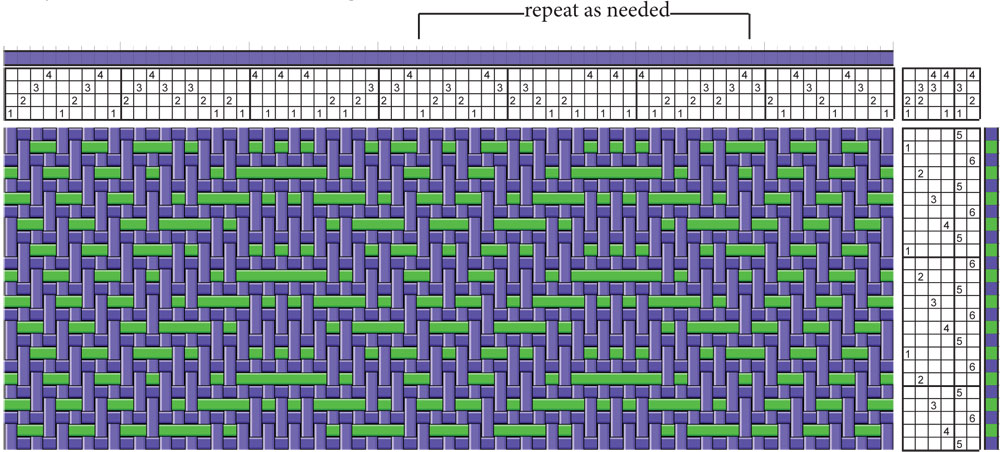

I wanted to use my handspun - but I only had a 100gms skein, I wanted to maximise the amount of fabric I could get using the 100gms. I thought about all the drafts I could use that would show off the weft and settled on overshot because this showcases the pattern yarn very nicely. I decided to weave it “fragmented” so I could make my handspun yarn go further. I chose a honeysuckle draft.

When doing the treadle tie-up I used 3 and 8 for my plain weave and started weaving from the left, treadle 3 - so you always know which treadle you are up to - shuttle on the left - treadle 3, shuttle on the right treadle 8. I then tied up the pattern on treadles 4,5,6 and 7. You can work in that order by repeating the sequence or you can mix it up and go from 4 to 7 and back to 4 again etc. You will easily see what the pattern is doing.

Pattern is designed to use our Organic cottolin (Cotolin) to weave 4 placemats- finished size 14"X20", 4 napkins 14"X14" and a runner with a finished size 14"X38". Requires an 8 shaft loom, 24 epi, 15" wide. 1 tube each of our 4 Ruby Anniversary colors Vendor item: HYPattern

Related items:15 3/4" 8 shaft loom, 12 dent reed double sleyed, shuttles, 4 bobbins. Pattern gauge: 12 dpi Yarn weight: Lace Yardage needed:1 tube each of 4 colors. We used 2 reds 5096 & 5116, and 2 purples 8264 & 5153.

I never really thought of using different colors for overshot before, but after feeling inspired by a group discussion, I decided to try it! I like it a lot and will probably do it again. The warp is pink, yellow, and blue. The tabby weft is the same rotation of pink, yellow, and blue, while…

The term overshot brings to mind coverlets woven on Early American barn frame looms dating back to the 1700s. It is believed Europeans brought the weave structure to North America and fortunately weaving materials such as wool and cotton were readily sourced and available.

Susan invites you to spend two insightful days exploring one of her favorite weave structures. Her workshop creates multiple overshot samples serving as a ‘snapshot’ of overshot threading sequences. This approach provides the groundwork for wider weaving projects once concepts are mastered.

Utilizing an 8/2 cotton warp and tabby weft along with Borgs Faro 6/1 for pattern weft. Looms will be dressed prior to the workshop with the 4-shaft 8 1/4″ wide warp.

Our study will delve into understanding block weaves and treadling the overshot weave structure. Overshot treadlings such as Star, Rose, Italian, Flame-Point Fashion will be explored in addition to Echo, On-Opposites, Petit Point, Lace weave, Spetsväv, and Honeycomb to name a few.

Participants will receive a draft for a special project which can be completed after the workshop.  It is a complete Overshot Pillows Draft which is 16” wide on the loom and could include up to ten pillow tops. Sampling first, as we will do in the workshop, will enable you to enjoy your new-found knowledge for such a project.

There were ten of us in the class, and we rotated, weaving a new sample at each loom. Marjie shared her knowledge of the patterns we sampled, and I came away with an even greater interest in this subject in addition to a binder filled with samples. There really is no greater way to learn than a hands-on workshop. I am already preparing to wind a warp for a dimity project. I’ll keep you posted on my progress.

One interesting piece of information I learned is that overshot is a fairly modern term. Originally this type of weaving would have been referred to as floats or floatwork. It seems that many people are returning to this original terminology, though the weaving world has thus far shown little interest in making the change back. Personally, I like it. Floatwork sounds a bit less frenetic than overshot – as though I’m peacefully hitting my mark rather than missing it in a wild fashion.

Floatwork, formerly known as overshot which was originally known as floatwork, is a block design traditionally woven on four shafts where a heavier pattern yarn floats above a plain weave ground cloth and creates a raised pattern. Your plain weave background cloth is woven using a finer yarn in your warp and in every other weft pick (these weft picks being the ‘use tabby’ part of your pattern.)

This finer yarn is hidden in places by the thicker yarn floats, blended in places with the thicker yarn (as plain weave) creating areas that are shaded (referred to as halftone), and woven across itself to create delicate areas of plain weave. Most of us think of antique coverlets when we hear ‘overshot.’

Here is the thing about floatwork that really helped it to make sense for me. It is basically a twill weave. As Mary Black puts it, “An examination of an overshot draft shows it to be made up of a repetitive sequence of the 1 and 2, 2 and 3, 3 and 4, and 4 and 1 twill blocks”.

Let’s look at the pattern picks only. When weaving, your pattern blocks should overlap by one thread. This creates a pattern that flows from unit to unit instead of making a sharp step. It also means that the last thread of a given block is the first thread of the next block, and as you are initially threading your loom, your threads will move from odd shaft to even shaft.

Probably the trickier part of treadling is keeping track of where you are in the sequence. Like many traditional floatwork patterns, the pattern I used is meant to be woven tromp as writ or as drawn in. This means that your treadling is the same as your threading. So if your threading is 1-2-1-2-3-2-3-4, then your pattern picks are treadled 1-2-1-2-3-2-3-4. You will be throwing tabby picks after each pattern pick, so your actual treadling looks like (inthis example let’s consider your tabby picks to be ‘a’ and ‘b’) 1-a-2-b-1-a-2-b-3-a-2-b-3-a-4-b. If this looks a bit intimidating, don’t fret. At first it might feel that way, but the pattern really does start to make sense after you get going.

In the case of my draft, the threading sequence is 134 threads long. This is a lot to remember, but I used an index card to write out the sequence. I marked my place by sliding a second card down the pattern as I progressed, keeping it in place with a paperclip.

You can find it listed in the chapter or sub-chapter entitled ‘Notes on the Overshot Drafts.’ As someone who generally cheers on the underdog, I was drawn to this pattern without a name.

Atwater’s patterns are written for a sinking shed loom. For a rising shed loom, like the Baby Wolf I used, simply tie up the shafts left blank in the draft instead of the shafts she tells you to tie up. For all of her traditional floatwork patterns, including the pattern I used, this tie-up would be 3-4, 1-4, 1-2, 2-3. Your tabby tie up should be 1-3 and 2-4.

I washed this in my front-loading washing machine on the wool setting and air-dried it on the clothesline. There was a note in the book that No. 18 Name Unknown, and its friend No. 17, are “plain patterns and suitable for couch covers or the coverlet for a man’s room, rather than for more frivolous purposes”. Perfect. I’m not much for frivolous, and I had been looking for the perfect fabric to re-cover an old chair.

Here is a list of books and magazines that might be of interest if you’d like to learn more about floatwork/overshot. Many of these references include patterns in addition to thorough instructions.

If you have a particular interest in old coverlets, Eliza Calvert Hall’s A Book of Hand-Woven Coverlets and The Coverlet Book by Helene Bress are both interesting resources, the later being particularly thorough. I can only imagine the time and research that went into this pair of tomes. And if you are simply looking for patterns, The Handweaver’s Pattern Book by Marguerite Porter Davison and The Handweaver’s Pattern Directory by Anne Dixon are just for you.

While pursuing the Guild of Canadian Weavers certificate program in 1985, she found the requirement to hand-draw large overshot drafts too traditional. Bob was inspired to create a simple drafting program that became PCW, the foundation for later versions of Fiberworks PCW. Ingrid was always…

If you don"t find exactly what you want, or would like a title recommendation, please call the shop directly at 800-441-9665 or contact us for assistance.

I am attempting some upholstery fabric for the first time and decided on Brassard 8/2 cottolin for the warp and Harrisville Shetland for the weft. The structure is “Waldenweave” from Bertha Gray Hayes collection of miniature overshot…. I am developing a “thing” for overshot and really like all aspects of it.

Advanced weavers with 8-, 12- or 16-harness looms will find a lot of useful information here. The purpose of this book is to present a number of weaves from which a wide range of designing is possible. Charts have been developed to assist in tying up, pegging or feeding the information to the computer so that precious time may be saved to apply to the designing aspect. Concepts are given in a terse but clear and to the point format eliminating the need for in-depth study. Once you understand the concepts you"ll understand many different multiple harness weave systems. After a short section explaining the Charts and Terminology used in the book, the author provides chapters that cover: Beiderwand, Crackle, Damask, Diaper Twill, Dimai, Double Two-Tie, Double Weave, Lace Weaves, Overshot, The Profile Draft, Summer & Winter, Tie-ups and Twills. There is a large bibliography for those who wish to do further study and a complete index at the end.
