This post is the third in a series introducing you to common weaving structures. We’ve already looked at plain weave and twill, and this time we’re going to dive into the magic of overshot weaves—a structure that’s very fun to make and creates exciting graphic patterns.

Overshot is a term commonly used to refer to a twill-based type of weaving structure. Perhaps more correctly termed "floatwork" (more on that later), these textiles have a distinctive construction made up of both a plain weave and pattern layer. Requiring two shuttles and at least four shafts, overshot textiles are built using two passes: one weaves a tabby layer and the other weaves a pattern layer, which overshoots or floats, above.

Readers in the United States and Canada may be familiar with overshot textiles through woven coverlets made by early Scottish and English settlers. Using this relatively simple technique, a local professional weaver with a four-shaft loom could easily make a near-infinite variety of equally beautiful and complex patterns. If you’d like to learn more about overshot coverlets and some of the traditions that settlers brought with them, please see my reading list at the bottom of this article!

As it is twill-based, overshot will be very familiar to 4 shaft weavers. It’s made up of a sequence of 2-thread repeats: 1-2, 2-3, 3-4, and 1-4. These sequences can be repeated any number of times to elongate and create lines, curves, and shapes. These 2-thread repeats are often referred to as blocks or threading repeats, IE: 1-2 = block 1/A, 2-3 = block 2/B.

There are three ways weft appears on the face of an overshot cloth: as a solid, half-tone, or blank. In the draft image I’ve shared here, you can see an example of each—the solid is in circled in blue, the half-tone in red, and the blank yellow. Pressing down the first treadle (shafts 1 and 2), for example, creates solid tones everywhere there are threads on shafts 1 and 2, half-tones where there is a 1 or 2 paired with 3 or 4, and nothing on the opposite block, shafts 3 and 4. Of course, there’s not really nothing—the thread is simply traveling on the back of the cloth, creating a reverse of what’s on the face.

Because overshot sequences are always made up of alternating shafts, plain weave can be woven by tying two treadles to lift or lower shafts 1-3 and 2-4. When I weave two-shuttle weaves like overshot, I generally put my tabby treadles to the right and treadle my pattern picks with my left foot and my tabby with my right. In the draft image I’ve shared above, I’ve omitted the tabby picks to make the overarching pattern clearer and easier to read. Below is a draft image that includes the tabby picks to show the structure of the fabric.

Traditional overshot coverlets used cotton or linen for warp and plain weave wefts, and wool pattern wefts—but there’s no rule saying you have to stick to that! In the two overshot patterns I’ve written for Gist, I used both Mallo and Beam as my pattern wefts.

In the Tidal Towels, a very simple overshot threading creates an undulating wave motif across the project. It’s easy and repetitive to thread, and since the overshot section is relatively short, it’s an easy way to get a feel for the technique.

The Bloom Table Squares are designed to introduce you to a slightly more complex threading—but in a short, easy-to-read motif. When I was a new weaver, one of the most challenging things was reading and keeping track of overshot threading and treadling—but I’ve tried to make it easy to practice through this narrow and quick project.

Overshot works best with a pattern weft that 2-4 times larger than your plain weave ground, but I haven’t always followed that rule, and I encourage you to sample and test your own wefts to see how they look! In the samples I wove for this article, I used 8/2 Un-Mercerized Cotton weaving yarn in Beige for my plain weave, and Duet in Rust, Mallo in Brick, and Beam in Blush for my pattern wefts.

The Bloom Table Squares are an excellent example of what weavers usually mean when they talk about traditional overshot or colonial overshot, but I prefer to use the term "floatwork" when talking about overshot. I learned this from the fantastic weaver and textile historian Deborah Livingston-Lowe of Upper Canada Weaving. Having researched the technique thoroughly for her MA thesis, Deborah found that the term "overshot" originated sometime in the 1930s and that historical records variably called these weaves "single coverlets’ or ‘shotover designs.’ Deborah settled on the term "floatwork" to speak about these textiles since it provides a more accurate description of what’s happening in the cloth, and it’s one that I’ve since adopted.

Overshot is the most American and most Canadian of weave structures. I’m not saying that the U.S. and Canada are the only countries that can claim overshot or that they invented the structure. What I am saying is that weavers north and south took the overshot drafts brought over from Europe and made them their own.

To understand the reason for overshot’s popularity, you need to understand the weavers of pre-Industrial Revolution America and Canada. With the exception of those who worked on luxury, specialized fabrics, most weavers made household linens. The cloth needed to be strong and serviceable, and there was little room for experimentation or creativity—except, of course, for coverlets. Coverlets were functional items, but they also served the purpose of decoration. So, weavers of coverlets were free to play at the loom—and play they did.

The reason that weavers loved overshot then is much the same reason that many of us love it now—it’s a simple structure that produces complex patterning on just 4 shafts. With overshot, you can create circles, stars, flowers, and more. It’s also easy to take a draft and adjust it to create seemingly endless variations, which is exactly what happened during the 1700s and beyond. Household weavers would riff on drafts to create new designs, give them names, and then share the drafts with other weavers near and far.

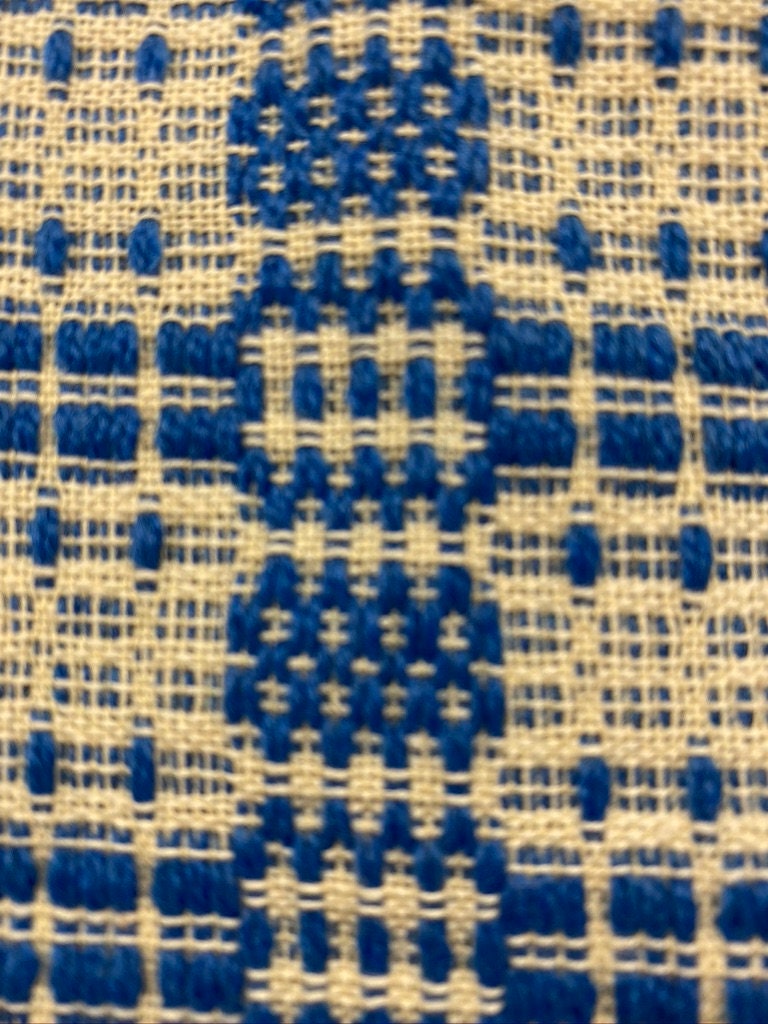

Handwoven table runner designed and woven with a colonial blue cotton yarn. This runner is woven with a natural color background. This piece has been woven in a traditional over...

It is a popular and well know weave structure with well known motif designs such as Honeysuckle, Snails trails, Cat’s Paw, Young lover’s knot and Maple leaf. Overshot means the weft shoots either over or under the warp.

The Treadling for Overshot is a 2/2 Twill. That is 1-2, 2-3, 3-4, 4-1. Overshot is woven with a thick pattern thread alternating with a thinner tabby thread. The pattern block may be repeated as many times as you like to build up a pleasing block. So it will be pattern thread, tabby a, pattern thread, tabby b. Lift 1 and 3 for tabby a and 2 and 4 for tabby b.

Monks belt, so called because a monks’ status in the monastery was indicated by the pattern woven on the belt is different from the other Overshots motifs as it is woven in 2 blocks on opposites. A block will be either 1 and 2, or 3 and 4. The pattern is created by the varying size of the blocks.

It is not difficult to design your own overshot pattern. A name draft is just one of the ways to do so. The above tablecloth was made by a group of weavers, each wove a square and many of them designed their own name drafts.

Overshot is an intricate weave structure in which pattern weft “shoots over” a grounded plain weave cloth to create a huge range of patterns. From undulating waves to dashing circles, the weaver can create complex patterns on only 4 shafts. This weave structure has been used all over the world, but developed most widely in Appalachian coverlets and table linens during early colonial America. In this class, students will learn more about this beloved weave structure and weave their own overshot table runners, placemats, or samples using cotton and wool on 4 shaft floor looms. Explore blending colors, manipulating patterns, and practicing weaving this two shuttle weave structure. No weaving experience is necessary, but some experience is helpful.

The origin of the technique itself may have started in Persia and spread to other parts of the world, according to the author, Hans E. Wulff, of The Traditional Crafts of Persia. However, it is all relatively obscured by history. In The Key to Weavingby Mary E. Black, she mentioned that one weaver, who was unable to find a legitimate definition of the technique thought that the name “overshot” was a derivative of the idea that “the last thread of one pattern block overshoots the first thread of the next pattern block.” I personally think it is because the pattern weft overshoots the ground warp and weft webbing.

Overshot gained popularity and a place in history during the turn of the 19th century in North America for coverlets. Coverlets are woven bedcovers, often placed as the topmost covering on the bed. A quote that I feel strengthens the craftsmanship and labor that goes into weaving an overshot coverlet is from The National Museum of the American Coverlet:

Though, popular in many states during the early to mid 19th centuries, the extensive development of overshot weaving as a form of design and expression was fostered in rural southern Appalachia. It remained a staple of hand-weavers in the region until the early 20th century. In New England, around 1875, the invention of the Jacquard loom, the success of chemical dyes and the evolution of creating milled yarns, changed the look of coverlets entirely. The designs woven in New England textile mills were predominantly pictorial and curvilinear. So, while the weavers of New England set down their shuttles in favor of complex imagery in their textiles, the weavers of Southern Appalachia continued to weave for at least another hundred years using single strand, hand spun, irregular wool yarn that was dyed with vegetable matter, by choice.

And, due to the nature of design, overshot can be woven on simpler four harness looms. This was a means for many weavers to explore this technique who may not have the financial means to a more complicated loom. With this type of patterning a blanket could be woven in narrower strips and then hand sewn together to cover larger beds. This allowed weavers to create complex patterns that spanned the entirety of the bed.

What makes overshot so incredibly interesting that it was fundamentally a development of American weavers looking to express themselves. Many of the traditional patterns have mysterious names such as “Maltese Cross”, “Liley of the West”, “Blooming Leaf of Mexico” and “Lee’s Surrender”. Although the names are curious, the patterns that were developed from the variations of four simple blocks are incredibly intricate and luxurious.

This is only the tip of the iceberg with regard to the history of this woven structure. If you are interested in learning more about the culture and meaning of overshot, check out these resources!

The National Museum of the American Coverlet- a museum located in Bedford, Pennsylvania that has an extensive collection of traditional and jacquard overshot coverlets. Great information online and they have a “Coverlet College” which is a weekend series of lectures to learn everything about the American coverlet. Check out their website - coverletmuseum.org

Textile Art of Southern Appalachia: The Quiet Work of Women – This was an exhibit that traveled from Lowell, Massachusetts, Morehead, Kentucky, Knoxville, Tennessee, Raleigh, North Carolina, and ended at the Royal Museum in Edinburgh, Scotland. The exhibit contained a large number of overshot coverlets and the personal histories of those who wove them. I learned of this exhibit through an article written by Kathryn Liebowitz for the 2001, June/July edition of the magazine “Art New England”. The book that accompanied the exhibit, written by Kathleen Curtis Wilson, contains some of the rich history of these weavers and the cloth they created. I have not personally read the book, but it is now on the top of my wish list, so when I do, you will be the first to know about it! The book is called Textile Art of Southern Appalachia: The Quiet Work of Women and I look forward to reading it.

Ask most people what “overshot,” and most weavers think of American colonial weavers and their coverlets. While coverlets are represented here, this collection also includes projects that dazzle with color, drape with luscious softness, and take overshot in new directions. Scarves and shawls, runners (for table and floor), tablecloths and clothing—all appear in this comprehensive collection. Overshot, even in its colonial interpretation, was a miracle weave, allowing unbelievable patterning on only four shafts. Add to pattern the use of color and fine and luxurious yarns, and you’ll start your own love affair with overshot. This is the second eBook on overshot (see also A Baker"s Dozen: Top Projects in Overshot eBook)

The 4 shaft version of summer/winter gives 2 blocks of colour. Treadling in pairs yields a birds-eye background, while treadling as singles gives an effect similar to dukagang or overshot.

Tied overshot, often called stars and diamonds weave, evokes images of pretty weaving patterns.  Having read several articles about it, I learned that tied overshot is well known for being a traditional Colonial coverlet weave used in Pennsylvania in the nineteenth century.  It looks like overshot, but is more closely related to summer and winter.

I read Clotilde Barrett’s article, “Coverlet Weaves Using Two Ties” (Weaver’s Journal, April 1979 issue #12, downloadable from handweaving.net).  This excellent article has photos of various samples with drafts and notes, and I was particularly interested in the photo of the sample in Plate 6.  The article mentions Dorothy K. and Harold B. Burnham’s notable book, Keep Me Warm One Night, that refers to the weave of this sample as “stars and diamonds.”  To better understand how to design such a weave, I closely studied the chapter on tied overshot in Madelyn van der Hoogt’s book, The Complete Book of Drafting for Handweavers, one of my favorite books on drafting.  I then designed and wove a bunch of samples and three tied overshot table runners.  In this post I’ll be sharing, among other things, photos, drafts, and notes about these runners starting with this blue runner:

To design the 12-shaft draft shown above, I adapted the tie-up from the draft in Figure 7 in Clotilde’s article, and the threading and treadling from the chapter in Madelyn’s book on tied overshot, Figure 11b:  “Uneven 2-tie overshot: 5 thread half-unit.”  In other variations the size of these units can vary.  I also want to mention that you can design new patterns using the same threading and treadling by simply making changes in the tie-up.  For example, in the partial draft above you can make changes to the tie-up within the area marked by the yellow rectangle to design new patterns.  That’s what I did and wove the other two runners on the same warp.  There are no stars in the red one and the mauve one is mostly just diamonds:

I also found online a PDF version of Tom Knisely’s March/April 2006 article in Handwoven magazine, “Stars and Diamonds – for a show towel on fourteen shafts.”  I think the John Landes draft was used for the towel.  This is a nice article with detailed drafts and step-by-step instructions.  For more on tied overshot and related weaves there are many excellent articles in Weaver’s magazine issue #19 (4th quarter 1992), the theme is friendship coverlets.

I have been weaving for the past few days (whoo hoo!). I am making cloth for my next batch of hand bound books. In the face of a million possibilities I decided to stick with something traditional. So, I picked a few miniature overshot designs with names I thought might be appealing and/or seasonal, such as Young Lovers’ Knot and Star of Bethlehem, did some math, wound a warp, dressed my loom, and got to work.

Anyway, the point is, the second repeat of the design looked very different from the first and I though I had made a mistake. “Hmm. Weird. Haven’t woven overshot in a while, must be rusty.” I checked my treadling carefully and everything was accurate. I used my trusty angle-measuring tool, set at 45 degrees, and my beat wasn’t consistent between the repeats; one repeat was more square than the other. I figured my beat was the problem, and that I would settle into a rhythm after a while. So I kept going, and finished up the red section. The problem didn’t go away. I didn’t mind the alternating look between pattern repeats because it was consistent and kind of rhythmical. In fact, I liked the little daisies in the corners of the less compact version of the pattern. Daisies, diamonds, daisies, diamonds. Not too bad.

Overshot is a weave structure where the pattern is created with long weft floats. They would be too unstable to be useful unless you secured the floats to a stable background. To make a stable background, you weave a pick (or row) of plain weave between each pick of pattern weft. Typically the plain weave thread is the same yarn as the warp, and the pattern weft is much thicker. Plain weave is a very stable weave structure because it has the maximum number of intersections of vertical (warp) and horizontal (weft) threads. For some reason that I’ve always meant to look up, plain weave is also called tabby, especially when it’s used in this way to alternate with pattern wefts.

Plain weave is made up of two alternating sheds: usually all the odd numbered shafts or harnesses work together, and all the even ones work together, and they alternate. They are sometimes called tabby a and tabby b to tell them apart. For overshot, you weave one row of pattern, then tabby a, the second row of pattern, then tabby b, the third row of pattern, back to tabby a, and so on.

Depending on your overshot pattern, one tabby tends to push the pattern weft floats apart, and the other tends to let them squeeze together. The pushy one can make the pattern pixelated, slightly elongated, or hard to see. The squeezy one helps the pattern pull together and look compact and distinct. The proper term for the squeezy tabby is “emboldening tabby.” You want the emboldening tabby. I was only getting the emboldening tabby on every other pattern repeat. Rats. After weaving the green section I decided, for the sake of consistency and for the sake of my good name as a master weaver, to fix it.
