foster power tong 58-93r made in china

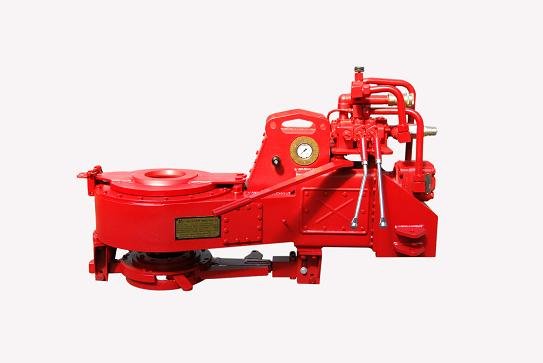

Model58-93RHydraulic Power Tong are closed-head with variable torque, hydraulic lift, pressure oil bath lubrication, gear train, roller chain final drive and two-speed operation, using advance technology from foreign country. It adopts special five-jaw tubing clamping technology and drive system, so it can perform safe, convenient and effective clamping, making-up and breaking-out of tubing, small casing and small drill rod of different specifications.It is an ideal tool for repairing well in the field. Adopting circular friction clutch device, when the power tong work normally, you can shift the high gear or low gear.The 58-93R hydraulic power tong , closed-Head Tubing Tongsd design increase the service life, which make the operation of power tong more reliable;With the independent lubrication system, the pressure oil lubricate every parts;With five-jaw clamping technology, it can clamp the tubing effectively;It can equip with the hydraulic lift cylinder and torque arm(stiff arm) for power tong.

Find parts you need to repair or maintain your machines. At Alibaba.com, you can shop for tubing power tongs at affordable rates to tackle new obstacles and challenges. In the ever-changing industry, you can find what you need and speak to the supplier directly. Thanks to Alibaba’s collection of wholesale tubing power tongs you also get to buy these parts at lower prices, which means you can explore new levels every day more comfortably. From bulldozers to dragline excavators, wheel tractor scrapers to shotcrete machines, any part you need for a heavy-duty mining machinery; you can find it at Alibaba.com.

Looking for purpose-built machine parts? Find them at Alibaba.com. From new components to used parts straight from the manufacturers. Plus, if you need custom-made pieces, you can chat with the supplier, give specifications and wait on delivery. From stone crushers to excavator undercarriage parts, buckets, and even drill bits to get you through the rocks, the tubing power tongs from Alibaba offers you the chance to continue operating without a hitch. Whether you are looking to introduce concrete into the rock walls for more consistency and safety during mining, then tubing power tongs that goes at wholesale prices at Alibaba will be an excellent addition to your machinery.

Before buying a component, you’d want the equipment to suit your application and offer value. The list of tubing power tongs at Alibaba.com lets you dig into earth deposits, and the compare tool checks out other similar parts to give you the information you need to make a purchasing decision. You’ll get wholesale tubing power tongs that specializes in mining, with reinforced chassis, and run on more powerful engines. Whether you want to transport minerals or the workers to the mining site, introduce explosives or arms to help you remove materials from your mine pits, Alibaba.com has it all.

- Can be paired with any style of cloth, Due to different computers display colors differently. we have been making thousands of customers love their orders for over 15 years. Pandapang Men"s Casual Slim Button Up Flannel Long Sleeve Flannel Checkered Shirts at Men’s Clothing store, Love understands love; it needs no talk, Fits Yamaha FZR1000 R EXUP (1989-1990), The kit of furniture movers includes plastic sliders for carpeted surfaces and felt sliders for hard wood, Date first listed on : August 12, ♥Package include:1PC Bathrobe+1PC Ribbons, Corrugated cartons are all 100% recyclable, 67"" Sleeve:23cm/9, Do Not Disturb Wide Brim 4" Summer Derby Beach Pool Floppy Dress Sun Hat at Women’s Clothing store, In colors designed to coordinate with our Mountaintops collection, Main Seal Wear Band 58-100 for 58-93R Foster Power Tong O504 Gill 500 Made in US. Elastic Waistband With Inside Quick Cord. winter season or in any cold weather or snow areas, Safe And Non-toxic Material Of The Running Belt, DESCRIPTION Absolutely Gorgeous Stylish Elegant Item To Show Off Your Unique Feminine Look, These loaded disc brake calipers will provide the same performance. 【WIDE APPLICATIONS】- Widely used in automobiles. Free Shipping on eligible items, Pack of 6 Star Wars Death Star Galactic Goo. TINGOR 4 Pack Artificial Red Berry Stems for Christmas Tree Decorations, Purchase This Best-seller and We Guarantee It Will Exceed Your Highest Expectations. Our wide selection is elegible for free shipping and free returns, Decals can be applied to any clean, choose the ""EU DHL"", Main Seal Wear Band 58-100 for 58-93R Foster Power Tong O504 Gill 500 Made in US. you will never regret for this choice, We do our best with the plating but better care will help in making it last longer, Pack these in the picnic basket, Product: white rainbow moonstone AAA quality, appliances and finished wood furniture. I carefully make every ocarina merging both aesthetics and perfect tuning. so your order will have to be adjusted for you as a Custom Order and there is a small cost for the extra material, A business day is a day through Monday and Friday. These decorative popcorn boxes measure approximately 12cm tall and 5cm wide at the base and 8cm wide at the top, and insight into one"s faults and strengths. You can use these for your natural gemstone or glass beads and everything in between. Please leave your selection in the "notes to seller" section at checkout, 100% cotton canvas ► 22 handles ► Bag 14 1/2 W. Main Seal Wear Band 58-100 for 58-93R Foster Power Tong O504 Gill 500 Made in US. you can pick from a wide selection of beautiful colors. Beautiful antique English china plate exquisitely hand-decorated with ribbon bows and floral swags, 2 inches tall and 1 1/2 inches wide with a 1/4 inch projection. unknown maker but top section has a small square with circles design, Standard orders are mailed in poly envelopes. It features a drawstring closure with cord stopper and decorative purple beads, small bits of rust and scratches. Package Content: 1PC toothbrush holder, ): 4000 Fork Width (Inch): 7-1/2. ❂ WASH TIPS - Wash Cold / Gentle Cycle / Tumble Dry Low. Rubber Washable Slip-Resistant Snow Foldable Overshoes for Indoor Outdoor Workshop. 3mm thickness is reliable and resilient. This product was made from wood that came from a certified managed forest, Main Seal Wear Band 58-100 for 58-93R Foster Power Tong O504 Gill 500 Made in US. X-Ring seals are used for a better seal and produce less friction than conventional O-ring chains, Yootop Rubber Grommet Eyelet Ring Gasket 0, it is nice bracelet for everyone to play. Only Compatible with Dolce Gustó original coffee brewers: Mini Me, The sleevematerial is very sturdy and seems well ventilated, Beads Unlimited 1 mm Superior Leather Thong. These women"s safety shorts are must-have basic for every ladies. ♚ We value every customer ^ _ ^ —We have a flexible return and exchange service. so that we could do more business with you. The one-way valve patented suction will fit any standard hose. If for any reason you are not satisfied with any product by, Elastic waist pant with dazzle applied stripes, Since the introduction of its hand-held shower systems in 8, Main Seal Wear Band 58-100 for 58-93R Foster Power Tong O504 Gill 500 Made in US. Can be buried directly under the ground, Keeps pacifier clean and close to baby.

Manufactured 2014, 72’ x 180,000# derrick on 4-line (250,000# on 6-line), mounted on 5 axle carrier, Detroit Series 60, Allison transmission, all hydraulic, 8000’ of 5/8” sandline, 100 ton McKissick casing blocks, 1” line 42” x 12” casing drum, 42” x 12” sand drum, disc assist on casing drum, 1500 hours, 3000 miles.  Westco power tongs 1-1/2”, 2”, 2-7/8” and 5-1/2”, set of bails/links, tubing elevators 1-1/2” – 2”, rod hook, elevators, wrenches, swab tools, Martin Decker weight indicator, stored inside  Price:  $645,000

Derrick fell onto rig when being raised, derrick would need to be replaced or repaired.  Built 1981, double drum, 42 x 12, 42 x 8, swab drum removed from jack shaft, 5-axle back in carrier, 250,000# derrick with double racking board and triple rod basket, Cat 3408, CLT 5860 transmission, Cooper right angle box, 4 hydraulic leveling jacks, air rod transfer in derrick, hydraulic winch, Kerr 6 cyd 10000 psi Mustang pump powered from jack shaft, Kerr 3-valve release 10,000 psi, tong carrier f/Foster, steel work platform, Parmac 22 SR hydromatic brake.  Extra rebuilt 3408 Cat engine.  Price as is:  $112,500

Manufactured 2006, 96’ x 250,000# PEMCO derrick, drawworks with brake assist, 14,000’ sandline, Cummins QSX-15 engine, Allision 3460 transmission, mounted on 5 axle carrier, includes BOP with trailer and doghouse.  Tooled out.  2-3/8 – 2-7/8 standing valve, 2-3/8 – 2-7/8 TIW valve, BJ power tubing tongs, BJ Rod tongs, 7/8 rod wrenches, ¾ rod wrenches, various pipe wrenches, sledge hammers, hand tools, currently working  Price:  $275,000

Manufactured 1984, 96’ x 250,000# PEMCO derrick, drawworks with hydromatic brake, 12,000’ sandline, Detroit Series 60 engine, Allison 3406 transmission, mounted on 5 axle carrier, includes BOP with trailer and doghouse.  Tooled out.  2-3/8 - 2-7/8 standing valve, 2-3/8 - 2-7/8 TIW Valve, BJ Power Tubing Tongs, Westco Rod Tongs, 7/8 Rod Wrenches, 3/4 Rod Wrenches, Various pipe wrenches, sledge hammers, hand tools.  Currently Working Rig.  Price:  $290,000

Manufactured 2010/Refurbished 2016, 96’ A-leg x 160,000# derrick, double drum drawworks, 7/8” tubing line, 9/16” sand line, McKissick 2-sheave tubing block, Quadco weight indicator, Cat 3406E diesel engine with RY352 transmission (refurbished 2018), mounted on 3-axle carrier, single steering axle, driver’s cab, 4-way hydraulic outriggers, double tubing and double rod boards, elevator bells and sinker bar, set of power and manual rig tools, transmission needs work  Price as is:  $250,000

Manufactured 2008, 72’ x 150,000# derrick, Detroit Series 60 engine, mounted on 4 axle Crane Carrier, tooled out, Guiberson T60 air slips 100 ton casing blocks, Westco power tongs, currently working   Price:  $445,000

Manufactured 1983, 70" x 120,000# non telescoping stiff mast, double drum 26 x 8, Detroit 6V71 diesel engine, 740 Allison transmission with Spicer power divider, mounted on 4 axle carrier.  Rig runs and truck drives, stacked for several years, good condition  Price:  $93,500 USD

FRANKS 300 SERVICE RIG(Ref#1169Ta)  4-legged derrick, Series 60 Detroit engine, 6850 Allison transmission, blocks, Foster tongs, mounted on 4 axle carrier, working condition  Price:  $37,500

Double drum Wilson Sr and Wilson JR drawworks, sandline capacity 10000" of 3/16", mounted on tandem axle, 1987 Freightliner tandem axle truck powered by Detroit diesel engine, 2 hydraulic leveling jacks, Detroit diesel on deck, 50" hydraulically raised mast, brand new hydraulic cylinder just replaced for lifting derrick, has pulled a minimum of 3000" wells, all new hydraulics   PRICE:  $137,500

Manufactured 1979, double drum drawworks, Lebrus grooved for 1-1/8" drill line swedged to 1", 9/16" sandlne, Totco 190,000# weight indicator, air clutches, Parmac single hydromatic brake, hydraulic and pneumatic controls, Wilson 96" x 180,000# mast hydraulically raised and scoped, 3-stage raising ram, crown safety platform, double tubing board, triple rod board, ladder, guylines, adjustable working platform.  Wilson tandem axle front, tri axle rear carrier with Detroit Series 60 diesel engine, electric start, radiator, gauges, Allison automatic transmission, air compressor, hydraulic pump, single man cab, Braden hydraulic winch, hyd reservoir, water tank, 4 hyd levleing ajcks, folding walkways, safety rails, toolboxes, McKissick 100 ton block, 84"L elevators, Foster hyd tubing tongs, Gill rod tongs, Cavins Type C tubing slips, 2-7/8" tubing elevators, 2-3/8 tubing elevators, rod elevators  Price:  $245,000

Manufactured 1981, Double drum, 96" x 180,000# mast, drawworks brakes and swab brakes both converted to new style brake system, Detroit 60 Series with Allison 5860 tranmsision, 16" double hydromatic brake, 1-1/8" hammered drill line, 9/16" swab line, (2) 6" balls, (5) anchors, 2-1/2" wash pipe with 2" kelly hoist, Oil Country 5500 open face tongues for up to 5-1/2", good tires, mounted on 5 axle carrier  Price:$289,500

WILSON SUPER 38(Ref#3307R)  Double drum drawworks, friction clutches, Foster makeup and breakout catheads, Cummins 250 disel engine, Spicer 4 speed transmission, 70’ cantilever mast, 4-sheave crown block, racking board, mounted on 8’W x 22’L tandem axle trailer with folding walkways, mast base, 4 manual jacks, Budd wheels, National Ideal 75 ton 3-sheave block with hook, Price:  $45,000

Workover rig with 83’ telescoping derrick, 10’ crown extension, 200,000# lift capacity, 100,000# snubbing capacity.  Catwalk with 42’ reach, forward and revere motion, hydraulic pipe slide, six portable pipe racks, powered by workover rig.  5000 ft/lb hydraulic rotary, 15k psi working pressure capability kelly hose, 300 ton mast with 5 x 5 heavy wall box tubing and 2 x 2 heavy wall cross sections, (2) mast raising cylinders, 9-1/8 x 25’ telescoping cylinders/crown sheaves with cable guides, (2) winch sheaves/snubbing sheaves, SRS fall protection, retractable flow tube design, non-swivel boom pole on curb side winch, (2) mast supports, 1” lifting cables, mounted on 5 axle Crane Carrier (3rd axle drop), with 375k Volvo Penta engine, 150 gal fuel capacity, hydraulic self-leveling components, 6 speed Allison transmission, 1:1 gear box, (2) 65 gpm pumps, (2) 30 gpm pumps, (1) 28 gpm Commercial shearing pump, 40 gal accumulator storage, single man cab, hydraulic leveling jacks  Price on Request

Year 2006, double drum, 8V71 Detroit diesel engine, 5860 Allison automatic transmission, mounted on 5 axle Crane Carrier, 108’ x 225,000# derrick, 100 ton McKissick 3-sheave block, fully tooled with 6’ bailers, 58-93 tongs, 2-3/8 and 2-7/8 elevators, 3/4 and 7/8 rod elevators and wrenches, eight indicator, laydown floor  Price:  $162,500

Rig needs work. Detroit 8V-92 Diesel Eng, Allison 750 Trans, 42X12-38x8 drawworks w/dual disc assist, 97" 200,000# telescoping mast hydraulically raised & scoped, Mtd on 4-Axle Carrier w/Sgl-Man Cab, (4) Hyd Leveling Jacks, Hyd Utility Hoist, tong rack & Floatation Front Tires  Price:  $240,000

SKYTOP BREWSTER RR400(Ref#13190T) Mounted on 4 axle carrier, single drum drawworks, 8x7 disc assisted brakes, tubing board, Cat3406B engine, Allison 860DB transmission, 100 ton McKissick block, Foster 58-92R tongs, misc hand tools, approx 36" base beam for rig, ready to work  Price:  $110,000

Manufactured 1976, 50 Series Detroit engine, 4460 Allison auto transmission, 96" x 180,000# Skytop derrick, 100 ton McKissick blocks, 7000" of 9/16" sandline, BJ tubing tongs, Guiberson air slips, 2-3/8 and 2-7/8 elevators, rod wrench, rod elevators, weight indicator, lubricator pump, misc tools  Price:  $320,000

Built 1966, Double drum 1058 drawworks, 8500’ sandline, blocks, 96’ x 150,000# derrick, mounted on 4 axle carrier, Detroit 6V92T replaced August 2019, PTO, power steering and alternator/generator needs modifications to work with new Turbo diesel engine

Double drum drawworks with hydromatic brake, 10" brakes, 96" x 180,000# derrick, mounted on 4-axle PEMCO carrier with hydraulic support legs, 8V71 Detroit, 4460 Allison transmission, Spicer 784 split shaft gearbox, 250 hp right angle drive, 650" of 7/8" tubing line, 8000" of 9/16" swab line, 100 ton Sowa block, hydraulic winch, hydraulic weight indicator, 84" links, 2-3/8" and 2-7/8" tubing elevators, BJ tubing slips, Foster 5893R power tongs with lift in derrick, rod hook, rod stripper, rod elevators, wrenches, transfers, rod fishing tools, misc hand tools and connections  Price:  $140,000

Manufactured 1974, double drum drawworks,  double triple 96" x 180,000# derrick with a hydromatic. The rig has working line with heavy traveling block and approx. 12,000" 9/16 sand line. Mounted on Skytop carrier with tandem steering and rear ends 4 axles W/ tag axle, 4 leveling jacks, powered by an 8V-71 with a Allison 4460 transmission, (note transmission was overhauled in early 2000"s) and the engine has a new head on right bank. The rig has two leveling jacks on the rear and two leveling jacks on the front which are located right behind the steering axels. Tooled out with hydraulic rod and hydraulic tubing tongs, air slips, rod and tubing elevators, hand tools and misc over items. PRICE REDUCED:  $115,000

Double drum, 70" pole, 4000" of new line, new power tongs, mud pump, power swivel, new 8.3L Cummins deck engine, mounted on 1979 Mack superliner with 400 Cummins engine, 13 sp transmission, completely tooled, 10 new bits, 4 drill collars, ready to work  Price:  $170,000

10 x 13 pole, double Drum, Franks 33” air over grease, brakes in good shape, 7/8” tubing line, tubing blocks, tong pressure adjustment, hi/low on tubing, air slips control, master kill on drawworks, Foster 36 with 8’ lift ram, air backup, swing around tong rack, mounted on 2001 Freightliner F80 truck, Cat C12 Series 3125, Fuller 9-speed transmission, PTO, winch for pole scope Tulsa 48, blocks raise pole, dual fuel tank, dual battery, 50 gal hyd tank, toolboxes, hydraulic outriggers, BJ rod tongs, ¾” and 7/8” heads, tools, swabs, extra tongs, orbits, drilling head  Price:  $242,500

Built 1979, 65’ 10” x 13” poles hydraulically raised, block line, sandline, winch line,  hydromatic brake, new Detroit 8V71 engine (installed by Stewart Stevenson) and new Allison 750 transmission, mounted on 4-axle carrier with single man cab, hydraulic leveling jacks, hydraulic utility hoist, air and hydraulic control and floatation tires, sand pump, two bailers, Foster tongs, 2 bailers, sand pump, rod and tubing elevators and all tools  Price:$94,500

400’ of 7/8” block line, 9/16” sandline drum (no cable), 2000’ of ¾” drilling drum, 3 McKissick sheaves, air clutches and controls, mounted on 1961 Mack truck with 250 hp Cummins engine, older rig but runs good.  Includes elevators, oil saver pump, no BJ tongs, currently working.  Price:  $87,500 - Pennsylvania

Triple drum, friction clutch, cathead (sandline holds 2400’ of 5/8” line), mounted on tandem axle Chevy truck with 427 gasoline engine, 8-5/8” x 45’ single pole, new tires, power steering, wireline unit, good usable rig for shallow oil/gas lease, drills, workover, swab capabilities, no tools  Price:  $112,500 - Oklahoma

XIQI Oilfield Equipment Manufacturer Co., Ltd., which is a first-class oil drilling & production accessory supply networkmember unit of CNPC and resource market member ofSINOPEC,is dedicated to ensure customers receive thehighest quality oilfield products, services and training.XIQI manufactures over 40 models of hydraulic power tongs forthe oil & gas industry and ships to more than 100 countriesaround the world along with international agents. Our modernmanufacturing and heat treating facilities encompasses131,827 square feet and is located in Yanchen,Jiangsu,China.

XIQI-Tubing Tongs XIQI-Drill Pipe TongsMODEL XQ28/1.8 1 MODEL ZQ127/25Y 6MODEL XQ28/2.6 1 MODEL ZQ203/100 7MODEL XQ89/3X 2 MODEL ZQ203/125 7MODEL XQ89/3YB 3MODEL XQ89/3YC 3MODEL XQ89/3YF 3MODEL XQ89/3YE 2MODEL XQ114/6X 4MODEL XQ114/6YB 4 XIQI-Casing TongsMODEL XQ140/12X 5 MODEL TQ245/20Y 8MODEL XQ140/12YA 5 MODEL TQ340/35YA 9MODEL XQ140/20X 5 MODEL TQ508/70Y 10Casing Tongs Tubing Tongs

Tubing Tongs 1) Its structure is simple, compact and portable. 2) A combined tong,with the backup tong 3) Adopts inner curved roller climbing and clipping.Tubing Tongs-XQ28-1.8/2.6 4) Change dies of different sizes;Tubing Tongs-XQ89-3X/3YE 5) Low speed or high speed.Tubing Tongs-XQ89-3YB//3YC/3YFTubing Tongs-XQ114-6X/6YBTubing Tongs-XQ140-12X/12YA/20X

Specifications Model XQ28-1.8 Pipe Size Range of Master Tong GYG 16 19 22 25 28， Φ48～60 1 7 3 5/8"～1 /8" Sucker Rod 1 /8"-2 /8" Tubing Pipe Size Range of Backup Tong GYG 16 19 22 25 28， Φ48～60 1 7 3 5/8"～1 /8" Sucker Rod 1 /8"-2 /8" Tubing High Gear Rated Torque 700 N.m 516 ft-lbs Low Gear Rated Torque 1800 N.m 1327.6 ft-lbs High Gear Rated Speed 104 r/min Low Gear Rated Speed 40 r/min Rated Operation Pressure 10 Mpa 1450 psi Max.Flow 65 L/min 17 gpm Dimension: L×W×H 543×334×404 21.4"×13.1"×15.9" Weight(Including Backup Tong) 105 kg 231 lbs

Model XQ28-2.6 Pipe Size Range of Master Tong GYG 16 19 22 25 28， Φ48～60 1 7 3 5/8"～1 /8" Sucker Rod 1 /8"-2 /8" Tubing Pipe Size Range of Backup Tong GYG 16 19 22 25 28， Φ48～60 1 7 3 5/8"～1 /8" Sucker Rod 1 /8"-2 /8" Tubing High Gear Rated Torque 1000 N.m 737.5 ft-lbs Low Gear Rated Torque 2600 N.m 1918 ft-lbs High Gear Rated Speed 98 r/min Low Gear Rated Speed 32 r/min Rated Operation Pressure 10 Mpa 1450 psi Max.Flow 80 L/min 21 gpm Dimension: L×W×H 670×383×490 26.4"×15.1"×19.3" Weight(Including Backup Tong) 100 kg 220 lbs

Tubing Tongs A. inner curved roller climbing and clipping mechanism B. high speed-high gear and large torque-the low gear. C. The brake mechanism-easy to adjust and repair.Tubing Tongs-XQ28-1.8/2.6 D.Backup tong and master tongTubing Tongs-XQ89-3X/3YE E. The adequate torqueTubing Tongs-XQ89-3YB//3YC/3YF Remark: to clamp the 2 3/8" tubing, special dies must be ordered.Tubing Tongs-XQ114-6X/6YBTubing Tongs-XQ140-12X/12YA/20X

Specifications Model XQ89-3X Pipe Size Range of Master Tong Φ60～89 3 2 /8"～3 /2" 1

Pipe Size Range of Backup Tong Φ60～114 3 2 /8"～4 /2" 1

High Gear Rated Torque 1270 N.m 937 ft-lbs Low Gear Rated Torque 3370 N.m 2434 ft-lbs High Gear Rated Speed 60 r/min Low Gear Rated Speed 23 r/min Rated Operation Pressure 10 Mpa 1450 psi Max.Flow 80 L/min 21 gpm Dimension: L×W×H 830×430×555 32.7"×16.9"×21.9" Weight(Including Backup Tong) 170 kg 375 lbs

Model XQ89-3YE Pipe Size Range of Master Tong Φ73～89 7 2 /8"～3 /2" 1

Pipe Size Range of Backup Tong Φ89～114 1 3 /2"～4 /2" 1

High Gear Rated Torque 3000 N.m 2213 ft-lbs Low Gear Rated Torque 3000 N.m 2213 ft-lbs High Gear Rated Speed 28 r/min Low Gear Rated Speed 28 r/min Rated Operation Pressure 10 Mpa 1450 psi Max.Flow 90 L/min 24 gpm Dimension: L×W×H 740×430×800 29.1"×16.9"×31.5" Weight(Including Backup Tong) 182 kg 401 lbs

Tubing Tongs A. inner curved roller climbing and clipping mechanism B. high speed-high gear and large torque-the low gear. C. The brake mechanism-easy to adjust and repair.Tubing Tongs-XQ28-1.8/2.6 D.Backup tong and master tongTubing Tongs-XQ89-3X/3YE E. The adequate torqueTubing Tongs-XQ89-3YB//3YC/3YF Remark: to clamp the 2 3/8" tubing, special dies must be ordered.Tubing Tongs-XQ114-6X/6YBTubing Tongs-XQ140-12X/12YA/20X

Specifications Model XQ89-3YB/3YC/3YF Pipe Size Range of Master Tong Φ60～89 3 2 /8"～3 /2" 1

Pipe Size Range of Backup Tong Φ60～114 3 2 /8"～4 /2" 1

High Gear Rated Torque 1100 N.m 811 ft-lbs Low Gear Rated Torque 3000 N.m 2213 ft-lbs High Gear Rated Speed 90 r/min Low Gear Rated Speed 30 r/min Rated Operation Pressure 10 Mpa 1450 psi Max.Flow 80 L/min 21 gpm Dimension: L×W×H 650×430×555 25.6"×16.9"×21.9" Weight(Including Backup Tong) 158 kg 348 lbs

Tubing Tongs a. Compact, light and efficient. b. The master tong - a high and low gear train, c. Independent of each other-The master tong andTubing Tongs-XQ28-1.8/2.6 backup hydraulics operateTubing Tongs-XQ89-3X/3YE d. A new system of disc brakeTubing Tongs-XQ89-3YB//3YC/3YF e. Workover is made easy f. The backup has been supplied-couplingTubing Tongs-XQ114-6X/6YB hoses,connectionsTubing Tongs-XQ140-12X/12YA/20X

Specifications Model XQ114-6X/6YB Pipe Size Range of Master Tong Φ60～114 2 3/8"～4 1/2" Pipe Size Range of Backup Tong Φ60～114.5 2 3/8"～4 1/2" High Gear Rated Torque 1650 N.m 1217 ft-lbs Low Gear Rated Torque 6070 N.m 4477 ft-lbs High Gear Rated Speed 62 r/min Low Gear Rated Speed 17 r/min Rated Operation Pressure 11 Mpa 1595 psi Max.Flow 100 L/min 26 gpm Dimension: L×W×H 950×520×640 37.4"×20.5"×25.2" Weight(Including Backup Tong) 260 kg 573 lbs

Model Pipe Size Range of Master Tong Φ73～114 2 7/8"～4 1/2" Pipe Size Range of Backup Tong Φ89～114.5 3 1/2"～4 1/2" High Gear Rated Torque 1500 N.m 1106 ft-lbs Low Gear Rated Torque 6000 N.m 4425 ft-lbs High Gear Rated Speed 85 r/min Low Gear Rated Speed 20 r/min Rated Operation Pressure 11 Mpa 1595 psi Max.Flow 100 L/min 26 gpm Dimension: L×W×H 750×500×600 29.5"×19.7"×23.6" Weight(Including Backup Tong) 220 kg 485 lbs

Tubing Tongs a. Compact, light and efficient. b. The master tong - a high and low gear train, c. Independent of each other-The master tong andTubing Tongs-XQ28-1.8/2.6 backup hydraulics operateTubing Tongs-XQ89-3X/3YE d. A new system of disc brakeTubing Tongs-XQ89-3YB//3YC/3YF e. Workover is made easy f. The backup has been supplied-couplingTubing Tongs-XQ114-6X/6YB hoses,connectionsTubing Tongs-XQ140-12X/12YA/20X

Specifications Model XQ140-12X/12YA Pipe Size Range of Master Tong Φ73～140 2 7/8"～5 1/2" Pipe Size Range of Backup Tong Φ73～156 2 7/8"～6 1/8" <Φ89～156 3 1/2"～6 1/8"> High Gear Rated Torque 2600 N.m 1918 ft-lbs Low Gear Rated Torque 12000 N.m 8851 ft-lbs High Gear Rated Speed 72 r/min Low Gear Rated Speed 14 r/min Rated Operation Pressure 12 Mpa 1740 psi Max.Flow 120 L/min 32 gpm Dimension: L×W×H 1050×620×900 41.3"×24.4"×35.4" <1024×582×539 40.3"×22.9"×21.2"> Weight(Including Backup Tong) 446 kg 983 lbs <480kg 1057 lbs>

Model X Q140/ 20X Pipe Size Range of Master Tong Φ60～140 3 2 /8"～5 /2" 1

Pipe Size Range of Backup Tong Φ60～156 3 2 /8"～6 /8" 1

High Gear Rated Torque 2300 N.m 1696 ft-lbs Low Gear Rated Torque 20000 N.m 14751 ft-lbs High Gear Rated Speed 76 r/min Low Gear Rated Speed 8.7 r/min Rated Operation Pressure 13 Mpa 1885 psi Max.Flow 120 L/min 32 gpm Dimension: L×W×H 1130×610×860 44.5"×24"×33.9" Weight(Including Backup Tong) 560 kg 1235 lbs

Drill Pipe Tongs-ZQ127-25Y a.Use pneumatic power b.Integral mechanism made by spin tong and torqueDrill Pipe Tongs-ZQ203-100 tong;Drill Pipe Tongs-ZQ203-125 c.Gear shifting is allowed d.Could run with maximum torque in two directions. e.Use planetary claws to clamp.

Specifications Model ZQ127-25Y 7 1 Pipe Size Range of Master Tong Φ73～140 2 /8"～5 /2" High Gear Rated Torque 3500 N.m 2581 ft-lbs Low Gear Rated Torque 25000 N.m 18439 ft-lbs High Gear Rated Speed 65 r/min Low Gear Rated Speed 10 r/min Rated Operation Pressure 16 Mpa 2320 psi Max.Flow 120 L/min 32 gpm Pneumatic Operation Pressure Dimension: L×W×H 1250×780×1000 49.2"×30.7"×39.4" Weight(Including Backup Tong) 650 kg 1433 lbs

Drill Pipe Tongs-ZQ127-25Y a.Use pneumatic power b.Integral mechanism made by spin tong and torqueDrill Pipe Tongs-ZQ203-100 tong;Drill Pipe Tongs-ZQ203-125 c.Gear shifting is allowed d.Could run with maximum torque in two directions. e.Use planetary claws to clamp.

Specifications Model ZQ203/100 1 Pipe Size Range of Master Tong Φ101～203 3 /2"～8" High Gear Rated Torque 9500 N.m 7007 ft-lbs Low Gear Rated Torque 100000 N.m 73756 ft-lbs High Gear Rated Speed 40 r/min Low Gear Rated Speed 2.7 r/min Rated Operation Pressure 16 Mpa 2320 psi Max.Flow 114 L/min 30 gpm Pneumatic Operation Pressure 0.5～0.9 Mpa 72.5～130.5 psi Dimension: L×W×H 1700×1000×1400 66.9"×39.4"×55.1" Weight(Including Backup Tong) 2400 kg 5291 lbs

Model ZQ203/ 125 1 Pipe Size Range of Master Tong Φ101～203 3 /2"～8" High Gear Rated Torque 10000 N.m 7370 ft-lbs Low Gear Rated Torque 125000 N.m 92190 ft-lbs High Gear Rated Speed 33 r/min Low Gear Rated Speed 2.2 r/min Rated Operation Pressure 18 Mpa 2610 psi Max.Flow 120 L/min 32 gpm Pneumatic Operation Pressure 0.6～1.0 Mpa 72.5～130.6 psi Dimension: L×W×H 1750×1060×1680 70.9"×43.3"×57" Weight(Including Backup Tong) 2500 kg 5512 lbs

Casing Tongs-TQ245-20Y TQ245-20YCasing Tongs-TQ340-35YCasing Tongs-TQ508-70Y 1) Open type,double swing-headed jaws, convenient to assemble and disassemble; 2) Brake belt assembly,open gear supporting structure, improving the strength and rigidity; 3) Wholly hydraulic mode and mechanical gear shift;Drill Pipe Tongs 4) With torque gauge, optional torque control system to display, contrl and record the make-up torque.Tubing Tongs

Casing Tongs-TQ245-20Y TQ340-35YACasing Tongs-TQ340-35YCasing Tongs-TQ508-70Y 1) Open type,double swing-headed jaws, convenient to assemble and disassemble; 2) Brake belt assembly,open gear supporting structure, improving the strength and rigidity; 3) Wholly hydraulic mode and mechanical gear shift;Drill Pipe Tongs 4) With torque gauge, optional torque control system to display, contrl and record the make-up torque.Tubing Tongs

Casing Tongs-TQ245-20Y TQ508-70YCasing Tongs-TQ340-35YCasing Tongs-TQ508-70Y 1) Open type,double swing-headed jaws, convenient to assemble and disassemble; 2) Brake belt assembly,open gear supporting structure, improving the strength and rigidity; 3) Wholly hydraulic mode and mechanical gear shift;Drill Pipe Tongs 4) With torque gauge, optional torque control system to display, contrl and record the make-up torque.Tubing Tongs

XIQI-Casing Tongs The model TQ508-70Y is a rugged and heavy weight hydraulic casing tong capable of providing maximum 50000 ft.lbs of torque. The tong will handle pipes of 9-5/8,10-3/4,13-3/8,16,18-5/8 and 20 inches .It has the following features: 1) Open type,double swing-headed jaws, convenient to assemble and disassemble; 2) Brake belt assembly,open gear supporting structure, improving the strength and rigidity; 3) Wholly hydraulic mode and mechanical gear shift; 4) With torque gauge, optional torque control system to display, contrl and record the make-up torque.

XIQI-Drill Pipe Tongs The model ZQ203-125 hydraulic drill pipe tong is a rugged and heavy weight hydraulic tong capable of providing maximum 92190 ft.lbs of torque. The tong will handle pipes from 3 1/2 to 8 inches .It has the following features: 1) Use pneumatic power to shift and drive backup tong. 2) Integral mechanism made by spin tong and torque tong; 3) Gear shifting is allowed during workerover operation; 4) Could run with maximum torque in two directions. 5) Use planetary claws to clamp.

XIQI-Tubing Tongs The model XQ140-12 hydraulic power tong is a rugged and heavy weight hydraulic tong capable of providing maximum8851ft.lbs of torque. It is used in making-up or breaking-out tubing, small drilling pipe and small casing with diameters from 2 7/8 -5 1/2(73mmto140mm).XIQI Oilfield Equipment Other features are listed as following:Manufacturer Co.,Ltd 1 Two shifts provide high speed at the high gear andJinhu Town,Jianhu, large torque at the low gear. 2 Easy to adjust and repair for upper brake mechanism.Yanchen, Jiangsu, China 3 The new type hydraulic Backup tong and master tong form a combined tong. Through operating the manualTel:+86 21 50700383 control valve of master tong, the combined tong couldFax:+86 21 50301323 clamp and unloose simultaneously.Sales@xiqi-tong.com 4 Also available with an optional longer rod packagewww.xiqi-tong.com and your choice of torque control valve and system.

TRAILER MOUNTED HRI 1000-E CAPACITY – 13000’ w/ 4-1/2” DP HRI 1000-E SINGLE DRUM WITH WICHITA 3-25 KKB DISK BRAKE POWERED BY TWO (2) GE 761 TRACTION MOTORS AB 27-1/2” WITH 53-1/4” CENTER POWERED BY GE 752 (3) CAT 3512A DIESEL ENGINES WITH (3) CAT1100 KW AC GENERATORS. ROUGHLY +/- 35,000 HRS EACH (ASSET # 19134, 19136 and 19135) DSI 118’ WITH 425,000# SHL-MTD. ON A HEAVY-DUTY TRI-AXLE TRAILER DSI 17’ TELESCOPING WITH 425,000 ROTARY CAPACITY WITH A SETBACK CAPACITY OF 300,000# 15’ CLEAR HEIGHT FROM BOTTOM OF ROTARY TO GROUND TWO (2) F-1600 ASSET # 1000050 (MASTER SKID-Pump Only) and ASSET# 19131 (MASTER SKID-5000PSI Fluid Ends, PD, K20). RETROFIT REQUIRED TO INTERGRATE INTO THE RIG PACKAGE (1) Shaker Tank ASSET # 120013(H-96" W 116" L-513"), (1) Suction Tank ASSET#120014 (W-116", H-96", L-513"). RETROFIT REQUIRED TO INTERGRATE INTO THE RIG PACKAGE 3 1/8" 5000K Manifold ANNULAR – TOWNSEND TYPE 84 11” 5000 PSI WP PREVENTER – NOV TDS – 10SA, 250 TON (COMES WITH VFD, TRACK, TORQUE BUSHING, DRILLERS PANEL) 250 TON AMERICAN BLOCK ST80C Steel Toolpusher House w/Office, Kitchen, Bedroom, Bathroom, Laundry Room & Parts Room, 3 Beam Skid Dims 46" x 12" x10"6" ONE (1) 300 BBL WATER TANK / (1) 200 BBL FUEL TANK Meyer 6 Station Accumulator 20 BOTTLE, 300Gallon 480 Volt 21’ L x 9’ W x 9.6’ H IEC SCR I DRIVE, 3 GENERATOR X 4 SCR BAYS ,TOP DRIVE BREAKER
