To buy a wholesale sucker rod tong from China for your personal use or resale, visit Alibaba.com for great varieties and deals. Here, you can compare the available products and order the one that most fits your needs.

Heavy mining machinery tends to wear and tear during operation, calling for replacement, repairs, and upgrades. If it is such a time, then the collection of sucker rod tong at Alibaba.com should be an excellent place to start. From high precision machines to hydraulics and gears, Alibcom connects you with sellers that offer suction rod tong for excavating, processing, and transporting minerals and other geological materials. If you want to drill a water well or find some copper, then collection s suckerrod tong are suitable for you.

Looking for purpose-built machine parts? Find them at Alibaba.com. From new components to used parts straight from the manufacturers. Plus, if you need custom-made pieces, you can chat with the supplier, give specifications and wait on delivery. From stone crushers to excavator undercarriage parts, buckets, and even drill bits to get you through the rocks, the sucker rod tong from Alibaba offers you the chance to continue operating without a hitch. Whether you are looking to introduce concrete into the rock walls for more consistency and safety during mining, then sucker rod tong that goes at wholesale prices at Alibaba will be an excellent addition to your machinery.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

Tongs - Power - BJ sucker rod tong adopts advanced sucker rod or tubing technology and has a compact structure, high reliability and is safe and convenient to operate.

Tongs - Power - New Carter Tool Co. Inc., CT93R Hydraulic powered tubing tong. Complete with 2-3/8" to 3-1/2" jaw assemblies, standard motor, torque gauge assembly, pressure relief valve... More Info

Tongs - Power - New Carter Tool Co., Inc. 5-1/2" CTSX Hydraulic Tubing Tong with heavy case and cover; complete with rigid hanger assy., suspension spring assy., front end control assy.,... More Info

Tongs - Power - New Carter Tool Co. Inc. M-Series power sucker rod tongs, complete with spring hanger assy., gate assy., front end control assy., pressure gauge assy., two 90 degree XH s... More Info

Tongs - Power - New Carter Tool Co., Inc. 4-1/2" RSX Hydraulic Tubing Tong with heavy case and cover; complete with rigid hanger assy., suspension spring assy., front end control assy., ... More Info

Tongs - Power - D D 58-93-2-R Power Tubing Tong is smaller, lighter, and faster than the Foster 5893R. The D D 58-93-2-R Tong is capable of gripping tubulars from 1 5/16" to 7" o.d. More Info

Tongs - Power - FARR TONG MODEL KT 14,000 RINEER GA37 MOTOR, LIFT VALVE ASSEMBLY TORQUE CAPACITY: 50,000 FT/LB SIZE RANGE 4 1.2-14 WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN ... More Info

Tongs - Power - FARR TONG MODEL KT20,000 STAFFA 080 MOTOR, LIFT VALVE ASSEMBLY TORQUE CAPACITY: 50,000 FT/LB SIZE RANGE: 7-20 MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READ... More Info

Tongs - Power - FARR MODEL KT5500 HYDRAULIC TUBING TONG C/W 2 SPEED RINEER MOTOR, SIZE RANGE: 2-3/8 IN. - 5-1/2 IN. OD, TORQUE RTED: 18,700 FT/LB C/W SAFETY DOOR MOST SIZES OF FARR POWER... More Info

Tongs - Power - FARR TONG MODEL KT5500 TORQUE CAPACITY: 18000 FT/LB SIZE RANGE: 2 1/16-5 1/2 OD WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READY FOR IMMEDIA... More Info

Tongs - Power - FARR TONG MODEL KT5500 5 1/2 IN. TONG TORQUE CAPACITY: 18,000 FT/LB SIZE RANGE: 2 1/16-5 1/2 IN. OD, RINEER 15-13 MOTOR, HIGH TORQUE CLINCHER BACKUP TRIPLE VALVE ASSEMBLY... More Info

Tongs - Power - FARR TONG MODEL KT7585 TORQUE CAPACITY: 25000 FT/LB SIZE RANGE: 2 1/16-8 5/8 OD WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READY FOR IMMEDIA... More Info

Tongs - Power - FARR TONG MODEL KT7585 8 5/8 IN. TONG TORQUE CAPACITY 25,000 FT/LB SIZE RANGE: 2 1/16-8 5/8 IN. OD, RINEER 15-15 MOTOR CLINCHER BACKUP, TRIPLE VALVE MOST SIZES OF FARR PO... More Info

Tongs - Power - FARR TONG MODEL LW9625 TORQUE CAPACITY 12000 FT/LB SIZE RANGE 2 7/8 -9 5/8 OD WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READY FOR IMMEDIATE... More Info

Tongs - Power - Farrs newest tubular connection tool offers a significantly reduced rig footprint, while continuing to deliver power & uncompromising reliability. The simple design drast... More Info

Tongs - Power - Farr Canada"s newest tubular connection tool offers a significantly reduced rig footprint, while continuing to deliver power and uncompromising reliability. The simple de... More Info

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller"s listing for full details.See all condition definitionsopens in a new window or tab

●The structure is compact ,concise and light. Master tong is driven by low speed large torque hydraulic motor which matching with manual control valve. The backup tong just like a spanner.

●The operating is briefness and convenience with die. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong , turning the reset knob in correct direction then can make up and break out sucker rod by operating manual control valve. Two speed, snapping at low speed, spinning at high speed.

MOT"s Hydraulic Power Tongs are used for running or pulling tubular strings during well repair, workover, snubbing, drilling and casing operations to extract oil and gas from wells. MOT’s

Our TEDA Style power tongs apply correct, uniform torque, reducing costly rod and tubing failures, delivering ample power to make up and break out rods and tubulars from 5/8” rod to 5-1/2” casing. Our series of XQ power tongs come with Bi-Directional jaw systems that save time and enhance safety, and go from make to break with the flip of a knob.

Tongs offer a variety of upgrades from our standard XQ series of TEDA Style models featuring Eaton hydraulic motors for extra torque and reliability, two or three spool directional control valves for more efficient hydraulic operations, and modified structures for higher strength, durability and adaptability to specific job requirements.

Are available from 5-1/2” to 20” pipe and are able to handle both API Standard and PREMIUM (Proprietary Steel Grade) casing connections which require higher torque. Available in a variety of models with hydraulic back-up tongs optional: “KMA", “KHT”, “TQ", “KJD”, “KD” and SE 16-25 with torques ranging from 15,000 ft-lbs up to 55,000 ft-lbs.

Are designed for quick and safe making up and breaking out of drill pipe and drill collars. Our “ZQ” series of hydraulic power drill pipe tongs are widely used in oil and gas drilling, in land and offshore operations around the world. The integrated torque tong and bucking tong eliminate the need for manual tongs and spinning chains, able to handle pipe from2-3/8” up to 8” drill collars, providing torques of up to 92,000 Lbs-Ft.

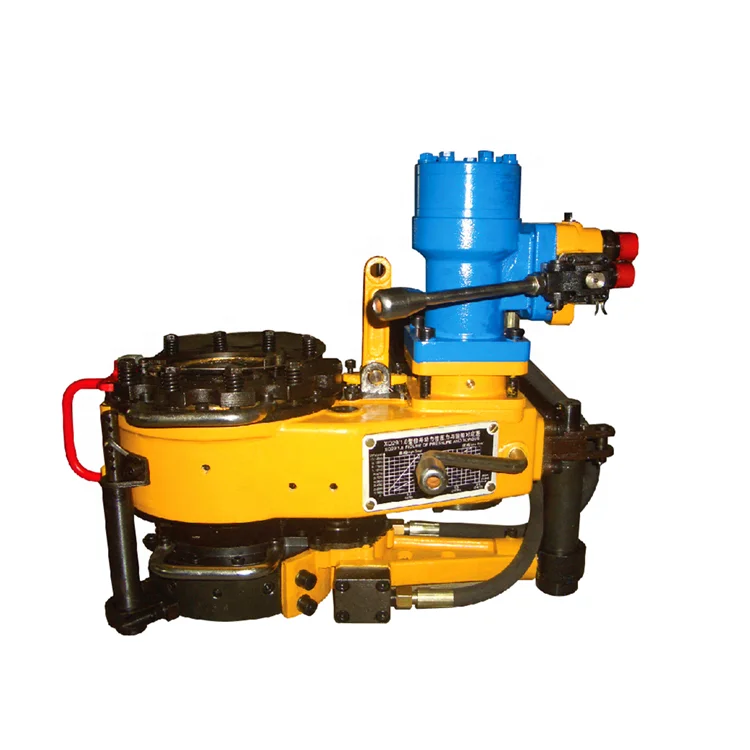

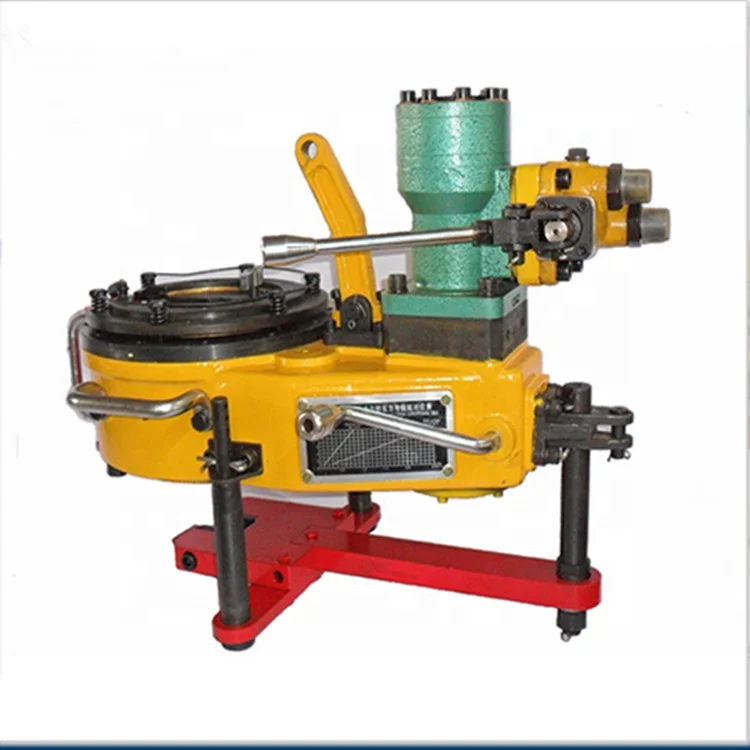

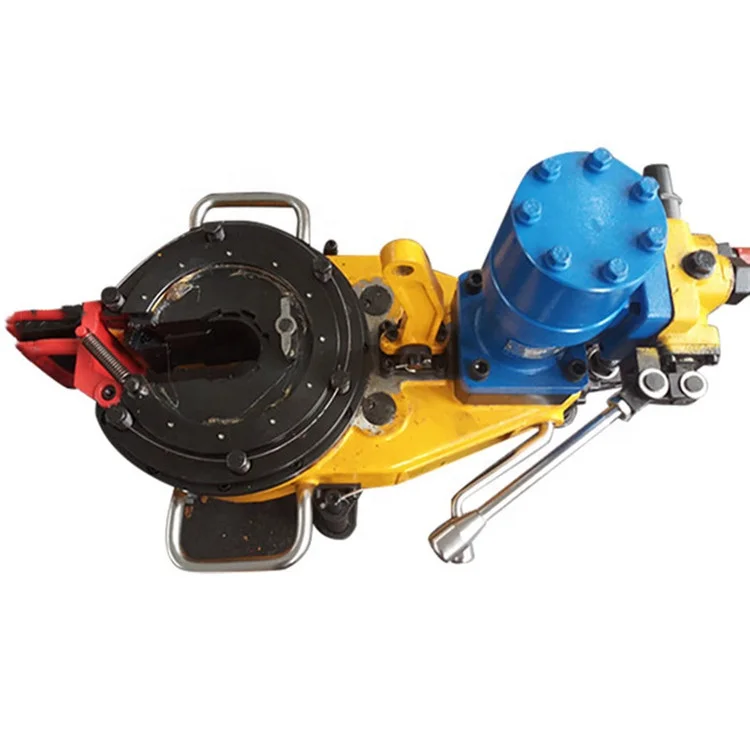

Model XQ29 series workover power tongs are extra-light hydraulic power tongs usedspecially to making up and breaking out sucker rod in well service. They are adopted the advanced steering control mechanism and sucker rod clamping technology, which have the characteristics of simple structure, reliable performance, long service life, smooth running and low noise. They are mainly used to make up and break out the sizes of CYG16 ( 5/8″), 19( 3/4″), 22( 7/8″), 25(1″), 29(1 1/8 ″)mm

Limitations : For products shipped internationally, please note that any manufacturer warranty may not be valid; manufacturer service options may not be available; product manuals, instructions, and safety warnings may not be in destination country languages; the products (and accompanying materials) may not be designed in accordance with destination country standards, specifications, and labeling requirements; and the products may not conform to destination country voltage and other electrical standards (requiring use of an adapter or converter if appropriate). The recipient is responsible for assuring that the product can be lawfully imported to the destination country. When ordering from Ubuy or its affiliates, the recipient is the importer of record and must comply with all laws and regulations of the destination country.

Model YQ127B-8Y hydraulic power tongs are closed-faced with variable torque, hydraulic lift, Pressure oil bath lubrication, hardened internal gears, roller chain final drive and two-speed operation. Because they are closed–faced, Model YQ127B-8Y hydraulic power tongs stay on the pipe all the way up. You save time because you don’t have to remove and replace the tongs on the pipe after each joint is pulled. Every joint is gripped with a uniform, predetermined torque between 0.41～8.13kN.m (300～6000 ft. lbs), which is controlled by setting the pressure relief valve.

　　Double multiple hardened disc friction clutches drive the two-speed models and can be shifted from high to low gear without stopping or meshing teeth. Model YQ127B-8Y hydraulic power tongs are available from stock to handle 23/8″through 31/2″ O.D. tubing.

1.Summary………………………………………………………………………………………12.Technical Specification………………………………………………………………………..13.Installation……..………………………………………………………………….………………14.Hydraulic Circuit……….…………………………………………………………………………25.Operation Explanation………..……………………………………………………….…………..36.Maintenance and Lubrication………………..……………………………………..……………..37.Parts easy to be worn…………….………………………………………………………………..48.Troubles and Troubleshooting………..……………………………………….…………………..49.Illustration and Parts Table………...…………………………………………….………………..59.1.Assembly and parts table……………………………………………………………………………………69.2.Master tong and parts table…………………………………………………………………………………….79.3.Shell accessory and parts table…………………...………………………………………………………..89.4.Tong head assembly and parts table…………………………………………………………………………109.5.Braking and centralizing mechanism and parts table…………………………………………………………129.6.Transmission mechanism and parts table……………………………………………………………………149.7.Hand control valve and parts table……………………..……………………………………………………..169.8.Shifting mechanism assembly and parts table…...……………………………………………………………189.9.Safety assembly and parts table………………………………………………………………………………199.10.Backup tong and parts table….…..………………………………………………………………………….209.11.Backup tong head assembly and parts table………...……………………………………………………….219.12.Tong tail oil cylinder assembly and parts table……...………………………………………...…………….239.13.Fore guide pole and parts table…………...………………………………………………………..………..259.14.Rear guide pole and parts table………..………………………………………………………….….……259.15.Lift assembly……………………………………………………………………………………………..2610.Trucking,storageand and after service………………………………………………………….27 Model XQ29/1.8B Power Tong Manual YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD

1. SummaryModel XQ29/1.8B Hydraulic power tong is an opening type power tong, which is used to make up and break outsucker rod’s joint casing thread in well service. It has following features:●The master tong is driven by low speed large torque hydraulic oil motor, control valve matches oil motordirectly, its structure is simple, compact and portable.●The new hydraulic backup tong and the master tong form a combined tong, operate the control valve on themaster tong, the backup tong will automatically clip or simultaneously loosen the sucker rod joint.●The method that both master tong and backup tong use are inner curved roller climbing and bi-directionclipping mechanism. It just needs to change the direction of knob on master tong and backup tong whenclipping.●Change dies of different sizes, it can clip sucker rod’s joint or tubing of corresponding specification.●The tong has two speeds. It works with high efficiency when jerking and spinning at low speed or high speed.

2 .Technical Parameter● Application range Sucker Rod CYG16, 19, 22, 25, 29 Tubing OD 48-60 mm (5/8″~1 1/8″)●High gear rated torque 0.7kN.m (500ft.lbs)●Low gear rated torque 1.8 kN.m (1300ft.lbs)●Maximum speed at high gear 104RPM●Maximum speed at low gear 40RPM●Opening dimension of Tong head 63mm (2.5″)●Overall dimension of Combined Tong(L×W×H) 543×334×404mm (21.4″×13.1″×15.9″)●Weight 105kg (230lbs)●Rated system pressure 10MPa (1450PSI）●Maximum oil supply 65L/min (17GPM）

3. Installation1) Hanging. Connect mechanical lift(1.8DT.0) and master tong’s suspension rod. Hang the power tong on the master of work over rig. The suspension pulley should be above the ground more than 15m. Under free hanging, power tong head’s center is about 0.5m above the well center. Hanging height is the best when die pieces face sucker rod’s square section under the coupling. Adjusting the distance between master tong and backup tong so that die pieces face sucker rod’ square section above the coupling.

2) Adjustment. Adjust the screw(1.8.Z-33and1.8.Z-46 ） so that power tong keep horizontal. If it is not horizontal, the clipping will be in failure.

3) Other end should be tied to on the back guide arm seat(1.8.Z-32)of the power tong. The back guy should be able to bear one ton loads and be opposite to the operator and keep vertical with power tong. Put up back guy in case there is an emergency in clipping sucker rod or tubing. It is also for the safety of the operator who usually stands beside the operation handle.

4 .Hydraulic CircuitAs shown in the drawing 1, control valve (3) control the changing of direction of the oil motor and at the sametime it controls the changing of direction of backup tong. Rack plunger oil cylinder(2) of backup tong is used todrive backup tong to clip rod string. Oil motor(1) is used to drive mater tong head to make up or break our rod ortubing string. Pressure gauge(4) shows systematic pressure and it shows the torque of power tong indirectly atthe same time. Pressure and torque has corresponding relation shown in Drawing 2. Line A in the drawing showslow speed torque valve while line B stands for high speed torque valve.

5. Operation1) Operation of shifting Operation control valve to make the power tong rotate slightly. Press shift fork , it engages high speed. Pull shift fork up, it engages low speed. Shift must be carried out when power tong rotates in low speed avoiding damaging gears.2) Make up When the opening of master tong and backup tong’s head align properly, turn the rest knob (1.8.Z.1-16) on power tong and reset knob (1.8.B-2) on backup tong to the direction of makeup. Push power tong to suck rod or tubing string. When master tong and jaw set of backup tong face the square section of joint or tubing, it is ready for making up. When makeup is finished, operate power tong to rotate in reverse direction until the opening of master tong and backup tong align properly. Pull power tong away from rod or tubing string, then makeup is over.

3) Break out When the opening of master tong and backup tong align properly, turn reset knob(1.8.Z.1-16) on master tong and reset knob(1.8.B-2) on the backup tong to the direction of breakout. Push power tong to sucker rod string. When master tong and jaw set of backup tong face the square section of joint, it is ready for breaking out. When breakout is finished, operate power tong rotate in reverse direction until the opening of master tong and backup tong head align properly. Pull power tong away from rod string, then breakout is over.

4) Change Die Pieces Push the jaw sets (1.8.Z.1-2)on master tong and backup tong to the center of tong head. Die pieces expose， takedown the retaining pin(1.8.Z.1-5) .It is ready to take out die pieces and change them.

6. Maintenance and Lubrication●After every transportation, it is necessary to wash master tong and backup tong with kerosene or diesel oil andinject grease to oil cups (see part no(1.8.Z-16)) of machine body, jaw set and jaw set bracket on master tong andbackup tong, the surface of open gears.Every three months in work, remove the cover plate(1.8.Z-45) and inject lubrication grease to gears’ surfaces.●After every use, clear water and oil dust in tong immediately and keep the equipment clean.●After every use in well service, it is necessary to inject lubricating grease to every rotary pin shaft.●Do not use vapor to clear tong in case the inner part loses oil or water enters into the inner part which maycause damage to parts.●The temperature of hydraulic oil should not be over 65℃. The over heat will make the seal of hydraulicpressure system out of order.●Hydraulic oil must be kept clean and filter must be cleaned regularly. If the hydraulic oil has been dirty, it mustbe changed without delay.●Hydraulic oil selected: (1) Low solidifying point hydraulic oil YC-N46, application ambient temperature range: -20 ~ +40℃.

Troubles Cause analysis Remedies 1.Die pieces chose is not proper. Change corresponding die pieces. 2.Die pieces’recess is filled with Clear hard articles in die pieces’ recess. hard articles. Change new die pieces. Master tong slips 3.Die pieces are worn. Regulate brake shrink spring slightly 4.Brake torque of tong head is too tight. small. Adjust tong horizontal. 5.Tong is not horizontal. Reset knob’s direction is wrong Check reset knob and turn it to right Backup tong can’t clip except for cause1,2,3,5 mentioned direction except for remedies sucker rod or tubing. above. mentioned above. Master or backup tong’s Retaining pin or set pin is outside Turn reset knob 180 degree to realign openings can’t align reset knob or knob when openings. properly. resetting. Engagement is not Add adjusting washer strengthen positive and easy to Lock strength is too weak. pressure effort of spring . disengage. Brake disc is worn. Brake Jaw set do not extend. Change brake disc. strength is too weak.

9. Illustration and parts list9.1.Assembly and parts table9.2.Master tong and parts table9.3.Shell accessory and parts table9.4.Tong head assembly and parts table9.5.Braking and centralizing mechanism and parts table9.6.Transmission mechanism and parts table9.7.Hand control valve and parts table9.8.Shifting mechanism assembly and parts table9.9.Safety assembly and parts table9.10.Backup tong and parts table9.11.Backup tong head assembly and parts table9.12.Tong tail oil cylinder assembly and parts table9.13.Fore guide pole and parts table9.14.Rear guide pole and parts table

Item P/N Part number Part name QTY 1 1.8.DT.0 XYQ1.8.DT.0 Lift assembly 1 2 1.8.QD.0 XYQ1.8.QD.0 Fore guide rod assembly 2 3 1.8B-1 XQ1.8B.Z.0 Master tong 1 4 1.8B-2 XQ1.8B.B.0 Backup tong 2 5 1.8.HD.0 XYQ1.8.HD.0 Rear guide pole 1

Item P/N Part number Part name QTY 1 1.8.Z-78 XYQ1.8.Z.4（1A） Safety door assembly 1 2 1.8B-3 XQ1.8B.Z.1 Tong head assembly 1 3 1.8.Z-79 Braking and centralizing mechanism 1 4 1.8.Z-69 Shell and accessory 1 5 1.8.Z-71 XYQ3C.Z.5 Hydraulic hand control valve 1 6 1.8.Z-26 XYQ1.8.Z.3 Shifting gear assembly 1

Item P/N Part number Part name QTY 1 1.8.Z-48 XYQ1.8.Z-27 Hanger rod 1 2 1.8.B-33 GB/T70.1 Hexagon socket head cap screw M8×25-8.8 1 3 1.8.Z-46 GB/T70.1 Hexagon socket head cap screw M8×20-8.8 5 4 1.8.Z-49 XYQ1.8.Z-28 Hanging seat 1 5 1.8.Z-11 XYQ1.8.Z-7（2A） Shell 1 6 1.8.B-44 XYQ1.8.B-15 Upper support seat 2 7 1.8.B-32 GB/T70.1 Hexagon socket head cap screw M10×16-8.8 4 8 1.8.Z-84 GB/T70.1 Hexagon socket head cap screw M12×80-8.8 4 9 1.8.Z-35 XYQ1.8.Z-21 Pin shaft 110 1.8.Z-34 GB/T91 Cotter pin4×30 111 1.8.Z-51 Cycloid hydraulic motor BM3-250 112 1.8.Z-53 XYQ1.8.Z-30 Motor sleeve 113 1.8.Z-54 GB/T276 Single row deep groove ball bearing 6208 114 1.8.Z-52 XYQ1.8.Z-29 Motor connecting seat 115 1.8.Z-80 GB/T1152 Straight hydraulic grease nipple M8 116 1.8.Z-45 XYQ1.8.Z-26 Hole cover 217 1.8.Z-67 XYQ1.8.Z-34 Name plate 118 1.8.Z-33 XYQ1.8.Z-20 Tail rope pin 119 1.8.Z-81 GB/T91 Cotter pin3×25 120 1.8.Z-31 GB/T70.1 Hexagon socket head cap screw M10×30-8.8 421 1.8.Z-30 GB/T93 Standraded spring washer10 422 1.8.Z-32 XYQ1.8.Z-19 Rear guide pole seat 123 1.8.Z-29 XYQ3C.Z-21 Spring 124 1.8.Z-28 XYQ6B.Z-17 Slide 125 1.8.Z-9 GB/T65 Hexagon socket head cap screw M6×16-8.8 626 1.8.Z-21 XYQ6B.Z-15 Bottom cover 127 1.8.Z-73 XYQ1.8.Z-35 Pressure and torque corresponding plate 128 1.8.Z-44 GB/T65 Slotted cheese head screws M6×10-5.8 8

Item P/N Part number Part name QTY 1 1.8.Z-70 Steel wire2×700 1 2 1.8.Z-85 GB/T32.2 Hexagon bolts with slot on head M10×45-8.8 8 3 1.8.Z-29 XYQ3C.Z-21 Spring 8 4 1.8.Z.5 XYQ1.8.Z.5 Brake disc assembly 1 5 1.8.Z-82 XYQ1.8.Z-37 Friction disc 2 6 1.8.Z-83 XYQ1.8.Z-1A Brake plate 1 7 1.8.B-33 GB/T70.1 Hexagon socket head cap screwsM8×25-8.8 4 8 1.8.Z-40 XYQ1.8.Z-24 Tong head handle 2 9 1.8.Z-39 XYQ1.8.Z-23（2A） Tong head cover 110 1.8.Z-11 XYQ1.8.Z-7（2A） Shell 111 1.8.Z-4 XYQ1.8.Z-3 Supporting plate 112 1.8.Z.1-72 GB/T68 Cross recessed countersunk flat head screw M5×8-5.8 1313 1.8.Z-5 GB/T68 Cross recessed countersunk flat head screw M5×10-5.8 2514 1.8.Z-46 GB/T70.1 Hexagon socket head cap screws M8×20-8.8 715 1.8.Z-37 XYQ1.8.Z-22A Upper centralizing roller shaft 1316 1.8.Z-3 XYQ1.8.Z-2 Centralizing roller 2517 1.8.Z-36 GB/T894.1 Circlip for shaft 12 1318 1.8.Z-7 XYQ1.8.Z-5 Centralizing roller shaft 12

Item P/N Part number Part name QTY 1 1.8.Z-11 XYQ1.8.Z-7（2A） Shell 1 2 1.8.Z-43 XYQ1.8.Z-25 Key 3 3 1.8.Z-15 XYQ1.8.Z-10 Shaft 3 4 1.8.Z-57 XYQ1.8.Z-32 Sleeve 2 5 1.8.Z-5 GB/T68 cross recessed countersunk head screwM5×10-5.8 24 6 1.8.Z-58 XYQ1.8.Z-33 Needle cover 6 7 1.8.Z-13 GB/T309 Needle 4×25.8 132 8 1.8.Z-56 XYQ1.8.Z-31 Idle gear 2 9 1.8.Z-22 XYQ1.8.Z-16 Washer 410 1.8.Z-16 GB/T1152 Straight hydraulic grease nipples M6 311 1.8.Z-12 XYQ1.8.Z-8 Duplex Gear 112 1.8.Z-14 XYQ1.8.Z-9 Spacer ring 113 1.8.Z-25 XYQ1.8.Z-18 Power input shaft 114 1.8.Z-17 XYQ1.8.Z-11 Shifting gear 115 1.8.Z-18 XYQ1.8.Z-12 Inner gear sleeve 116 1.8.Z-20 XYQ1.8.Z-14 Spline gear 117 1.8.Z-19 XYQ1.8.Z.2 Clutching Gear Assembly 118 1.8.Z-23 XYQ1.8.Z-17 Support plate 119 1.8.Z-24 GB/T276 Single row deep groove ball bearings 6204 1

Item P/N Part number Part name QTY 1 1.8.Z-55-10 XYQ3C.Z.5-1 Valve Body 1 2 1.8.Z-55-8 GB1235-76 O-Ring36×3.5 2 3 1.8.Z-55-7 XYQ3C.Z.5.1 Combination Valve Core 1 4 1.8.Z-55-6 XYQ3C.Z.5-7 Support Seat 1 5 1.8.Z-9 GB/T70 Hexagon Socket Head ScrewM6×16 4 6 1.8.Z-55-5 XYQ3C.Z.5-8A Fork 1 7 1.8.DT-9 GB/T91 Cotter Pin3.2×20 2 8 1.8.Z-55-2 GB/T882 Pin ShaftB10×40 1 9 1.8.Z-55-1 GB/T882 Pin ShaftB12×45 110 1.8.B-18 GB/T93 Spring Washer 12 111 1.8.Z-55-4 GB/T6170 Hexagon NutM12 112 1.8.Z-55-3 XYQ3C.Z.5-9 Control Lever 113 1.8.Z.3-10 XYQ3C.Z.5-10 Ball Knob 1 1.8.Z-55-16 XYQ3C.Z.5-12 Hex head plug 114 1.8.Z-47 Pressure Gage0～16MPa 115 1.8.Z-55-17 XYQ3C.Z.5-18 Copper Washer 116 1.8.Z-59 GB1235-76 O-Ring26×2.4 217 1.8.Z-60 XYQ3C.Z-24 Tail Connector 218 1.8.Z-55-9 GB/T70 Hexagon Socket Head Screw M12×35 419 1.8.Z-55-15 XYQ3C.Z.5-2 Valve Tail Seat 120 1.8.Z-55-14 XYQ3C.Z.5-6 Restricting Ring 121 1.8.Z-55-13 XYQ3C.Z.5-5 Spring Seat(2) 122 1.8.Z-55-12 XYQ3C.Z.5-4 Spring 123 1.8.Z-55-11 XYQ3C.Z.5-3 Spring Seat(1) 1

Item P/N Part number Part name QTY 1 1.8.Z.3-1 XYQ1.8.Z.3-1 Sleeve 2 2 1.8.Z.3-2 XYQ1.8.Z.3-2 Shift Fork 1 3 1.8.Z.3-9 XYQ1.8.Z.3-5 Sliding Block 2 4 1.8.Z.3-7 XYQ1.8.Z.3-3 Key 1 5 1.8.Z.3-8 XYQ1.8.Z.3-4 Shift Fork Shaft 1 6 1.8.Z.3-10 XYQ3C.Z.5-10 Ball knob 1 7 1.8.Z.3-4 XYQ3C.Z.6-4 Roller Shaft 1 8 1.8.Z.3-5 GB/T91 Cotter Pin 2×10 1 9 1.8.Z.3-3 XYQ3C.Z.6-3 Roller 1 10 1.8.Z.3-6 XYQ3C.Z.6-5 Roller seat 1

Item P/N Part number Part name QTY 1 1.8B-6 Backup tong head 1 2 1.8.B-46 Tong tail oil cylinder assembly 1

Item P/N Part number Part name QTY 1 1.8.B-33 GB/T70.1 Hexagon socket head cap screw M8×25-8.8 4 2 1.8.Z-40 XYQ1.8.Z-24 Tong head handle 2 3 1.8.B-5 XYQ1.8.B-02 Backup tong head cover 1 4 1.8B-7 XQ1.8B.B-1 Jaw set bracket 1 5 1.8.Z.1-8 XYQ1.8.Z.1-8 Spring 2 6 1.8B-4 Jaw set assembly 2 7 1.8.Z.1-10 XYQ1.8.Z.1-9 Ramp 4 8 1.8B-8 XQ1.8B.B-2 Backup tong head body 1 9 1.8.B-31 XYQ1.8.B-12 Backup tong front seat 210 1.8.Z-31 GB/T70.1 Hexagon socket head cap screw M10×30-8.8 411 1.8.Z-30 GB/T93 Standard spring washer 10 412 1.8.B-2 XYQ3C.B-2 Backup tong reset knob 113 1.8.B-1 GB/T119 Cylindrical pin 4×18 114 1.8.B-43 XYQ3C.B-10 Spring 215 1.8.B-42 GB/T308 Steel ball Ф4.5 216 1.8.Z-46 GB/T70.1 Hexagon socket head cap screw M8×20-8.8 817 1.8.B-3 XYQ1.8.B-01 Knob shaft 118 1.8.Z.1-20 XYQ1.8.Z.1-12 Retaining pin 119 1.8.Z.1-5 XYQ1.8.Z.1-5 Stop pin 220 1.8.Z.1-2 XYQ1.8.Z.1-2 Jaw set body 221 1.8.Z.1-3 XYQ1.8.Z.1-3 Roller shaft 222 1.8.Z.1-4 XYQ1.8.Z.1-4 Roller 223 1.8.Z.1-7 XYQ1.8.Z.1-7 Spring seat 224 1.8B-5 XQ1.8B.Z.1-1 Jaw set (or die) 225 1.8.Z.1-18 GB/T70.1 Hexagon socket head cap screw M8×14-8.8 426 1.8.Z.1-9 GB/T70.1 Hexagon socket head cap screw M8×16-8.8 4

Item P/N Part number Part name QTY 1 1.8.Z-9 GB/T70.1 Hexagon socket head cap screws M6×16-8.8 5 2 1.8.B-7 GB/T70.1 Hexagon socket head cap screws M6×10-8.8 1 3 1.8.B-9 XYQ1.8.B-05 Gear cover 1 4 1.8.B-6 XYQ1.8.B-03 Shift shaft 1 5 1.8.B-8 XYQ1.8.B-04 Duplex gear 1 6 1.8.B-47 GB/T1096 Key 12×28 1 7 1.8.B-11 XYQ1.8.B-07A Tong tail oil cylinder 1 8 1.8.B-12 XYQ1.8.B-08A Rack plunger 1 9 1.8.B-10 XYQ1.8.B-06 Cylinder liner 210 1.8.B-13 GB1235-76 O-Ring 35×3.5 211 1.8.B-15 GB1235-76 O-Ring 44×3.5 212 1.8.B-14 XYQ1.8.B-09 Cylinder cover 213 1.8.B-33 GB/T70.1 Hexagon socket head cap screws M8×25-8.8 814 1.8.B-18 GB/T93 Standrad spring washer 12 415 1.8.B-17 GB/T70.1 Hexagon socket head cap screws M12×25-8.8 416 1.8.B-40 XYQ1.8.B-13 Stop pin 117 1.8.B-48 GB/T93 Standrad spring washer 8 418 1.8.B-41 XYQ1.8.B-14 Backup tong tail 119 1.8.B-39 GB1235-76 O-Ring 22×2.4 720 1.8.B-50 Hose 8Ⅱ-500（M18×1.5/Φ18 ball） 221 1.8.B-51 XYQ3C.B-22 Longer adapter 122 1.8.B-52 XYQ3C.B-21（1） Oil bolt 2

Item P/N Part number Part name QTY 1 1.8.QD-5 XYQ1.8.QD-4 Fore guide rod sleeve 2 2 1.8.QD-4 XYQ1.8.QD-3 Spring 2 3 1.8.QD-2 GB/T91 Cotter 4×20 2 4 1.8.QD-3 XYQ1.8.QD-2 Fore guide rod 2 5 1.8.QD-1 XYQ1.8.QD-1 Fore guide rod seat 2

Item P/N Part number Part name QTY 1 1.8.HD-5 XYQ1.8.HD.1 Back guide rod sleeve 1 2 1.8.HD-4 XYQ1.8.HD-3 Spring 1 3 1.8.HD-2 GB/T91 Cotter 5×35 1 4 1.8.HD-3 XYQ1.8.HD-2 Back guide rod 1 5 1.8.HD-1 XYQ1.8.HD-1 End cover 1 6 1.8.HD-6 GB/T71 Slotted cone end fastening screw M6×10 1

Item P/N Part number Part name QTY 1 1.8.DT-2 XYQ1.8.DT-1 Lifting lug 1 2 1.8.DT-3 XYQ1.8.DT-2 Spring seat 1 3 1.8.DT-6 XYQ1.8.DT-3 Spring 1 4 1.8.DT-1 GB/T882 Pin shaft B14×40 1 5 1.8.DT-9 GB/T91 Cotter pin 3.2×20 2 6 1.8.DT-5 XYQ1.8.DT.1 Lift 1 7 1.8.DT-4 GB/T119 Cylindrical pin4×20 1 8 1.8.DT-7 XYQ1.8.DT.2 Hanger rod 1 9 1.8.DT-8 GB/T882 Pin shaftB16×45 1

10.Trucking, Storage and After Service10.1 TruckingWhen you move hydraulic power tong, you should move it smoothly and keep it from wet, and don’t put itupside to downside and also keep it from damage. When it is lifted, use steel wire rope with the diameter 12mmor bigger, and to keep it in balance. Don’t incline and swing it too much, to keep it from attacking other thingsavoiding damaged.

10.2 StorageXYQ3C hydraulic power tong should be placed in where is no sunshine, prevent rain, wet proof, good airing andthe environment temperature below 45 0c. Don’t storage it in a muddy place or outdoors. Protect oil inlet andoutlet well to prevent some sundries in. The storage period is general one year for new hydraulic power tong. Itcan be used after one-year storage but all the sealing parts and hoses must be changed.

The Model 300 Sucker Rod Tongs made to make getting on and off the rods easier and to reduce weariness and mishaps. The Model 300 accelerates tripping the pipe, protects rods, and all while simply using the same power unit as a tubing tong. The Model 300 comes with a modifiable relief valve to set the torque; 95 RPM and 850ft/lbs. of torque at high range. Situated by a firm torque arm, this tong can engage automatically and release automatically by a reversing tong.

The Model 300M Sucker Rod Tongs made to make getting on and off the rods easier and to reduce weariness and mishaps.  The Model 300 accelerates tripping the pipe, protects rods, and all while simply using the same power unit as a tubing tong. The Model 300 comes with a modifiable relief valve to set the torque; 95 RPM and 850ft/lbs. of torque at high range. Situated by a firm torque arm, this tong can engage automatically and release automatically by a reversing tong. A feature unique to this model is the ability to breakout and make-up 1-1/8” rods without over torqueing.

The Model 500 Power Tubing Tong has a size range of 1-5/16” to 7”, joint make-up in 5 seconds, and joint break-out in 7 seconds. With a split glide ring, both safer and more convenient access to jaws and final drive gear components is attainable, while pressurized oil baths ensure that the Model 500 is properly lubricated. The Model 500 also features an adjustable clutch and air or hydraulic assist for the back-up tool. Also fitted with a “Power Shift” Transmission, the operator is able to adjust gears during operation while the Improved Drive Alignment minimizes wasted power.

The Model 600 Power Tubing Tongs feature an adjustable clutch and is available in either air or hydraulic assist for the back-up tool. Also fitted with a “Power Shift” Transmission, the operator is able to adjust gears during operation while the Improved Drive Alignment minimizes wasted power. The Model 600 permits joint make-up in 5 seconds and joint break-out in 7 seconds. With a split glide ring, both safer and more convenient access to jaws and final drive gear components is attainable, while pressurized oil baths ensure that the Model 500 is properly lubricated.

The Model RSHD Power Tubing Tongs are truly a heavy duty piece of equipment that is for the tough jobs. The Model RSHD has more steel weight and gussets added to the bottom in order to diminish chance of case spreading. This model features a customary chain-driven design, integral sprocket, and outer ring. Lastly, the Model RSHD utilizes a familiar jaw-and-bushing biting system.

The Model 700 features the highest torque of all the Power Tubing/Casing Tongs at 20,000 ft./lbs. at 2000 PSI. This model consists of a light drill pipe, tubing, and casing.

The 14-100 hydraulic power tong provides 100,000 ft-lb (135,600 N∙m) of torque capacity for running and pulling 7- to 14-in. casing. The tong has a unique gated rotary, a free-floating backup, and a hydraulic door interlock.

Our 14-50 high-torque casing tong provides 50,000 ft-lb (67,790 N∙m) of torque capacity for running and pulling 6 5/8- to 14-in. casing. The tong has a unique gated rotary, a free floating backup, and a hydraulic door interlock.

The 16-25 hydraulic casing tong provides 25,000 ft-lb (33,900 N∙m) of torque capacity for running and pulling 6 5/8- to 16-in. casing. The tong features a unique gated rotary and as many as seven contact points that create a positive grip without damaging the casing.

Rigged up without rig modifications, our 21-300 riser tong is the only tong capable of producing 300,000 ft-lb (406,746 N∙m) of continuous rotational torque in both makeup and breakout mode. The power it achieves in a compact size compares with a conventional 24-in. casing tong.

The 24-50 high-torque casing tong provides 50,000 ft-lb (67,790 N∙m) of torque capacity for running and pulling 10 3/4- to 24-in. casing. The tong features a unique gated rotary, a free-floating backup, and a hydraulic door interlock.

The 30-100 high-torque casing tong provides 100,000 ft-lb (135,600 N∙m) of torque capacity for running and pulling 16- to 30-in. casing. The tong features a unique gated rotary, a free-floating backup, and a hydraulic door interlock.

The 5.5-15 hydraulic tubing tong provides 15,000 ft-lb (20,340 N∙m) of torque capability for makeup and breakout of 1.66- to 5.5-in. tubing and premium or standard connections on corrosion‑resistant alloy tubulars. The tong features an ergonomic, lightweight design with a free-floating hydraulic backup.

The 7.6-30 hydraulic tubing tong provides 30,000 ft-lb (40,670 N∙m) of torque capability for makeup and breakout of 2 3/8- to 7 5/8-in. tubing and premium or standard connections on corrosion‑resistant alloy tubulars. The tong features an ergonomic, lightweight design with a free-floating hydraulic backup.

Our SpeedTork 8.0-70 tong provides torques up to 70,000 ft-lb (94,900 N∙m) and 360° rotation in makeup and breakout operations. It can torque drillpipe connections, drillstring components, drilling tools, packers, couplings, and valves.
