sucker rod power tong manufacturer factory

The Model 300 Sucker Rod Tongs made to make getting on and off the rods easier and to reduce weariness and mishaps. The Model 300 accelerates tripping the pipe, protects rods, and all while simply using the same power unit as a tubing tong. The Model 300 comes with a modifiable relief valve to set the torque; 95 RPM and 850ft/lbs. of torque at high range. Situated by a firm torque arm, this tong can engage automatically and release automatically by a reversing tong.

The Model 300M Sucker Rod Tongs made to make getting on and off the rods easier and to reduce weariness and mishaps.  The Model 300 accelerates tripping the pipe, protects rods, and all while simply using the same power unit as a tubing tong. The Model 300 comes with a modifiable relief valve to set the torque; 95 RPM and 850ft/lbs. of torque at high range. Situated by a firm torque arm, this tong can engage automatically and release automatically by a reversing tong. A feature unique to this model is the ability to breakout and make-up 1-1/8” rods without over torqueing.

The Model 500 Power Tubing Tong has a size range of 1-5/16” to 7”, joint make-up in 5 seconds, and joint break-out in 7 seconds. With a split glide ring, both safer and more convenient access to jaws and final drive gear components is attainable, while pressurized oil baths ensure that the Model 500 is properly lubricated. The Model 500 also features an adjustable clutch and air or hydraulic assist for the back-up tool. Also fitted with a “Power Shift” Transmission, the operator is able to adjust gears during operation while the Improved Drive Alignment minimizes wasted power.

The Model 600 Power Tubing Tongs feature an adjustable clutch and is available in either air or hydraulic assist for the back-up tool. Also fitted with a “Power Shift” Transmission, the operator is able to adjust gears during operation while the Improved Drive Alignment minimizes wasted power. The Model 600 permits joint make-up in 5 seconds and joint break-out in 7 seconds. With a split glide ring, both safer and more convenient access to jaws and final drive gear components is attainable, while pressurized oil baths ensure that the Model 500 is properly lubricated.

The Model RSHD Power Tubing Tongs are truly a heavy duty piece of equipment that is for the tough jobs. The Model RSHD has more steel weight and gussets added to the bottom in order to diminish chance of case spreading. This model features a customary chain-driven design, integral sprocket, and outer ring. Lastly, the Model RSHD utilizes a familiar jaw-and-bushing biting system.

The Model 700 features the highest torque of all the Power Tubing/Casing Tongs at 20,000 ft./lbs. at 2000 PSI. This model consists of a light drill pipe, tubing, and casing.

To buy a wholesale sucker rod tong from China for your personal use or resale, visit Alibaba.com for great varieties and deals. Here, you can compare the available products and order the one that most fits your needs.

Heavy mining machinery tends to wear and tear during operation, calling for replacement, repairs, and upgrades. If it is such a time, then the collection of sucker rod tong at Alibaba.com should be an excellent place to start. From high precision machines to hydraulics and gears, Alibcom connects you with sellers that offer suction rod tong for excavating, processing, and transporting minerals and other geological materials. If you want to drill a water well or find some copper, then collection s suckerrod tong are suitable for you.

Looking for purpose-built machine parts? Find them at Alibaba.com. From new components to used parts straight from the manufacturers. Plus, if you need custom-made pieces, you can chat with the supplier, give specifications and wait on delivery. From stone crushers to excavator undercarriage parts, buckets, and even drill bits to get you through the rocks, the sucker rod tong from Alibaba offers you the chance to continue operating without a hitch. Whether you are looking to introduce concrete into the rock walls for more consistency and safety during mining, then sucker rod tong that goes at wholesale prices at Alibaba will be an excellent addition to your machinery.

We"re professional hydraulic sucker rod tong manufacturers in China, providing customized products made in China with competitive price. If you are going to wholesale bulk hydraulic sucker rod tong in stock, welcome to get quotation from our factory.

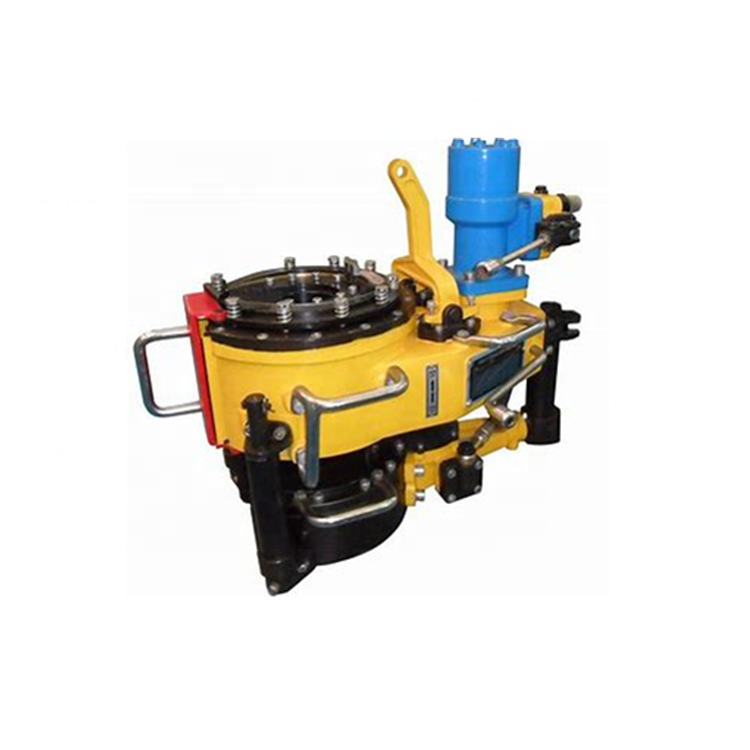

Model XQ29/1.8 Hydraulic power tong is an opening type power tong, which is used to make up and break out sucker rod’s joint casing thread in well service.

We"re professional hydraulic sucker rod tong manufacturers in China, providing customized products made in China with competitive price. If you are going to wholesale bulk hydraulic sucker rod tong in stock, welcome to get quotation from our factory.

MOT"s Hydraulic Power Tongs are used for running or pulling tubular strings during well repair, workover, snubbing, drilling and casing operations to extract oil and gas from wells. MOT’s

Our TEDA Style power tongs apply correct, uniform torque, reducing costly rod and tubing failures, delivering ample power to make up and break out rods and tubulars from 5/8” rod to 5-1/2” casing. Our series of XQ power tongs come with Bi-Directional jaw systems that save time and enhance safety, and go from make to break with the flip of a knob.

Tongs offer a variety of upgrades from our standard XQ series of TEDA Style models featuring Eaton hydraulic motors for extra torque and reliability, two or three spool directional control valves for more efficient hydraulic operations, and modified structures for higher strength, durability and adaptability to specific job requirements.

Are available from 5-1/2” to 20” pipe and are able to handle both API Standard and PREMIUM (Proprietary Steel Grade) casing connections which require higher torque. Available in a variety of models with hydraulic back-up tongs optional: “KMA", “KHT”, “TQ", “KJD”, “KD” and SE 16-25 with torques ranging from 15,000 ft-lbs up to 55,000 ft-lbs.

Are designed for quick and safe making up and breaking out of drill pipe and drill collars. Our “ZQ” series of hydraulic power drill pipe tongs are widely used in oil and gas drilling, in land and offshore operations around the world. The integrated torque tong and bucking tong eliminate the need for manual tongs and spinning chains, able to handle pipe from2-3/8” up to 8” drill collars, providing torques of up to 92,000 Lbs-Ft.

Precision Energy (PE) is a well servicing equipment manufacturer serving the U.S. domestic market and various global markets. Our team has collectively over 200 years experience in engineering, manufacturing, and assembling equipment made specifically for the well servicing industry. PE strives to provide a full inventory of the best and safest well servicing equipment in the industry backed up by unmatched customer support and technical assistance.

Model XQ28/2.6 hydraulic power tong is an improved type of XYQ1.8 which is used to make up and break out sucker rod thread in Well Service. This product has the following features:

A. The structure is compact, concise and light. Master tong is driven by a low-speed large torque hydraulic motor that matches with a manual control valve. The backup tong is just like a spanner. The total weight is approximately equal to XYQ1.8.

B. The operating is briefness and convenience with high efficiency. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong, turning the reset knob incorrect direction then can make up and break out sucker rod by operating manual control valve. Two speed, snapping at low speed, spinning at high speed.

As shown in fig. 1, 3 and 4, the power tongs for the sucker rod comprise a mounting plate 1, wherein a main tong 2, a clamping assembly and an auxiliary tong 4 are sequentially arranged at the front end of the mounting plate 1 from top to bottom.

The main tongs 2 are in the prior art and can be obtained directly in a outsourcing mode, and the detailed description of the specific structure of the main tongs 2 is not repeated.

The main clamp 2 is positioned above the mounting plate 1 and is fixedly connected with the mounting plate 1. As a specific implementation manner, in the present embodiment, the left side, the right side, and the rear side of the housing of the main tong 2 are respectively and fixedly provided with a supporting plate 21, a supporting member is fixedly provided on the mounting plate 1 below the supporting plate 21, a positioning column 111 is fixedly provided on an upper side surface of the supporting member, and an upper end surface of the positioning column 111 passes through the supporting plate 21 and extends to above the supporting plate 21.

The clamping assembly comprises two clamping blocks 31 for clamping a coupling, and the two clamping blocks 31 are symmetrically arranged about a vertical plane of symmetry extending in the longitudinal direction of the mounting plate 1. The inner side surfaces of the clamping blocks 31 (the opposite sides of the two clamping blocks 31 are the inner sides) are provided with arc-shaped grooves matched with the coupling. The mounting plate 1 is provided with clamping cylinders 32 which are used for driving the clamping blocks 31 to move left and right and are respectively arranged on the outer sides of the clamping blocks 31 (the opposite sides of the two clamping blocks 31 are taken as the inner sides), the cylinder bodies of the clamping cylinders are fixedly connected with the mounting plate 1, and piston rods of the clamping cylinders 32 are fixedly connected with the clamping blocks 31.

As a specific implementation manner, as shown in fig. 6 and 8, in this embodiment, a guide block 5 extending forward in the horizontal direction is fixed at the front end of the mounting plate 1, an avoidance notch having an opening facing the front side and used for accommodating a sucker rod is provided on the guide block 5, and the avoidance notch penetrates through the guide block 5 in the up-down direction. The left side surface and the right side surface of the guide block 5 are respectively provided with a guide hole 51 extending inwards along the transverse direction, and the clamping block 31 is positioned in the guide hole 51, is matched with the guide hole 51 and can slide left and right along the guide hole 51. When the clamping oil cylinder 32 is in an extending state, the inner side surface of the clamping block 31 is positioned in the avoiding notch, so that a coupling positioned in the avoiding notch is clamped.

As a specific implementation manner, as shown in fig. 6 and 8, in this embodiment, vertical plates 53 extending downward in the vertical direction are respectively disposed on the left and right sides of the avoidance gap on the lower side surface of the guide block 5, and sliding grooves 531 penetrating through the vertical plates 53 in the front-back direction and matching with the auxiliary tongs 4 are respectively disposed on the inner side surfaces of the vertical plates 53. The left and right ends of the auxiliary jaw 4 are inserted into the sliding grooves 531, respectively. A web 61 extending along the transverse direction is arranged between the two vertical plates 53, two guide rods 41 extending backwards are arranged on the rear end surface of the auxiliary clamp 4, the rear ends of the guide rods 41 pass through the web 61 and extend to the outer side of the web 61, a spring 411 is sleeved on the guide rods 41 between the auxiliary clamp 4 and the web 61, and a stopper (not shown in the figure) for preventing the guide rods from slipping off the web 61 is fixedly arranged on the guide rods 41 at the rear side of the web 61. Preferably, the stopper is a stopper nut, and the guide rod 41 is provided with an external thread matched with the stopper nut.

A two-speed Hydra-Shift® motor coupled with a two-speed gear train provides (4) torque levels and (4) RPM speeds. Easily shift the hydraulic motor in low speed to high speed without stopping the tong or tublar rotation, saving rig time.

A patented door locking system (US Patent 6,279,426) for Eckel tongs that allows for latchless locking of the tong door. The tong door swings easily open and closed and locks when torque

is applied to the tong. When safety is important this locking mechanism combined with our safety door interlock provides unparalleled safety while speeding up the turn around time between connections. The Radial Door Lock is patented protected in the following countries: Canada, Germany, Norway, United Kingdom, and the United States.

The field proven Tri-Grip® Backup features a three head design that encompasses the tubular that applies an evenly distributed gripping force. The Tri-Grip®Backup provides exceptional gripping capabilities with either Eckel True Grit® dies or Pyramid Fine Tooth dies. The hydraulic backup is suspended at an adjustable level below the power tong by means of three hanger legs and allowing the backup to remain stationary while the power tong moves vertically to compensate for thread travel of the connection.

We are a leading supplier of sucker rods, accessories and services for beam and progressive cavity pumping operations. With a fully integrated manufacturing process, and strategically located service centers, our technologies thrive in the most challenging wells and environments.

Our trained team supervises handling, thread cleaning, makeup and torque control activities, ensuring compliance with industry best practices. We can also deploy advanced hydraulic power tongs for optimal make-up operation and torque control analysis.

We offer classroom and field training services on product selection, string design, material handling and other aspects of the installation and operation of sucker rods.

High quality sucker rods with improved resistance for beam and progressive cavity pumping in every environment. Manufactured to the most stringent quality standards, all product lines comply with ISO and API specifications.

Our expertise in the development of steel and optimization of manufacturing processes for oil & gas critical applications enabled the development of two steel grades: AlphaRod® HS High Strength and AlphaRod® CS Critical Service.

High quality accessories with improved resistance for beam and progressive cavity pumping in every environment. Manufactured to the most stringent quality standards, all product lines comply with ISO and API specifications.

With high-quality hydrodynamic features, TenFlow™ is capable of reducing turbulence to a minimum with the highest erodible wear volume ever found in a rod guide.

Specially designed to support a flush external connection, niples withstand more torque than standard sucker rod connections. Crossovers allow standard API-threaded accessories to be attached to hollow rods. Both are useful tools for gas lift, injector wells, and workover operations.

Helical design for progressive cavity pumping is available for ¾” and 7/8” and 1” rods, for 2 7/8” tubing and in 1 1/8” and 1 ¼” and 11/2” rods for 3 ½” tubing. Other combinations can be developed upon request. Used in progressive cavity pumping operations.

Sinker bars are used to maintain an optimized string design in beam pumping applications and help avoid premature failures in the installation. They are effective for reducing failures in rod body, pins and couplings.

We offer low alloy and medium alloy steel polished rods with a surface finish that ensures a proper seal in the stuffing box. They are produced under API standards for lengths up to 36 ft and can be polished, chromed and metalized.

This handbook is a compendium of failure analysis collected over the last 50 years by Tenaris Sucker Rods division. It provides information of sucker rods and accessories failures with recommendations on how to avoid the problem.

Tongs - Power - BJ sucker rod tong adopts advanced sucker rod or tubing technology and has a compact structure, high reliability and is safe and convenient to operate.

Tongs - Power - New Carter Tool Co. Inc., CT93R Hydraulic powered tubing tong. Complete with 2-3/8" to 3-1/2" jaw assemblies, standard motor, torque gauge assembly, pressure relief valve... More Info

Tongs - Power - New Carter Tool Co., Inc. 5-1/2" CTSX Hydraulic Tubing Tong with heavy case and cover; complete with rigid hanger assy., suspension spring assy., front end control assy.,... More Info

Tongs - Power - New Carter Tool Co. Inc. M-Series power sucker rod tongs, complete with spring hanger assy., gate assy., front end control assy., pressure gauge assy., two 90 degree XH s... More Info

Tongs - Power - New Carter Tool Co., Inc. 4-1/2" RSX Hydraulic Tubing Tong with heavy case and cover; complete with rigid hanger assy., suspension spring assy., front end control assy., ... More Info

Tongs - Power - D D 58-93-2-R Power Tubing Tong is smaller, lighter, and faster than the Foster 5893R. The D D 58-93-2-R Tong is capable of gripping tubulars from 1 5/16" to 7" o.d. More Info

Tongs - Power - FARR TONG MODEL KT 14,000 RINEER GA37 MOTOR, LIFT VALVE ASSEMBLY TORQUE CAPACITY: 50,000 FT/LB SIZE RANGE 4 1.2-14 WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN ... More Info

Tongs - Power - FARR TONG MODEL KT20,000 STAFFA 080 MOTOR, LIFT VALVE ASSEMBLY TORQUE CAPACITY: 50,000 FT/LB SIZE RANGE: 7-20 MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READ... More Info

Tongs - Power - FARR MODEL KT5500 HYDRAULIC TUBING TONG C/W 2 SPEED RINEER MOTOR, SIZE RANGE: 2-3/8 IN. - 5-1/2 IN. OD, TORQUE RTED: 18,700 FT/LB C/W SAFETY DOOR MOST SIZES OF FARR POWER... More Info

Tongs - Power - FARR TONG MODEL KT5500 TORQUE CAPACITY: 18000 FT/LB SIZE RANGE: 2 1/16-5 1/2 OD WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READY FOR IMMEDIA... More Info

Tongs - Power - FARR TONG MODEL KT5500 5 1/2 IN. TONG TORQUE CAPACITY: 18,000 FT/LB SIZE RANGE: 2 1/16-5 1/2 IN. OD, RINEER 15-13 MOTOR, HIGH TORQUE CLINCHER BACKUP TRIPLE VALVE ASSEMBLY... More Info

Tongs - Power - FARR TONG MODEL KT7585 TORQUE CAPACITY: 25000 FT/LB SIZE RANGE: 2 1/16-8 5/8 OD WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READY FOR IMMEDIA... More Info

Tongs - Power - FARR TONG MODEL KT7585 8 5/8 IN. TONG TORQUE CAPACITY 25,000 FT/LB SIZE RANGE: 2 1/16-8 5/8 IN. OD, RINEER 15-15 MOTOR CLINCHER BACKUP, TRIPLE VALVE MOST SIZES OF FARR PO... More Info

Tongs - Power - FARR TONG MODEL LW9625 TORQUE CAPACITY 12000 FT/LB SIZE RANGE 2 7/8 -9 5/8 OD WITH SAFETY DOOR MOST SIZES OF FARR POWER TONGS ARE IN HOUSTON, IN STOCK READY FOR IMMEDIATE... More Info

Tongs - Power - Farrs newest tubular connection tool offers a significantly reduced rig footprint, while continuing to deliver power & uncompromising reliability. The simple design drast... More Info

Tongs - Power - Farr Canada"s newest tubular connection tool offers a significantly reduced rig footprint, while continuing to deliver power and uncompromising reliability. The simple de... More Info
