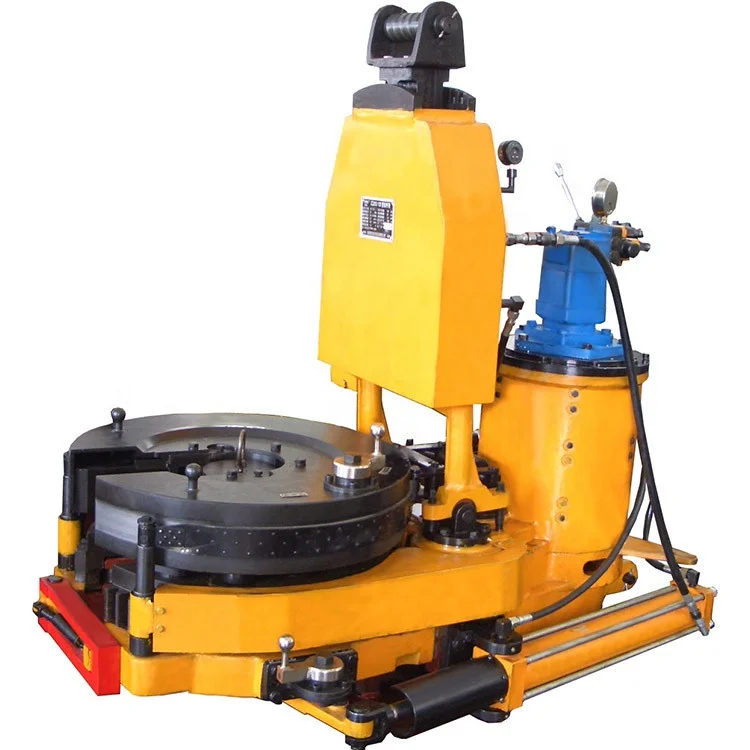

The series of hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

Lake Petro TQ series of casing tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. Tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment”

ZQ drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”

XYQ series power tong is used for quick make-up /break-out in well service operations .The tong is equipped with hydraulic bacdup tong and use inner curved cam to clamp..

The series of hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

A two-speed Hydra-Shift® motor coupled with a two-speed gear train provides (4) torque levels and (4) RPM speeds. Easily shift the hydraulic motor in low speed to high speed without stopping the tong or tublar rotation, saving rig time.

A patented door locking system (US Patent 6,279,426) for Eckel tongs that allows for latchless locking of the tong door. The tong door swings easily open and closed and locks when torque

is applied to the tong. When safety is important this locking mechanism combined with our safety door interlock provides unparalleled safety while speeding up the turn around time between connections. The Radial Door Lock is patented protected in the following countries: Canada, Germany, Norway, United Kingdom, and the United States.

The WD Tri-Grip® Backup is a high performance no compromise backup that is suitable for make-up and break-out of the most demanding connections. The WD Tri-Grip®Backup features a three head design that encompasses the tubular that applies an evenly distributed gripping force. The WD Tri-Grip®is a high performance backup with no compromises that is available for specific applications that provdies exceptional gripping capabilities with either Eckel True Grit® dies or Pyramid Fine Tooth dies.

The field proven Tri-Grip® Backup features a three head design that encompasses the tubular that applies an evenly distributed gripping force. The Tri-Grip®Backup provides exceptional gripping capabilities with either Eckel True Grit® dies or Pyramid Fine Tooth dies. The hydraulic backup is suspended at an adjustable level below the power tong by means of three hanger legs and allowing the backup to remain stationary while the power tong moves vertically to compensate for thread travel of the connection.

MOT"s Hydraulic Power Tongs are used for running or pulling tubular strings during well repair, workover, snubbing, drilling and casing operations to extract oil and gas from wells. MOT’s

Our TEDA Style power tongs apply correct, uniform torque, reducing costly rod and tubing failures, delivering ample power to make up and break out rods and tubulars from 5/8” rod to 5-1/2” casing. Our series of XQ power tongs come with Bi-Directional jaw systems that save time and enhance safety, and go from make to break with the flip of a knob.

Tongs offer a variety of upgrades from our standard XQ series of TEDA Style models featuring Eaton hydraulic motors for extra torque and reliability, two or three spool directional control valves for more efficient hydraulic operations, and modified structures for higher strength, durability and adaptability to specific job requirements.

Are available from 5-1/2” to 20” pipe and are able to handle both API Standard and PREMIUM (Proprietary Steel Grade) casing connections which require higher torque. Available in a variety of models with hydraulic back-up tongs optional: “KMA", “KHT”, “TQ", “KJD”, “KD” and SE 16-25 with torques ranging from 15,000 ft-lbs up to 55,000 ft-lbs.

Are designed for quick and safe making up and breaking out of drill pipe and drill collars. Our “ZQ” series of hydraulic power drill pipe tongs are widely used in oil and gas drilling, in land and offshore operations around the world. The integrated torque tong and bucking tong eliminate the need for manual tongs and spinning chains, able to handle pipe from2-3/8” up to 8” drill collars, providing torques of up to 92,000 Lbs-Ft.

Sucker rod power tong XQ28/1.8Y: Pipe size range of master tong: 5/8""-1 1/8"" sucker rod, 1 7/8""-2 3/8""tubing; Pipe size range of the backup tong:5...

Sucker rod power tong XQ28/2.6Y: Pipe size range of master tong: 5/8""-1 1/8"" suck rod; Pipe size range of the backup tong:5/8""-1 1/8"" suck rod; Hi...

Tubing power tong XQ89/3YC: Pipe size range of master tong: 2 3/8""-3 1/2"" ; Pipe size range of the backup tong:2 3/8""-4 1/2"" ; High gear rated tor...

SDD manual tongs are designed and manufactured in accordance with the API Spec 7K..Which is a useful tool applied to make up and break out drill pipes...

Cooperating with Rapid-Torc in U.S.A and TENTEC Ltd in U.K,HTS can offer all range of Hydraulic Torque Wrench.1.Square drive and hex drive;2.Output ac...

WQ Series Multifunctional pneumatic drill is used to slip in oil or gas drilling card holders drill pipe, drill collars or casing of a power kava, kav...

Tubing power tong XQ114/6YB: Pipe size range of master tong: 2 3/8""-4 1/2"" ; Pipe size range of the backup tong:2 3/8""-5 1/8"" ; High gear rated to...

Tubing power tong XQ140/12YA: Pipe size range of master tong: 2 3/8""-5 1/2"" ; Pipe size range of the backup tong:2 3/8""-6 1/8"" ; High gear rated t...

Drill pipe tong ZQ127/25Y: Pipe size range:2 3/8"-3 1/2" drill pipe, 3 1/2"-4 1/2" tubing and 4 1/2"-5 1/2" casing ; High gear rated torque: 3500N. M ...

Drill pipe tong ZQ203/100: Pipe size range of master tong:3 1/2"-8" drill pipe; High gear rated torque: 9500N. M (7007ft /lbs) ; Low gear rated torque...

Drill pipe tong ZQ203/125: Pipe size range of master tong:3 1/2""-8"" drill pipe; High gear rated torque: 10000N. M (7370ft /lbs) ; Low gear rated tor...

Casing tong TQ245/20Y: Pipe size range: 4 1/2"", 5"", 5 1/2"", 7"", 8 5/8"", 9 5/8""; High gear rated torque: 2600N. M@12Mpa (1924ft /lbs@1740psi) ; L...

Casing tong TQ340/35YA Pipe size range: 5 1/2"", 6 5/8"",7"", 8 5/8"", 9 5/8"",10 3/4"", 13 3/8""; High gear rated torque: 4800N. M@13.8Mpa (3540ft /...

Casing tong TQ508/70Y: Pipe size range: 9 5/8"",10 3/4"", 13 3/8"",16"",18 5/8"",20""; High gear rated torque: 10160N. M@17.3Mpa (7500ft /lbs@2500psi)...

Rated working pressure: 2320 psi (16 MPa); Maximum supply pressure: 2900 psi (20 MPa); Rated flow rate: 135L/min; Hydraulic oil tank volume: 520L; Fu...

ZQ203/100 drill power tong is a new type of mechanize tool on drilling floor. The tong is made of the upper tongs and low tongs. Open head design allo...

The series of power tongs are opening tongs, which are used for quickly make-up?break-out in well service operations. The tong is equipped with hydrau...

XQ series hydraulic power tongs, with advanced steering control structure and tubing clamping technology, and uipped with hydraulic backups, are ideal...

YQ48 Sucker Rod Tong is a new pattern multi-purpose sucker rod hydraulic power tong, using advanced foreign technology, and co-produced with American ...

XQ series of hydraulic power tongs have inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is avaulable for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

The 14-100 hydraulic power tong provides 100,000 ft-lb (135,600 N∙m) of torque capacity for running and pulling 7- to 14-in. casing. The tong has a unique gated rotary, a free-floating backup, and a hydraulic door interlock.

Our 14-50 high-torque casing tong provides 50,000 ft-lb (67,790 N∙m) of torque capacity for running and pulling 6 5/8- to 14-in. casing. The tong has a unique gated rotary, a free floating backup, and a hydraulic door interlock.

The 16-25 hydraulic casing tong provides 25,000 ft-lb (33,900 N∙m) of torque capacity for running and pulling 6 5/8- to 16-in. casing. The tong features a unique gated rotary and as many as seven contact points that create a positive grip without damaging the casing.

Rigged up without rig modifications, our 21-300 riser tong is the only tong capable of producing 300,000 ft-lb (406,746 N∙m) of continuous rotational torque in both makeup and breakout mode. The power it achieves in a compact size compares with a conventional 24-in. casing tong.

The 24-50 high-torque casing tong provides 50,000 ft-lb (67,790 N∙m) of torque capacity for running and pulling 10 3/4- to 24-in. casing. The tong features a unique gated rotary, a free-floating backup, and a hydraulic door interlock.

The 30-100 high-torque casing tong provides 100,000 ft-lb (135,600 N∙m) of torque capacity for running and pulling 16- to 30-in. casing. The tong features a unique gated rotary, a free-floating backup, and a hydraulic door interlock.

The 5.5-15 hydraulic tubing tong provides 15,000 ft-lb (20,340 N∙m) of torque capability for makeup and breakout of 1.66- to 5.5-in. tubing and premium or standard connections on corrosion‑resistant alloy tubulars. The tong features an ergonomic, lightweight design with a free-floating hydraulic backup.

The 7.6-30 hydraulic tubing tong provides 30,000 ft-lb (40,670 N∙m) of torque capability for makeup and breakout of 2 3/8- to 7 5/8-in. tubing and premium or standard connections on corrosion‑resistant alloy tubulars. The tong features an ergonomic, lightweight design with a free-floating hydraulic backup.

Our SpeedTork 8.0-70 tong provides torques up to 70,000 ft-lb (94,900 N∙m) and 360° rotation in makeup and breakout operations. It can torque drillpipe connections, drillstring components, drilling tools, packers, couplings, and valves.

We could supply a wide range of tong dies and inserts, all our die and inserts are forged and machined, to provide the accuracy required for today"s critical applications.The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available

We can supply power tong dies for BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y in size of 1/2 x 1.1/4 x 3.7/8, 7/16 x 1 ¼ x 3 1/16, etc
