perforated pup joint price

Pipe system involves various components, including perforated pup joints and are made from different materials. We offer wholesale perforated pup joints to create a smooth channel for the pipe systems in both commercial and residential areas.

We are Supplier and Exporter of Perforated Pup Joints in UAE. It is usually installed between the bottom of two nipples of a completion. It allows unrestricted fluid or gas flow, which increases the accuracy and reliability of acquired downhole production data.

We supply all sizes, grades, and thread profiles to meet custom requirements. The perforated pup joints are sometimes also known as the perforated production tube. All our products have passed the ISO certification and API certifications. Our products are tested numerous times under technical guidance and are made from the best quality material.

These J55, L80, N80Q & P110 pup joints are manufactured from seamless Grade J-55, L80 N80Q and P110 mechanical tubing. The API 5CT tubing pup joint is mainly used to adjust the height of the tubing strings. It is also used to adjust the depth of down-hole tools.

Our product range includes a wide range of Perforated Pup Joints, Casing Pup Joints, Tubing Pup Joint, Drill Pipe Pup Joints, Crossover Pup Joints and Integral Pup Joints.

We are Manufacturer of Perforated Pup Joints ,usually installed between the bottom two nipples of a completion.With perforated pup joints,down hole recording devices, such as heat and pressure gauges, can be placed in the lower nipple profile to obtain flowing pressure and temperature measurements. The Perforated Production Tube, sometimes also known as Perforated Pup Joint, allows for unrestricted flow of fluid or gas which increase the accuracy and reliability of acquired down hole production data, which otherwise would be distorted due to flow restrictions.

We are one of the prominent Manufacturer of Casing Pup joints, mainly used to adjust the height of the casing strings. It is also used to balance the depth of down-hole tools. Our Casing pup joints are made in accordance with the API 5CT specifications. These Pup Joints feature high corrosion resistance and long running life. We have become a reliable Exporter of Casing Pup Joints in India made from the high quality raw material.

We are one of the prominent Manufacturer,Exporter and supplier of Tubing Pup joints, made according to API 5CT specifications. Our Tubing pup joints are made out of seamless tubing and machined to final dimensions, each piece marked with a distinctive job number fully traceable. We manufacture tubing pup joints of all sizes, grades, and thread profiles to meet any custom requirements. All our products have passed the ISO certification and API certifications.

We are Manufacturer of Drill Pipe Pup Joints,an important drill stem component for special drilling or testing operations. Every step of production process is performed with the highest degree of accuracy to meet or exceed API Specifications as well as the Industry Standards. It is a short drill pipe used to adjust the overall length of drill string. The surface of Drill Pipe Pup joint looks like a smaller version of joint of drill pipe.

We are Manufacturer of Crossover Pup Joints ,used for crossing over from the size of a single connection to the other in the drill string. Crossover Pup Joints are made from seamless mechanical tube, each piece marked with distinctive job number and heat number fully traceable. Crossovers are used to adapt the standard 3-1/2” bypass system thread to the production tubing by the way of coupling. We manufacture Casing Pup Joints of all sizes, grades, and thread profiles to meet any custom requirements. All our products have passed the ISO certification and API certifications.We have become the reliable exporter of Crossover Pup Joints in India. Our products are tested numerous times under technical guidance and are made from best quality material.

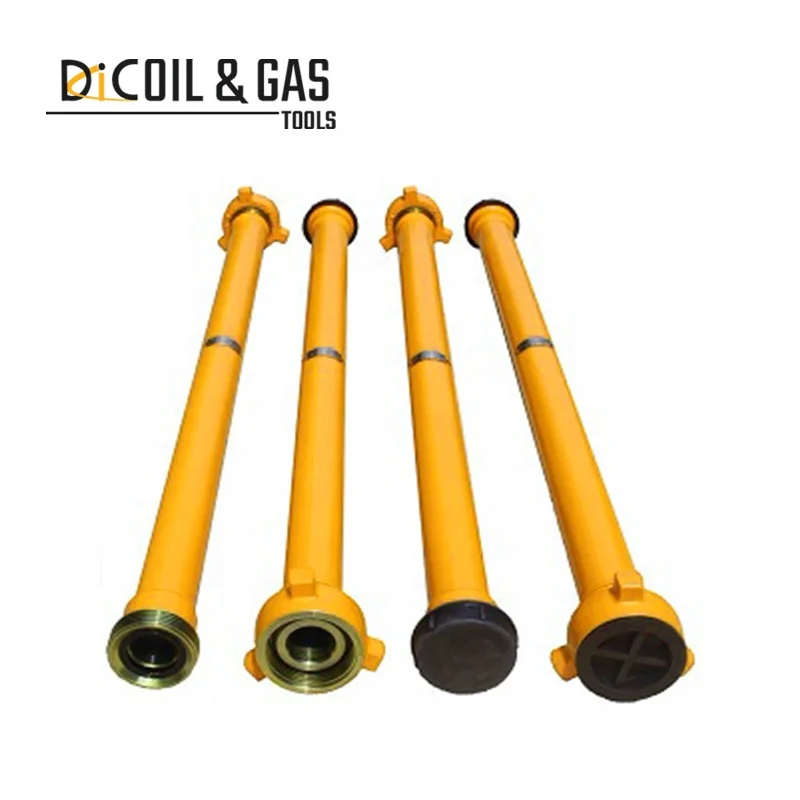

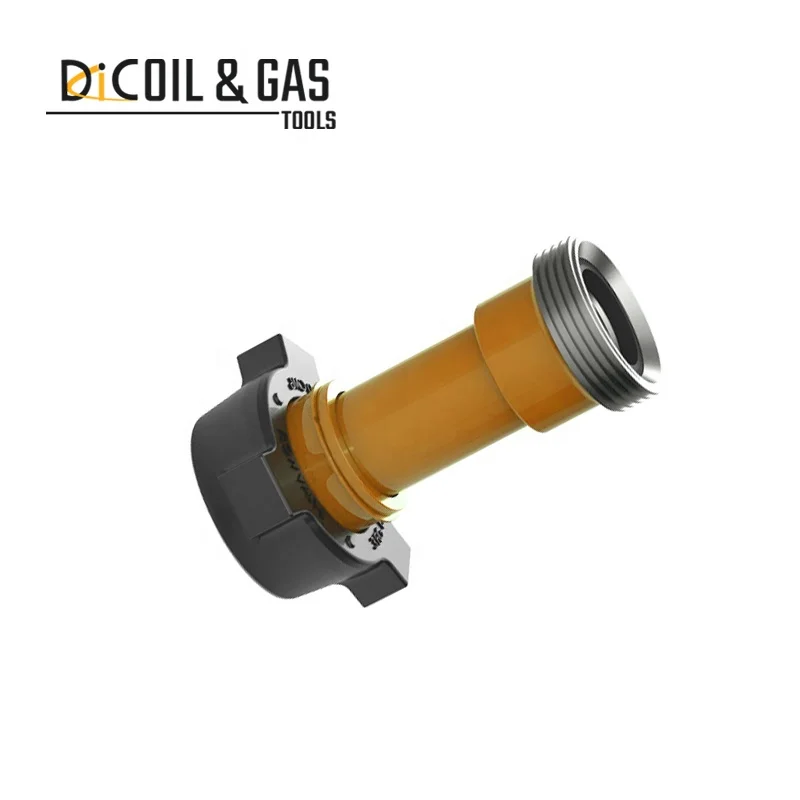

We are Manufacturer of Integral Pup Joints, used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance manifold and test manifold. These are made from high quality alloy steel, integrally constructed, forged ended features seamless upset construction. Standard Integral Pup Joints are available in different models, pressure and temperature rating. Integral Pup Joints can be manufactured in two models; one is plain integral pup joint another is pup joints with retaining shoulder.

We are one of the prominent Manufacturer and Exporter of PUP joints, an important part of equipment in almost any well. They are typically easy to handle and use due to their shorter length. They provide almost same performance as the tubing/casing drill pipe. Pup joints varying lengths of tubing and casing are used to adjust the production string length as close as possible to the required value. PUP joints are used to space out the distance between tubing and casing components. These are also used to adjust the bottom of downhole tools. We provide various thread type and thread size combinations of PUP Joints.

The Praxis Perforated Pup Joint may be incorporated in the completion string for the purpose of bypass flow if bottom hole pressure and temperature gauges are used for reservoir monitoring. The design criteria for a perforated joint is that the total cross-sectional area of the holes should be at least equivalent to the cross-sectional area corresponding to the internal diameter of the tubing.

In wells flowing large volumes, a restriction in the tubing such as a gauge hanger could cause false pressure readings. Vibrations due to flow could also cause extensive damage to delicate gauges, therefore a perforated pup joint (approx. 10ft length) set above the bomb hanger nipple would allow flow to pass unrestricted over the gauges and hanger, thus giving a more accurate pressure/temperature recording within the limitations of the gauge.

Pup Jointsare used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-by-Coupling Box Flush joint connections.

In the oil and gas drilling industry, the tubing pup joint is a critical component for the completion of a well. The pup joint allows the driller to change out the drill pipe without having to pull out the entire string of pipe from the well. This is a common practice, especially when drilling deep wells. Because of this, the tubing pup joint is one of the most important joints in any well.

Tubing pup joints are small-diameter tubing that is used in conjunction with casing to complete a well. The pup joint is run in the hole and cemented to the casing, and then the production tubing is run over it and attached. This arrangement allows for the use of smaller-diameter production tubing, which results in less pressure drop and improved production. The pup joint is usually located in the last few feet of the tubing string.

When you need tubing pup joints, Action is the only source you need to know.Westcan Oilfieldhave awide selection of productsto meet your needs and we offer some of the best prices in the industry. You can trust that we’ll provide you with quality products that you can count on.

All pump joints are made from modified alloy steel heat-treated to a Brinell Hardness range of 285–341 with a CharpyV-Notch minimum impact strength of 40 ft-lbs at 70°F guaranteed to one inch below the surface. Connections can becold rolled after machining, if requested. All connections are phos-coated to prevent galling during initial make-up.Nominal size: 3 1/2""OD ~ 6~ 5/8"" OD, Length: 5", 10", 15", 20".A pup joint is a pipe of non-standard length used to adjust the length of tubular strings to its exact requirement.API casing and tubing pup joints are manufactured according to API Spec 5CT using prime API monogrammed,seamless oil country tubing.

from 2 to 20 ft.ConnectionsSTC, LC and BC and Premium Connections of leading manufacturers available.Pup joint is kind of pipe without non-standard length to adjust the length of tubular strings to its exact requirement. API casing and tubing pup joint are produced according to API SPEC 5CT standard. Beyond the standard of oil casing pipe is called pup joint, the main oil casing pup joint material: J55, K55, N80, L80, C90, T95 and P110.

Tubing pup joints are used to house the Drop Bar Hydrostatic and Direct Pressure Firing Heads. They are standard API N-80 grade pup joints manufactured to your specified length.

A short casing or tubing that is used for handling the assemblies of production tubing is called Pup Joints. It is also used for spacing out full length tubing and casing strings. The npst pup joints are non-standard piping lengths that are available in two or five foot increments. However, customization is available on request. Their height can be adjusted of full length tubing and various kinds of drill pipes. The string pipes are assembled with the tubular goods having standard length and they are typically 31 feet in length. The length can be easily adjusted according to the exact requirements. They are quite dependent on the tubular goods with which they mate.

Find tubing pup joints traders in ANSI Sch 40, 80, and 60 with a full set of documentation and sample preservation; see specifications and where it is used.

Before making a purchase, compare the prices of perforated pup joints from two or more reliable GCC suppliers. See What are the benefits of integral pup joint

With customizable options, our plugcatchers are rated for 10,000 or 15,000 CWP. Depending on your requirements we can use different styles of crossovers and pup joints to get the solution you need. We test every one of our plugcatchers at time and a half CWP before they ship.

Producing a high performing plugcatcher is easier when you have complete control. Every plugcatcher component has the FlowValve signature, from plug valves, tees, crosses, pup joints and crossovers right down to the skid. When we sign off on something, we always stand behind it.
