dividing plates for rotary table pricelist

The indexing plate is a machine tool accessory that holds the workpiece on the chuck or between two pinnacles and rotates, indexing and positioning it. Plate connected with rotary indexing table is in Diameter: 4"/100mm and Thickness: 0.28"/7mm, good for rotary tables in Model HV-3, HV-4, HV-5, HV-6, TS160. Perfect to use with dividing head for milling table.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

SUITABLE MODELS HV-3/4/5/6- Ideal for both vertical and horizontal milling machines, like rotary tables in HV-3(3inch), HV-4(4inch), HV-5(5inch), HV-6(6inch) and TS160.

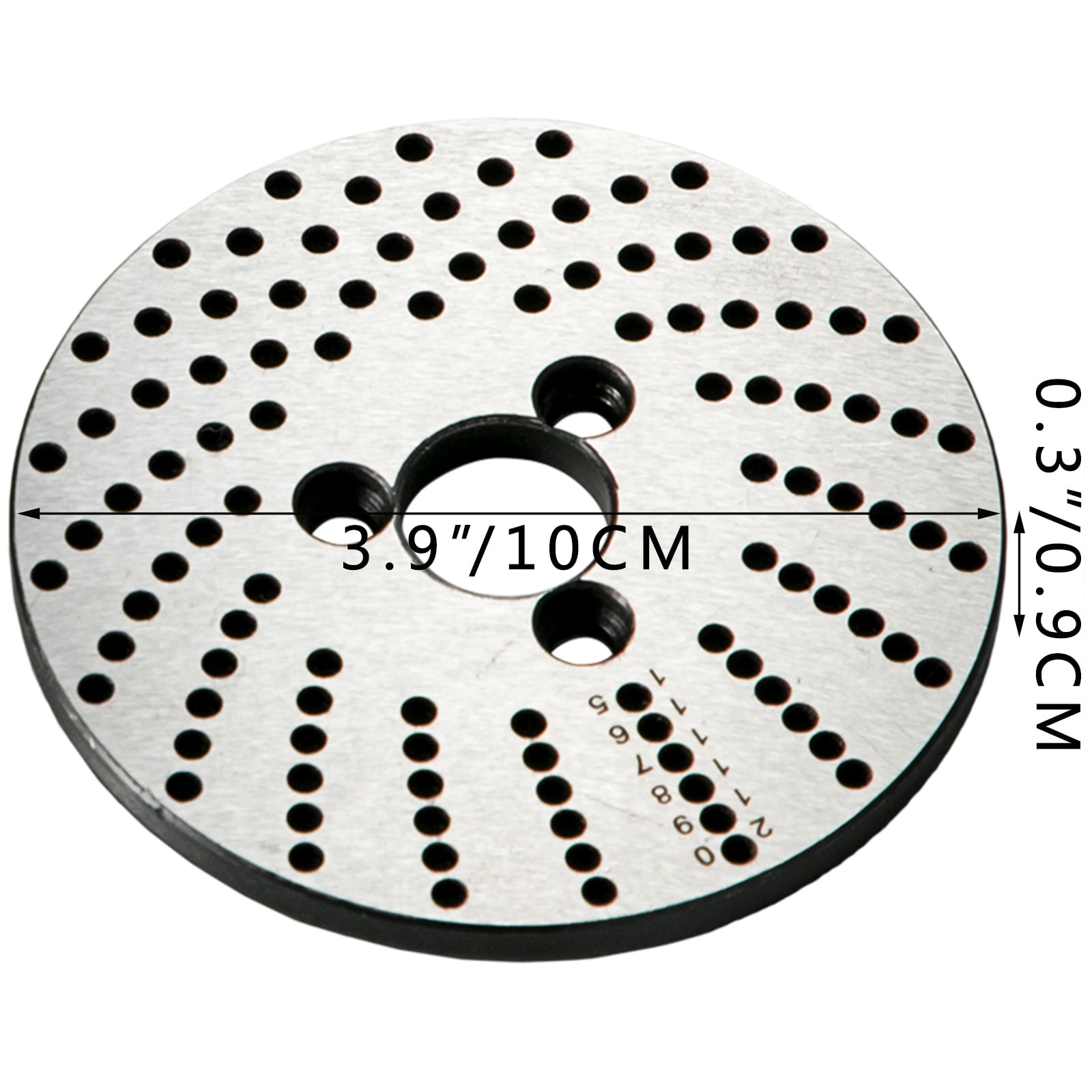

REASONABLE SIZE- Plate Diameter: 4"/100mm, Plate Thickness: 0.28"/7mm, Center Hole Diameter: 0.83"/21mm. 3 plates are in same size, good for rotary indexing table or milling working tables.

SOLID CONSTRUCTION- 3pcs milling plates are made from HT200 to be more durable. Rigid frame provides high performance, also laser engraving numbers on them.

EASY TO USE- Number of the holes of dividing plates, A-Plate: 15, 16, 17, 18, 19, 20, B-Plate: 21, 23, 27, 29, 31, 33, C-Plate: 37, 39, 41, 43, 47, 49. Light weight, easy to install and use.

Founded in 1969 under the motto of “Always Thinking Productivity”, Cutting Tools Inc.is the premier distributor for the Automotive, Aerospace, Defense, Energy, Firearms and Medical manufacturing industries. To get in touch, contact us at cs@cuttingtoolsinc.com

These indexing plates are used in conjunction with both the Axminster 100189 and 200247 rotary tables to enable the table to be rotated by an exact fraction of a complete turn, a particular requirement when machining gears, sprockets, etc. on a vertical mill. There are three indexing plates in the set which together provide all the subdivisions up to 50 (although 28 and 44 carry very small errors). There are a further 26 subdivisions available between 51 and 100 plus others above 100. The spring loaded index pin locates positively in the holes in the index plates and the two brass setting plates help to keep count of the number of holes moved by the pin.

Dividing Plates└ Plates└ Workholding└ Workholding & Toolholding└ CNC, Metalworking & Manufacturing└ Business & IndustrialAll CategoriesAntiquesArtBabyBooks & MagazinesBusiness & IndustrialCameras & PhotoCell Phones & AccessoriesClothing, Shoes & AccessoriesCoins & Paper MoneyCollectiblesComputers/Tablets & NetworkingConsumer ElectronicsCraftsDolls & BearsMovies & TVEntertainment MemorabiliaGift Cards & CouponsHealth & BeautyHome & GardenJewelry & WatchesMusicMusical Instruments & GearPet SuppliesPottery & GlassReal EstateSpecialty ServicesSporting GoodsSports Mem, Cards & Fan ShopStampsTickets & ExperiencesToys & HobbiesTravelVideo Games & ConsolesEverything Else

The dividing plate set consists of one plate with two sets of holes. One circle has 15 holes and the other has 28 holes. This lets you divide a circle into 1/3 degree increments, among many other combinations.
