hypoid gear rotary table for sale

Rotary tables are used for precision metal work. They are usually made of a solid base that can be attached to another bracket. The table is a disk that rotates freely or with the help of a spiral (hand crank).

The rotary table is a disk-shaped metalworking device that enables precise positioning of the workpiece. It allows the metalworker to cut or drill the workpiece at precise intervals vertically or horizontally around a fixed axis. The turntable can be controlled both manually and digitally by computer. Some types of rotary tables are designed to be used with indexers or separators for special operations. A rotary table used with one of these positioning plates is often called a dividing or indexing head.

The Rotary tables is usually a sturdy base that can be attached to a separate stand or table. This device is basically a rotating disc that holds the workpiece in place while cutting or drilling. The disk portion of the rotary table can be freely rotated or rotated for indexing operations by means of an attached control lever known as a worm wheel. Tables used in precision operations are usually turned with a duplex type helical wheel to compensate for clearance. Rotary tables used in automated metalworking processes are connected to a digitally controlled computer.

Rotary tables are mostly used in a flat position with the table axis vertical. Sometimes they are installed with the shaft pointing horizontally so that the suppository can be used to support the free end of the workpiece. When this device is attached to the secondary table, the workpiece can be centered on the axis of the rotary table, which is then centered on the axis of the cutter. In this configuration, the axes of the rotary table, secondary table and cutter are coaxial to facilitate concentric cutting operations. This configuration also allows the secondary table to be moved to drill evenly spaced holes in the workpiece.

Rotary Table offers an unparalleled combination of good accuracy and high load capacity. These rotary stages utilize a precision worm gear with the worm “flexed” against the gear to ensure a proper mesh. This feature provides high repeatability with very smooth operation. Additionally, the rotary stages incorporate an oversized pre loaded cross roller bearing, offering exceptional stiffness and load capacity.

After effective optimization and improvement program, our company has made significant improvement and promotion in production efficiency and Speed Reducer, Hollow Rotary Actuator, Mini Parts Feeder For Chip LED quality.Our professional services have increased the added value of our Hypoid Rotary Table, while winning the trust and praise of our customers. We have been ready to share our knowledge of advertising worldwide and recommend you suitable products at most aggressive costs. We pay attention to teamwork and cooperation, give full play to the overall efficiency, and achieve team professionalism, quality and technology. The company is strong, and is committed to providing the most cost-effective products and services to global and Chinese customers. We have a strong comprehensive strength, systematic market capacity, professional technical strength, perfect quality system, sound service network and pragmatic work style. The company actively adopts a modern enterprise management model, strictly controls every link in the production, and continuously improves the functions and performance of the products. Our company actively devotes itself to the cause of energy conservation and environmental protection, strives to be the main force in the construction of ecological civilization, and has made new progress.

Hollow Structure Easy to Wiring and Piping. Direct Connection Rotary Table can be directly installed with working table and robot arms Multiple Options for Motor Stepper and Servo Motor could be...

High Precision, High Efficiency The spiral guide hypoid gear has the advantages of higher reduction ratio, high torque, high precision, and low loss than the spiral bevel. It rotates in a sliding...

We will devote ourselves to R&D and production of Harmonic Drive Reducer, Robot Joints Harmonic Drive, high quality Hollow Bore Rotary Stage with more advanced technology, more complete functions and superior performance. As one of the leading Hypoid Rotary Table manufacturers and suppliers in China, we warmly welcome you to wholesale high quality Hypoid Rotary Table at competitive price from our factory.

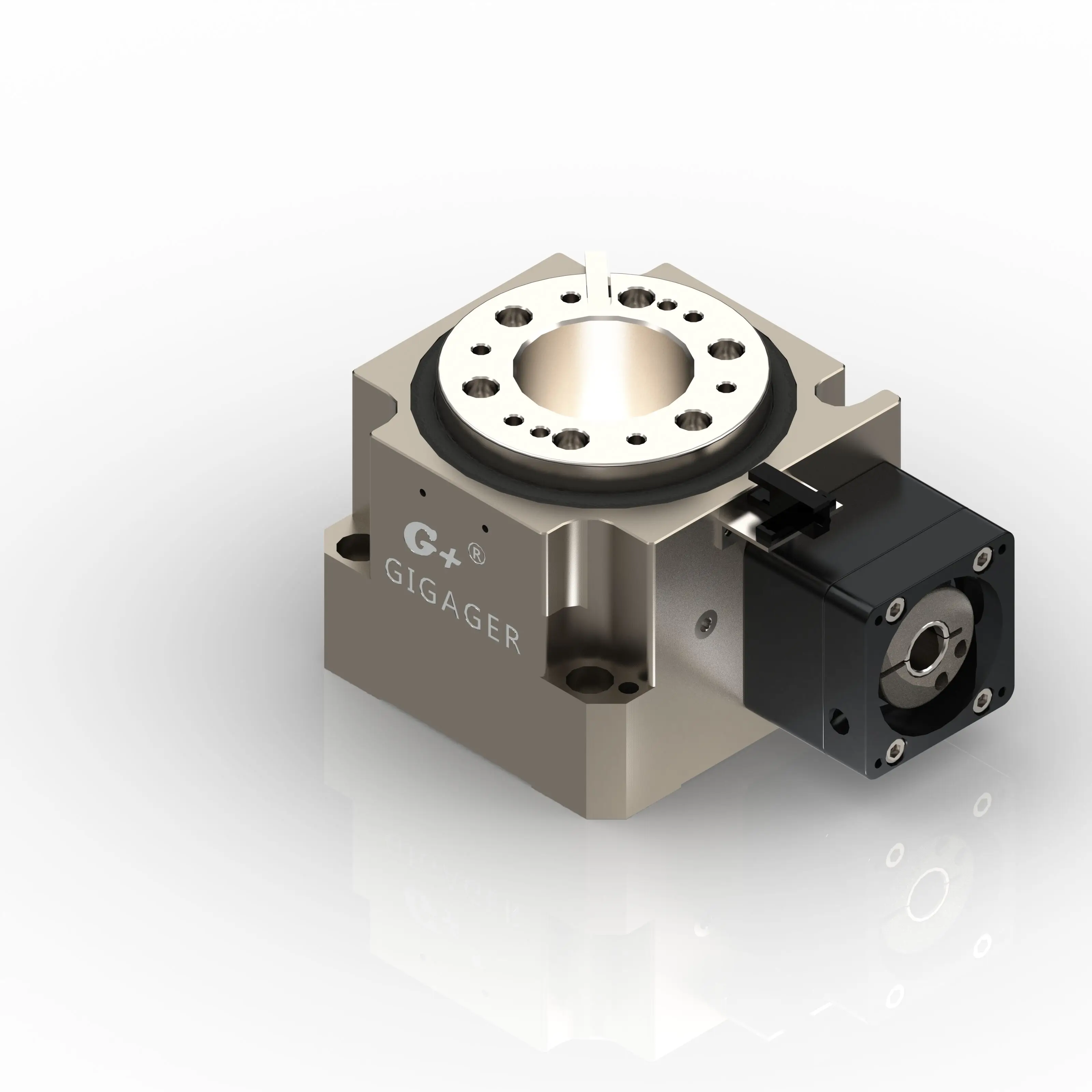

Hypoid Rotary Table is a kind of gearbox integrated right angle gearbox and Hypoid gears, featured with high torque, high gear ratio, high IP grade, high precision, low wear. It adopts sliding mode to rotate, the transmission precision can reach 30 arc seconds, the transmission efficiency is up to 96%; the gear geometric tolerance ≤ 0.002mm, up to JIS0 level standard. Hypoid Rotary Table also called High Torque Rotary Stage, Hypoid Hollow Rotary Stage, Right Angle Hypoid Gearbox, etc....

Saini Intelligent provides wide ranges of Hollow Raotay Table and their Combination Axis. We provide the following Hollow Rotary Table and its combination.

For some application, the bigger gear ratio are needed, it can be achieved by combination of Hollow Rotary Table with Planetary Reducer or Right Angle Gearbox. Below is a combination list for different gear ratio.

The Hollow Rotary Table could be applied for many application like Rotating Platform, Laser Marking machine, Gyro Test, Gravity Sensor Test, Electronic Compass Test of mobile phone and other precise electronic product. It also can used for robot arm joint, automation production line, testing device, laser cutting, etc.
