Strong Clamping Force Brake System Hydraulic pressure pushes the thin brake wall against the spindle. Brake Diaphragm Brake System NC Rotary Tables Provide: ☆ Durability & Longevity ☆ Compact Designs ☆ Strong Clamping Force ☆ Highly Responsive ☆ Low Mainte

NC Rotary Tables Enhance Your Machine Tools MC : Machining Center EDM : Electric Discharge Machine MDH P6 Horizontal Special-Purpose Machine Horizontal only Horizontal High-Speed Machine Vertical only Vertical only

Dielectric Fluid only Vertical or Horizontal EDM for Wirecutting & Small-Hole Drilling Deionized Water only Vertical or Horizontal Direct Drive Motor (1-axis) Direct Drive Motor (2-axis) Tail Stock Table Accessories Air-Hydraulic Booster Dimensions for T-Slot / Clamping Bolt

Vertical or Horizontal Position ・Highly Accurate, Rigid, & Durable ・Most suitable for vertical machining center 　→ Less interference between spindle and work-piece ・Zero-Backlash Worm Gear system ・Compact external form ・Large through-hole provides increased versatility Note1: ( ) = higher indexing accuracy model with rotary scale. In this case, the outside drawing will change slightly. (T.I.R) ■Specifications Item Note2: Option: Built-in rotary joint is possible. Table Diameter Vertical Center Height Horizontal Center Height Through Hole Guide Block Width Gear Ratio Servo Motor (FANUC*)...

Vertical or Horizontal Position ・Most suitable for vertical machining center 　→ Less interference between spindle and work-piece ・Zero-Backlash Worm Gear system ・Compact external form ・Large through-hole provides increased versatility Note1: ( ) = higher indexing accuracy model with rotary scale. In this case, the outside drawing will change slightly. (T.I.R) ■Specifications Item Note2: Option: Built-in rotary joint is possible. Table Diameter Vertical Center Height Horizontal Center Height Through Hole Guide Block Width Servo Motor (FANUC*) Gear Ratio Indexing Accuracy Clamping Torque...

Vertical Position ・Most suitable for horizontal machining center 　→ Less interference between spindle and work-piece ・Zero-Backlash Worm Gear system ・Compact external form ・Large through-hole provides increased versatility ※ Optional machines models MDU632RG and MDU802RG with greater rigidity for incredible power and precision. Note1: ( ) = higher indexing accuracy model with rotary scale. In this case, the outside drawing will change slightly. (T.I.R) ■Specifications Item Note2: Option: Built-in rotary joint is possible. Table Diameter Vertical Center Height Horizontal Center Height...

Horizontal Position ・Outstanding Flexible Manufacturing System (FMS) ・Best for production line, mass production of parts ・Most suitable for horizontal machining center ・Zero-Backlash Worm Gear system ・Compact external form ・Built-in rotary joint (4-12 ports) ■Specifications Item Table Diameter Vertical Center Height Horizontal Center Height Through Hole Guide Block Width Gear Ratio Servo Motor (FANUC*) Indexing Accuracy Clamping Torque Clamping Pressure Permissible Machining Torque of Wheel Permissible Load Max. Machining Force at Clamping Permissible Work Inertia 12

MDVi TYPE Vertical Position ・Features high-precision OTT Worm Gear for greater power transmission ・Ideal for Scroll Machining or high speed applications ■Specifications Item Note1: Rotary scale is attached to『 i 』model. (T.I.R) Note2: Option: Built-in rotary joint is possible. Table Diameter Vertical Center Height Horizontal Center Height Through Hole Guide Block Width Gear Ratio Servo Motor (FANUC*) Indexing Accuracy Clamping Torque Clamping Pressure Permissible Machining Torque of Wheel Permissible Load Max. Machining Force at Clamping Permissible Work Inertia 14 *Application for other...

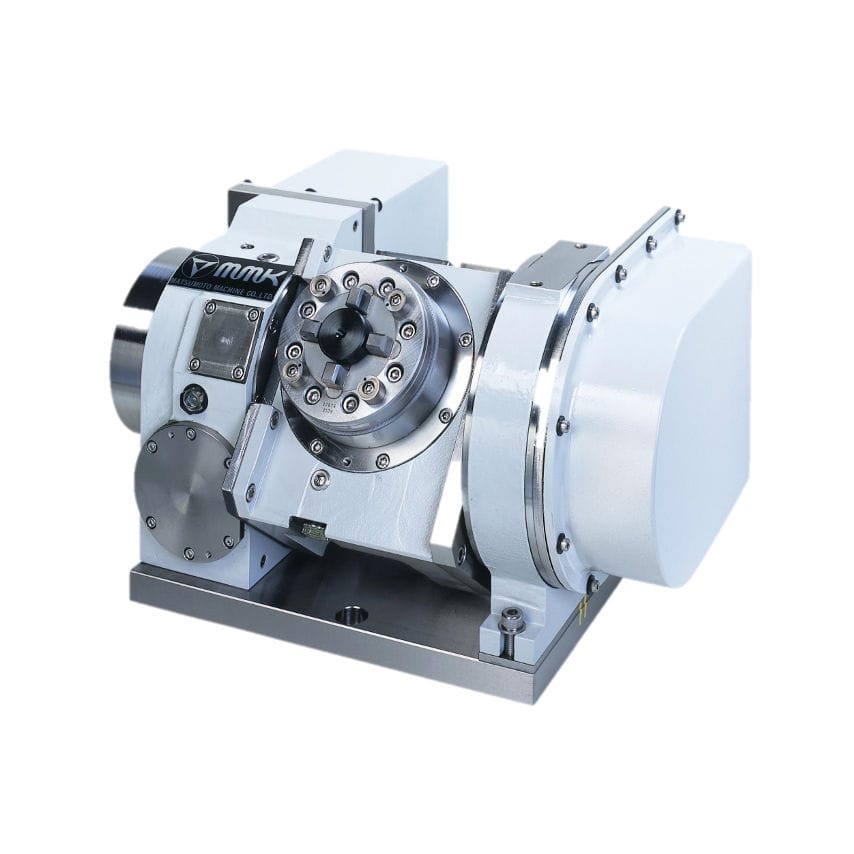

MDAT TYPE NC Tilting Rotary Table ・Designed for 3D cutting, processing ・Most suitable for high-tolerance, five-axis machining ・High-precision OTT Worm Gear results in superior performance in rotary and tilt operations Note1: ( ) = higher indexing accuracy model with rotary scale. In this case, the outside drawing will change slightly. (T.I.R) Note2: Option: Built-in rotary joint is possible. Table Diameter Tilting Axis Center Height Table Height in Horizontal Through Hole Gear Ratio Tilting Axis Tilting Axis Tilting Axis Rotary Axis Tilting Axis Rotary Axis Tilting Axis Rotary Axis Tilting...

Precision Spinning Table Vertical or Horizontal Position ・High precision, high speed system ・Most suitable for grinding center and jig grinder ・Recommended for machining of ceramic and glass ・Able to attach special controller ■Specifications Item Table Diameter Vertical Center Height Horizontal Center Height Through Hole Guide Block Width Gear Ratio Servo Motor Rotating Accuracy Indexing Function Clamping Torque Clamping Pressure Permissible Machining Torque of Wheel Permissible Load Max. Machining Force at Clamping Permissible Work Inertia

NC Rotary Table for Electric Discharge Machine EDM - Dielectric Fluid Vertical or Horizontal Position ・Most suitable for electric discharge machining of large-diameter plates ・Fully submersible in dielectric fluid ・Zero-Backlash Worm Gear system ■Specifications Item Note1: ( ) = higher indexing accuracy model with rotary scale. In this case, the outside drawing will change slightly. (T.I.R) Table Diameter Vertical Center Height Horizontal Center Height Through Hole Guide Block Width Gear Ratio Servo Motor (FANUC*) Indexing Accuracy Clamping Torque Clamping Pressure Permissible Machining...

INNOVATION. PRECISION. QUALITY. MDX SERIES VERSATILE, HEAVY DUTY BIG­BORE ROTARY TABLES Built tough with a rugged design for intense applications, in order to withstand the most extreme environments. Designed with unique Tri­Mount Positioning, the ability to mount in any three positions: Vertical, Horizontal, or Sideways allows MDX tables to be installed onto either a vertical or horizontal machining center for incredible versatility. Conveniently equipped with a Universal motor mount for quick & easy adaptability to virtually any type of servo motor. SPECIFICATIONS MDX 253 Servo Motor (Fanuc)* Clamp Torque Nm (ft-lb) Load Capacity, Vert. kg (lb) Load Capacity, Horiz. kg (lb) Gear Ratio Clamp System *Other servo motors available MDX TRI­MOUNT TRI­MOUNT POSITIONING UNIVERSAL MOTOR MOUNT

Founded in Japan in 1948, Matsumoto Machine Corporation (MMK) is a technology-leading provider of innovative, high-quality jaw chucks and numerically controlled rotary tables used by industrial machine tool makers throughout the world. A key feature of MMK’s CNC rotary tables is a patented worm and wheel gear assembly developed by OTT GmbH, Germany. Unlike double lead worm gears, the OTT worm and wheel gear can minimise backlash, ensuring outstanding accuracy, long life, efficiency and durability.

A further advantageous characteristic of the MMK CNC rotary table is a large diameter through-hole in the table spindle. This greatly increases machine versatility and rigidity, supporting a wider variety of chucks & jigs and machining longer workpieces.

The benefits of the MMK CNC rotary table are far-reaching by enabling most metal-machining operations to be undertaken on a single machine. These include the benefits of time and cost-saving of single machine set-up and single fixturing set-up, reduced parts handling, and the elimination of tolerance errors as workpieces pass from machine to machine. Of critical importance in this one-hit machining centre scenario is ensuring the high accuracy of CNC rotary table indexing and control throughout its working lifetime.

As with any form of precision equipment integrated into a machining centre by a third-party machine tool maker, which in turn is used by an end-user in any number of industrial sectors, assuring consistent accuracy and performance over time presents a challenge. As with a machine tool’s linear XYZ axes, the rotary axis is just as susceptible to uncontrollable events that may introduce angular positioning or axis alignment errors. Risking the production of defects in finished parts, these errors can be due to a number of reasons, including mistakes made in the initial machine installation, impact damage caused by collision or general wear-and-tear in use.

With its global reputation for product quality and design innovation, MMK, therefore, sought to equip its CNC rotary tables with a highly accurate and reliable means of tracking and controlling the indexing of its product throughout its lifetime, irrespective of the type of machine tool, workpiece complexity and duty cycle.

At the same time, in an increasingly competitive global market for CNC rotary tables, MMK also wanted to enhance its product quality inspection processes further. Specifically, the company set itself the task of augmenting index angle measurement as a key component of pre-shipment quality assurance procedures.

To provide machine tool makers and users with the ability to track and control CNC rotary table indexing accurately, MMK elected to integrate Renishaw’s super-compact TONiC™ non-contact optical incremental encoder system. Simple to install and with a compact readhead measuring just 35 mm x 13.5 mm x 10 mm, the TONiC encoder presented MMK with a minimal footprint solution capable of supporting machine speeds up to 10 m/s and resolutions down to 1 nm.

The rotary table readhead was designed to be used in conjunction with Renishaw’s RESM, a one-piece stainless steel ring marked on its periphery with 20 μm pitch graduations and featuring the IN-TRAC™ optical reference mark. With its low profile, large internal diameter and a wide choice of diameters from 52 mm to 550 mm, the high stability RESM ring provided MMK with a versatile and easy to integrate scale that is well-suited to the company’s wide range of CNC rotary tables.

MMK selected Renishaw’s compact and lightweight XR20-W rotary axis calibrator to verify the accuracy of its rotary tables during manufacturing and immediately prior to shipment. The XR20-W was used in conjunction with Renishaw’s XL-80 laser interferometer to provide a non-contact reference measurement, independent of the axis under test, with an accuracy of ±1 arc second.

Motorised by a servo-controlled drive and with data capture synchronised to axis movement, the XR20-W requires no operator intervention during measurement. Being lithium battery-powered and bluetooth-enabled, it ensures quick and easy setup and the avoidance of trailing cable hazards. The calibrator’s modular design and flexible mounting systems allow far easier setup than alternative solutions and can be readily configured for a wide variety of rotary tables, chucks and spindles.

By integrating Renishaw’s TONiC non-contact optical encoder system into its CNC rotary tables, MMK has further assured the accuracy and reliability of its products in the field, along with an overall superior motion control performance. For a wide range of different machine tools and end uses, the rotary tables’ combination of compact readhead and one-piece stainless steel ring scale has delivered a higher level of tolerance to dust, scratches, grease and oil, and a reduction in indexing errors. The encoder system’s ability to output highly stable position signals of unrivalled purity, and ultra-low sub-divisional error have provided smoother velocity control, improved scanning performance and increased positional stability.

MMK’s introduction of Renishaw’s XR20-W rotary axis calibrator and XL-80 laser interferometer has reduced product measurement times by half compared to conventional autocollimator techniques. Measurement procedures have been simplified and automated. Capable of taking accurate measurements at any indexing angle pitch, the calibrator enables evaluation of the accuracy of the worm and wheel gear-driven table for ultra-fine pitch measurement movements as small as 0.001°. It has allowed any loss of motion control or worm and wheel gear efficiency to be evaluated in detail and addressed. Product performance is now backed by a thorough analysis meeting ISO quality standards.

MMK Matsumoto Corp. is offering its SATii161, a stainless steel cantilever-style tilting EDM rotary table designed for 5-axis EDM machining of complex parts.

According to MMK Matsumoto, the SATii161 is fully impervious for complete submersion in oil or water and is equipped with current collectors and an isolated faceplate, making it usable for both wire EDM and sinker EDM applications.

The A/B axis indexer has a total load capacity of 50 kg, tilting capabilities of up to +/-179° and the ability to add a rotary joint for the use of a pneumatic power chuck. By lowering the table face to the tilt axis center height, the SATii161 helps increase efficiency by reducing machine axis travels. In order to meet the needs of a growing aerospace industry, precision indexing accuracy comes standard on the SATii161, said the company.

We believe that our wealth of experience and our passion for quality makes Midland Engineering the best choice when it comes to the repair of your rotary table. We understand the need for a quality assured repair service with a focus on keeping downtime to a minimum.

MATSUMOTO 10 ROTARY TABLE W A 26 x. NEED A SPECIFIC ITEM & YOU CAN"T FIND IT ANYWHERE, WE HAVE IT!!! WE SHIP GLOBALLY! The Item You Are Bidding On Is a Motsumoto 10" Rotary Table W/ a 26" x 12" Trunnion in Excellent Working Condition. Features: ALL ITEMS FEATURE A NO HASSLE RETURN POLICY. PLEASE READ FULL DESCRIPTION FOR ALL ITEM DETAILS! Item Specifications: 10" Rotary Table W/ 26" x 12" Trunnion Model #: MDB 200 GF Serial #: 88397 *This rotary table was being used with a 4020 Fadal in one of the larger aerospace companies located in Southern California. Item Comes Exactly as Shown in Pictures. If You Want To Arrange Shipping Please Contact Us For A Quote. ---Returns are on unused items and all items are inspected thoroughly. If Item NOT PAID Within 72 Hours of Invoice The Item Will Be Relisted. ---Extra Fees Apply For All International Shipping--- ---Extra Fees Apply To Alaska And Hawaii Shipping--- ---We Do Not Ship To P.O. Boxes--- ---We Have Tooling From All Your Favorite Brands Including: Brown & Sharpe , Niagara , Starrett , Mitutoyo , Rockwell , Kurt , Kitagawa , Tree , Hurco , Bridgeport, Clausing , Logan , Hardinge , Buck , Albrecht , Victor , Kennedy And Much Much More!!!!!!---

A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. Some rotary tables allow the use of index plates for indexing operations, and some can also be fitted with dividing plates that enable regular work positioning at divisions for which indexing plates are not available. A rotary fixture used in this fashion is more appropriately called a dividing head (indexing head).

The table shown is a manually operated type. Powered tables under the control of CNC machines are now available, and provide a fourth axis to CNC milling machines. Rotary tables are made with a solid base, which has provision for clamping onto another table or fixture. The actual table is a precision-machined disc to which the work piece is clamped (T slots are generally provided for this purpose). This disc can rotate freely, for indexing, or under the control of a worm (handwheel), with the worm wheel portion being made part of the actual table. High precision tables are driven by backlash compensating duplex worms.

The ratio between worm and table is generally 40:1, 72:1 or 90:1 but may be any ratio that can be easily divided exactly into 360°. This is for ease of use when indexing plates are available. A graduated dial and, often, a vernier scale enable the operator to position the table, and thus the work affixed to it with great accuracy.

Rotary tables are most commonly mounted "flat", with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. An alternate setup is to mount the rotary table on its end (or mount it "flat" on a 90° angle plate), so that it rotates about a horizontal axis. In this configuration a tailstock can also be used, thus holding the workpiece "between centers."

With the table mounted on a secondary table, the workpiece is accurately centered on the rotary table"s axis, which in turn is centered on the cutting tool"s axis. All three axes are thus coaxial. From this point, the secondary table can be offset in either the X or Y direction to set the cutter the desired distance from the workpiece"s center. This allows concentric machining operations on the workpiece. Placing the workpiece eccentrically a set distance from the center permits more complex curves to be cut. As with other setups on a vertical mill, the milling operation can be either drilling a series of concentric, and possibly equidistant holes, or face or end milling either circular or semicircular shapes and contours.

* With the addition of a compound table on top of the rotary table, the user can move the center of rotation to anywhere on the part being cut. This enables an arc to be cut at any place on the part.

Additionally, if converted to stepper motor operation, with a CNC milling machine and a tailstock, a rotary table allows many parts to be made on a mill that otherwise would require a lathe.
