Our Multi-Position Handle Butterfly Valve has a lockable handles to prevent tampering, as standard. Standard clamp ends make for easy assembly and disassembly when cleaning or working in tight spaces. As for the wetted parts of the butterfly and valve are to a 20 Ra ID.

Our Sanitary Multi-Position Two Way Handle Butterfly Valve comes standard with EPDM seats. Additionally, the valve requires no special tools allowing for easy maintenance and low installation costs. Each valve is capped and bagged as well as permanently etched with the Part number, size, alloy and heat number for full trace-ability.

Material Test Reports are available. Click Here and enter your heat number to receive a PDF copy of your report. Call our sales team at 1-888-909-3569 or 1-855-640-7871 to assist you with stock availability, valve questions and repair kits.

Swissfluid SIV Inline Sampling Valves are installed directly in the pipeline or in a bypass piping system. Collecting a liquid sample with our cavity-free design results in a representative sample taken directly from the media flowing through the pipeline.

In connection with a closed Piston Injector also gases can be sampled besides liquids, without coming in contact with the atmosphere or with the operator. Our sampling valves and –systems are the preferred choice for applications in the chemical, pharmaceutical and refining industries, and are suitable for piping systems with flange connections per ASME B16.5 or DIN standard EN 1092, with face-to-face dimensions per ASME B16.10 or EN 558-1, range 1. Compact wafer connections, typically with a face-to-face length of 62mm (2.44in), are also available. Our SIV Sampling valves are designed for ANSI 150lbs, 300lbs and 600lbs systems, or in accordance with DIN PN16/40/64.

OPEN sampling from valves, container, reactors, etc. in the open position, into vessels without technical safety measures, or CLOSED sampling, where the product is taken from a closed system, without exposure to the person taking the sample or the atmosphere.

Sampling Valve bodies and spindles are available unlined from 1.4408 / 1.4404 stainless steel, or fully lined with PFA or PFA-AS (anti-static) in order to protect against highly corrosive or aggressive media. For ultimate corrosion protection, our SIV Sampling Valves are also available in exotic metals such as Titanium, Inconel or Hastelloy.

We offer our Sampling Ball Valve with CF-8M SS body (AISI 316) fluorothermoplastic-lined, or in an unlined version using the same body material. This volume-specific sampler draws a pre-determined volume – including minimal sample sizes - from horizontal and vertical piping systems. The collected sample and the main line are not connected after sampling, eliminating any system pressure being transferred, which also allows vacuum sampling. Full-port construction and close attachment of the sampling unit eliminate any dead space, which allows easy cleaning and purging of the piping system. Thanks to the large sample opening very high as well as very low viscosity samples can be taken.

This easy to operate Inline Sampling Ball Valve is suitable for clear, liquid media, within operating conditions of -40°F – 400°F and pressures up to 232psi.

Optional equipment to satisfy specific customer requirements include heating jackets, butt-weld ends or clamp connections. In order to create hermetically sealed sampling, we also offer safety cabinets, needle adapters and activated carbon filters.

Butterfly Valves are available in Manual, Air Actuated, or Air Actuated with two Micro switches and a Solenoid Valve. Clamp or Weld ends are standard. Other connections are available upon request. Available seat materials include Silicone, Viton®, and EPDM. Size range from 1˝ through 6˝. All products contact surfaces are available in either T304 or T316 stainless steel.

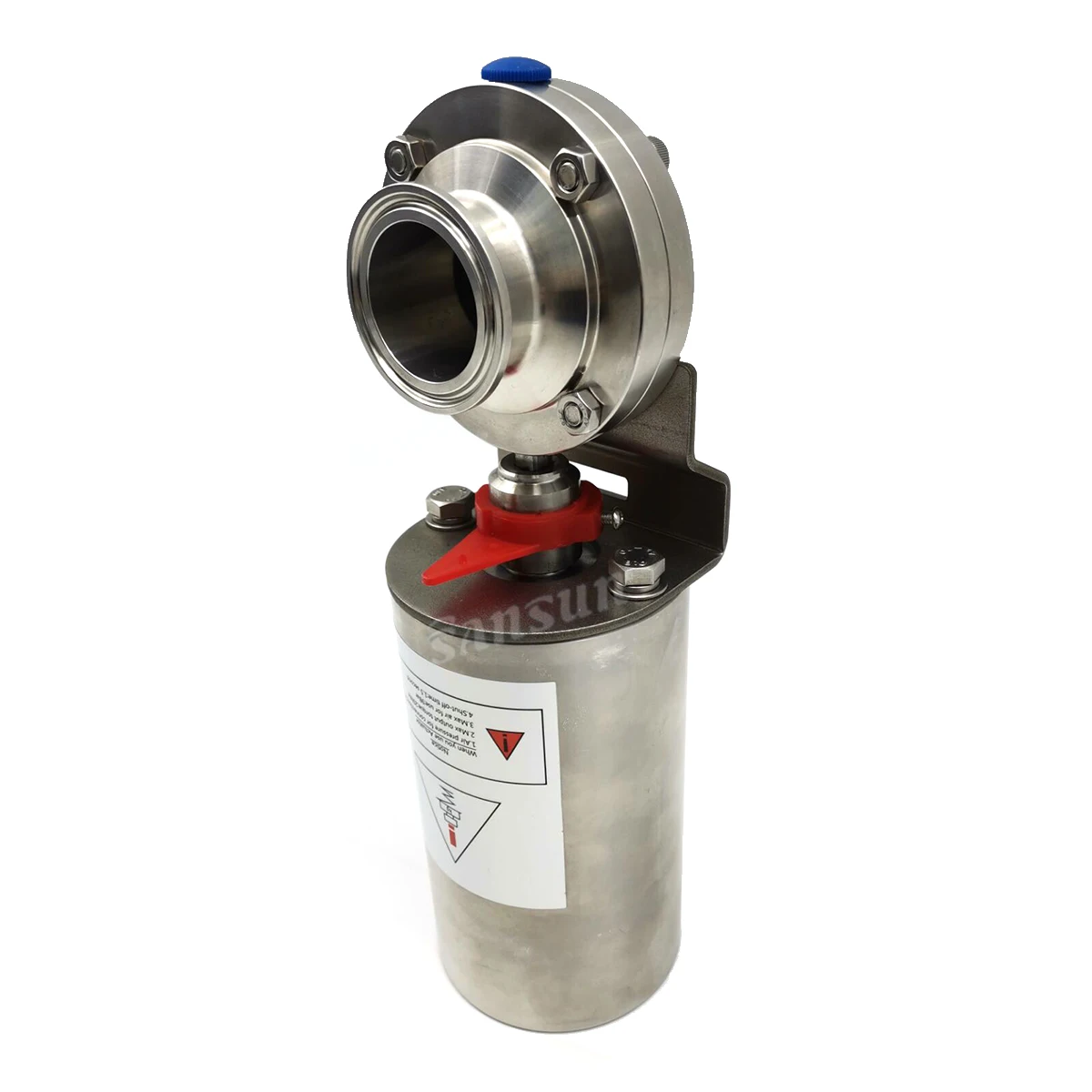

Butterfly Valves are available in Manual, Air Actuated, or Air Actuated with proximity switches and 24V Solenoid Valve. Clamp or Weld ends are standard. Other connections are available upon request.

Check Valves are widely used for both sanitary and industrial applications to prevent backflow of product. Ball Check Valves are designed to allow full product flow during processing. Once the product flow stops the ball rolls back to the seat at inlet preventing back flow. Ball Check Valves are commonly used with liquid products and installed horizontally. Sizes range 1 1/2¨ - 3¨.

Check Valves are widely used for both sanitary and industrial applications to prevent backflow of product. Spring Check Valves are designed to prevent fluid from flowing back and to create a positive shutoff. They are commonly used with liquid products and installed in the vertical position.

Check Valves are widely used for both sanitary and industrial applications to prevent backflow of product. Air Blow Check Valves are designed to evacuate lines of product or CIP solutions. Air Blow Check Valves are made of T316L Stainless Steel

Ball Valves are used in a wide variety of high pressure applications. Two factors make them popular. First, a full unrestricted flow that allows no product restrictions through the valve. Second, the three piece design and the removal of a minimal number of bolts allows service to be performed without removing the complete valve from the line.

Ball Valves are used in a wide variety of high pressure applications. A full unrestricted flow allows no product restrictions through the valve. Thus, allowing easy diversion.

Ball Valves are used in a wide variety of high pressure applications. A full unrestricted flow allows no product restrictions through the valve. Thus, allowing easy diversion. Ball Valves are available in Manual, Pneumatically Actuated, and Electrically Actuated versions. We also offer a full line of control options. Limit switches, Solenoids, and Positioners can be included with your automated valve assembly.

PVE Valves are available in three operating modules: Air Actuated; Air Actuated with an electronic control head; and manually operated. PVE valves popular applications are the following: Shut-off Valve, Divert Valve, Tank Outlet and Pressure Relief Valve. Connections consist of Clamp, Weld, Bevel Seat, and E-Line. EGMO’s PVE Valves are made of AISI 316L Stainless steel which meet all 3A requirements and are offered in 1˝ through 4˝ sizes. Unique patent pending sealing system.

The EGMO Sampling Valves are uniquely designed for process quality control, which often demands a stringent sampling process for the finished product and throughout the various production stages. Sampling plays a critical role in product verification. Sampling directly from the process can be risky for the operator as well as for the environment (contamination, pollution). Wherever product safety is a top priority, use ESVs to ensure stringent product quality control at every processing stage while elimination risks in the sampling procedure. With ESV, bacteriological samples can be taken directly from the pipeline.

As one of the leading manufacturers of cavity free plug valves and special valves, AZ supplies to production plants in the chemical, petrochemical, pharmaceutical, paper, food industries as well as for nuclear power plants and many other areas. Special valves for highest demands in areas with high operating pressures and aggressive, toxic or abrasive media are designed and developed together with our customers. In the 50 years of the company’s existence, AZ has continuously developed to meet the increasing requirements of customers active around the world and today AZ manufactures internationally on four continents.

GA Industries 3” to 24” Series 800 ANSI Class 125 flanged exposed service butterfly valves meet the requirements of AWWA C504 Pressure Class 150B and 250B and are NSF-61 certified for contact with drinking water.  They are rugged, versatile and dependable valves routinely used in water filtration plants, pumping stations, pipelines and power plants to isolate equipment or systems.

Series 800 butterfly valves are standard with a high strength ductile iron body with a molded and vulcanized EPDM-P rubber seat.The disc is also ductile iron with a 316 stainless steel seat edge that seals against the rubber seat in the body.The valves shut off drop tight in both directions at both low and high pressure.

Series 800 exposed service AWWA butterfly valves are available with a 10-position manual lever up to 8” size and all sizes can be supplied with a worm gear operator and handwheel (optional chainwheel) or 2” nut.   Electric motor and pneumatic actuation are also available.

The primary purpose of a safety valve is to protect life, property and the environment. Safety valves are designed to open and release excess pressure from vessels or equipment and then close again.

The function of safety valves differs depending on the load or main type of the valve. The main types of safety valves are spring-loaded, weight-loaded and controlled safety valves.

Regardless of the type or load, safety valves are set to a specific set pressure at which the medium is discharged in a controlled manner, thus preventing overpressure of the equipment. In dependence of several parameters such as the contained medium, the set pressure is individual for each safety application.

Trynox TCVAWW sanitary Check valve,butt weld ends, tube sanitary fittings, body material sanitary stainless steel 316L/304, Surface finishing 180 Grit ID/ 150 Grit OD. Fits to Sanitary Stainless Steel Tubing, combined ...

Trynox TBBACC sanitary ball valve has an ultra slim design tri clamp sanitary  fittings, body material sanitary stainless steel 304, Surface finishing 180 Grit ID/ 150 Grit OD. Fits to Sanitary...

TBVAWW series Sanitary Butterfly valve Weld ends ultra slim design made of stainless steel either 316L or 304, Surface finishing 180 Grit ID/ 150 Grit OD, combined with different...

Trynox sanitary valve handle gasket available in Reinforced NYLON multi-position,  Those match with butterfly and sanitary ball valves all sizes. It is suitable for use in the food, beverage, biotech,...

Trynox TBVACC sanitary Clamp butterfly valve has an ultra slim design tri clamp sanitary  fittings, body material sanitary stainless steel 316L/304, Surface finishing 180 Grit ID/ 150 Grit OD. Fits to...

Trynox TBVDWW sanitary DIN butterfly valve has an ultra slim design tri DIN sanitary  fittings, body material sanitary stainless steel 304, Surface finishing 180 Grit ID/ 150 Grit OD. Fits to...

Trynox sanitary valve handle gasket available in Stainless Steel two positions,  Those match with butterfly and sanitary ball valves all sizes. It is suitable for use in the food, beverage,...

Trynox TBVAWW sanitary 3-A butterfly valve has an ultra slim design butt weld sanitary fittings, body material sanitary stainless steel 316L/304, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

Trynox TCVACC sanitary Check valve tri clamp sanitary  fittings, body material sanitary stainless steel 316L/304, Surface finishing 180 Grit ID/ 150 Grit OD. Fits to Sanitary Stainless Steel Tubing, combined  with...

TCV sanitary Check valve made of stainless steel either 316L or 304, Surface finishing 180 Grit ID/ 150 Grit OD, combined with many elastomeric combinations as well as different end...

TAVASOC sanitary diaphragm valve tri clamp made of stainless steel either 316L, Surface finishing 180 Grit ID/ 150 Grit OD, combined with an envelope diaphragm PTFE filled with EPDM or...

TAVA3WC sanitary diaphragm valve made of stainless steel either 316L, Surface finishing 180 Grit ID/ 150 Grit OD, combined with an envelope diaphragm PTFE filled with EPDM or VITON upon...

TPVAC sanitary plug valve made of stainless steel 304, Surface finishing 180 Grit ID/ 150 Grit OD, Clamp ends. It has a maximum operating pressure rating 140 (psi depending on...

TRVACC sanitary relief valve with its sphere body made of stainless steel  316L, Surface finishing 180 Grit ID/ 150 Grit OD, combined with some elastomeric options, clamp ends. It has...

TSCV sample sanitary cook valve made of stainless steel either 316L, Surface finishing 180 Grit ID/ 150 Grit OD, globe valve combined PTFE seal, NPT or clamp ends. It has...

Trynox TDVAL  Single Seat Divert valve L features a sphere body design tri clamp sanitary  fittings, body material sanitary stainless steel 316L, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

Trynox TDVAL  Single Seat Divert valve LL features a sphere body design tri clamp sanitary  fittings, body material sanitary stainless steel 316L, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

Trynox TDVAL  Single Seat Divert valve LT features a sphere body design tri clamp sanitary  fittings, body material sanitary stainless steel 316L, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

Trynox TDVAT  Single Seat Divert valve T features a sphere body design tri clamp sanitary  fittings, body material sanitary stainless steel 316L, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

Trynox TDVAT  Single Seat Divert valve TL features a sphere body design tri clamp sanitary  fittings, body material sanitary stainless steel 316L, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

Trynox TDVAT  Single Seat Divert valve TT features a sphere body design tri clamp sanitary  fittings, body material sanitary stainless steel 316L, Surface finishing 180 Grit ID/ 150 Grit OD. Fits...

To constantly improve the management system by virtue of the rule of "sincerely, good faith and quality are the base of enterprise development", we widely absorb the essence of related products internationally, and constantly develop new products to meet the demands of customers for Butterfly Valve High Performance , Pn25 Sluice Gate Valve , Manual Penstock Gate , We are willing to give you the lowest price in the market, best quality and very nice sales service.Welcome to do bussines with us,let"s be double win.

This kind of butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry etc. and industrial environmental protection, water treatment, high building, water supply and drain tubing line open or close or adjusting medium.

Industrial Valve Market Key Findings, Major Companies, Global Industry Size, Segmentation, Share, Regional Outlook, Competitive Strategies and Forecasts 2019 To 2023 – Press Release | Rising Stem Type Gate Valve

We stick to our enterprise spirit of "Quality, Performance, Innovation and Integrity". We purpose to create a lot more price for our prospects with our rich resources, innovative machinery, experienced workers and great products and services for Free sample for Rising Gate Valve - Bare stem flanged butterfly valve – Jinbin Valve , The product will supply to all over the world, such as: Oslo, Sao Paulo, India, We hope we can establish long-term cooperation with all of the customers. And hope we can improve competitiveness and achieve the win-win situation together with the customers. We sincerely welcome the customers from all over the world to contact us for anything you need!

Through innovative organic development and strategic acquisition, we have built a broad portfolio of ASME and API valves that services the demands of global drilling, production, pipeline, storage, transmission, and critical service applications.

The best basis for efficient and safe production processes due to the wide variety of options provided by our modular system, ease of maintenance, cleanability, and the options for the valves to meet the latest hygiene and aseptic requirements.

Südmo offers a comprehensive, refined double seat valve for implementation and automation of widely varying production processes in the food and beverage industry.

Südmo Comprehensive hygienic butterfly valve line features both manual and pneumatic drive options, including lockable handles and vertical actuators.

Pentair Südmo Valve Manifolds offer professional design, combined with the highest processing quality and permit optimum cleaning for perfect product quality.

This valve is well suited for applications where there is pulsing flow and should not be used for sticky, adhesive products or those with excessive viscosities where the ball can be held in the offset tube

These ball check valves use larger diameter balls for the tube size than those used by competitors, eliminating the possibility of jamming the ball in the product tube, which can otherwise occur when subjected to high back pressure or hydraulic shock
