The MS6-SV is available in performance level C and E units; the MS9-SV is available in a performance level C unit. Both have exhaust functions in a compact unified body. The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard–category 4—an exhaust rate of 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function. The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

This Festo pneumatic soft-start valve lets you gradually increase flow downstream in your compressed air system. That means it prevents damage from unexpected start-ups or sudden releases of pressure. A solenoid actuator automatically regulates the internal valve position, and you can manually adjust the rate of release. This is ideal for maintaining a safe work environment when starting equipment after repair or installation. The valve also has an analogue pressure gauge so you can monitor your systems at a glance.

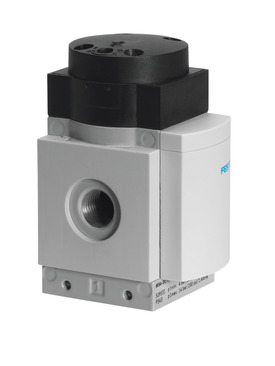

Soft start/quick exhaust valve; Series : MS; Size : 6; Grid dimension : 62 mm; Safety function : ExhaustingPrevention of unexpected start-up (pressurisation); Safety Integrity Level (SIL) : Exhausting / SIL 3Prevention of unexpected start-up (pressurisation)/SIL 3; Performance level (PL) : Vent/up to Category 4, PL ePrevention of unexpected start-up (pressurisation)/up to category 4, Performance Level e; Note on forced dynamisation : Switching frequency min. 1/month; Design structure : Piston seat; Freedom from overlap : No; Type of actuation : electrical; Pilot air supply : Internal; Sealing principle : soft; Exhaust-air function : not throttleable; Position sensing principle : Solenoid actuator principle; Conforms to standard : DIN EN ISO 13849-1; Manual override : None; Type of reset : mechanical spring; Type of piloting : Piloted; Valve function : 3/2 closed, monostablePressure build-up function; Pressure gauge : with pressure sensor; C value : 19.3 l/sbar; b value : 0.21; Standard flow rate for exhaust 6->0 bar : 9,000 l/min; Max. switching frequency : 1 Hz; Switching time off : 40 ms; Switching time on : 130 ms; Duty cycle : 100 %; Signal status display : LEDFloating contact; Nominal operating voltage DC : 24 V; Permissible voltage fluctuation : +/- 10 %; Note on operating and pilot medium : Lubricated operation possible (subsequently required for further operation); Corrosion resistance classification CRC : 2 - Moderate corrosion stress; Materials note : Conforms to RoHS; Medium temperature : 0 ... 50 °C; Storage temperature : 0 ... 50 °C; Shock resistance : Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27; Vibration resistance : Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6; Authorisation : RCM Mark; KC mark : KC-EMV; CE mark (see declaration of conformity) : to EU directive for EMC, to EU directive for machinery; Certificate issuing department : IFA 1001180; Food-safe : See Supplementary material information; Assembly position : Any; Pneumatic connection, port 1 : G1/2; Pneumatic connection, port 2 : G1/2; Pneumatic connection, port 3 : G1; Electrical connection : 9-pin, Sub-D; Material seals : NBR; Material piston rod : High alloy steel, non-corrosive

Are new innovative combined soft start and quick exhaust safety valve that will set new standards they are both safety level C, Low cost and capable of high flow rates, and DIM ISO 13849-1 available in ½ and ¾ and 1” connection ports.

New laws and directives that focus to ensure the safety of machines communicate with human beings i.e. the EC (ECMD) machinery directive.Festo pneumatics safety solutions can help address these safety issues and ensure the safety of your systems.Once a risk assessment has been completed, Electroquip can support you with technical safety measures regarding – Safety sensors, safety controls on the processing side (logic) and protective measures on the output level.

The Festo MS6-SV-C and the MS9-SV-C deal with the fast air dumping of a machine and the slow build up/start of air once the air is evacuated from a system. These new valves provide outstanding substantial flow rates available in very compact size. Therefore, the valve can vent air in the system rapidly and easily, providing remarkable performance and response in an emergency thereby giving machine builders improved safety.

Festo safety valves are aimed to minimize risk to moderate systems while having certification up to minimal risk systems as well as having certification to a maximum performance level C in line with DIN EN ISO 13849-1. Festo MS6-SV-C and Festo MS9-SV-C valves have been created for applications that have very low switching frequencies, including venting once Emergency-stop buttons or even door locks have been triggered.

Due to its soft-start function, unmonitored movements by system elements will be averted throughout start-up additionally, the system has no residual pressure when vented, as a result supplying outstanding protection for your user. Festo range has two types which are perfect for either sixty millimetres or ninety millimetres of mass MS series air preparation range. Festo MS9-SV-C provides a regular standard flow rate a maximum of sixteen thousand five hundred l/min as well as an air escaping volume of a maximum of twenty thousand five hundred l/min. Festo MS6-SV-C features a regular flow rate of a maximum of five thousand 700 hundred l/min, as well as an air escaping volume of maximum of seven thousand six hundred, l/min.

Compact in size and merging of 2 functions into a single device, they are ideal for system manufacturers in the food, packaging and vehicle sectors which could be simply installed inside Festo air preparation system included in the safety configuration set-up. Festo valves help in enhancing the machines dependability merely by lowering the impact as well as harm to payloads as well as the machinery.

For more information on the new FestoMS6-SV-C and MS9-SV-C safetyvalves or any pneumatic requirements from the Festo product range contact us at Electroquip.

Festointroduced the MS6-SV and MS9-SV safety valves. These safety valves offer many features, including compact size, soft start functionality, and advantageous price versus performance ratio. The MS6-SV is available in Performance Level c and e units; the MS9-SV is available in a Performance Level c unit.

Both the MS6-SV and MS9-SV have integrated soft start and exhaust functions in a compact unified body. OEMs and end users have the flexibility of mounting these safety valves as stand-alone units or as a component of the modular Festo MS air preparation system.

The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard – category 4, performance level e. This valve has an extremely high exhaust rate for its size – 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function.

The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

The MS6-SV-C and MS9-SV-C are ideal for applications with performance level c safety requirements. The c series valves are reliable, cost-effective, single channel safety units designed to enable fast safety exhaust.

The Festo MS air preparation series combines all of the standard functions of air preparation with additional options for pressure regulators, filters, dryers, sensors, lubricators, and safety with the MS6 and MS9 safety valves. The MS air preparation series includes function modules with integrated sensors, remote adjustability, and remote-controlled pressure monitoring for maximum process security.

The safety valves feature soft start functionality, and beneficial price versus performance ratio. The MS6-SV is available in Performance Level c and e units; the MS9-SV is available in a Performance Level c unit. Both the MS6-SV and MS9-SV have integrated soft start and exhaust functions in a compact unified body.

The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard: category 4, performance level e. This valve has an exhaust rate of 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function.

The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.

The MS6-SV-C and MS9-SV-C are suitable for applications with performance level c safety requirements. The c series valves are single channel safety units designed to enable fast safety exhaust. Flow rates for the MS6-SV-C used for station level safety: P1 > P2 5,700 l/min; P2 > P3 7,600 l/min. Flow rate for the MS9-SV-C applied at the machine level: P1 > P2 15,500 l/min; P2 > P3 20,500 l/min. Both have adjustable pressure ramp-up rate and switching point.

The safety valves can be mounted with the Festo MS air preparation series. The MS series air preparation unitscombine all of the standard functions of air preparation with additional options for pressure regulators, filters, dryers, sensors, lubricators, and safety. The series includes function modules with integrated sensors, remote adjustability, and remote-controlled pressure monitoring for maximum process security.
