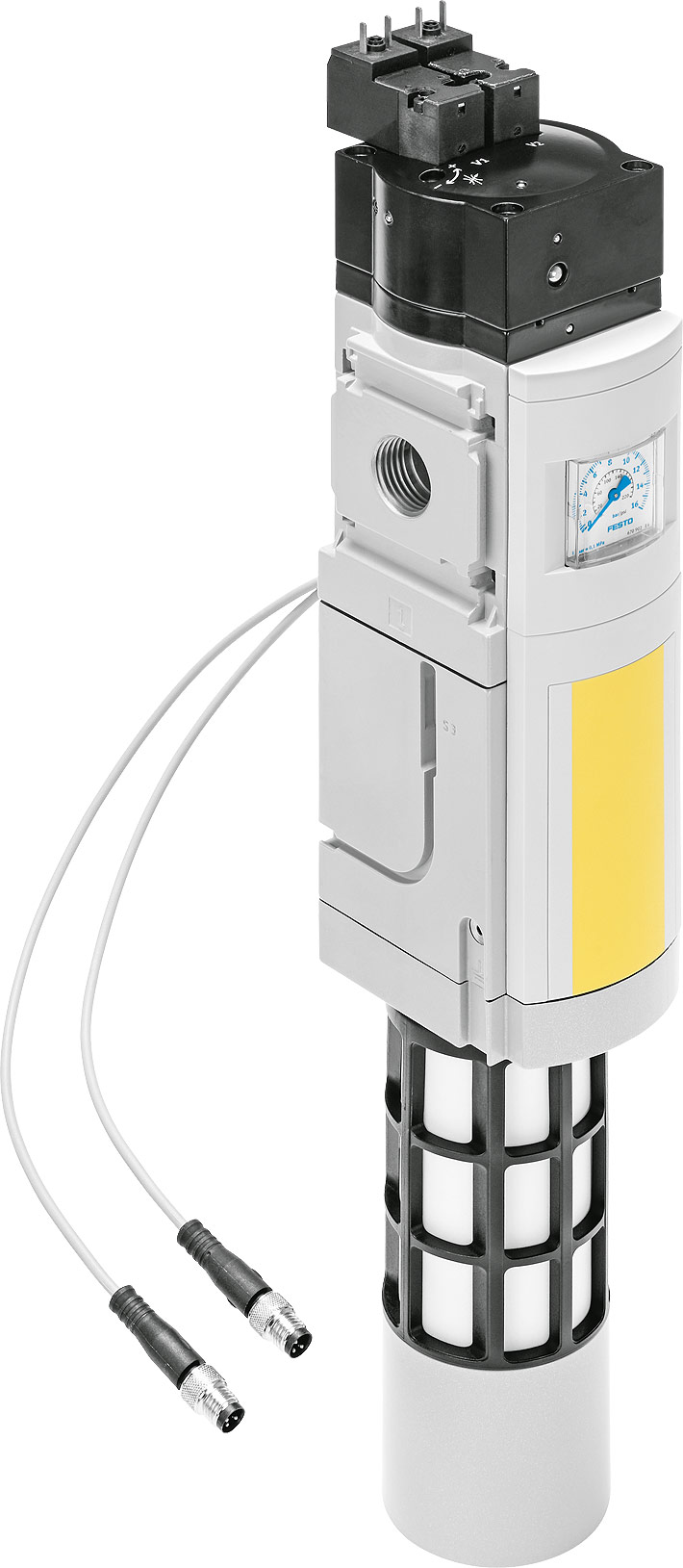

The MS6-SV-SGC-E-10V24 electropneumatic soft-start/quick exhaust valve is used to reduce pressure quickly and safely and to build up pressure gradually in industrial pneumatic piping systems and terminal equipment. The device is a self-testing, redundant mechatronic system conforming to the requirements of EN ISO 13849-1.

In the normal position (completely exhausted product), the pilot valves V1 and V2 are not actuated. If both pilot valves are actuated, the product switches first to the switching position 1 and then, when the switch-through pressure is reached, automatically into switching position 2 è Fig.3. Festo — MS6-SV-...-D-10V24 — 2019-05b...

Soft-start/quick exhaust valve, electrically actu- ated. Tab. 4 Circuit symbol for the function Switching behaviour Switching behaviour of the product"s internal valves. The normally exhausted position is sensed by the proximity sensors. Switching logic è Tab. 3 Switching logic. Festo — MS6-SV-...-D-10V24 — 2019-05b...

The flow rate and thus the pressure rise can be adjusted by turning the flow control screw. When the output pressure p2 reaches about 50 % of the operating pressure p1, the maximum flow rate perform- ance is enabled. Festo — MS6-SV-...-D-10V24 — 2019-05b...

Fig.3. è Diagnostics at each resetting to the normal position Switch off voltage to pilot valves V1 and V1 = 0; V2 = 0 Record edge change at proximity sensors S1 = 0  1; S2 = 0  1 è è S1 and S2. Festo — MS6-SV-...-D-10V24 — 2019-05b...

EN ISO 13849-2. value The PFH value depends on the model of the product and the annual actuation rate (n value MS6-SV-…-D 1 PFHd [10 2 Actuation rate (nop) [10 Fig. 5 PFHd value MS6-SV-…-D Festo — MS6-SV-...-D-10V24 — 2019-05b...

3 in the [l/min]  6000 (at p1 = 6 bar) ³ event of a critical fault Switch-through point Approx. 50% of p1 Filling flow Adjustable by flow control Minimum pause time after  1 ³ exhaust Tab. 10 Technical data, pneumatic Festo — MS6-SV-...-D-10V24 — 2019-05b...

Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Reproduction, distribution or sale of this document or communic- Phone: ation of its contents to others without express authorization is +49 711 347-0 prohibited. Offenders will be liable for damages. All rights...

Electro-pneumatic soft start and quick exhaust valve for gradual pressure control and rapid exhaustion of system components (one channel). The main flow control valve in the cover ensures a gradual build-up of output pressure p2. As soon as the output pressure p2 has reached the set pressure switching point (switching pressure), the valve opens and the full pressure p1 is then present on the output.
