I got a safety valve and everything looked good untill i was installing the part. I am a licensed hvac contractor and have been in the field for over 10 years now. Well the safety pilot wasent staying on so i checked the thermocouple and everything was good untill i saw that the safety valve was broken from one side where the thermocouple connects. Now i have a mad costumer because i got a part that does not work
ROBERTSHAW FMEA RETROFIT KIT COMMERCIAL GAS SAFETY VALVES includes valve with long button We were the first to market these kits when FMEA valves were discontinued

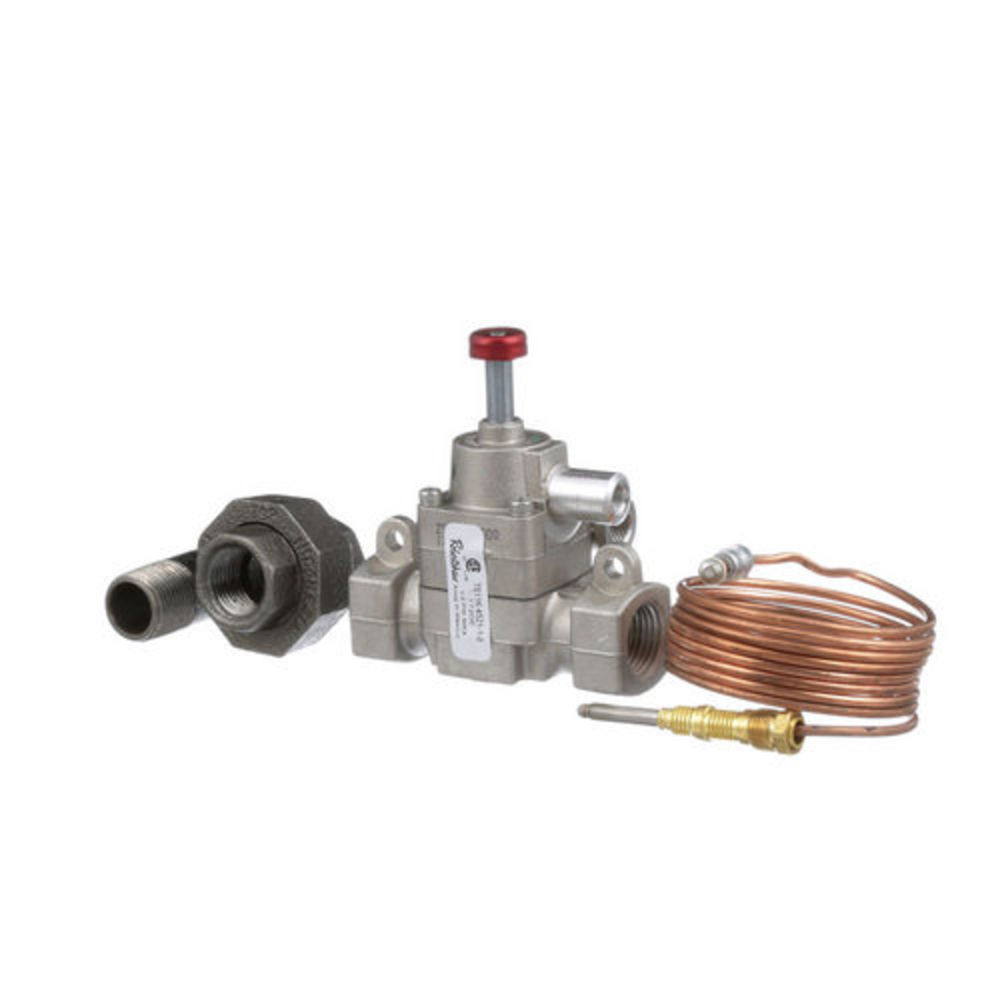

RETROFIT KIT FOR FMEA 1/2 INCHReplaces most 1/2 inch FMEA valvesIncludes• Adapter to convert pilot from 1/4 inch to 3/16 • one 1/2 TS11 VALVE• one brass extension • one 60" thermocouple• Fiberglass shield for thermocoupleThese kits will install in most situations without any additional hardware. In some cases it might be necessary to slightly enlarge hole on cover where button protrudes.
• Inlet outlet 1/2" NPT• Button length 1 3/32 "•Valve provides positive shut off of gas whenpilot is out •1/4" O.D. tubing outlet for pilot• For Bakers Pride deck pizza ovens model series 101, 104, 104P, 201,204, 204P, 251, 301, 304, 304P, 351, 401, 404, 404P, 451, 805, D125, Y600,Y612, X500, 922, 932 • Bakers Pride no. M1004A pilot is out
Blodgett Ovens were manufactured using different sized Pilot Tubing. Our Safety Valve Replacement Kit is complete and comes with adaptors, so it will fit ovens with 1/8", 3/16" or 1/4 O. If it"s not right for your oven you will spend hours rushing around town looking for an adaptor.
REPLACEMENT KIT FOR OLD FMEA SAFETY VALVE - CONSISTS OF MAGNETIC SAFETY VALVE, ADAPTOR AND THERMOCOUPLE. RTK EQUIPMENT IS THE INDUSTRY LEADER IN SAFETY VALVE REPLACEMENT KITS. WE PROUDLY HAVE OVER 2,000 SAFETY VALVE KITS IN SERVICE AROUND THE COUNTRY AND THE WORLD. The FMEA Safety Kit is a great product that works. I have two Blodgett 981 series pizza ovens, my old FMEA valve malfunctioned, I was told by the local oven repair service in Center Line, Michigan that they were unable to help me because there is nothing out on the market to replace it! I found Randy on the Internet. He knew what I needed, took my info and sent me the kit. I received it in 2 days, installed it in 20 minutes, and it works great!! The FMEA replacement kit worked great. I no longer have to worry about not getting parts for an outdated safety valve.
Anyone with an older Blodgett oven that needs this conversion valve should contact you. Jerry Petrini, My Three Sons Family Fun Center, Norwalk, CT..... OLD SAFETY NO LONGER AVAILABLE. This kit replaces the old FMEA Safety Valves that are found on many older Pizza and Convection Ovens.
The old FMEA Safeties are no longer manufactured because they contain Mercury. This replacement kit consists of a Robert Shaw"K" Type- Magnetic Safety and Gas Carrier , a special"Brass Adaptor" so it will match up exactly with the old FMEA valve, and a new 60 thermocouple (Flame Sensor). We also have 48" & 72" thermocouples available if needed. This allows for proper alignment of the button when installed. This is not something you want to do in the field.
The Robert Shaw Safety is a"K" Type, Gas In/Out: 1/2 NPT. Pilot (OUT ONLY): 1/4" NPT, with adaptors for 1/8" & 3/16 pilots if needed. Note: The shutoff valve and thermostat shown in the additional picture are also available from us but are NOT included at this price. Call our Customer Service Department for more information. This is suitable for Blodgett and certain other brands.
If you need 3/8 Safety valves for Vulcan or other brands, give us a call. BLODGETT: Convection Ovens: FA-1OO; Pizza Ovens: 999, 1000. And others where FMEA Safety Valves are used. We have been refurbishing restaurant equipment for many years, and have hundreds of satisfied customers. WE INSTALL THE ADAPTORS FOR YOU, IN OUR SHOP, SAVING YOU A LOT OF TIME AND AGGRAVATION.
We will do everything possible to satisfy your needs. Maybe it"s just a knob to go along with that Thermostat, or a thermocouple to go along with that Gas Valve. We carry parts for most commercial restaurant equipment. We will be happy to help. Please take a minute to check our Feedback We sell only quality items, and your satisfaction is guaranteed. The item "FMEA SAFETY VALVE REPLACEMENT KIT- BLOGETT PIZZA, DECK OVENS 900, 981, 1000" is in sale since Monday, March 12, 2012. This item is in the category "Business & Industrial\Restaurant & Food Service\Commercial Kitchen Equipment\Cooking Equipment\Commercial Ovens\Other Commercial Ovens". The seller is "kennyzoo" and is located in Lakeland, Florida. This item can be shipped worldwide.
FMEA SAFETY VALVE KIT -REPLACES BAKERS PRIDE M1104A MODELS: Y600, DS805, OTHERS. • For Bakers Pride deck pizza ovens model series 101, 104, 104P, 201,204, 204P, 251, 301, 304, 304P, 351, 401, 404, 404P, 451, 805, D125, Y600,Y612, X500, 922, 932. • Bakers Pride no. • one 1/2 TS11 VALVE. RETROFIT KIT FOR FMEA 1/2 INCH Replaces most 1/2 inch FMEA valves Includes • one 1/2 TS11 VALVE • one brass extension • one 60" thermocouple These kits will install in most situations without any additional hardware. In some cases it might be necessary to slightly enlarge hole on cover where button protrudes. • Inlet outlet 1/2" NPT • Button length 1 3/32 " •Valve provides positive shut off of gas when pilot is out •1/4" O.D. tubing outlet for pilot • For Bakers Pride deck pizza ovens model series 101, 104, 104P, 201,204, 204P, 251, 301, 304, 304P, 351, 401, 404, 404P, 451, 805, D125, Y600,Y612, X500, 922, 932 • Bakers Pride no. M1004A pilot is out SAME DAY SHIPPING ON ORDERS PLACE BEFORE 2:00PM EASTERN TIME
